Toyota Mirai
2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States
Supported model
Data version 2020-07

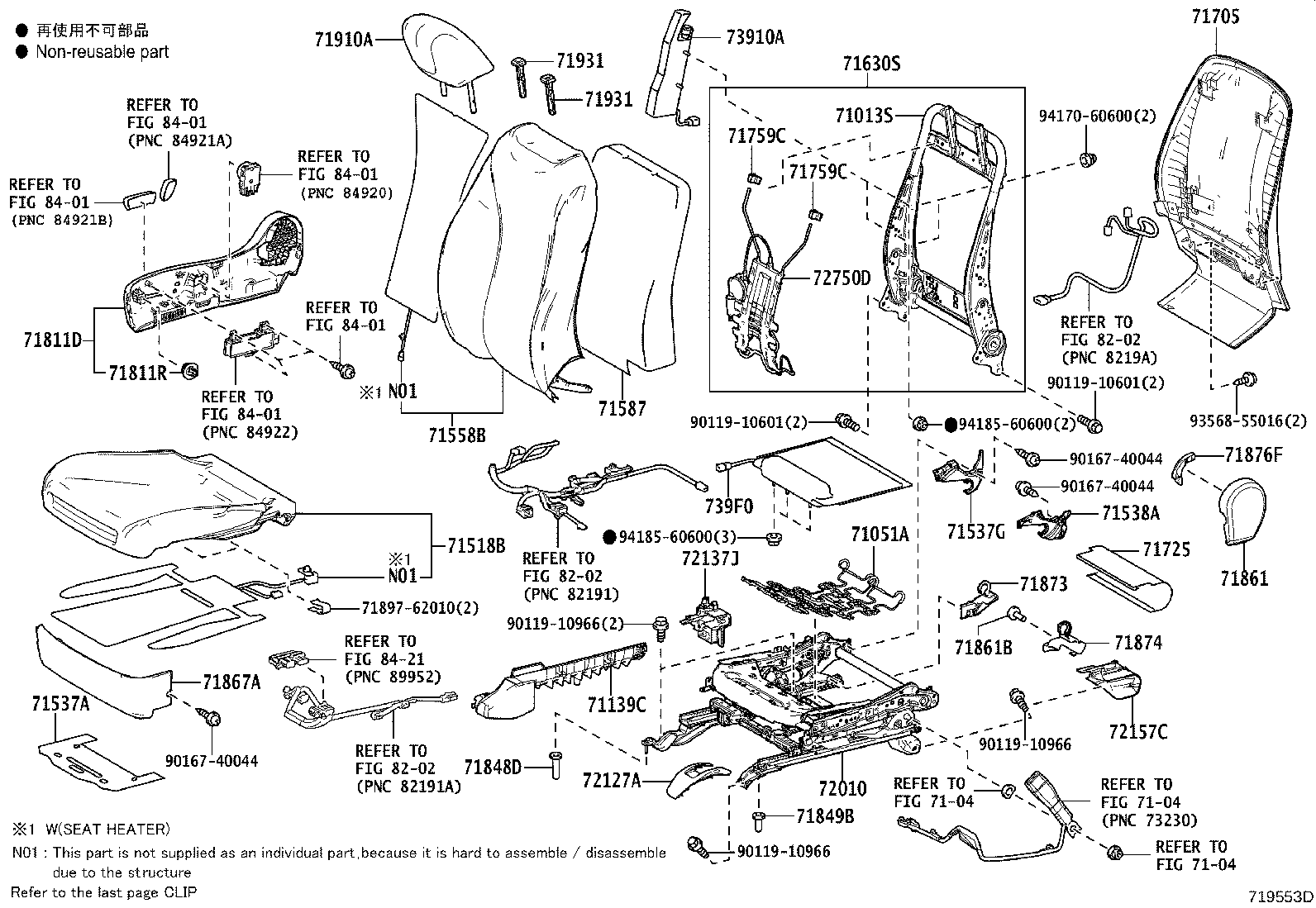

Front Seat & Seat Track
57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71139C | Cover, Front Seat Leg, RH |
| 71149A | Cover, Front Seat Leg, LH |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537A | Protector, Front Seat Cushion |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71587 | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71725 | Carpet, Front Seat Cushion |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812S | Clip, Front Seat Cushion Shield, LH |
| 71848D | Cap, Seat Adjuster Cover, RH(FOR RH SEAT) |
| 71848E | Cap, Seat Adjuster Cover, RH(FOR LH SEAT) |
| 71849B | Cap, Seat Adjuster Cover, LH(FOR RH SEAT) |
| 71849F | Cap, Seat Adjuster Cover, LH(FOR LH SEAT) |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873C | Shield, Rear Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157C | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 739F0 | Airbag Assy, Front Seat Cushion, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
