Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 3 illustrations

Illustrations

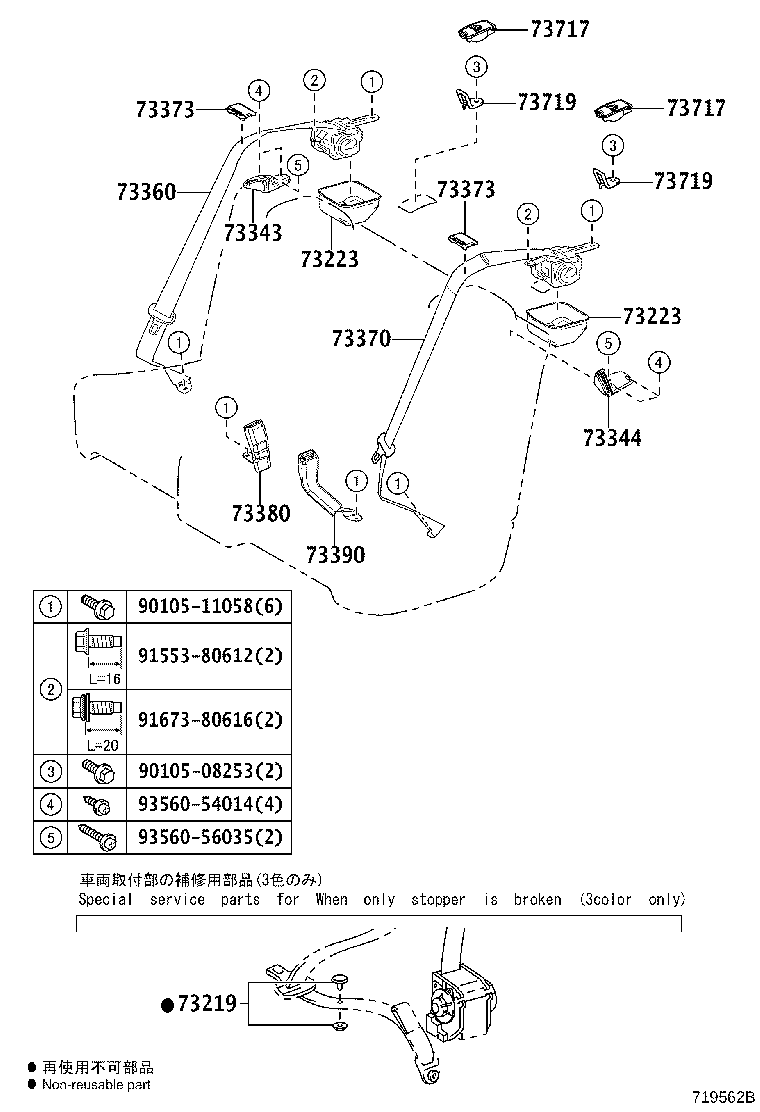

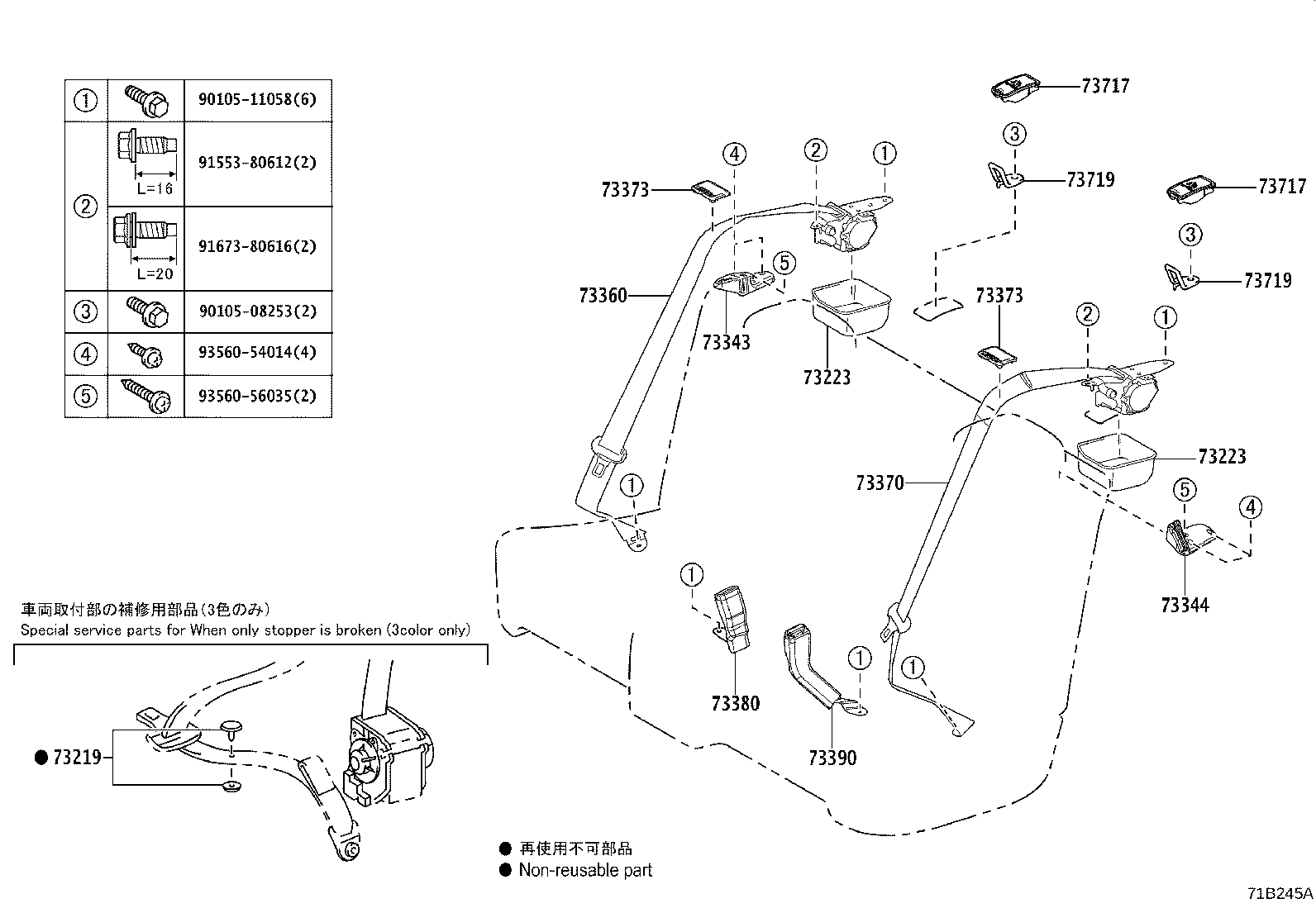

Figure 719561A 719561A 2015-06 → — Figure 719562B 719562B 2015-06 → 2018-03 Figure 71B245A 71B245A 2018-03 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
