Toyota Mirai
2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States
Supported model
Data version 2020-07

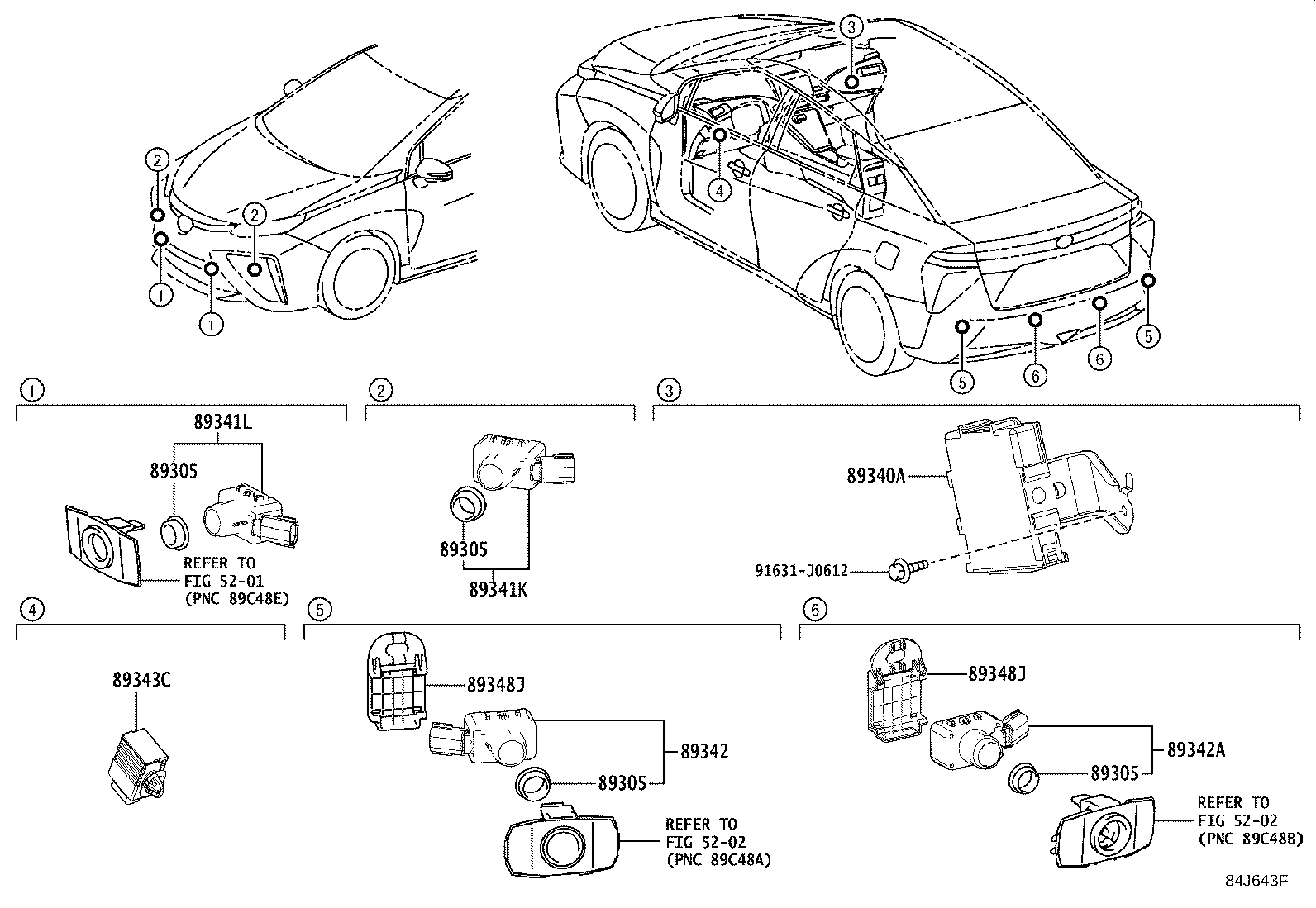

Clearance & Back Sonar
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89305 | Cushion Set, Ultrasonic Sensor |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89341K | Sensor, Ultrasonic, Front Corner |
| 89341L | Sensor, Ultrasonic, Front Center |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348J | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
