Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fcev Intake & Exhaust

33 part groups · 3 illustrations

Illustrations

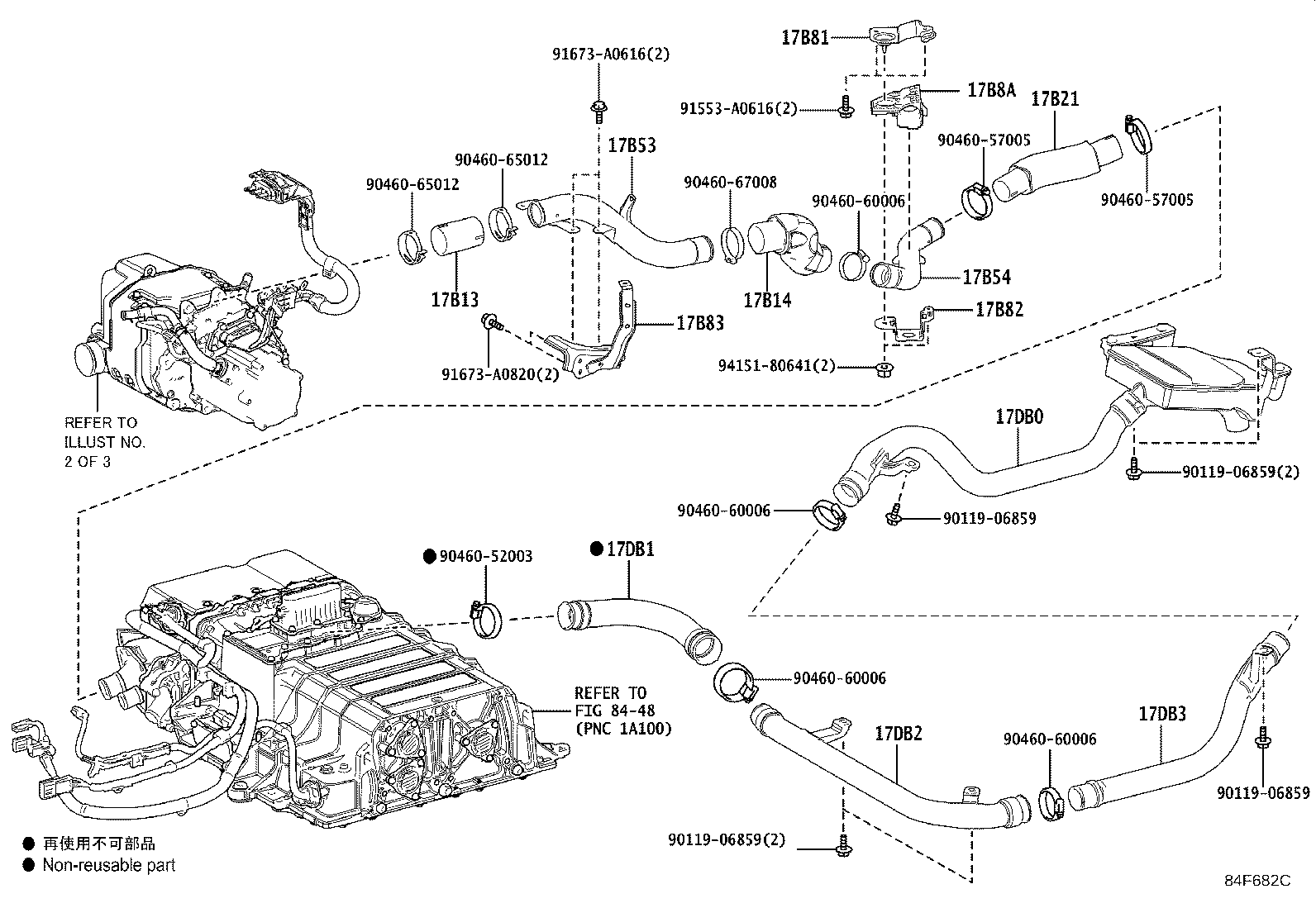

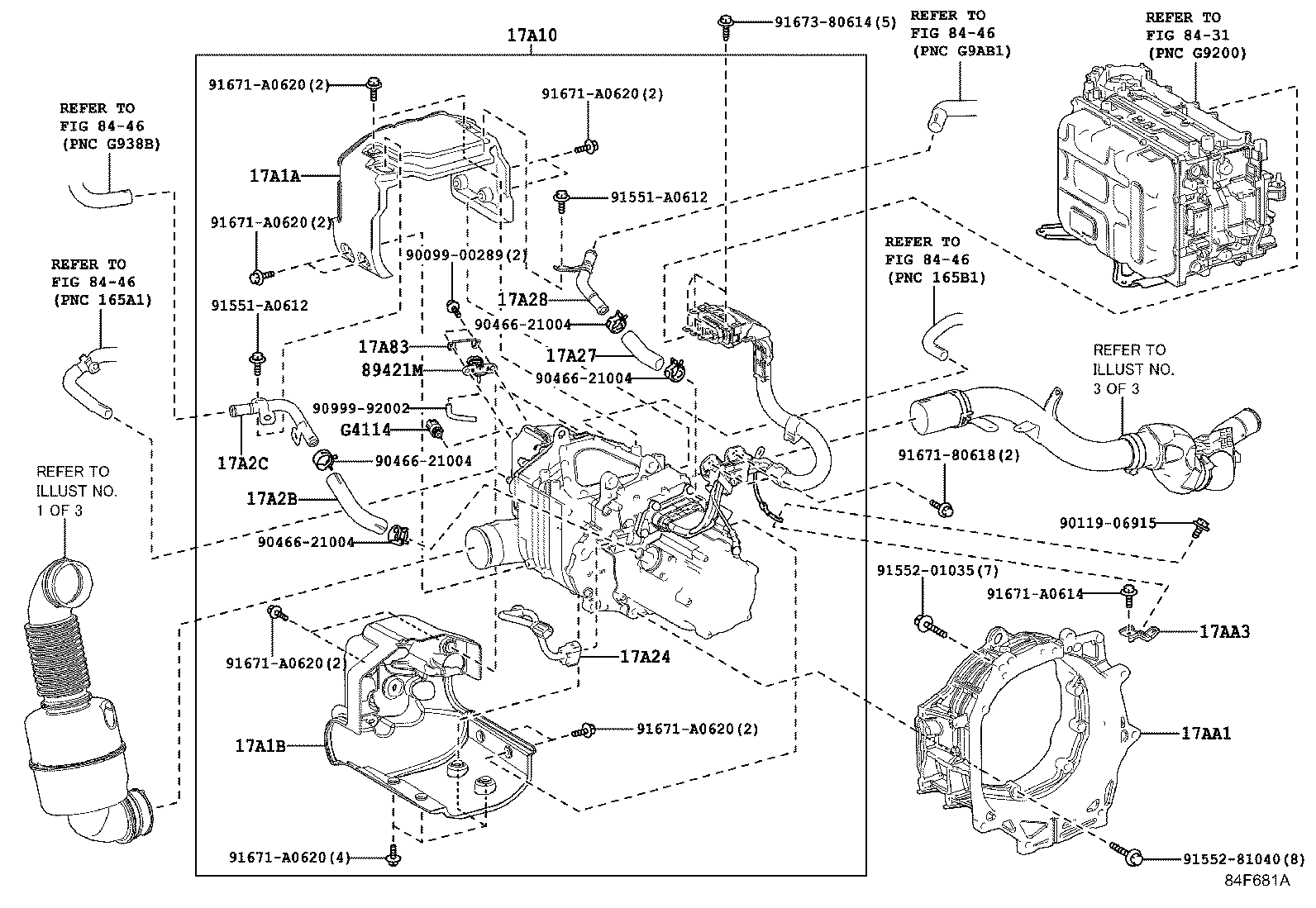

Figure 84F680A 84F680A 2015-06 → — Figure 84F681A 84F681A 2015-06 → — Figure 84F682C 84F682C 2015-06 → —

Part groups

PNCDescription
17701A Case Sub-assy, Air Cleaner
17705A Cap Sub-assy, Air Cleaner
17751B Inlet, Air Cleaner
17769B Support, Air Cleaner
17801C Element Sub-assy, Air Cleaner Filter
17880D Hose Assy, Air Cleaner
17A10 Compressor Assy, FC Air W/Motor
17A1A Cover, FC Air Compressor, Upper
17A1B Cover, FC Air Compressor, Lower
17A24 Wire, FC Air Compressor Revolution Sensor
17A27 Hose, FC Air Compressor Motor Cooling Inlet
17A28 Pipe, FC Air Compressor Motor Cooling Inlet
17A2B Hose, FC Air Compressor Motor Cooling Outlet
17A2C Pipe, FC Air Compressor Motor Cooling Outlet
17A83 Stay, FC Air Compressor Pressure Sensor
17AA1 Bracket, FC Air Compressor
17AA3 Bracket, FC Air Compressor Cable
17B13 Hose, FC Air Compressor Outlet, NO.1
17B14 Hose, FC Air Compressor Outlet, NO.2
17B21 Hose, FC Stack Air Inlet
17B53 Pipe, FC Air Compressor Outlet, NO.1
17B54 Pipe, FC Air Compressor Outlet, NO.2
17B81 Bracket, FC Air Compressor Outlet Pipe, NO.1
17B82 Bracket, FC Air Compressor Outlet Pipe, NO.2
17B83 Bracket, FC Air Compressor Outlet Pipe, NO.3
17B8A Cushion, FC Air Compressor Outlet Pipe
17DB0 Pipe Assy, FC Exhaust Tail
17DB1 Pipe, FC Exhaust, NO.1
17DB2 Pipe, FC Exhaust, NO.2
17DB3 Pipe, FC Exhaust, NO.3
22204B Meter Sub-assy, Intake Air Flow
89421M Sensor, Turbo Pressure
G4114 Sensor, FC Gas Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
