Toyota Mirai

2015-06 → 2020-05 · chassis JPD10 · catalogue 28B410 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 2 illustrations

Illustrations

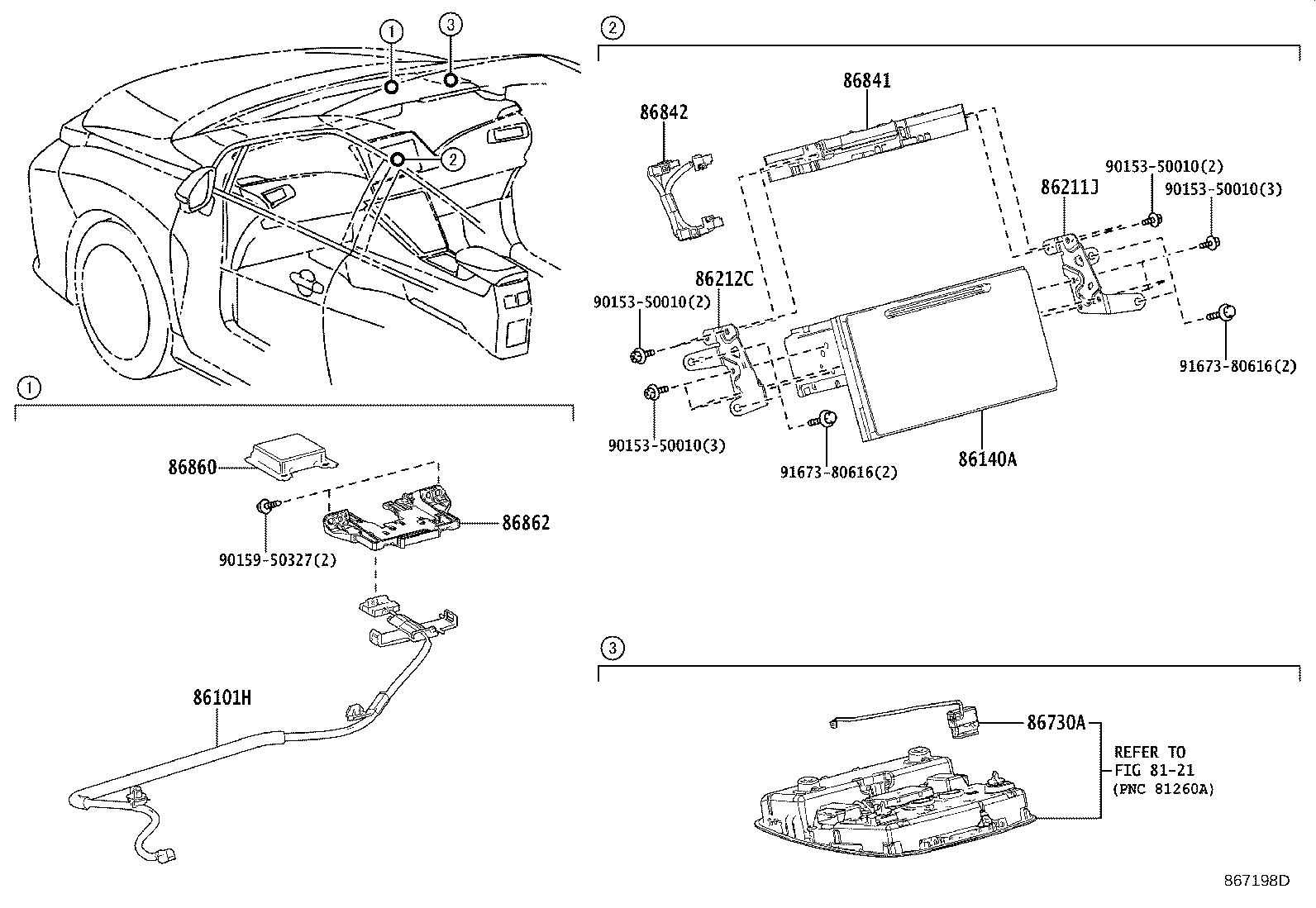

Figure 866144E 866144E 2015-06 → 2018-01 Figure 867198D 867198D 2018-01 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271L Hard Disc
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
