Heating & Air Conditioning - Control & Air Duct

29 part groups · 3 illustrations

Illustrations

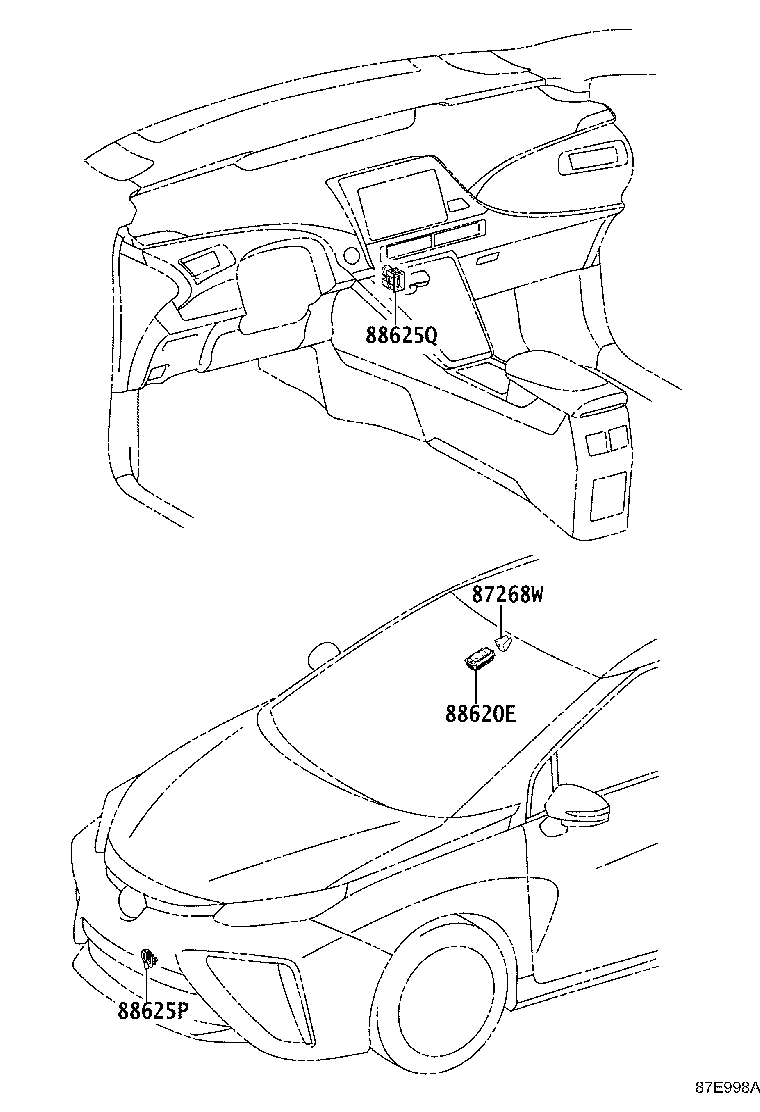

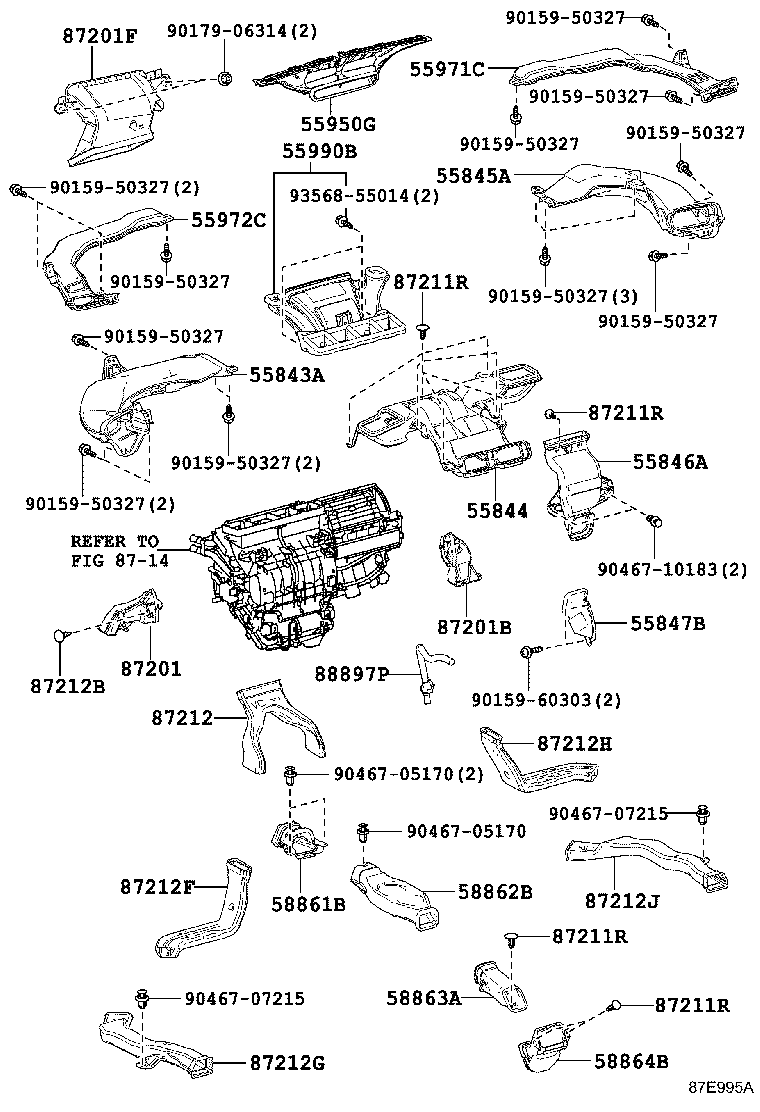

Figure 87E996A 87E996A 2015-06 → — Figure 87E995A 87E995A 2015-06 → — Figure 87E998A 87E998A 2015-06 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
58864B Duct, Console Box, NO.4
84010A Control & Panel Assy, Integration
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87268W Protector
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
