Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B420 · United States
Supported model
Data version 2024-11
Roof Headlining & Silencer Pad

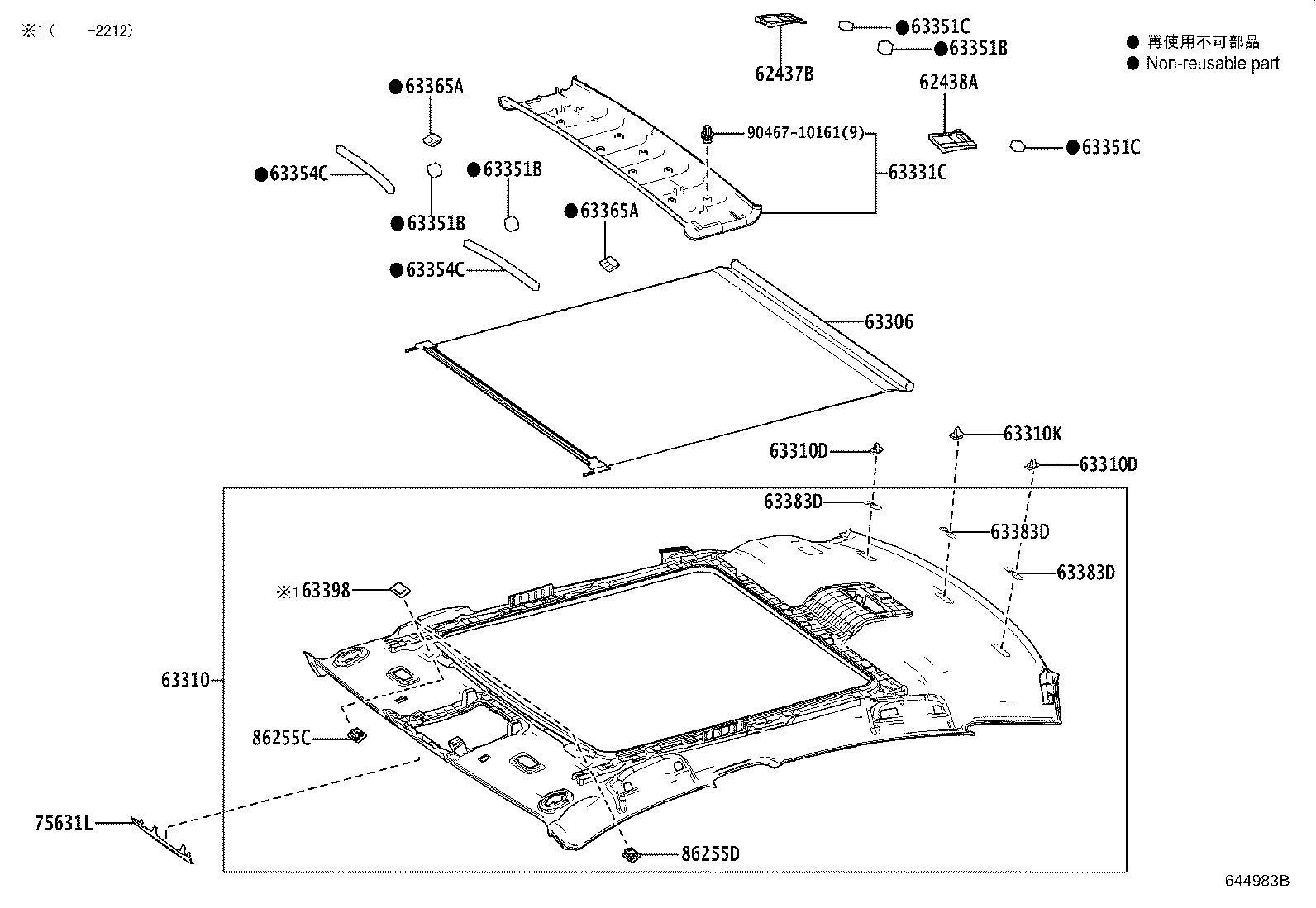

22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62435C | Pad, Roof Side Rail Garnish, RH |
| 62436C | Pad, Roof Side Rail Garnish, LH |
| 62437B | Pad, Roof Side Rail, Rear RH |
| 62438A | Pad, Roof Side Rail, Rear LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63331C | Protector, Roof Center Reinforcement |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63354C | Pad, Roof Headlining Front Side |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63365A | Plate, Roof Headlining Set |
| 63383D | Retainer, Roof Headlining, Rear |
| 63398 | Plate, Roof Headlining Support |
| 75631L | Garnish, Roof Top, Front |
| 86255C | Case, Microphone, RH |
| 86255D | Case, Microphone, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
