Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B420 · United States
Supported model
Data version 2024-11

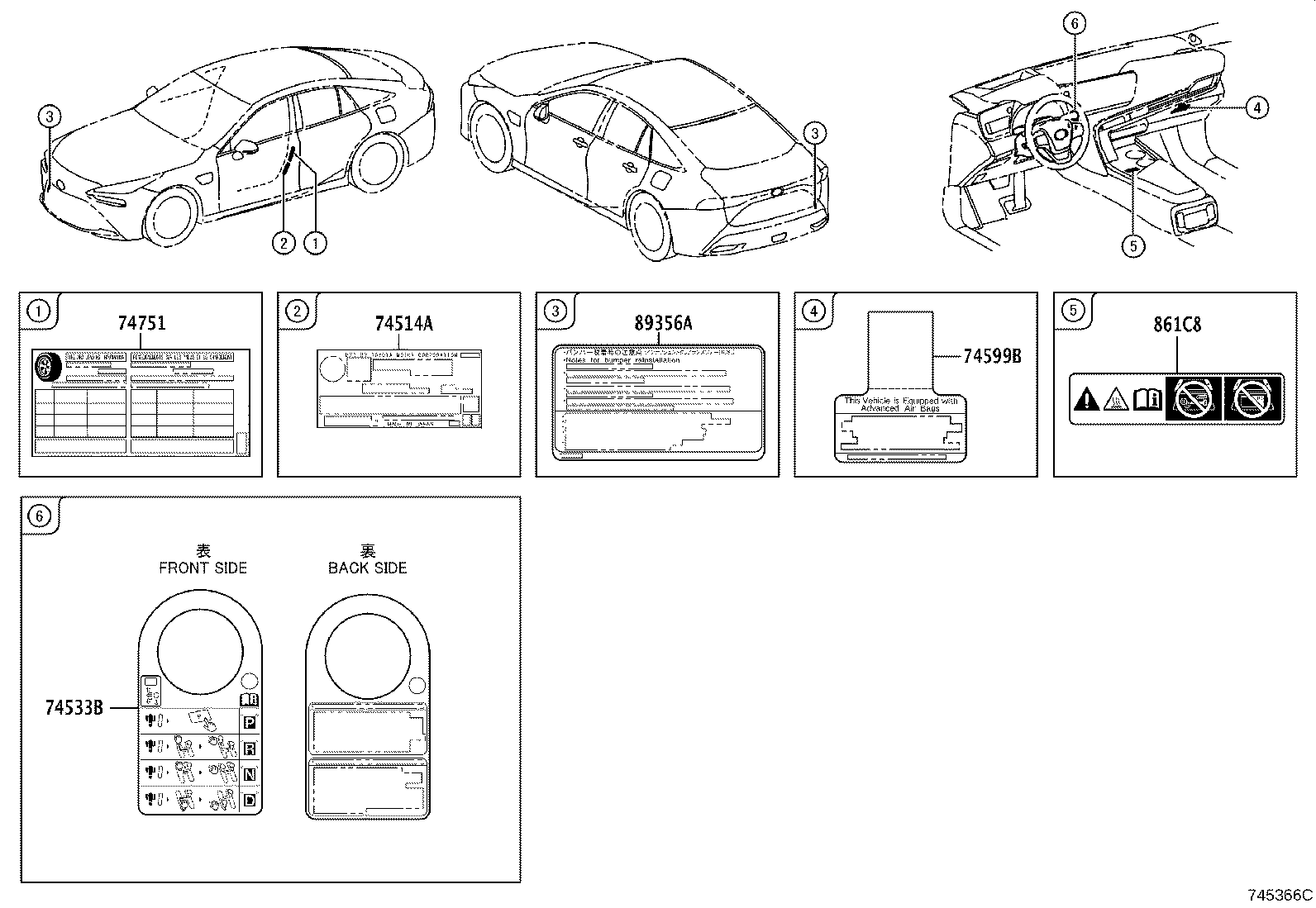

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16793E | Label, Cooling Fan Caution |
| 1A1A7 | Label, FC Stack Notice |
| 288A2 | Label, Battery Location |
| 74514A | Label, Certification Regulation Information |
| 74533B | Plate, Shifting Instruction |
| 74571A | Film, Label Cover |
| 74571D | Film, Label Cover |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |

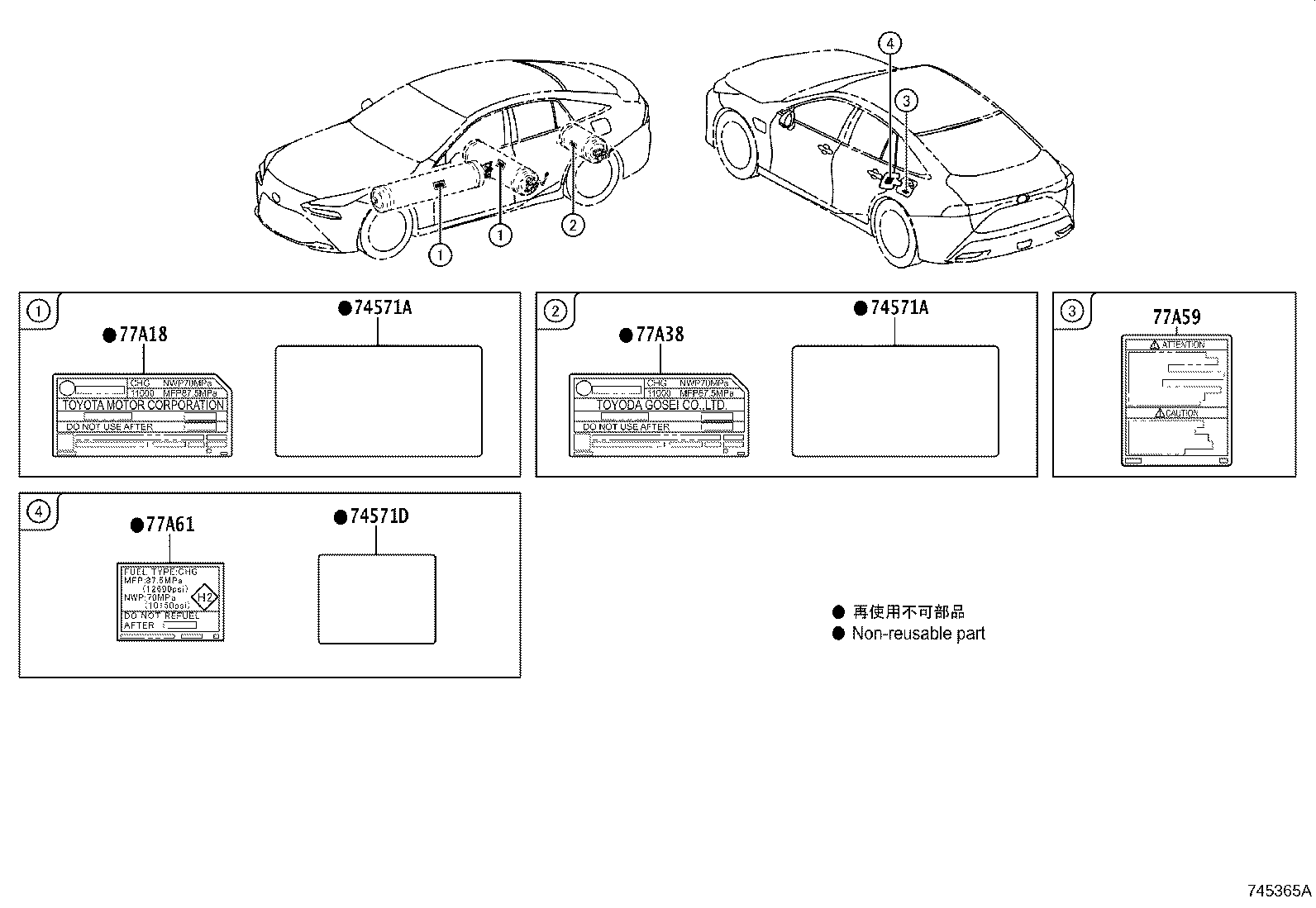

| 77A18 | Label, Hydrogen Tank Information, NO.1 |
| 77A38 | Label, Hydrogen Tank Information, NO.2 |
| 77A59 | Label, Hydrogen Fueling Caution |
| 77A61 | Label, Hydrogen Tank Pressure Information |
| 82685D | Plate, Caution |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9131 | Label, Electric Vehicle Emission Control Information |
| G92A1B | Label, EV Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
