Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B420 · United States
Supported model
Data version 2024-11

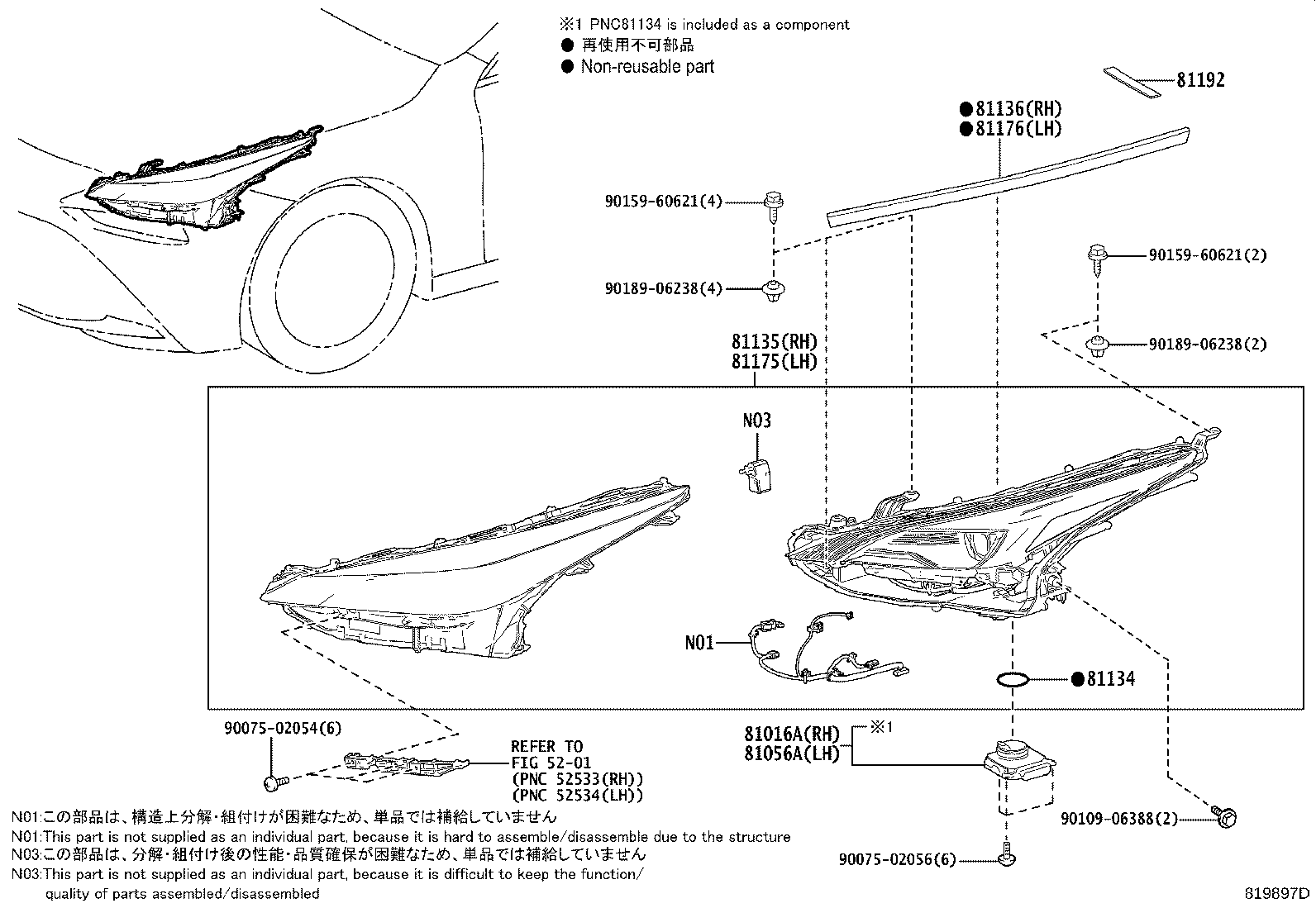

Headlamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81136 | Protector, Headlamp, NO.1 RH |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176 | Protector, Headlamp, NO.1 LH |
| 81192 | Seal, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
