Toyota Lexus ES350 (NAP)
2015-10 → 2018-07 · chassis GSV60 · catalogue 28C410 · United States
Supported model
Data version 2019-01

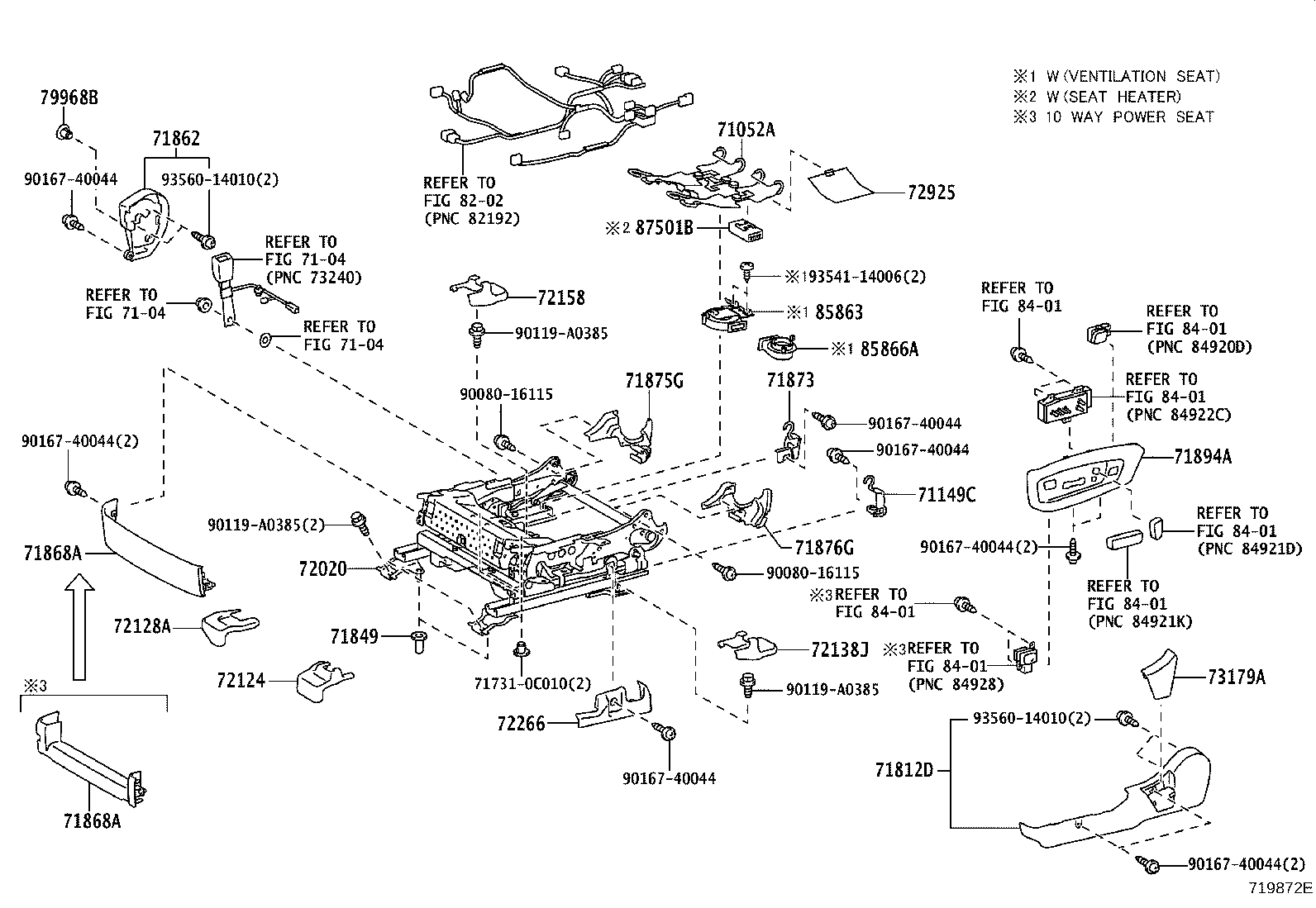

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71052A — Spring Sub-assy, Front Seat Cushion, LH | ||||
| 71051-33060 |
Spring Sub-assy, Front Seat Cushion, LH
2015-10 → —
|
GSV60 | — | |
| 71149C — Cover, Front Seat Leg, LH (FOR LH SEAT) | ||||
| 71149-33010 |
Cover, Front Seat Leg, LH (FOR LH SEAT)
2015-10 → —
|
GSV60 | — | |
| 71812D — Shield, Front Seat Cushion, LH | ||||
| 71812-33360-C0 note |
Shield, Front Seat Cushion, LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71812-33360-E1 note |
Shield, Front Seat Cushion, LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71849 — Cap, Seat Adjuster Cover, LH | ||||
| 71848-33010 |
Cap, Seat Adjuster Cover, LH
2015-10 → —
|
GSV60 | — | |
| 71862 — Shield, Front Seat Cushion, Inner LH | ||||
| 71862-33180-C0 note |
Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71862-33180-E1 note |
Shield, Front Seat Cushion, Inner LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71868A — Shield, Front Seat Cushion, Inner NO.1 LH | ||||
| 71868-33070-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71868-33070-E0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71868-33080-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71868-33080-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71868-33080-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71868-33080-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71868-33080-E1 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71868-33080-E1 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71868-33080-E1 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71868-33080-E1 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71873 — Shield, Front Seat Cushion, Lower RH | ||||
| 71874-33130 |
Shield, Front Seat Cushion, Lower RH
2015-10 → —
|
GSV60 | — | |
| 71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) | ||||
| 71875-33070-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71875-33070-E1 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) | ||||
| 71876-33070-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71876-33070-E1 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71894A — Shield, Power Adjuster, Front LH | ||||
| 71894-33010-C0 note |
Shield, Power Adjuster, Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71894-33010-E0 note |
Shield, Power Adjuster, Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71894-33020-C0 note |
Shield, Power Adjuster, Front LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71894-33020-C0 note |
Shield, Power Adjuster, Front LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71894-33020-C0 note |
Shield, Power Adjuster, Front LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71894-33020-C0 note |
Shield, Power Adjuster, Front LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71894-33020-E1 note |
Shield, Power Adjuster, Front LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 71894-33020-E1 note |
Shield, Power Adjuster, Front LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71894-33020-E1 note |
Shield, Power Adjuster, Front LH
2017-09 → 2018-07
ended
|
GSV60 | — | |
| 71894-33020-E1 note |
Shield, Power Adjuster, Front LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020 — Adjuster Assy, Front Seat, LH | ||||
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33390 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33400 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33400 note |
Adjuster Assy, Front Seat, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72020-33400 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33400 note |
Adjuster Assy, Front Seat, LH
2017-09 → —
|
GSV60 | — | |
| 72020-33420 |
Adjuster Assy, Front Seat, LH
2015-10 → —
|
GSV60 | — | |
| 72124 — Cover, Seat Track Bracket, Outer Front LH | ||||
| 72124-33040-C0 note |
Cover, Seat Track Bracket, Outer Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72124-33040-E2 note |
Cover, Seat Track Bracket, Outer Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72128A — Cover, Seat Track Bracket, Inner Front LH | ||||
| 72128-33030-C0 note |
Cover, Seat Track Bracket, Inner Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72128-33030-E2 note |
Cover, Seat Track Bracket, Inner Front LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72138J — Cover, Front Seat Track, LH Rear Outer | ||||
| 72138-33110-C0 note |
Cover, Front Seat Track, LH Rear Outer
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72138-33110-E2 note |
Cover, Front Seat Track, LH Rear Outer
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72158 — Cover, Seat Track Bracket, Inner LH | ||||
| 72158-33150-C0 note |
Cover, Seat Track Bracket, Inner LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72158-33150-E2 note |
Cover, Seat Track Bracket, Inner LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72266 — Cover, Seat Track Upper Rail, LH | ||||
| 72266-33010 |
Cover, Seat Track Upper Rail, LH
2015-10 → —
|
GSV60 | — | |
| 72925 — Cover, Front Seat Cushion | ||||
| 79081-33010 |
Cover, Front Seat Cushion
2015-10 → —
|
GSV60 | — | |
| 73179A — Cap, Seat Belt Anchor Cover, LH | ||||
| 73179-33020-C0 note |
Cap, Seat Belt Anchor Cover, LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 73179-33020-E1 note |
Cap, Seat Belt Anchor Cover, LH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 79968B — Clip | ||||
| 71731-0C010 |
Clip
2015-10 → —
|
GSV60 | — | |
| 85863 — Blower, Seat Climate Control, LH | ||||
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → —
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85802-06010 note |
Blower, Seat Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866A — Duct, Seat Cushion Climate Control, LH | ||||
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501B — Control Sub-assy, Seat Heater, LH | ||||
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2015-10 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, LH
2015-10 → 2017-09
ended
|
GSV60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
