Toyota Lexus ES350 (NAP)
2015-10 → 2018-07 · chassis GSV60 · catalogue 28C410 · United States
Supported model
Data version 2019-01

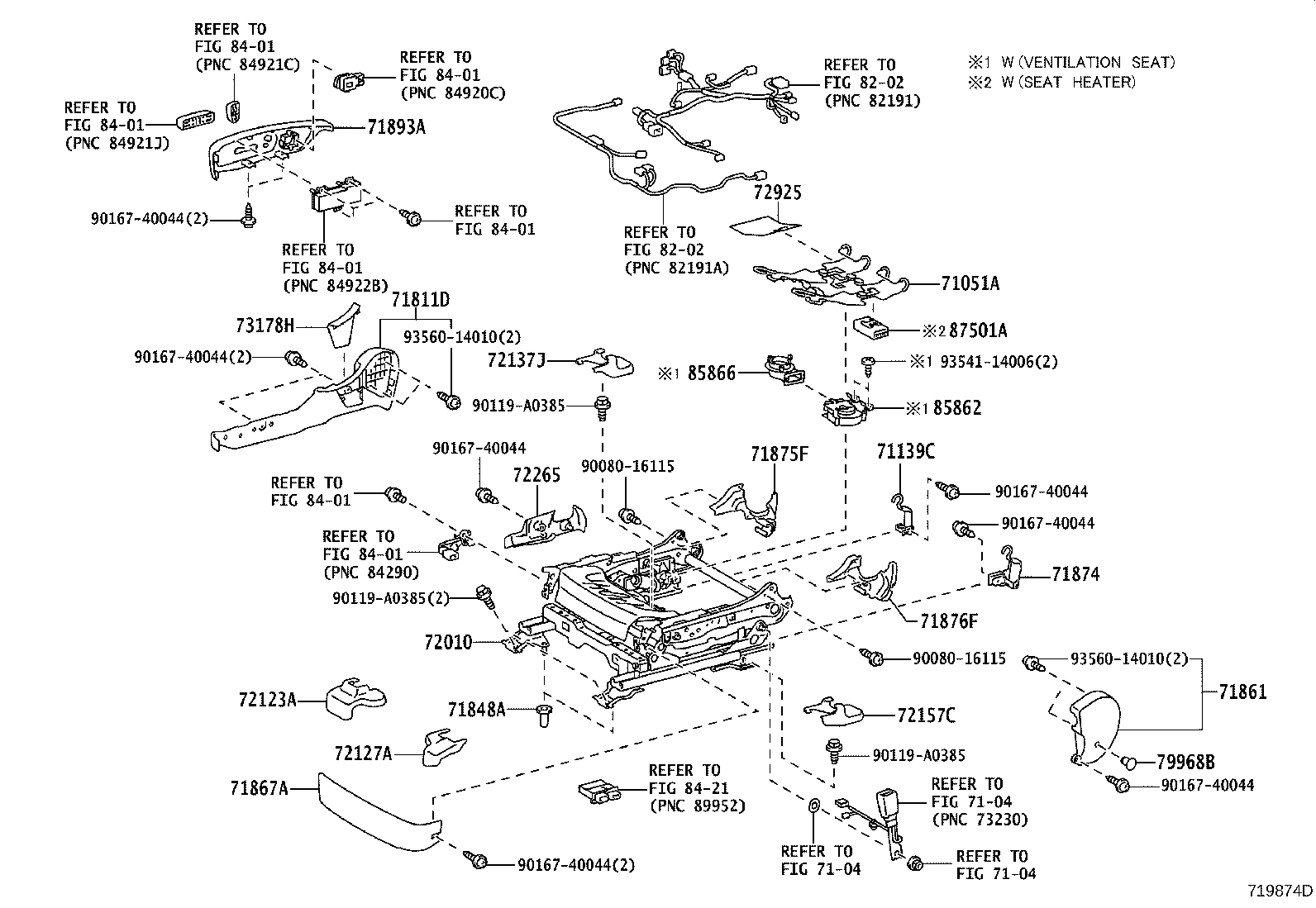

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71051A — Spring Sub-assy, Front Seat Cushion, RH | ||||
| 71051-33050 |
Spring Sub-assy, Front Seat Cushion, RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71139C — Cover, Front Seat Leg, RH | ||||
| 71139-33010 |
Cover, Front Seat Leg, RH
2015-10 → —
|
GSV60 | — | |
| 71811D — Shield, Front Seat Cushion, RH | ||||
| 71811-33320-C0 note |
Shield, Front Seat Cushion, RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71811-33320-E1 note |
Shield, Front Seat Cushion, RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71848A — Cap, Seat Adjuster Cover, RH | ||||
| 71848-33010 |
Cap, Seat Adjuster Cover, RH
2015-10 → —
|
GSV60 | — | |
| 71861 — Shield, Front Seat Cushion, Inner RH | ||||
| 71861-33180-C0 note |
Shield, Front Seat Cushion, Inner RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71861-33180-E1 note |
Shield, Front Seat Cushion, Inner RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71867A — Shield, Front Seat Cushion, Inner NO.1 RH | ||||
| 71867-33070-C0 note |
Shield, Front Seat Cushion, Inner NO.1 RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71867-33070-E1 note |
Shield, Front Seat Cushion, Inner NO.1 RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71874 — Shield, Front Seat Cushion, Lower LH | ||||
| 71873-33120 |
Shield, Front Seat Cushion, Lower LH
2015-10 → —
|
GSV60 | — | |
| 71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) | ||||
| 71875-33060-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71875-33060-E1 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) | ||||
| 71876-33060-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71876-33060-E1 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71893A — Shield, Power Adjuster, Front RH | ||||
| 71893-33010-C0 note |
Shield, Power Adjuster, Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 71893-33010-E1 note |
Shield, Power Adjuster, Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72010 — Adjuster Assy, Front Seat, RH | ||||
| 72010-33370 |
Adjuster Assy, Front Seat, RH
2015-10 → —
|
GSV60 | — | |
| 72010-33380 note |
Adjuster Assy, Front Seat, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72010-33380 note |
Adjuster Assy, Front Seat, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 72010-33380 note |
Adjuster Assy, Front Seat, RH
2017-09 → —
|
GSV60 | — | |
| 72010-33380 note |
Adjuster Assy, Front Seat, RH
2017-09 → —
|
GSV60 | — | |
| 72123A — Cover, Seat Track Bracket, Outer Front RH | ||||
| 72123-33100-C0 note |
Cover, Seat Track Bracket, Outer Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72123-33100-E2 note |
Cover, Seat Track Bracket, Outer Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72127A — Cover, Seat Track Bracket, Inner Front RH | ||||
| 72127-33030-C0 note |
Cover, Seat Track Bracket, Inner Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72127-33030-E2 note |
Cover, Seat Track Bracket, Inner Front RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72137J — Cover, Front Seat Track, RH Rear Outer | ||||
| 72137-33140-C0 note |
Cover, Front Seat Track, RH Rear Outer
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72137-33140-E2 note |
Cover, Front Seat Track, RH Rear Outer
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72157C — Cover, Seat Track Bracket, Inner RH | ||||
| 72157-33130-C0 note |
Cover, Seat Track Bracket, Inner RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72157-33130-E2 note |
Cover, Seat Track Bracket, Inner RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 72265 — Cover, Seat Track Upper Rail, RH | ||||
| 72265-33010 |
Cover, Seat Track Upper Rail, RH
2015-10 → —
|
GSV60 | — | |
| 72925 — Cover, Front Seat Cushion | ||||
| 79081-33010 |
Cover, Front Seat Cushion
2015-10 → —
|
GSV60 | — | |
| 73178H — Cap, Seat Belt Anchor Cover, RH | ||||
| 73178-33050-C0 note |
Cap, Seat Belt Anchor Cover, RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 73178-33050-E1 note |
Cap, Seat Belt Anchor Cover, RH
2015-10 → 2018-07
ended
|
GSV60 | — | |
| 79968B — Clip | ||||
| 71731-0C010 |
Clip
2015-10 → —
|
GSV60 | — | |
| 85862 — Blower, Seat Climate Control, RH | ||||
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → —
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85801-06090 note |
Blower, Seat Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866 — Duct, Seat Cushion Climate Control, RH | ||||
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → —
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 85866-06010 note |
Duct, Seat Cushion Climate Control, RH
2017-09 → —
|
GSV60 | — | |
| 87501A — Control Sub-assy, Seat Heater, RH | ||||
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2015-10 → —
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33021 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2017-09 → —
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
| 87501-33040 note |
Control Sub-assy, Seat Heater, RH
2015-10 → 2017-09
ended
|
GSV60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
