Toyota Lexus ES350 (NAP)
2015-10 → 2018-07 · chassis GSV60 · catalogue 28C410 · United States
Supported model
Data version 2019-01

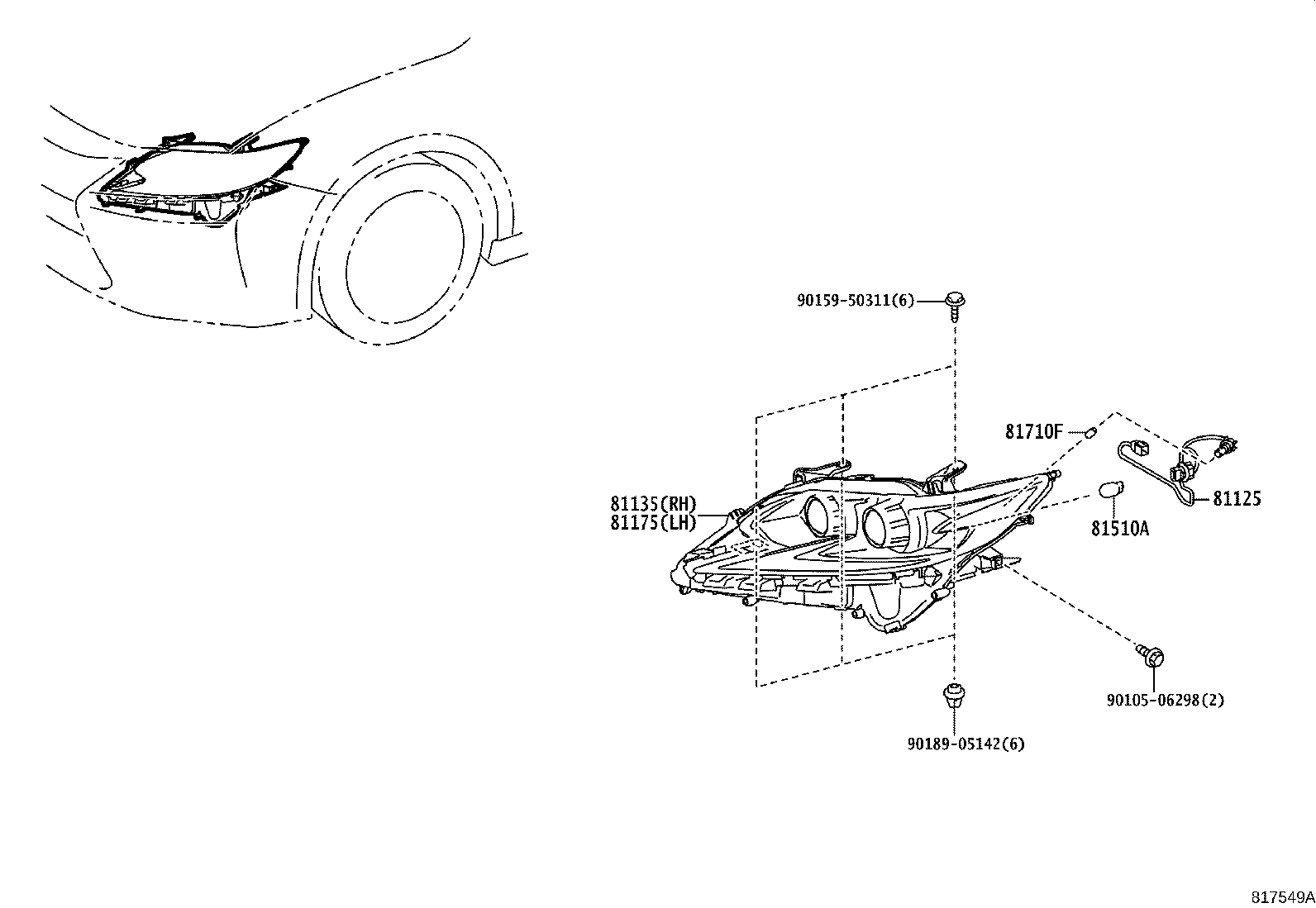

Headlamp
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81175 | Unit Assy, Headlamp, LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
