Toyota Lexus ES350 (NAP)
2015-10 → 2018-07 · chassis GSV60 · catalogue 28C410 · United States
Supported model
Data version 2019-01
Switch & Relay & Computer
107 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 82210N | Instrument Panel Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82642G | Relay, Panel |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82672A | Cover, Junction Block |
| 82720 | Block Assy, Engine Room Junction |

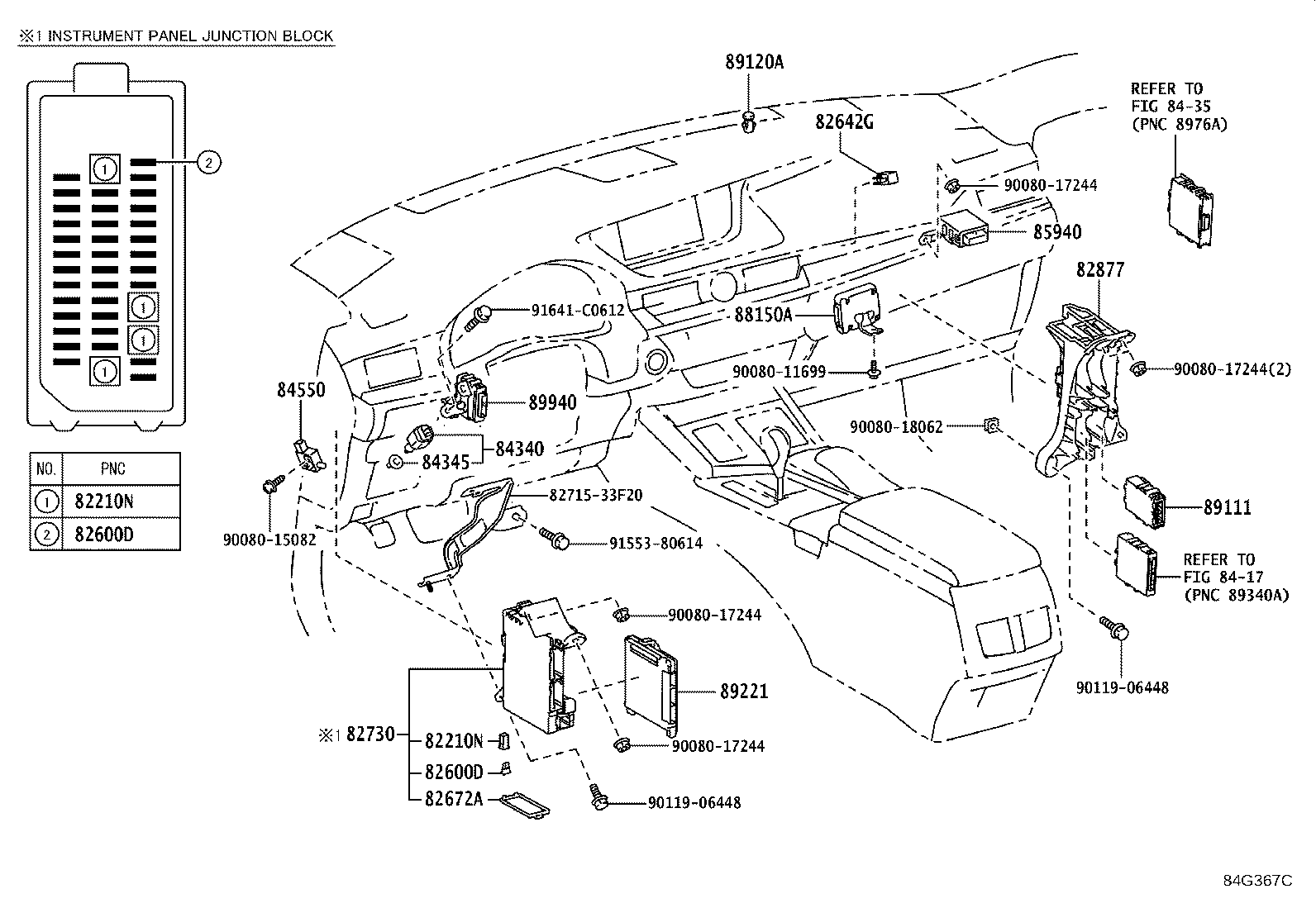

| 82730 | Block Assy, Instrument Panel Junction |

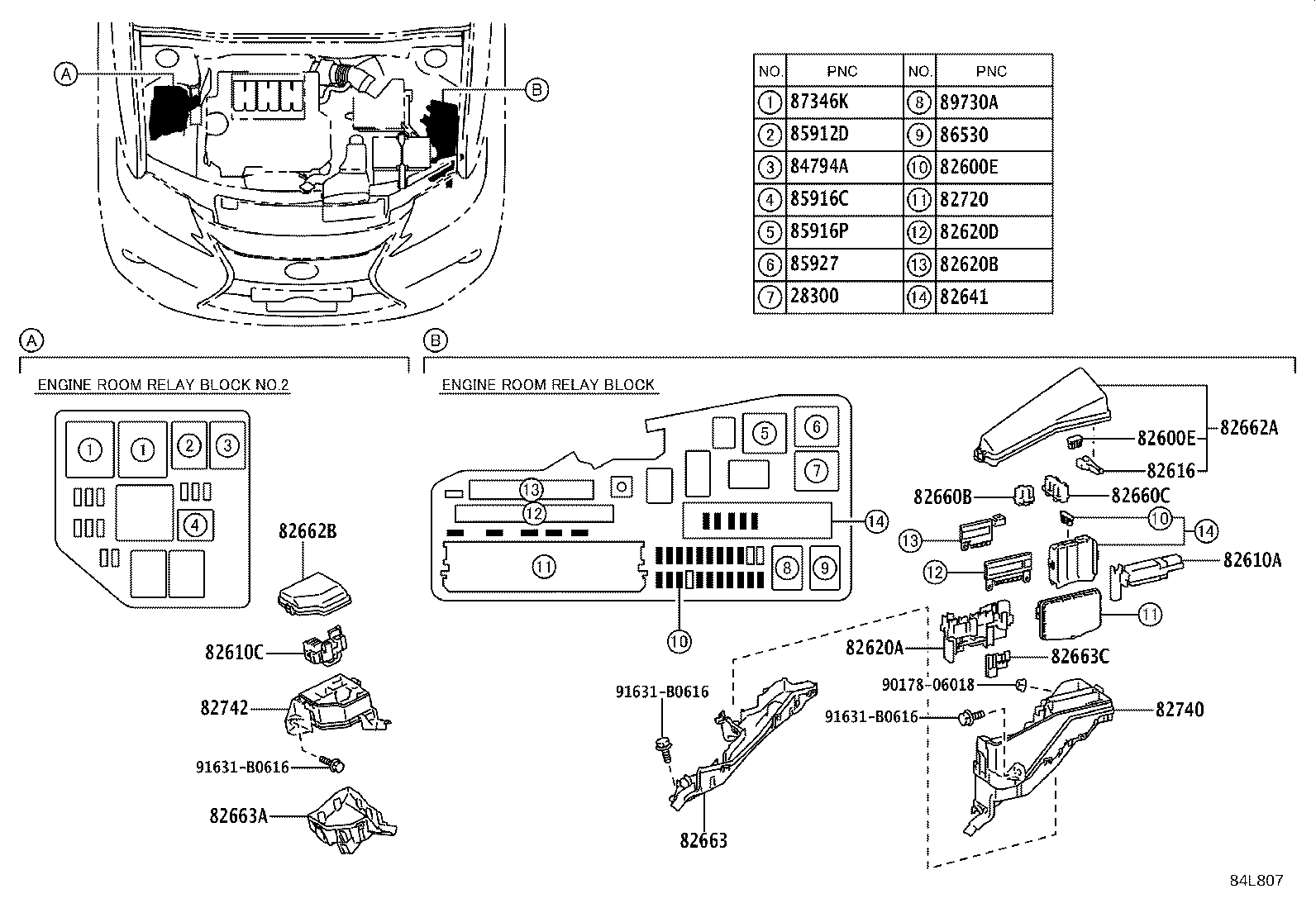

| 82740 | Block Assy, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

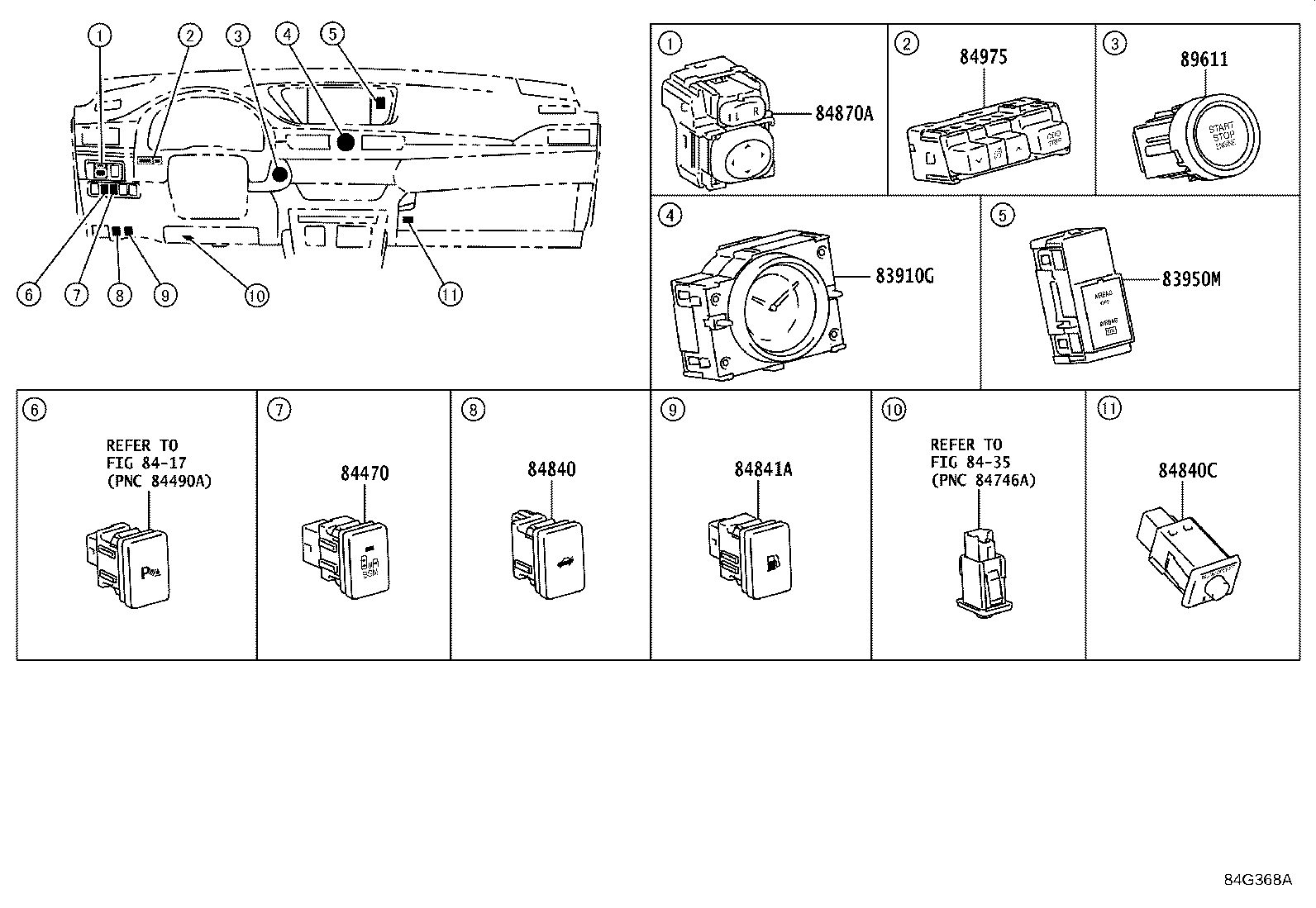

| 83910G | Clock Assy |
| 83950M | Lamp Assy, Telltale |
| 84010D | Control & Panel Assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84113A | Bracket, Switch, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

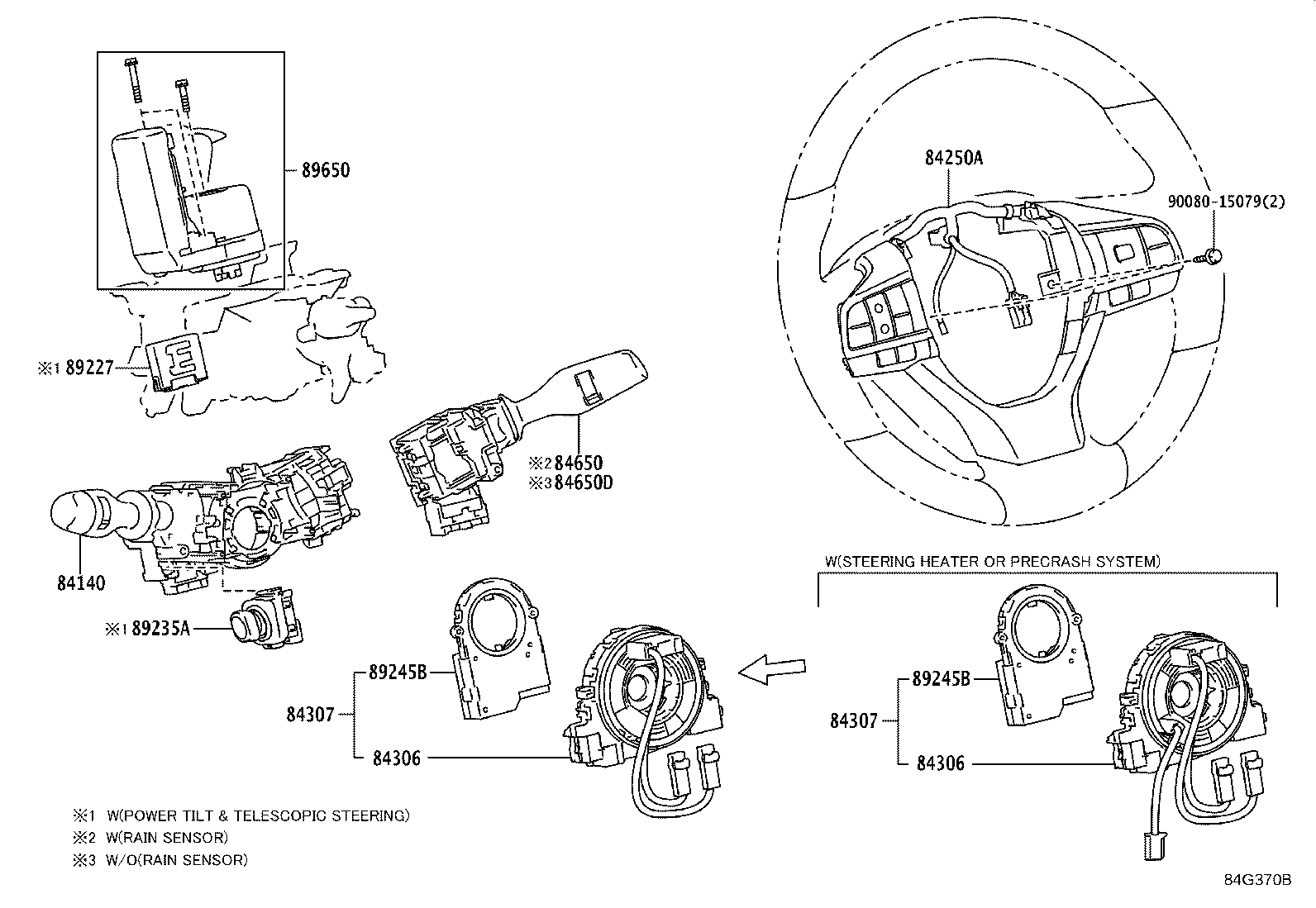

| 84250A | Switch Assy, Steering Pad |
| 84290 | Switch Assy, Limit |
| 84290D | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84470 | Switch Assy, Warning Canceling |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |

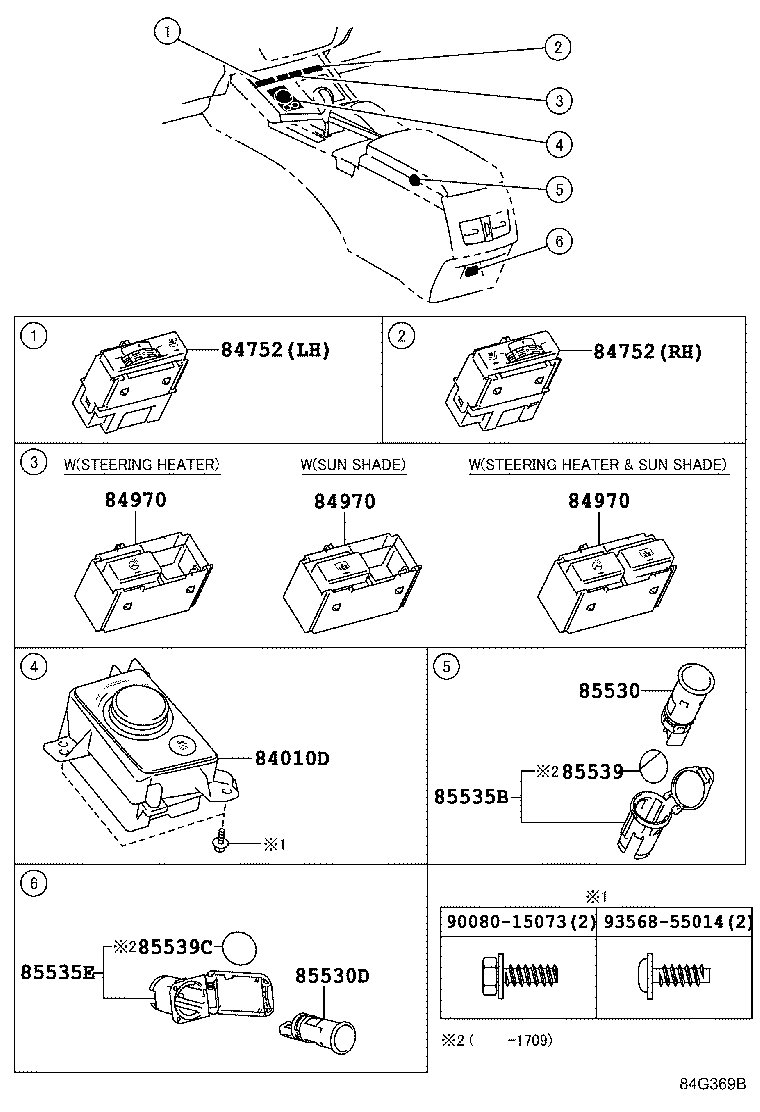

| 84752 | Switch, Refreshing Seat |
| 84794A | Relay, FR Wiper Deicer |

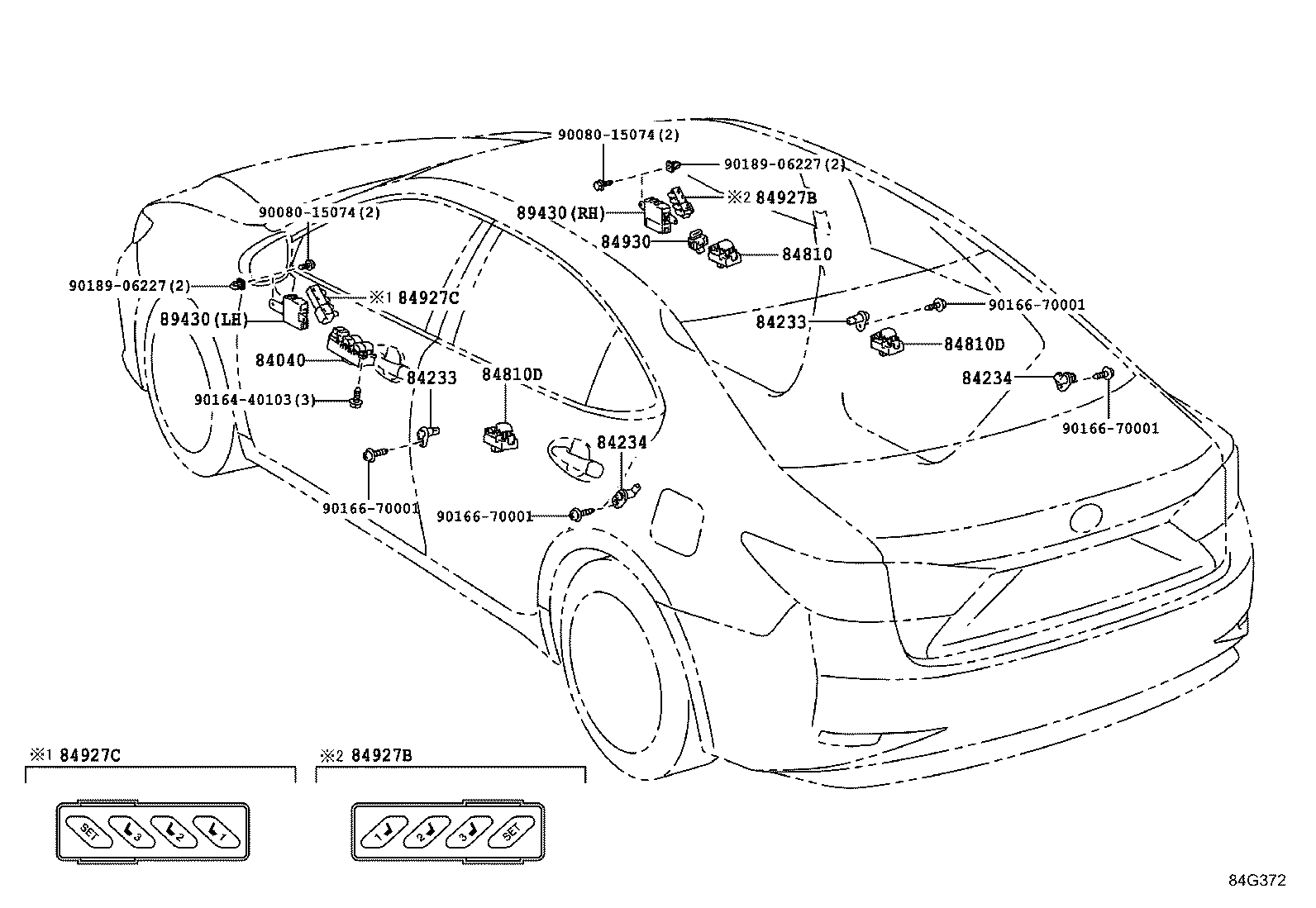

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

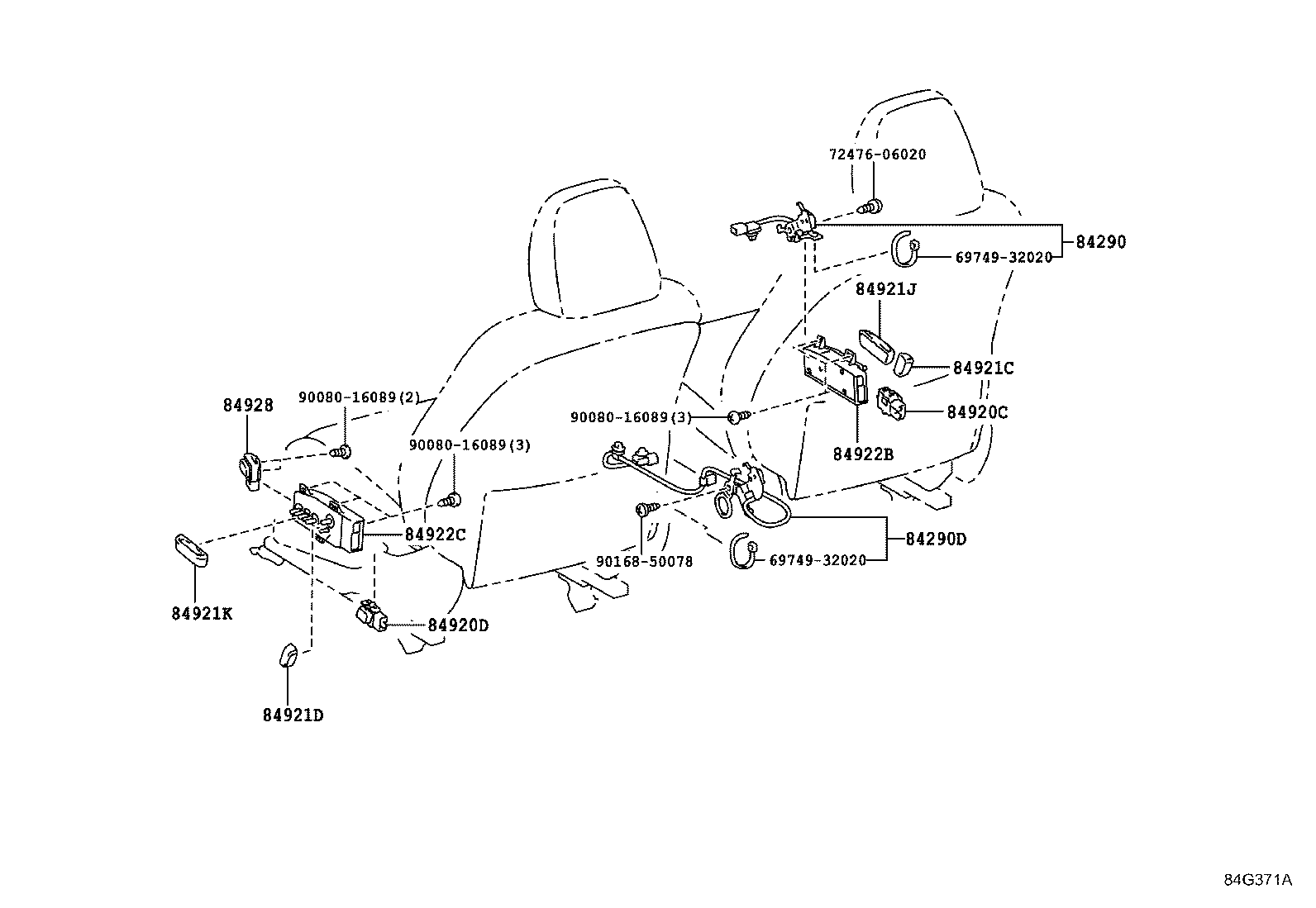

| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84921J | Knob, Power Seat Switch, RH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927B | Switch, Seat Memory, RH |
| 84927C | Switch, Seat Memory, LH |
| 84928 | Switch, Seat Variable Cushion |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 85539C | Label, Power Outlet Notice |
| 85912D | Relay |
| 85916C | Relay, Back UP Lamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 88150A | Computer Assy, Driving Support |

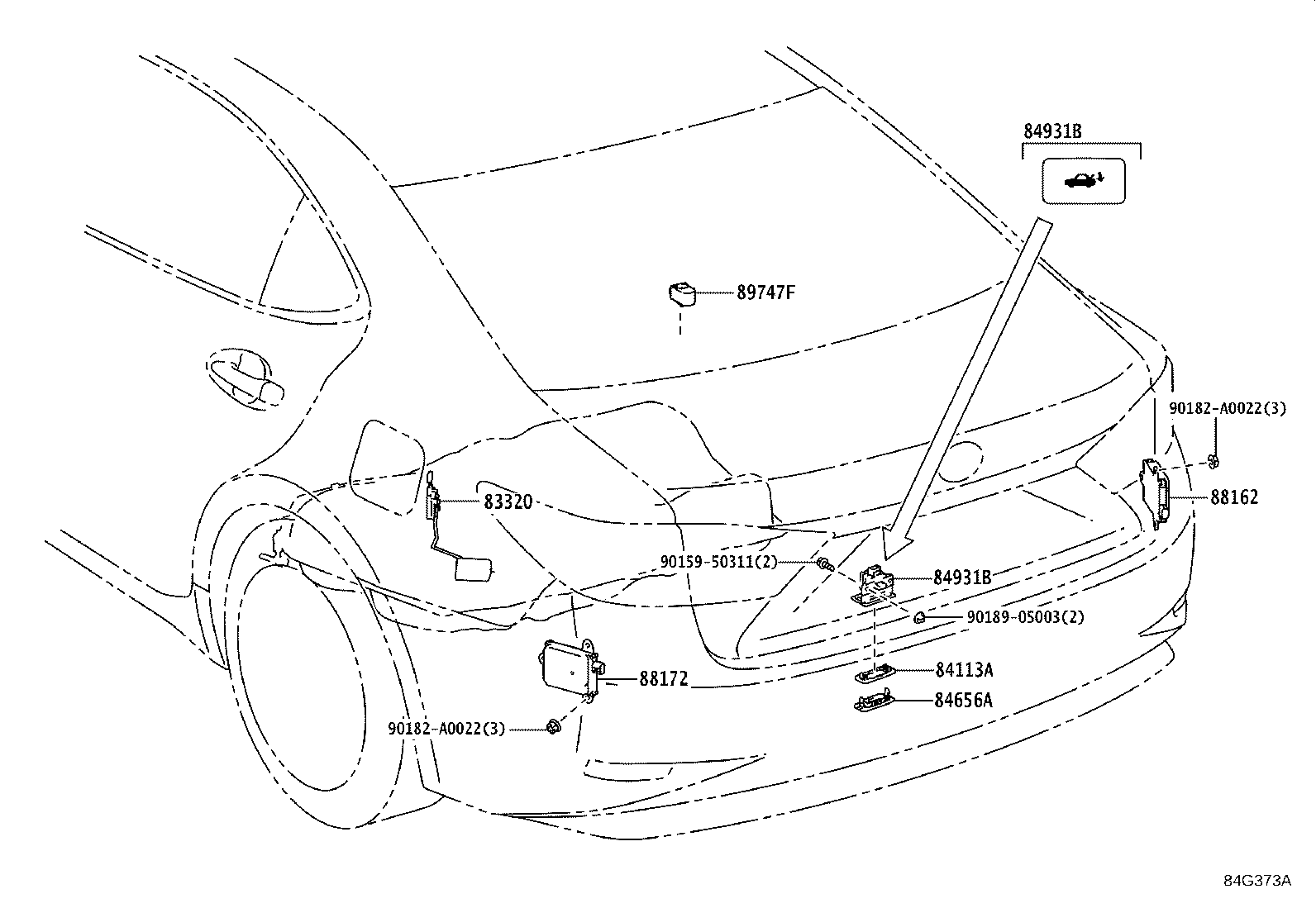

| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |

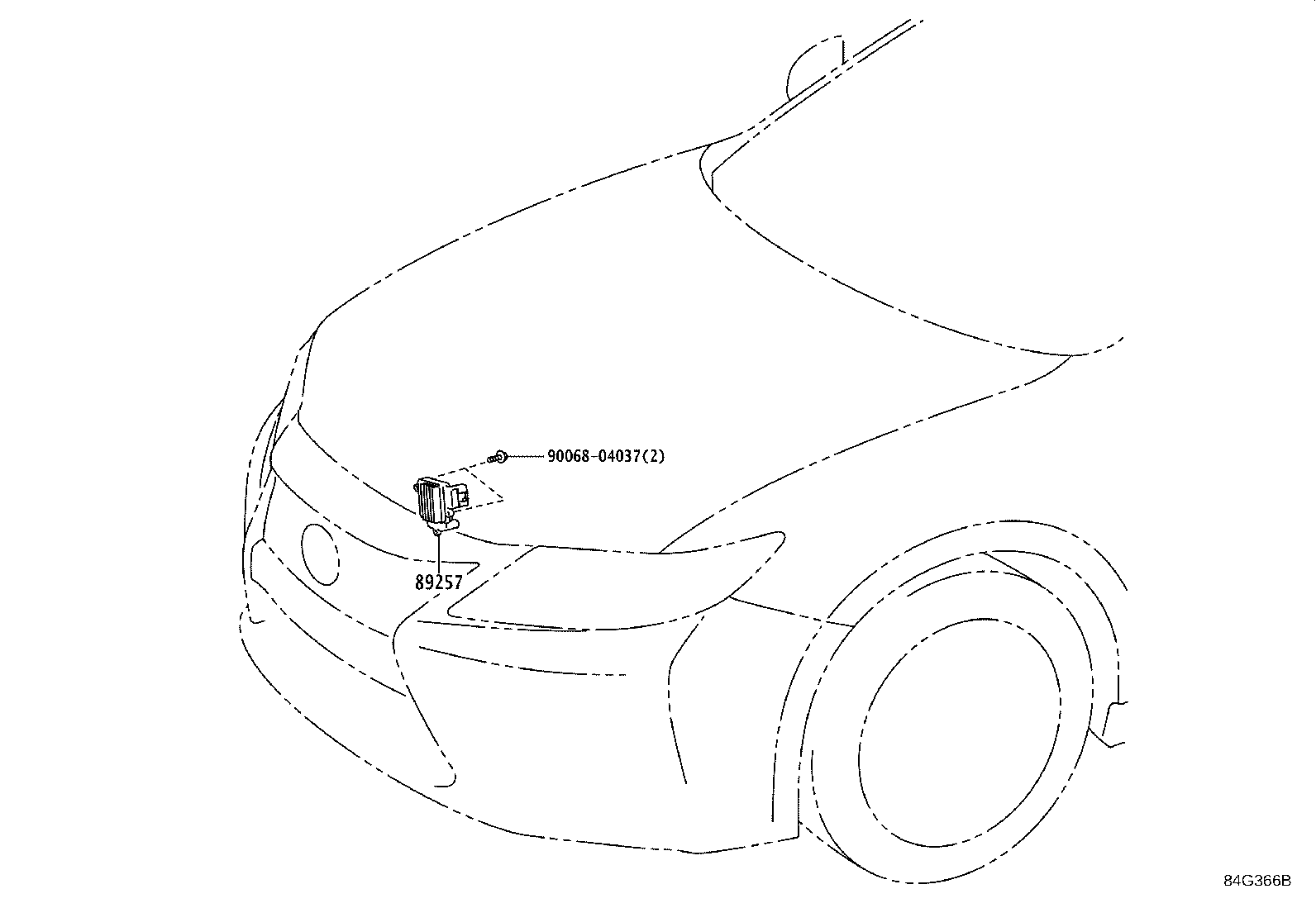

| 89257 | Computer, Cooling Fan |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89530C | Computer Assy, Transmission Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747F | Buzzer, Blind Spot Monitor |
| 89940 | Computer Assy, Headlamp Swivel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
