Toyota Lexus ES350 (NAP)

2015-10 → 2018-07 · chassis GSV60 · catalogue 28C410 · United States

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 2 illustrations

Illustrations

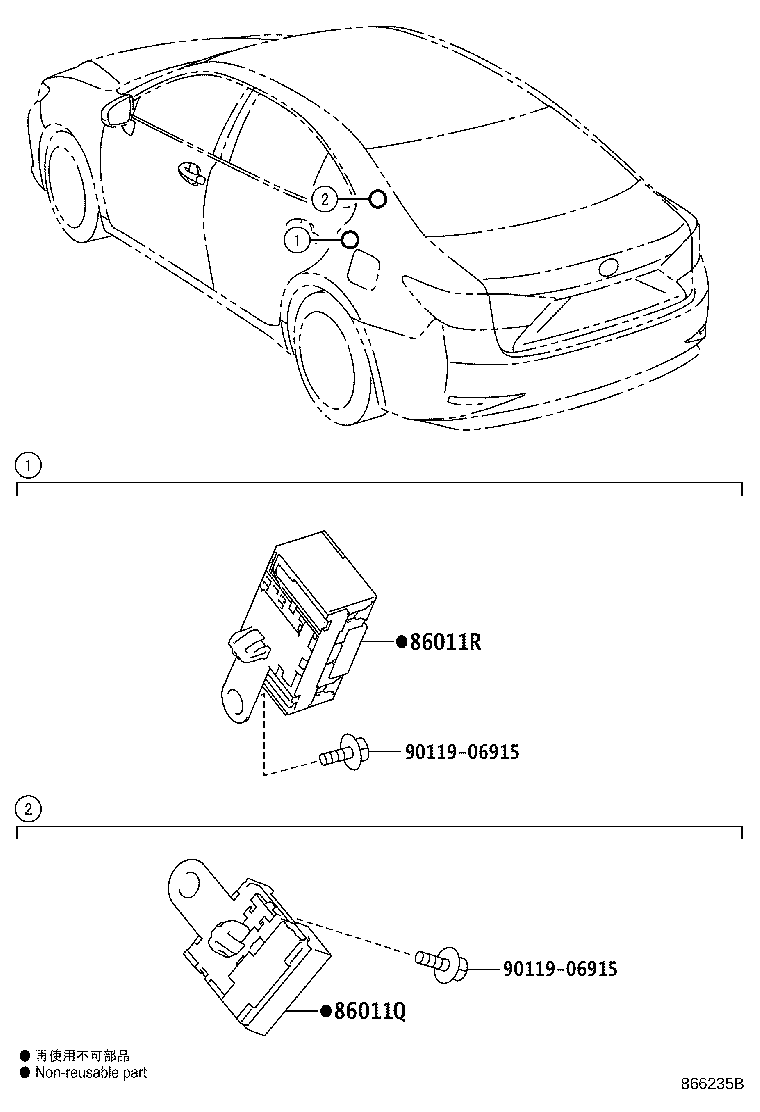

Figure 866234A 866234A 2015-10 → — Figure 866235B 866235B 2015-10 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86222A Clip, Radio Receiver Bracket NO.1
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86844B Retainer, Audio Amplifier Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
