Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

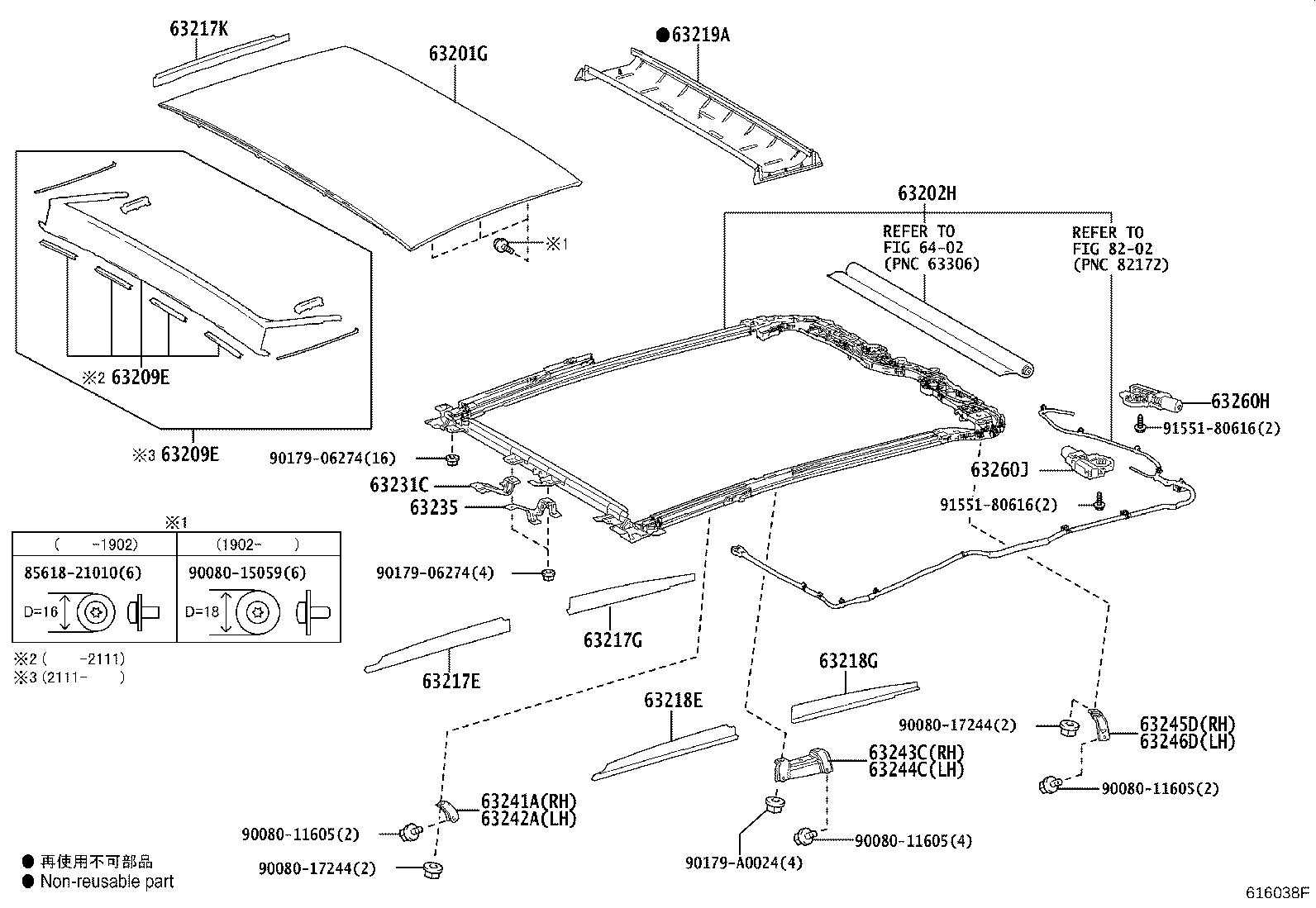

Exploded illustration 616038F 63202H — RAIL SUB-ASSY, SLIDE ROOF (12 parts) 63217E — GARNISH, SLIDING ROOF, FRONT RH (2 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 63218E — GARNISH, SLIDING ROOF, FRONT LH (2 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63219A — GARNISH, SLIDING ROOF, REAR (2 parts) 63231C — BRACKET, ROOM LAMP (2 parts) 63235 — BRACKET, ROOM LAMP, NO.2 (2 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (5 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 6402 — not listed in this catalogue 8202 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (5 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (5 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 90179A0024 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 8561821010 — not listed in this catalogue 9008015059 — not listed in this catalogue 63209E — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (5 parts) 63209E — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (5 parts)
616038F · 21 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-33350 note Glass Sub-assy, Sliding Roof
2018-08 → 2021-09 ended
GSZ10 —
63201-33350 note Glass Sub-assy, Sliding Roof
2021-09 → —
GSZ10 —
63202H — Rail Sub-assy, Slide Roof
63202-33160-A0 note Rail Sub-assy, Slide Roof
2018-08 → 2018-09 ended
GSZ10 —
63202-33160-E0 note Rail Sub-assy, Slide Roof
2018-08 → 2018-09 ended
GSZ10 —
63202-33161-A0 note Rail Sub-assy, Slide Roof
2019-02 → 2021-09 ended
GSZ10 —
63202-33161-E0 note Rail Sub-assy, Slide Roof
2019-02 → 2021-09 ended
GSZ10 —
63202-33180-A0 note Rail Sub-assy, Slide Roof
2018-09 → 2018-10 ended
GSZ10 —
63202-33180-E0 note Rail Sub-assy, Slide Roof
2018-09 → 2018-10 ended
GSZ10 —
63202-33181-A0 note Rail Sub-assy, Slide Roof
2018-10 → 2019-02 ended
GSZ10 —
63202-33181-E0 note Rail Sub-assy, Slide Roof
2018-10 → 2019-02 ended
GSZ10 —
63202-33161-A1 note Rail Sub-assy, Slide Roof
2021-09 → 2022-09 ended
GSZ10 —
63202-33161-A1 note Rail Sub-assy, Slide Roof
2022-09 → —
GSZ10 —
63202-33161-C1 note Rail Sub-assy, Slide Roof
2021-09 → —
GSZ10 —
63202-33161-E2 note Rail Sub-assy, Slide Roof
2021-09 → —
GSZ10 —
63209E — Panel Sub-assy, Roof Wind Deflector
63209-33190 note Panel Sub-assy, Roof Wind Deflector
2018-08 → 2021-09 ended
GSZ10 —
63209-33190 note Panel Sub-assy, Roof Wind Deflector
2021-09 → 2021-11 ended
GSZ10 —
63209-33210 note Panel Sub-assy, Roof Wind Deflector
2021-11 → 2022-09 ended
GSZ10 —
63209-33220 note Panel Sub-assy, Roof Wind Deflector
2021-09 → —
GSZ10 —
63209-33220 note Panel Sub-assy, Roof Wind Deflector
2022-09 → —
GSZ10 —
63217E — Garnish, Sliding Roof, Front RH
63217-33180 note Garnish, Sliding Roof, Front RH
2018-08 → 2021-09 ended
GSZ10 —
63217-33180 note Garnish, Sliding Roof, Front RH
2021-09 → —
GSZ10 —
63217G — Garnish, Sliding Roof Side, RH
63217-06260 Garnish, Sliding Roof Side, RH
2018-08 → 2021-09 ended
AXZA15,AXZH1#,GSZ10 —
63217-33190 note Garnish, Sliding Roof Side, RH
2018-08 → 2021-09 ended
GSZ10 —
63217-06260 Garnish, Sliding Roof Side, RH
2021-09 → 2023-09 ended
AXZA15,AXZH1#,GSZ10 —
63217-0E200 Garnish, Sliding Roof Side, RH
2023-10 → —
AXZA15,AXZH1#,GSZ10 —
63217-33190 note Garnish, Sliding Roof Side, RH
2021-09 → —
GSZ10 —
63217K — Garnish, Sliding Roof Side, RH
63217-33200 note Garnish, Sliding Roof Side, RH
2018-08 → 2021-09 ended
GSZ10 —
63217-33200 note Garnish, Sliding Roof Side, RH
2021-09 → —
GSZ10 —
63218E — Garnish, Sliding Roof, Front LH
63218-33140 note Garnish, Sliding Roof, Front LH
2018-08 → 2021-09 ended
GSZ10 —
63218-33140 note Garnish, Sliding Roof, Front LH
2021-09 → —
GSZ10 —
63218G — Garnish, Sliding Roof Side, LH
63217-06260 Garnish, Sliding Roof Side, LH
2018-08 → 2021-09 ended
AXZA15,AXZH1#,GSZ10 —
63218-33150 note Garnish, Sliding Roof Side, LH
2018-08 → 2021-09 ended
GSZ10 —
63217-06260 Garnish, Sliding Roof Side, LH
2021-09 → 2023-09 ended
AXZA15,AXZH1#,GSZ10 —
63217-0E200 Garnish, Sliding Roof Side, LH
2023-10 → —
AXZA15,AXZH1#,GSZ10 —
63218-33150 note Garnish, Sliding Roof Side, LH
2021-09 → —
GSZ10 —
63218M — Garnish, Sliding Roof Side, LH
63218-33160 note Garnish, Sliding Roof Side, LH
2018-08 → 2021-09 ended
GSZ10 —
63218-33160 note Garnish, Sliding Roof Side, LH
2021-09 → —
GSZ10 —
63219A — Garnish, Sliding Roof, Rear
63219-33060 note Garnish, Sliding Roof, Rear
2018-08 → 2021-09 ended
GSZ10 —
63219-33060 note Garnish, Sliding Roof, Rear
2021-09 → —
GSZ10 —
63231C — Bracket, Room Lamp
63231-33120 note Bracket, Room Lamp
2018-08 → 2021-09 ended
GSZ10 —
63231-33120 note Bracket, Room Lamp
2021-09 → —
GSZ10 —
63235 — Bracket, Room Lamp, NO.2
63232-33010 note Bracket, Room Lamp, NO.2
2018-08 → 2021-09 ended
GSZ10 —
63232-33010 note Bracket, Room Lamp, NO.2
2021-09 → —
GSZ10 —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-33150 note Bracket, Sliding Roof Housing Front Mounting, RH
2018-08 → 2021-09 ended
GSZ10 —
63241-33150 note Bracket, Sliding Roof Housing Front Mounting, RH
2021-09 → —
GSZ10 —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-33150 note Bracket, Sliding Roof Housing Front Mounting, LH
2018-08 → 2021-09 ended
GSZ10 —
63241-33150 note Bracket, Sliding Roof Housing Front Mounting, LH
2021-09 → —
GSZ10 —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-33170 note Bracket, Sliding Roof Housing Center Mounting, RH
2018-08 → 2021-09 ended
GSZ10 —
63243-33170 note Bracket, Sliding Roof Housing Center Mounting, RH
2021-09 → —
GSZ10 —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-33140 note Bracket, Sliding Roof Housing Center Mounting, LH
2018-08 → 2021-09 ended
GSZ10 —
63244-33140 note Bracket, Sliding Roof Housing Center Mounting, LH
2021-09 → —
GSZ10 —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-33120 note Bracket, Sliding Roof Housing Rear Mounting, RH
2018-08 → 2021-09 ended
GSZ10 —
63245-33120 note Bracket, Sliding Roof Housing Rear Mounting, RH
2021-09 → —
GSZ10 —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63245-33120 note Bracket, Sliding Roof Housing Rear Mounting, LH
2018-08 → 2021-09 ended
GSZ10 —
63245-33120 note Bracket, Sliding Roof Housing Rear Mounting, LH
2021-09 → —
GSZ10 —
63260H — Gear Assy, Sliding Roof Drive
63260-33190 note Gear Assy, Sliding Roof Drive
2018-08 → 2018-09 ended
GSZ10 —
63260-33191 note Gear Assy, Sliding Roof Drive
2019-02 → 2020-08 ended
GSZ10 —
63260-33192 note Gear Assy, Sliding Roof Drive
2020-09 → 2021-09 ended
GSZ10 —
63260-33230 note Gear Assy, Sliding Roof Drive
2018-09 → 2019-02 ended
GSZ10 —
63260-33192 note Gear Assy, Sliding Roof Drive
2021-09 → —
GSZ10 —
63260J — Gear Assy, Sliding Roof Drive
63260-33200 note Gear Assy, Sliding Roof Drive
2018-08 → 2021-09 ended
GSZ10 —
63260-33200 note Gear Assy, Sliding Roof Drive
2021-09 → —
GSZ10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
