Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

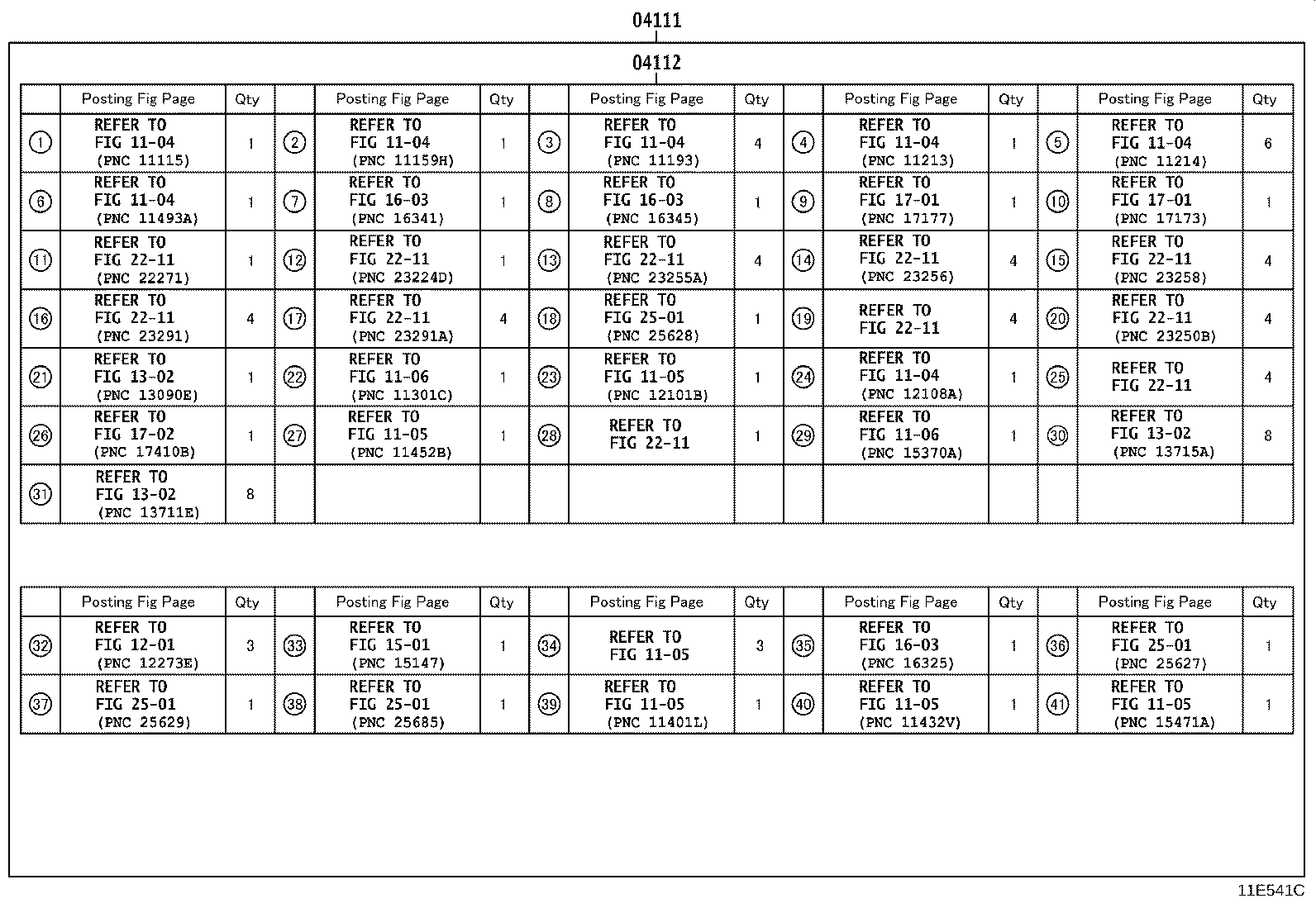

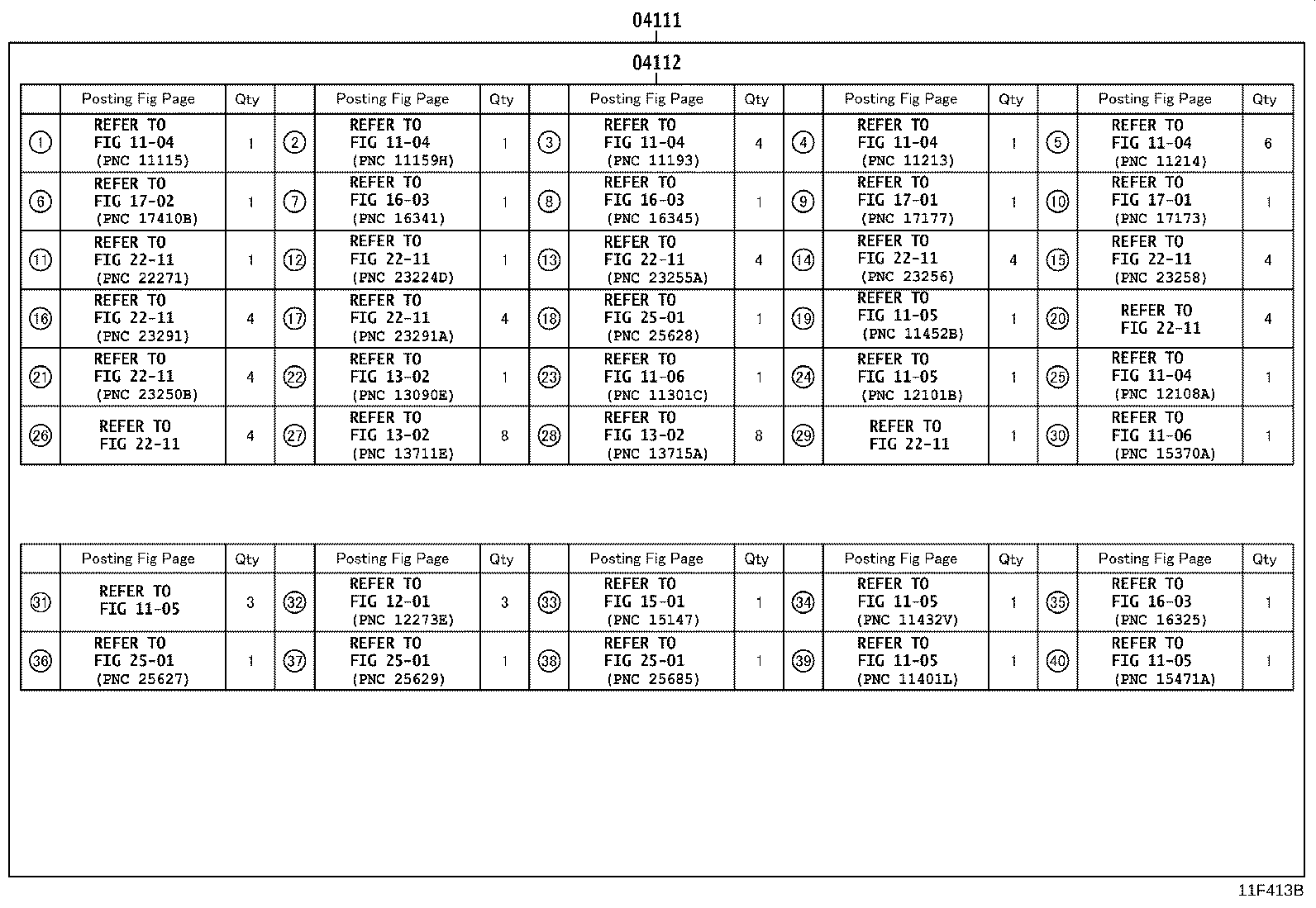

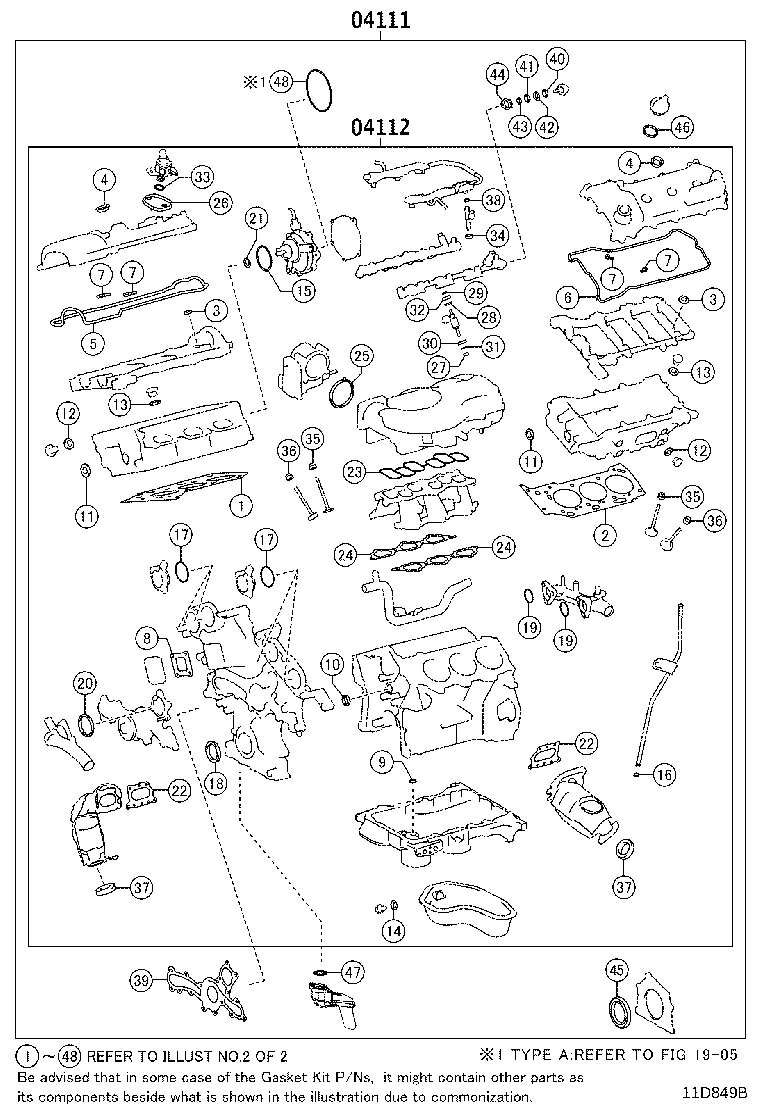

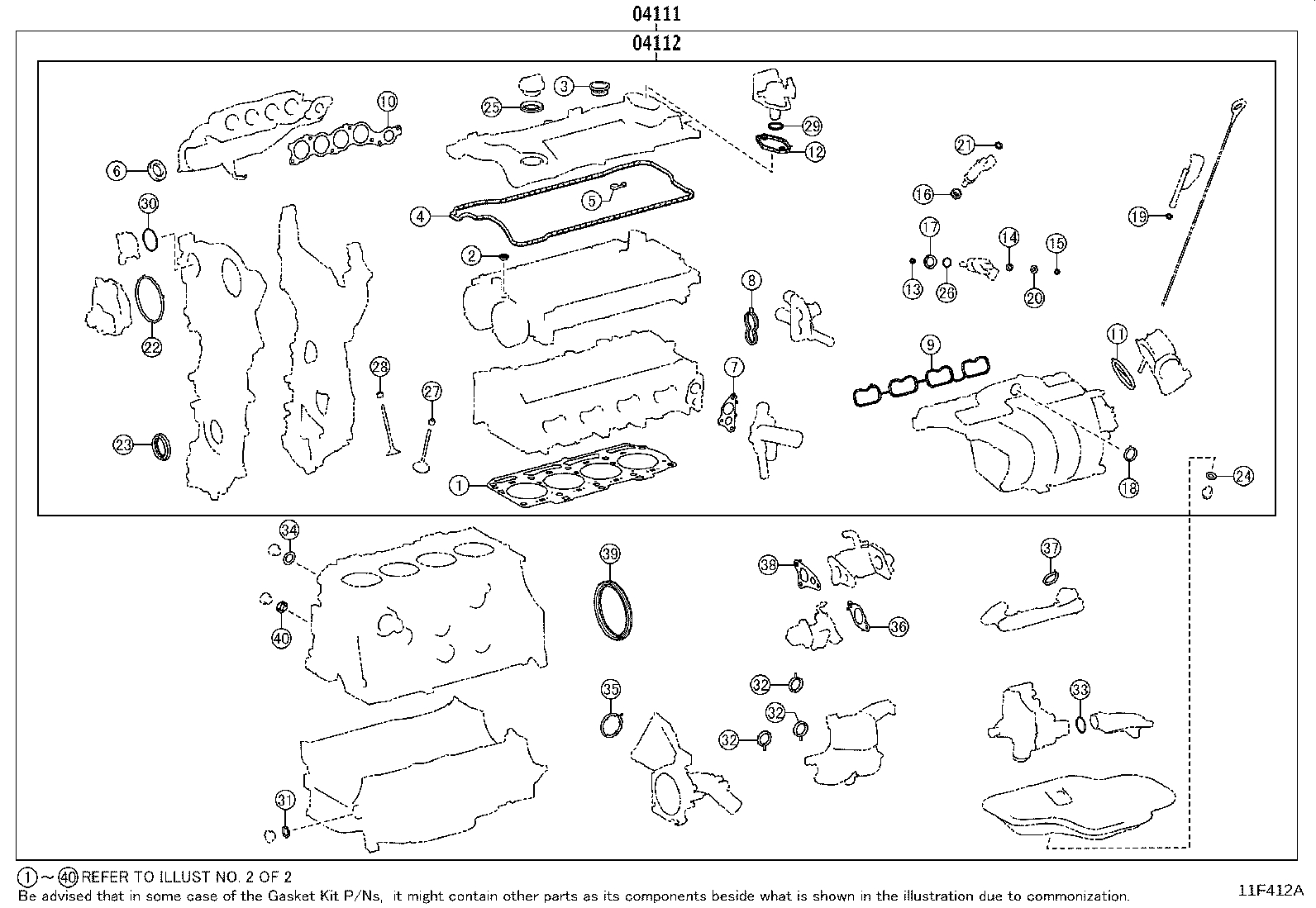

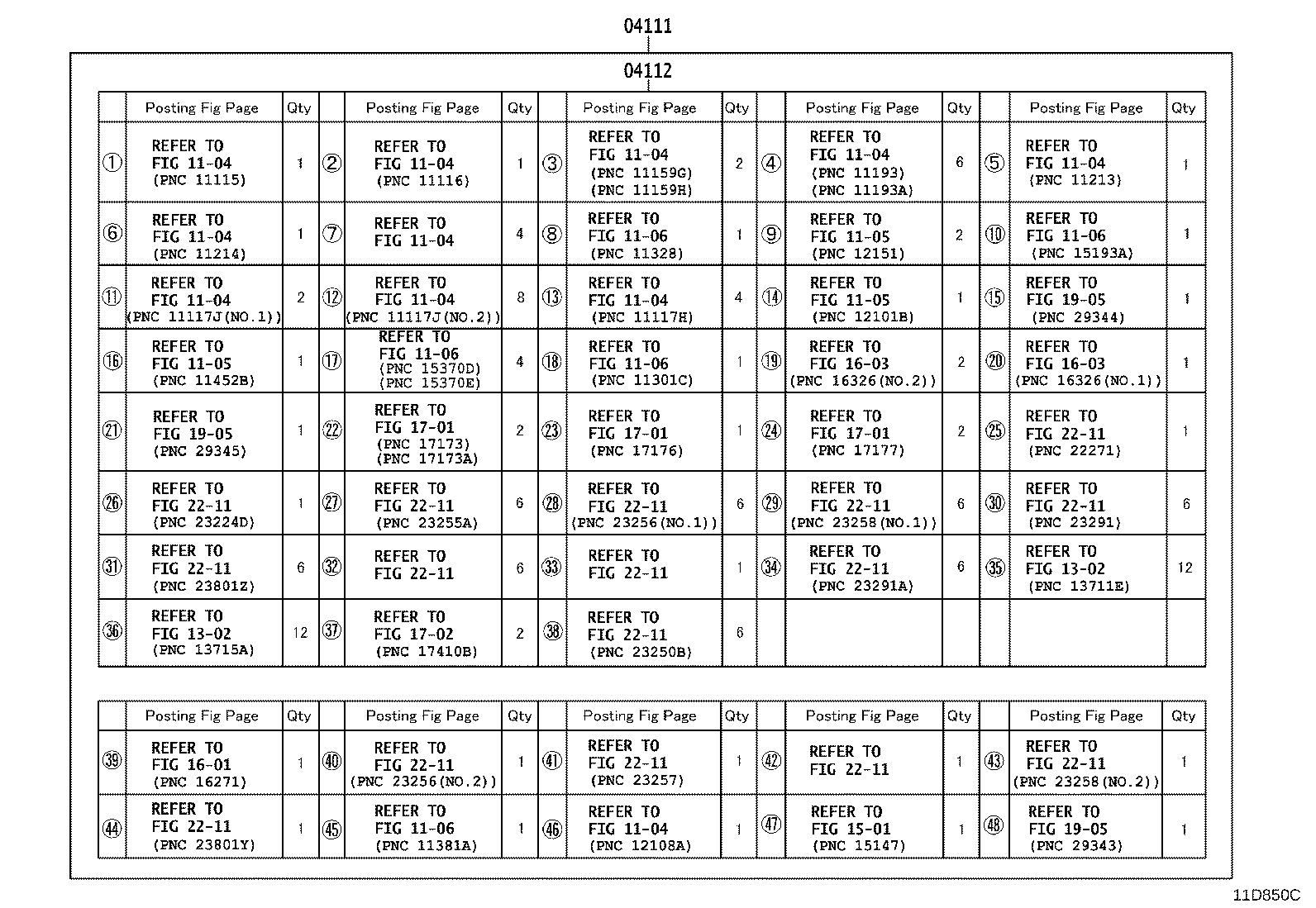

Figure 11E540B 11E540B 2019-05 → — Figure 11F412A 11F412A 2020-09 → — Figure 11E541C 11E541C 2019-05 → — Figure 11F413B 11F413B 2020-09 → — Figure 11D849B 11D849B 2018-08 → — Figure 11D850C 11D850C 2018-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
