Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

1 part groups · 4 illustrations

Illustrations

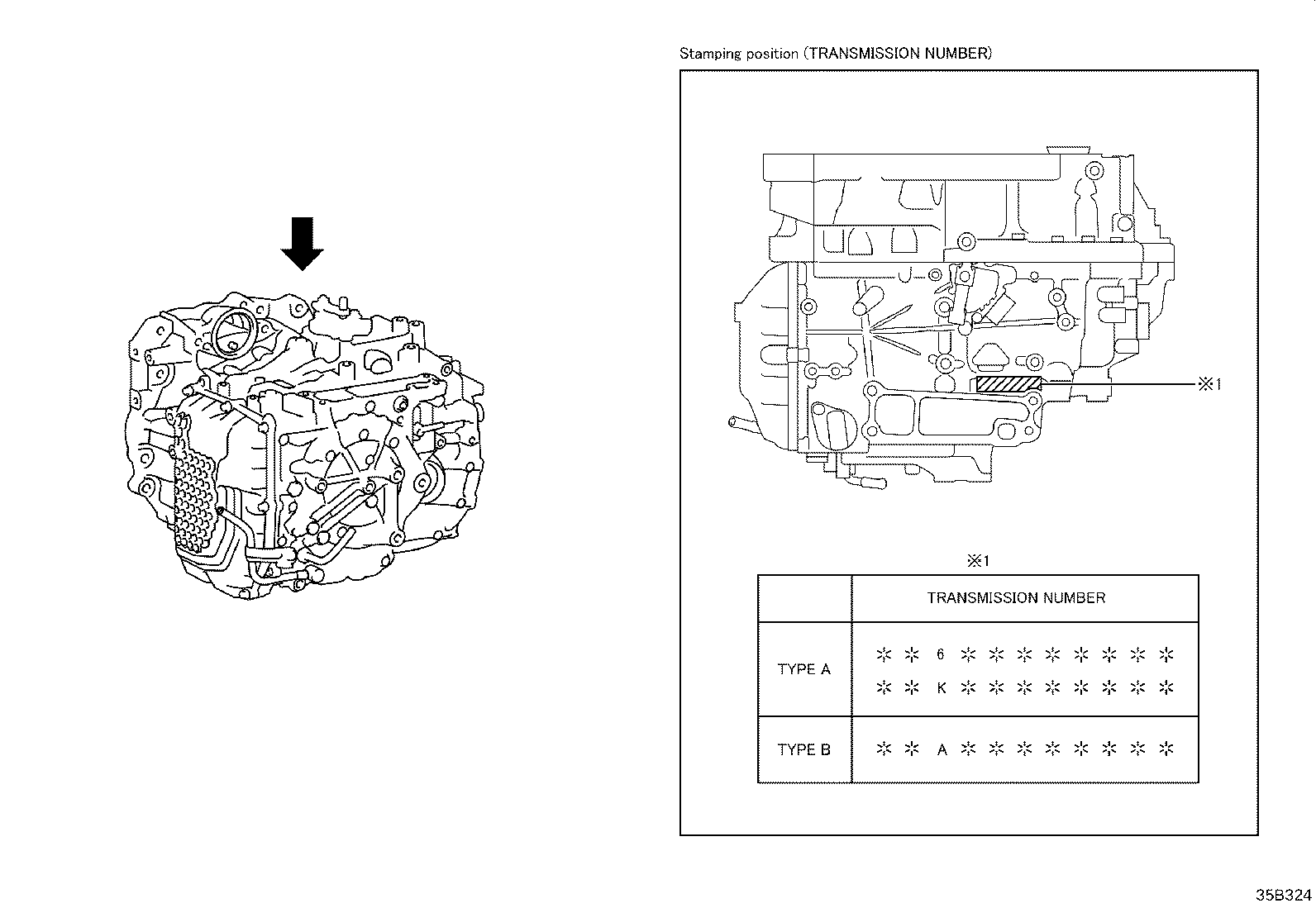

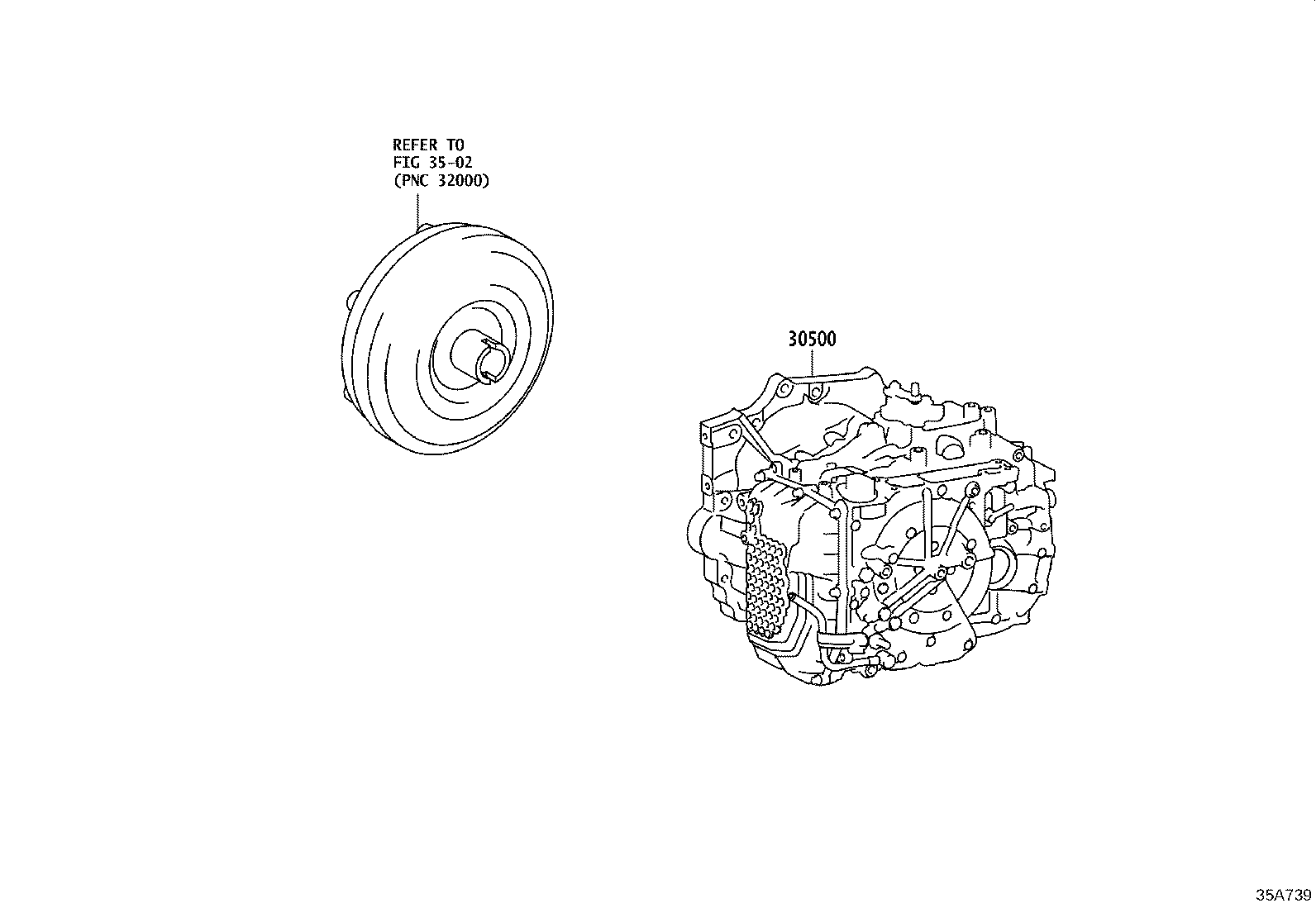

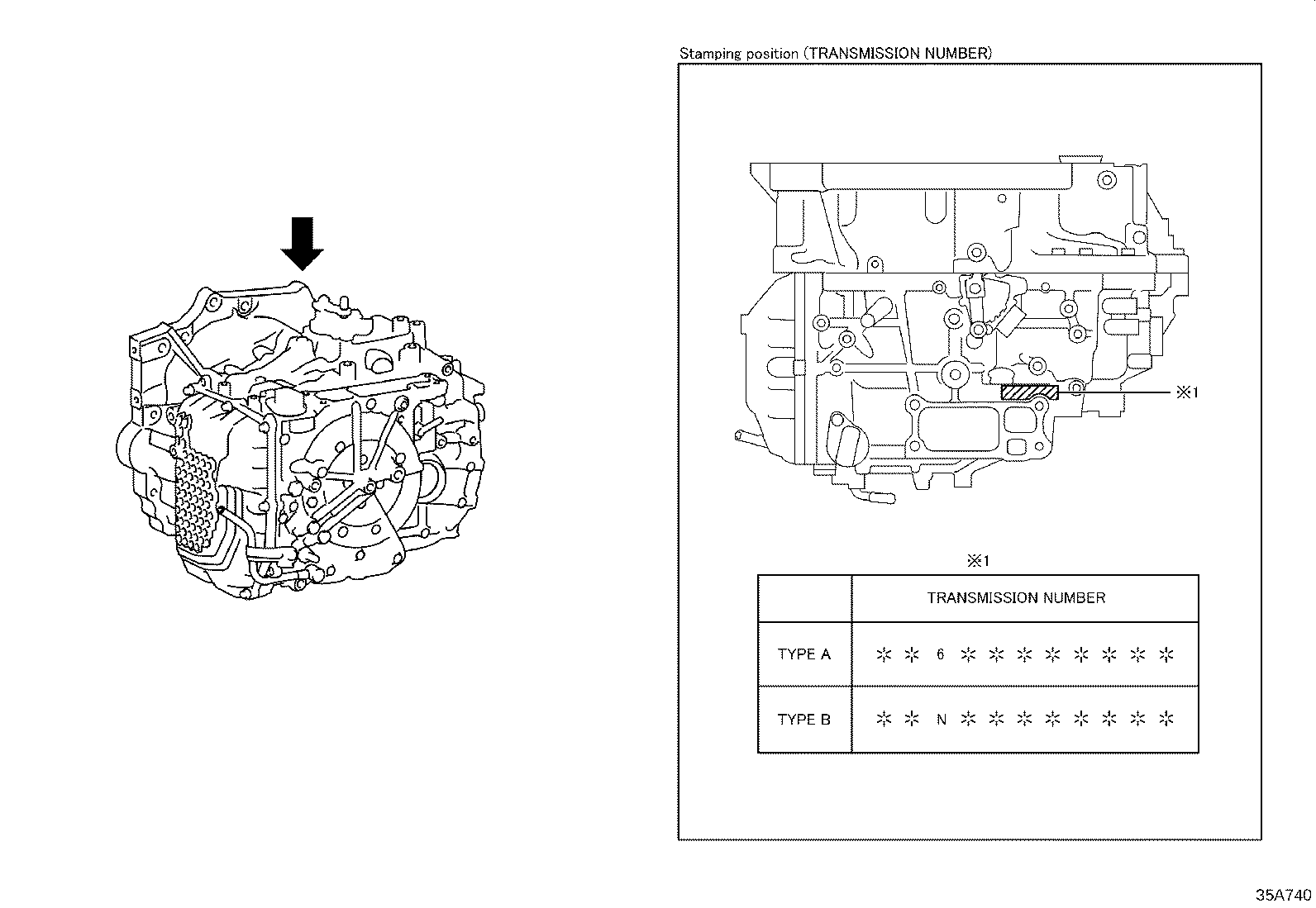

Figure 35A251A 35A251A 2018-08 → — Figure 35B324 35B324 2018-08 → — Figure 35A739 35A739 2020-09 → — Figure 35A740 35A740 2020-09 → —

Part groups

PNCDescription
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
