Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08
Transmission Case & Oil Pan (ATM)

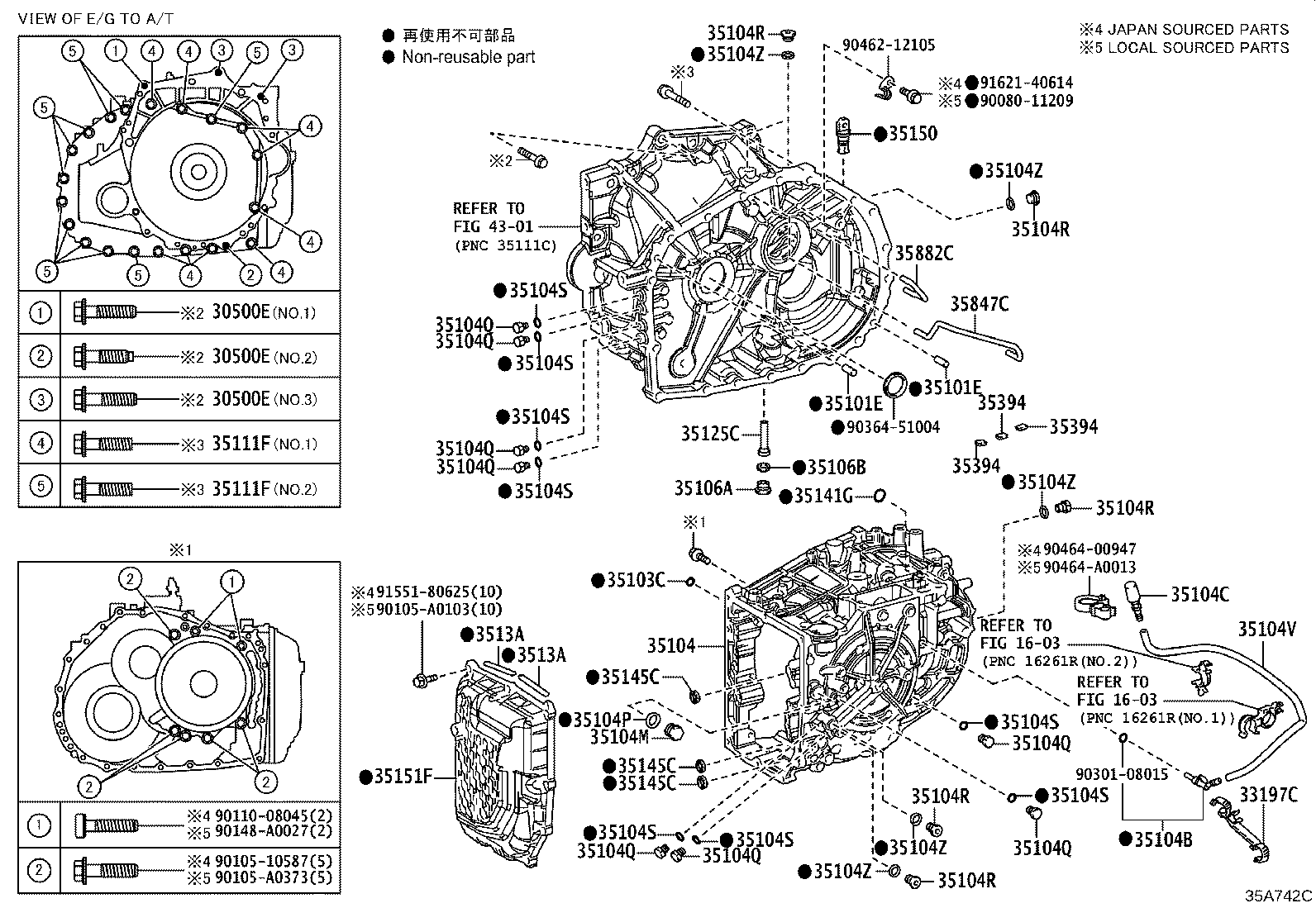

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30500E | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 33197C | Clamp, Transmission Breather |
| 35101E | Pin, Straight (FOR AUTOMATIC TRANSMISSION CASE) |
| 35103C | Ring, O |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104C | Plug, Breather, NO.2 (ATM) |
| 35104E | Case Sub-assy, Automatic Transaxle |
| 35104M | Plug, Refill(ATM) |
| 35104P | Gasket, Refill Plug(ATM) |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104R | Plug, NO.2 (FOR TRANSAXLE CASE) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35104X | Ring, O (FOR BREATHER PLUG) |
| 35104Z | Gasket (FOR TRANSAXLE CASE) |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35111F | Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) |
| 35125C | Tube, Transmission Oil Filler, NO.1 |
| 3513A | Rubber, Transmission Vibration Control |
| 35141G | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35145C | Gasket, Transaxle Case |
| 35150 | Plug Assy, Transmission Case |
| 35151A | Cover, Transaxle Case, Upper |
| 35151F | Cover, Transmission Case, Side |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35847C | Tube, Transmission Lube Apply |
| 35882C | Tube, Differential Gear Lube Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
