Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

11 part groups · 2 illustrations

Illustrations

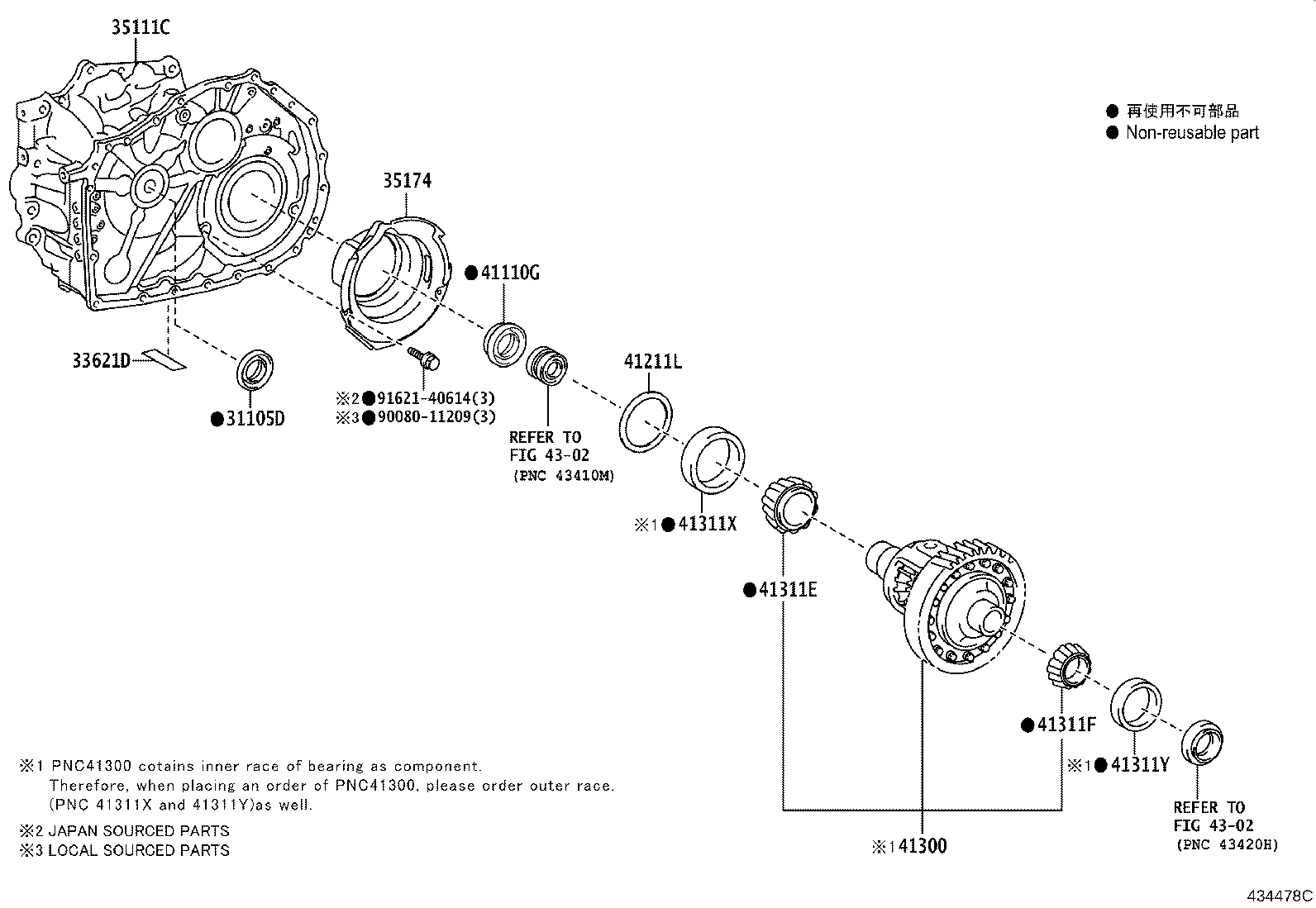

Figure 434014E 434014E 2018-08 → — Figure 434478C 434478C 2020-09 → —

Part groups

PNCDescription
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
33621D Label, Transaxle Oil Information
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311X Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT)
41311Y Outer Race, Tapered Roller Bearing (FOR DIFF. CASE REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
