Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

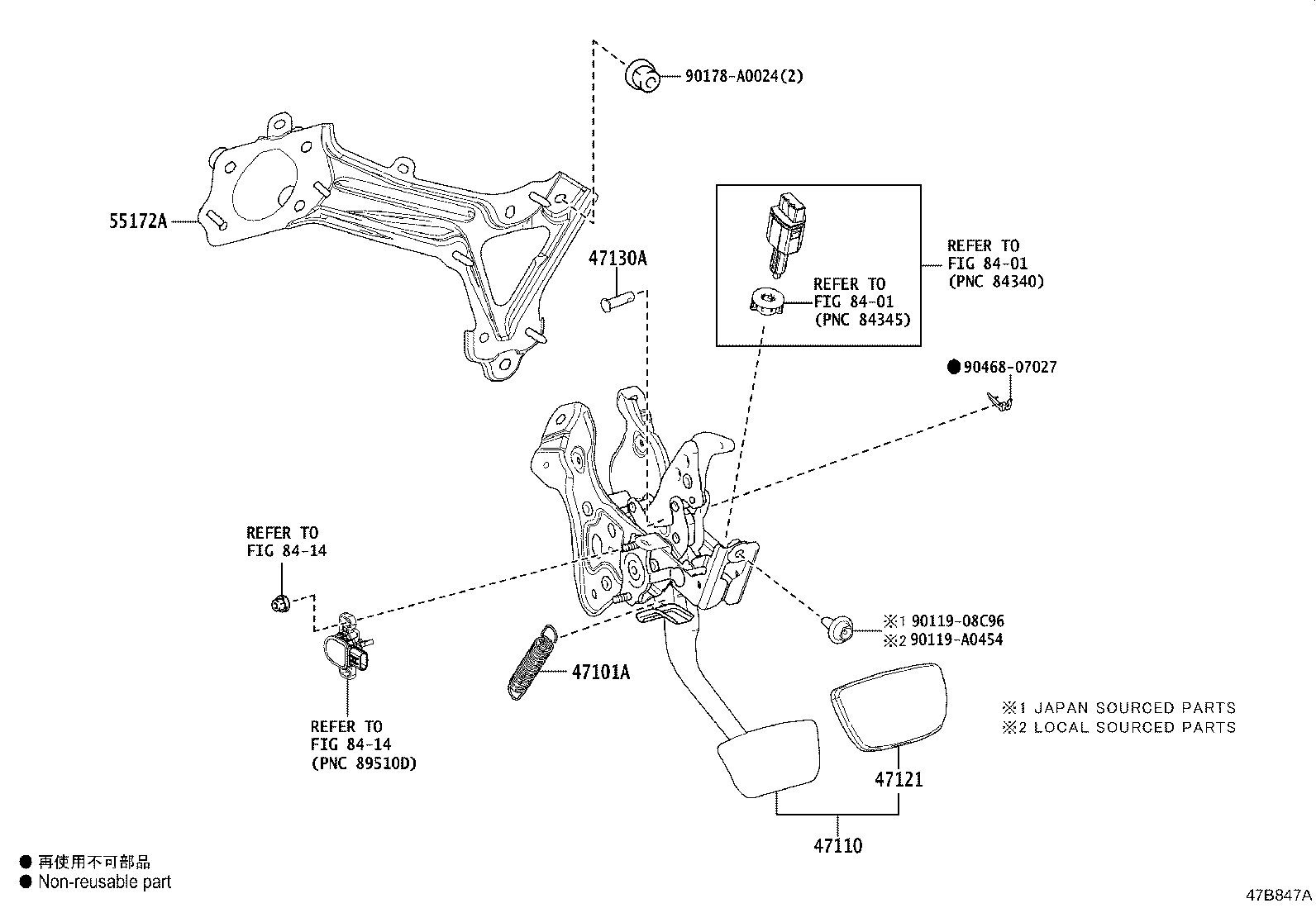

Figure 47B250B 47B250B 2018-08 → — Figure 47B847A 47B847A 2019-05 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47130A Pin, Brake Pedal Link
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
