Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 3 illustrations

Illustrations

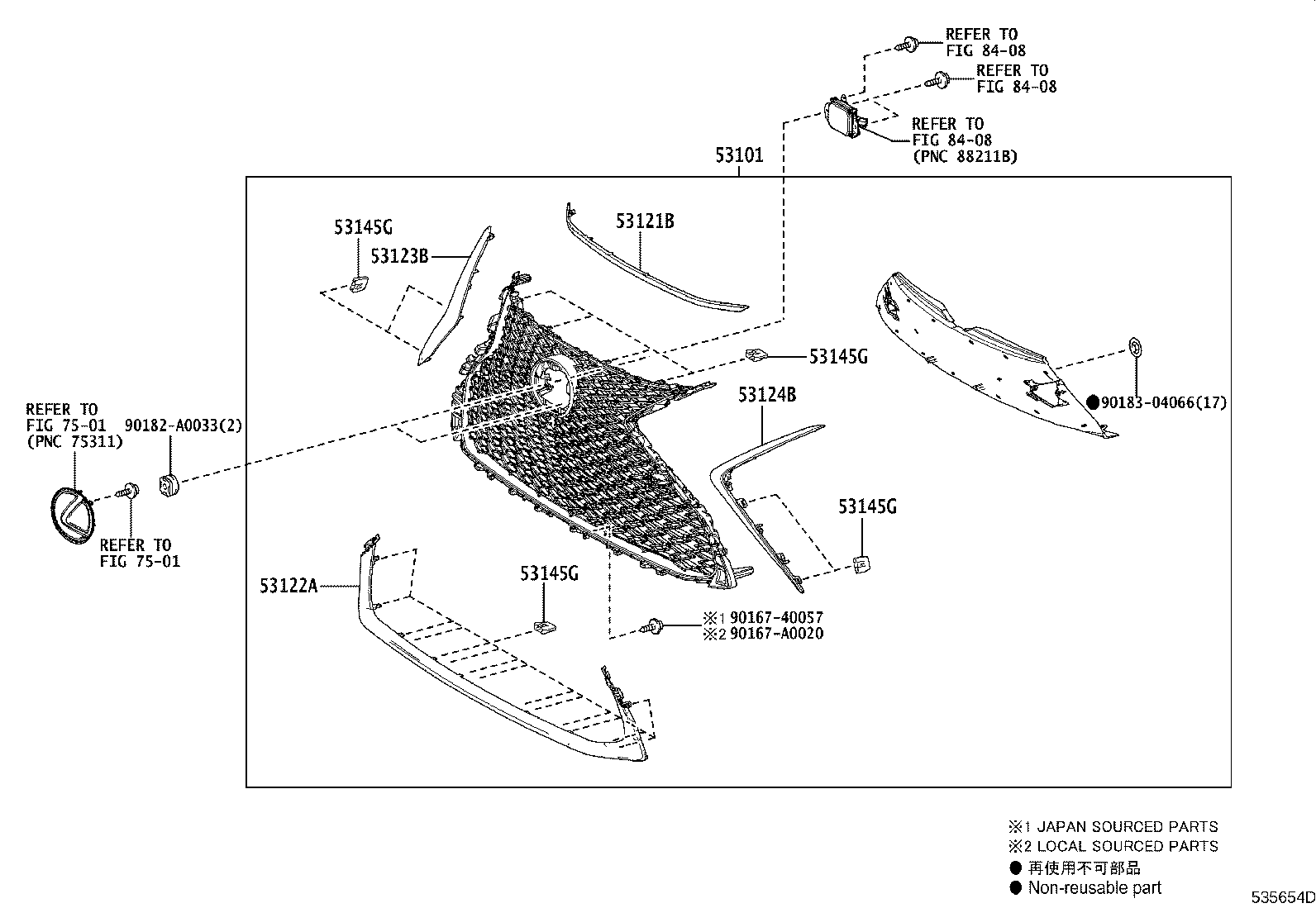

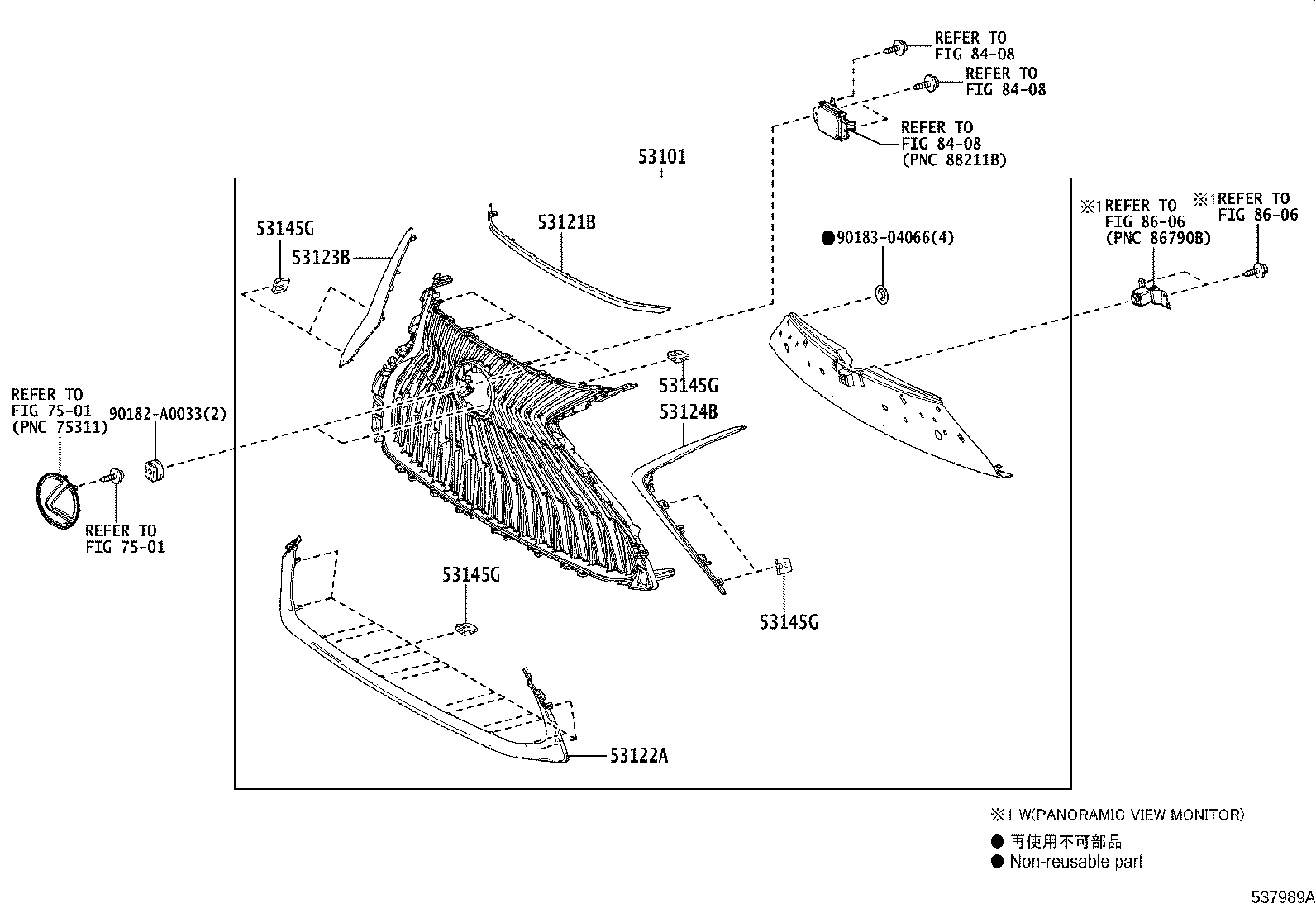

Figure 535653D 535653D 2018-08 → 2021-09 Figure 535654D 535654D 2018-08 → — Figure 537989A 537989A 2021-09 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53121B Moulding, Radiator Grille, Upper
53122A Moulding, Radiator Grille, Lower
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53145G Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
