Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08

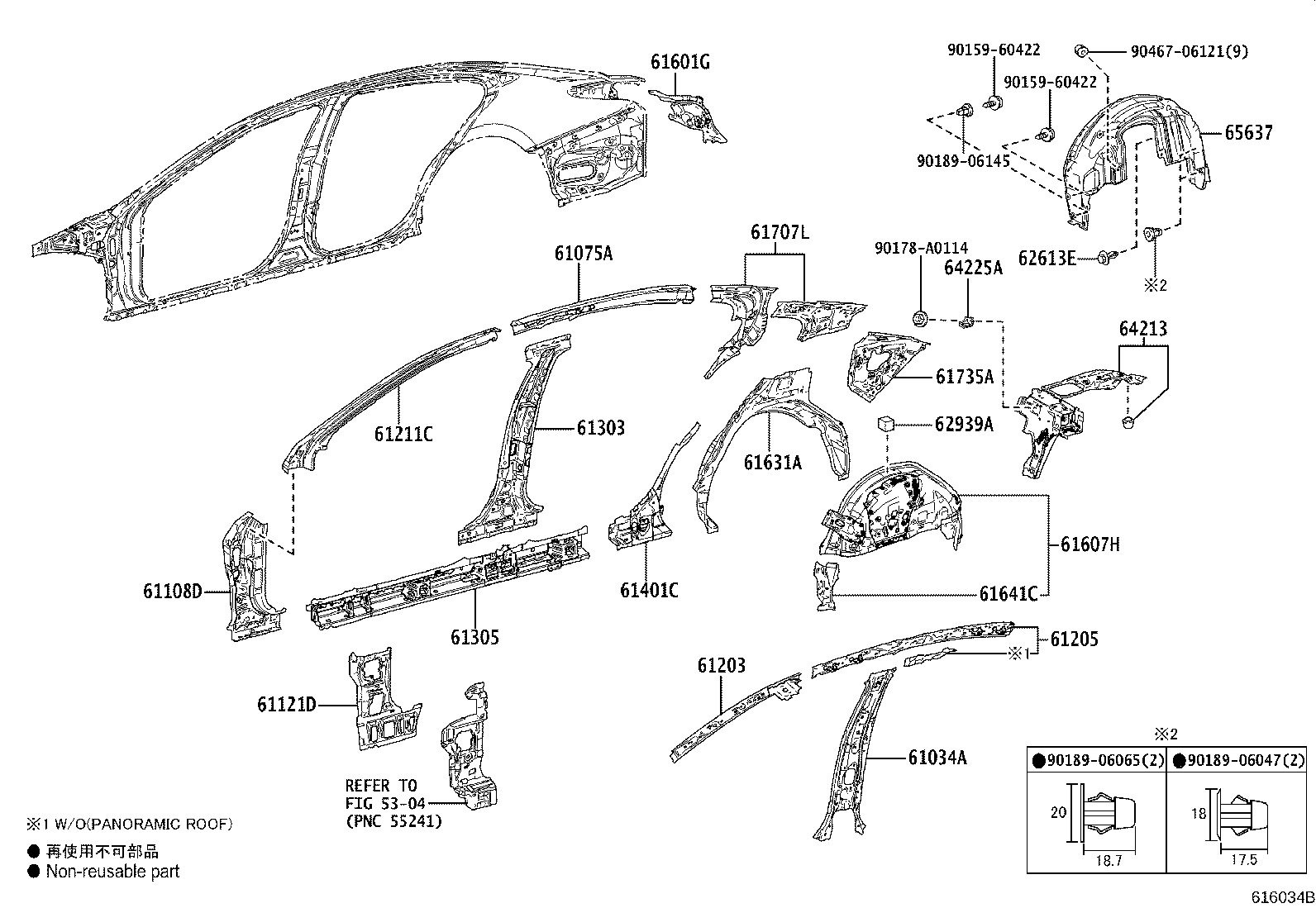

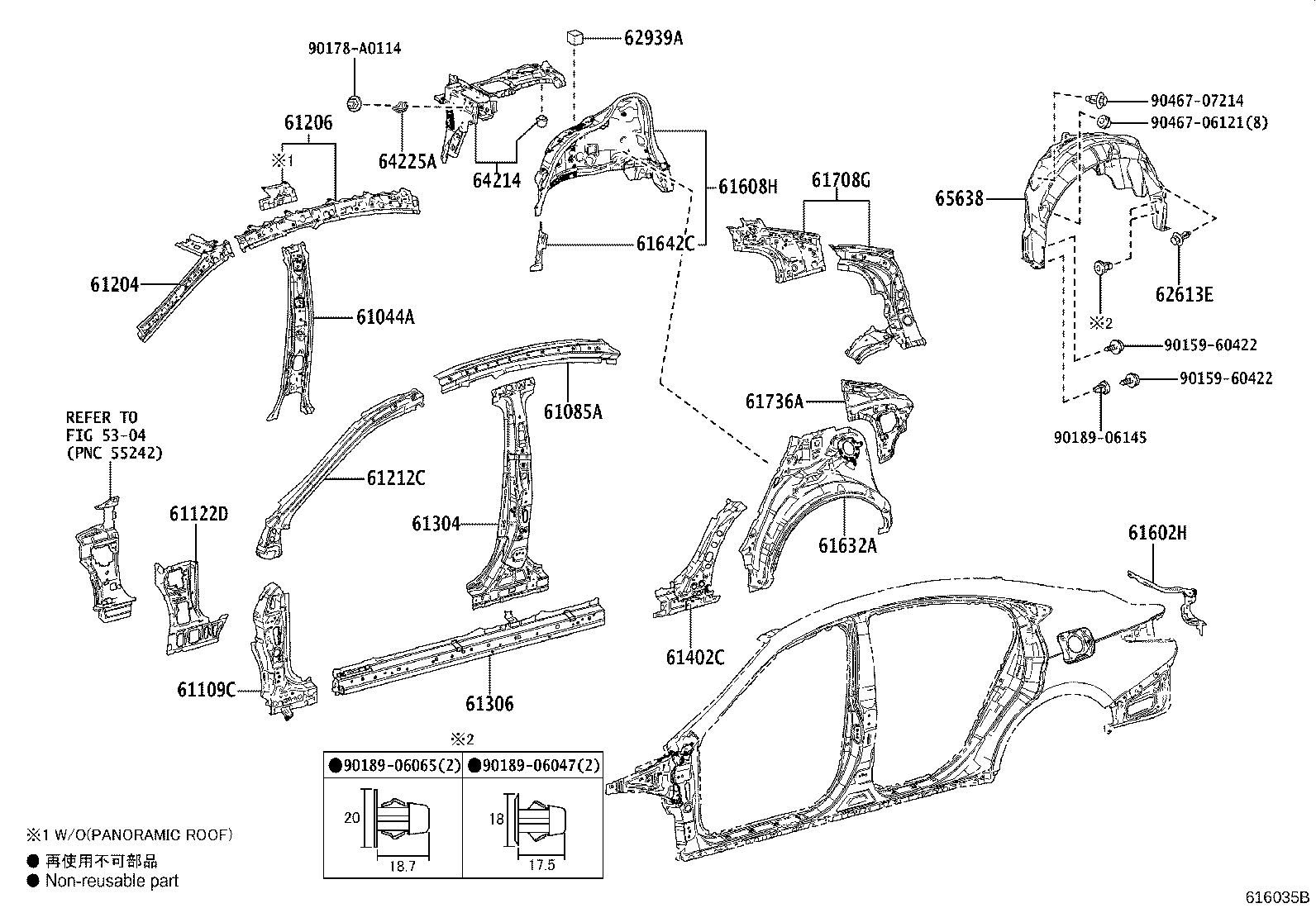

Side Member
55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58747A | Protector, Quarter Panel, Rear RH |
| 58748A | Protector, Quarter Panel, Rear LH |
| 61034A | Pillar Sub-assy, NO.3 Inner, RH |
| 61044A | Pillar Sub-assy, NO.3 Inner, LH |
| 61075A | Rail Sub-assy, NO.3 Upper Outer, RH |
| 61085A | Rail Sub-assy, NO.3 Upper Outer, LH |
| 61103A | Reinforcement Sub-assy, Cowl Side, RH |
| 61104B | Reinforcement Sub-assy, Cowl Side, LH |
| 61108D | Reinforcement Sub-assy, Front Pillar, Lower RH |
| 61109C | Reinforcement Sub-assy, Front Pillar, Lower LH |
| 61113A | Panel, Side, Outer NO.2 RH |
| 61114B | Panel, Side, Outer NO.2 LH |
| 61121D | Panel, Cowl Side, RH |
| 61122D | Panel, Cowl Side, LH |
| 61131C | Pillar, Front Body, Outer RH |
| 61132B | Pillar, Front Body, Outer LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61211C | Rail, Roof Side, RH |
| 61212C | Rail, Roof Side, LH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61303 | Reinforce Sub-assy, Center Body Pillar, Upper RH |
| 61304 | Reinforce Sub-assy, Center Body Pillar, Upper LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61601B | Panel Sub-assy, Quarter, RH |
| 61601G | Panel Sub-assy, Rear Body Rear Side, RH |
| 61602C | Panel Sub-assy, Quarter, LH |
| 61602H | Panel Sub-assy, Rear Body Rear Side, LH |
| 61607H | Panel Sub-assy, Quarter Wheel House, Inner RH |
| 61608H | Panel Sub-assy, Quarter Wheel House, Inner LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61707L | Panel Sub-assy, Roof Side, Inner Front RH |
| 61708G | Panel Sub-assy, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 62613E | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 62939A | Silencer, Quarter Vent |
| 64213 | Extension, Package Tray Strainer, RH |
| 64214 | Extension, Package Tray Strainer, LH |
| 64225A | Hanger, Rear Seat Cushion Support |
| 65565 | Patch, Side Panel Rear End, RH |
| 65566 | Patch, Side Panel Rear End, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
