Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08

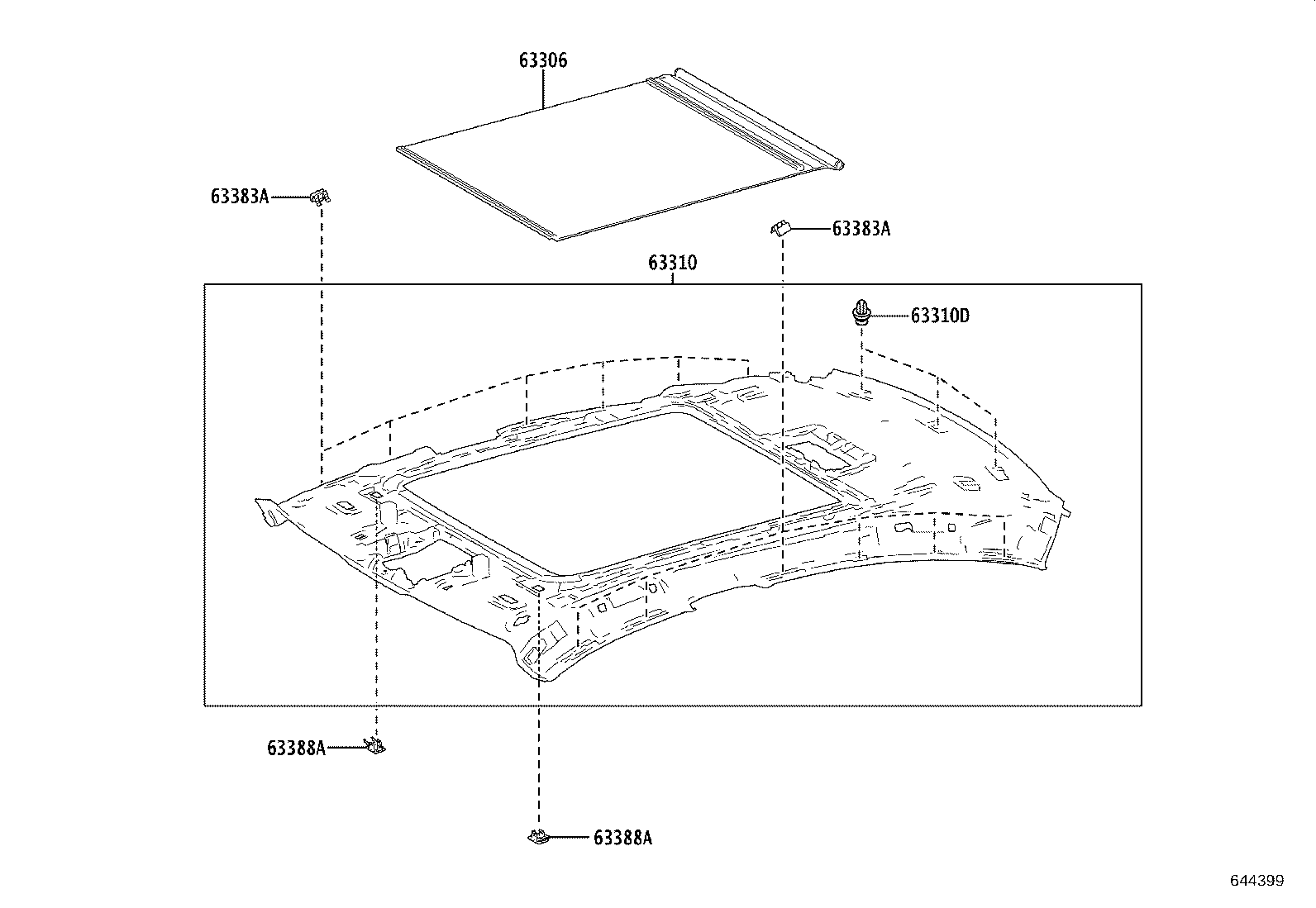

Roof Headlining & Silencer Pad
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63383A | Retainer, Roof Headlining Trim, Side, NO.1 |
| 63388A | Cover, Roof Headlining Holder |
| 63388G | Cover, Roof Headlining Holder, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
