Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08

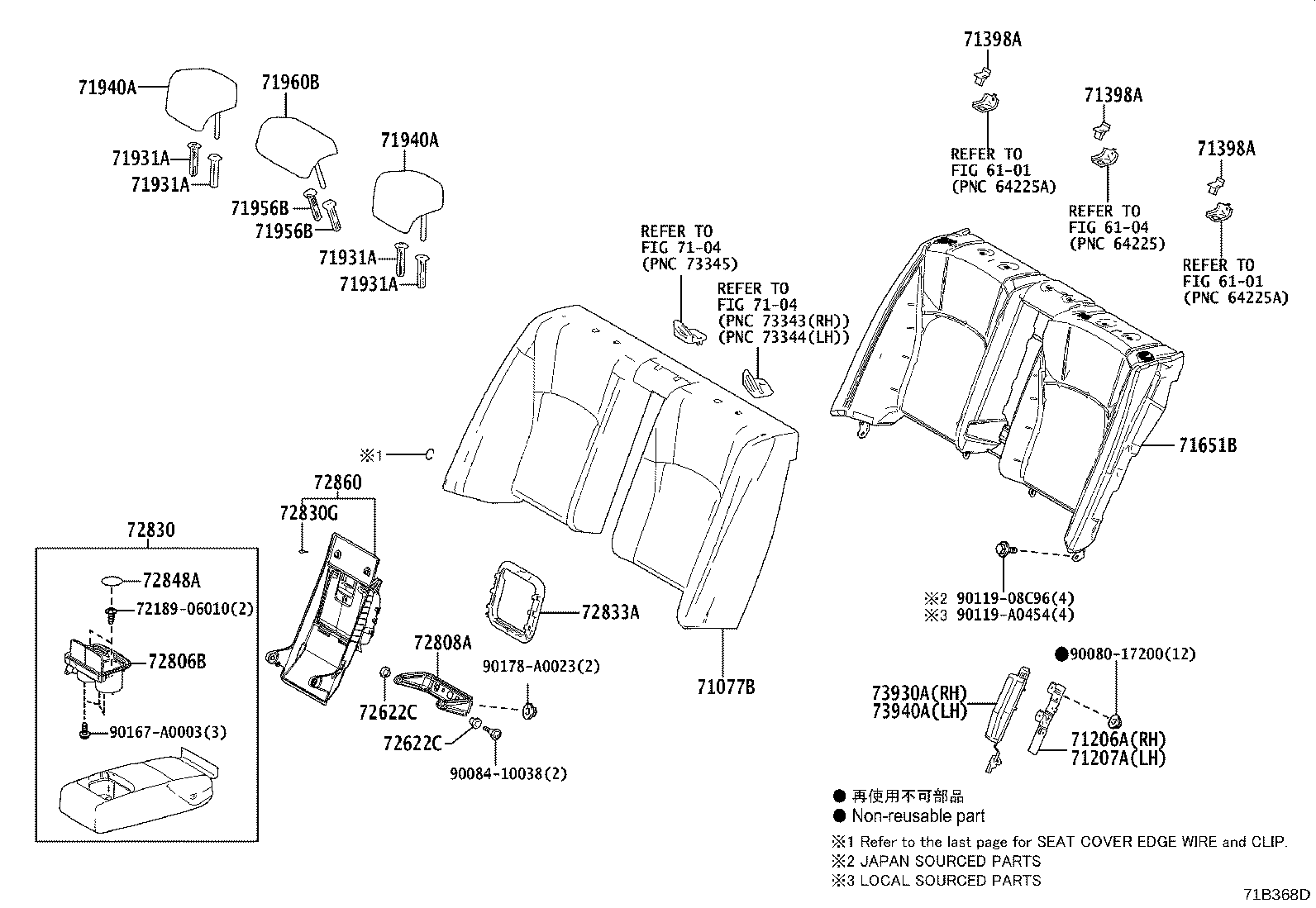

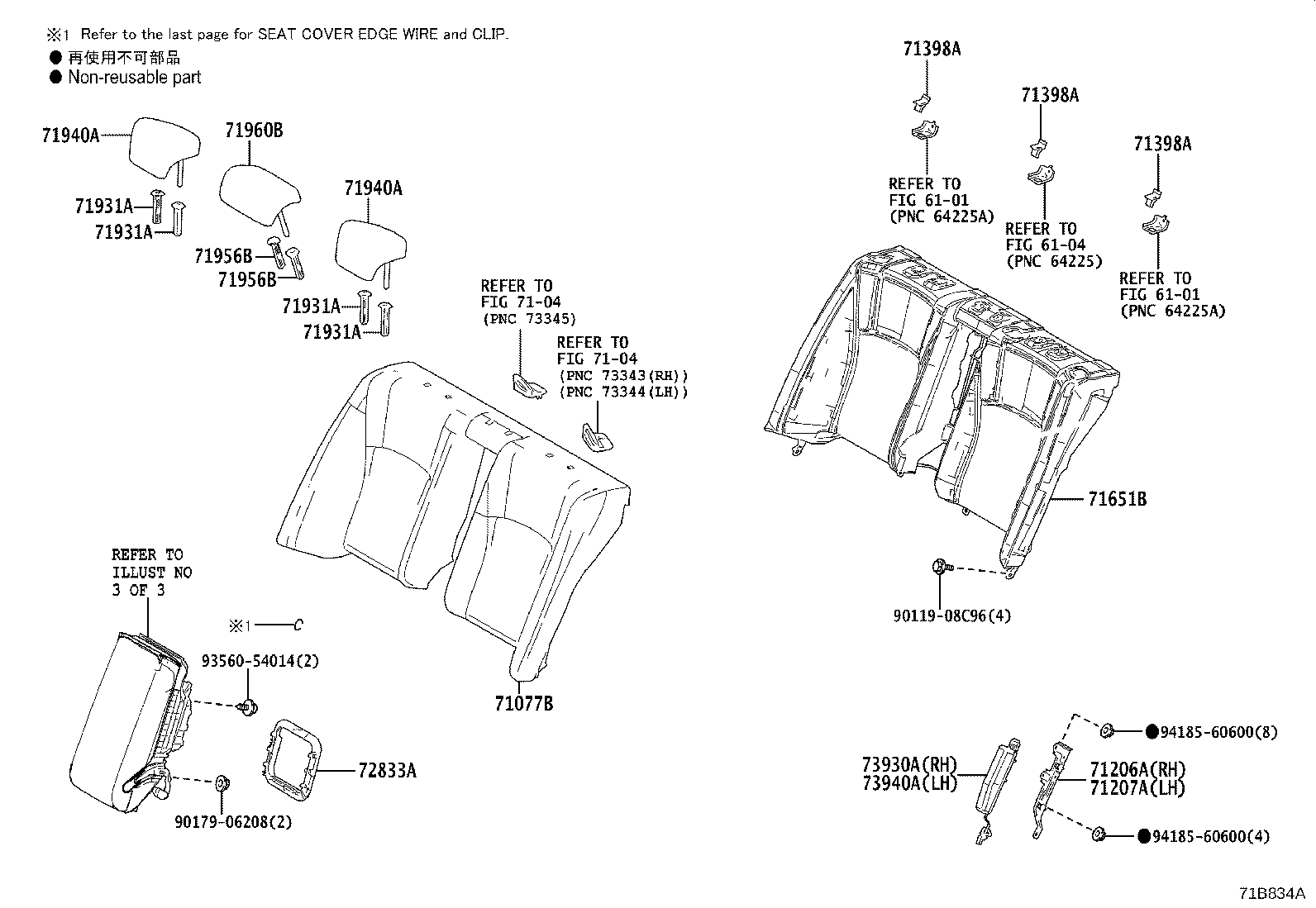

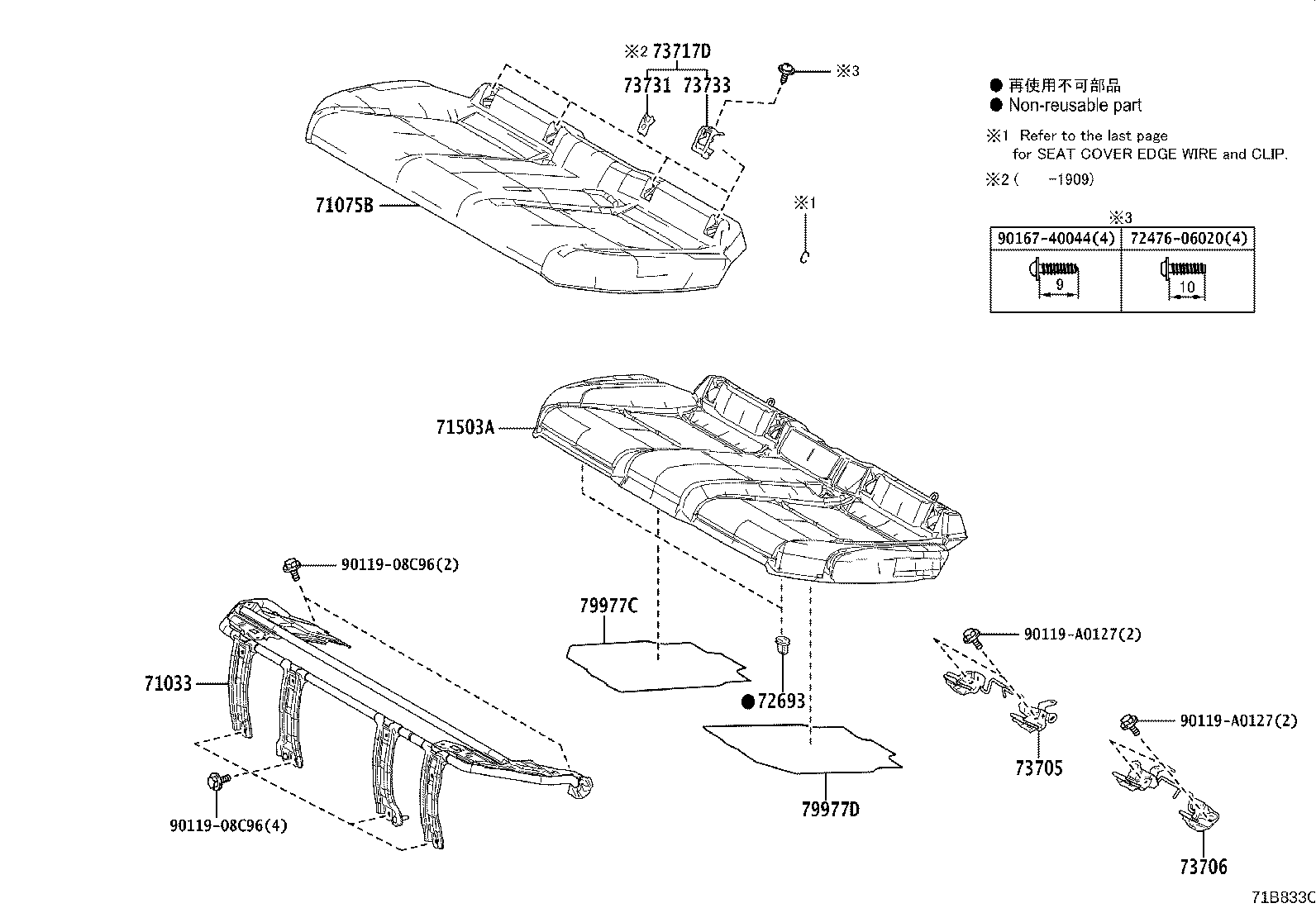

Rear Seat & Seat Track
32 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71206A | Bracket Sub-assy, Rear Seat Stopper, RH |
| 71207A | Bracket Sub-assy, Rear Seat Stopper, LH |
| 71398A | Holder, Rear Seatback |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71530 | Armrest Assy, Rear Seatback, Center |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72622C | Bush, Rear Seatback Protector Shaft |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72806B | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72808A | Bracket Sub-assy, Seat Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830G | Cushion |
| 72833A | Plate, Seat Center Armrest, Inner |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72860 | Box Assy, Rear Seat Center Armrest |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73717D | Cover, Child Restraint Seat Tether Anchor |
| 73731 | Cover, Child Restraint Seat |
| 73733 | Cover, Child Restraint Seat Base |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 79977C | Felt, Seat Cushion, RH |
| 79977D | Felt, Seat Cushion, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
