Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08

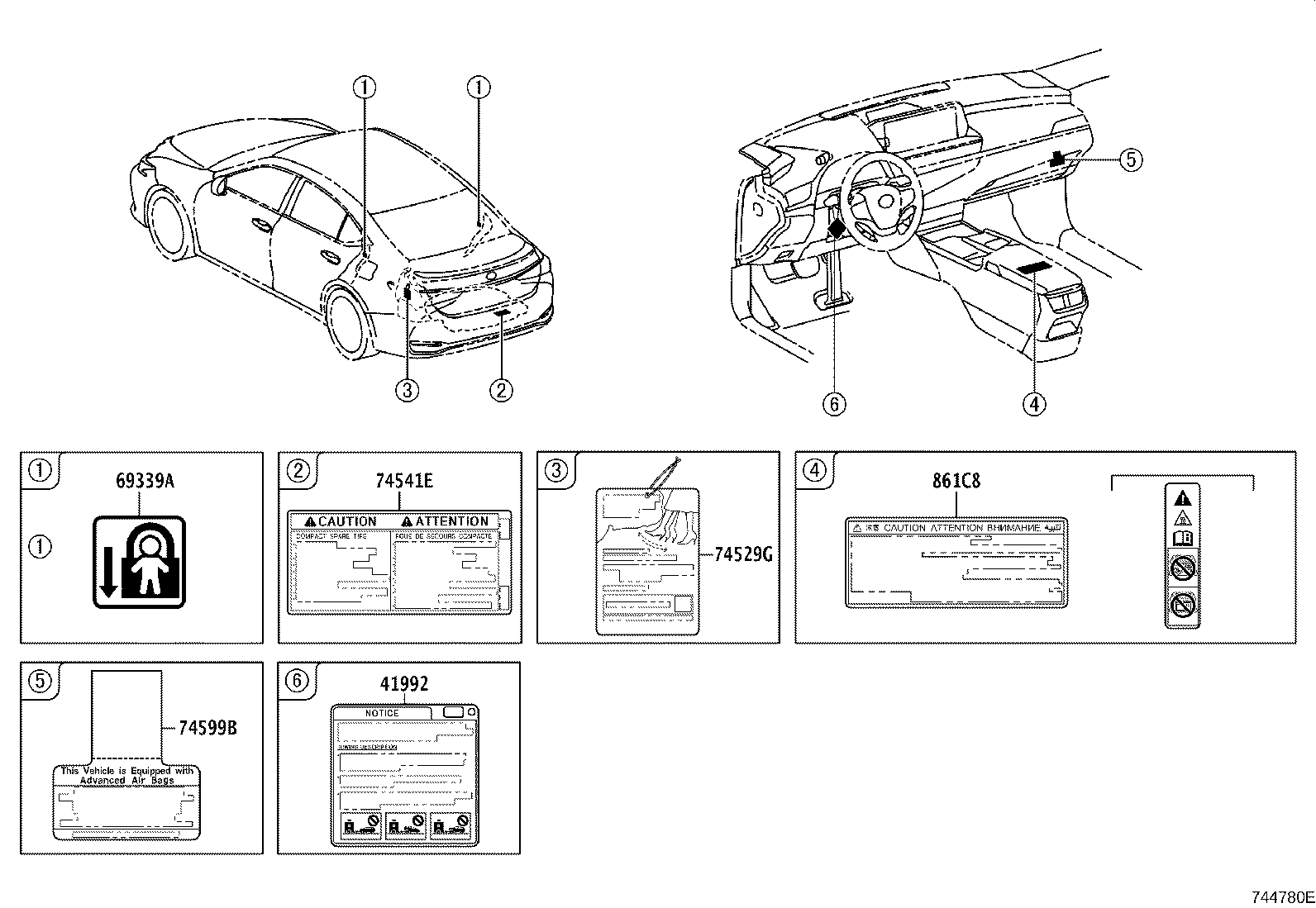

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 41992A | Label, Differential Notice, NO.2 |
| 69339A | Plate, Child Protector Lock Caution |
| 74529G | Label, Back Door Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723E | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
