Toyota Lexus ES3##/250(NAP)

2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

3 part groups · 2 illustrations

Illustrations

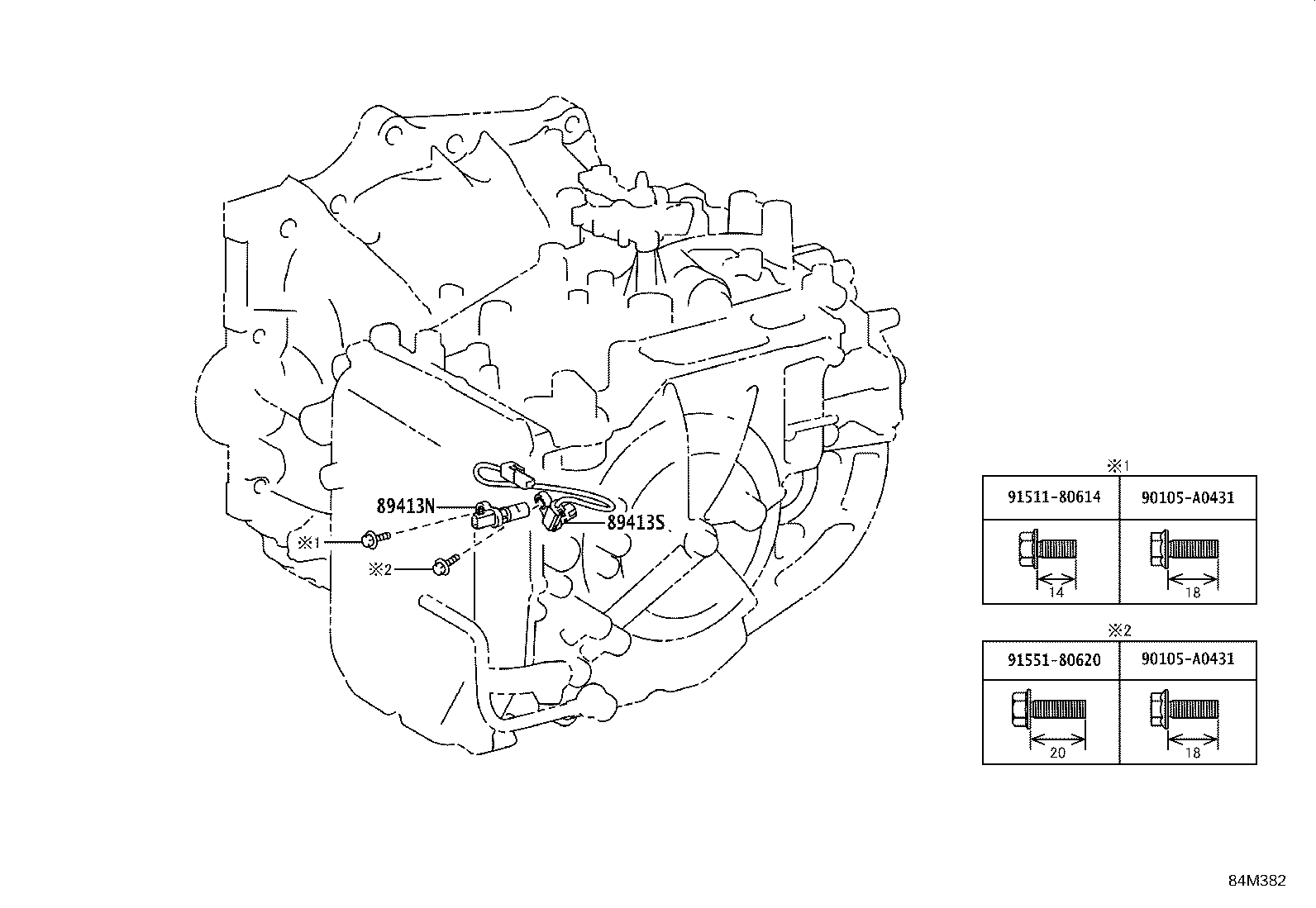

Figure 84J266A 84J266A 2018-08 → — Figure 84M382 84M382 2020-09 → —

Part groups

PNCDescription
35299 Spacer, Transmission Revolution Sensor
89413N Sensor, Transmission Revolution, (NT)
89413S Sensor, Transmission Revolution (NC)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
