Toyota Lexus ES3##/250(NAP)
2018-08 → present · chassis AXZA15,AXZH1#,GSZ10 · catalogue 28C420 · United States
Supported model
Data version 2021-08

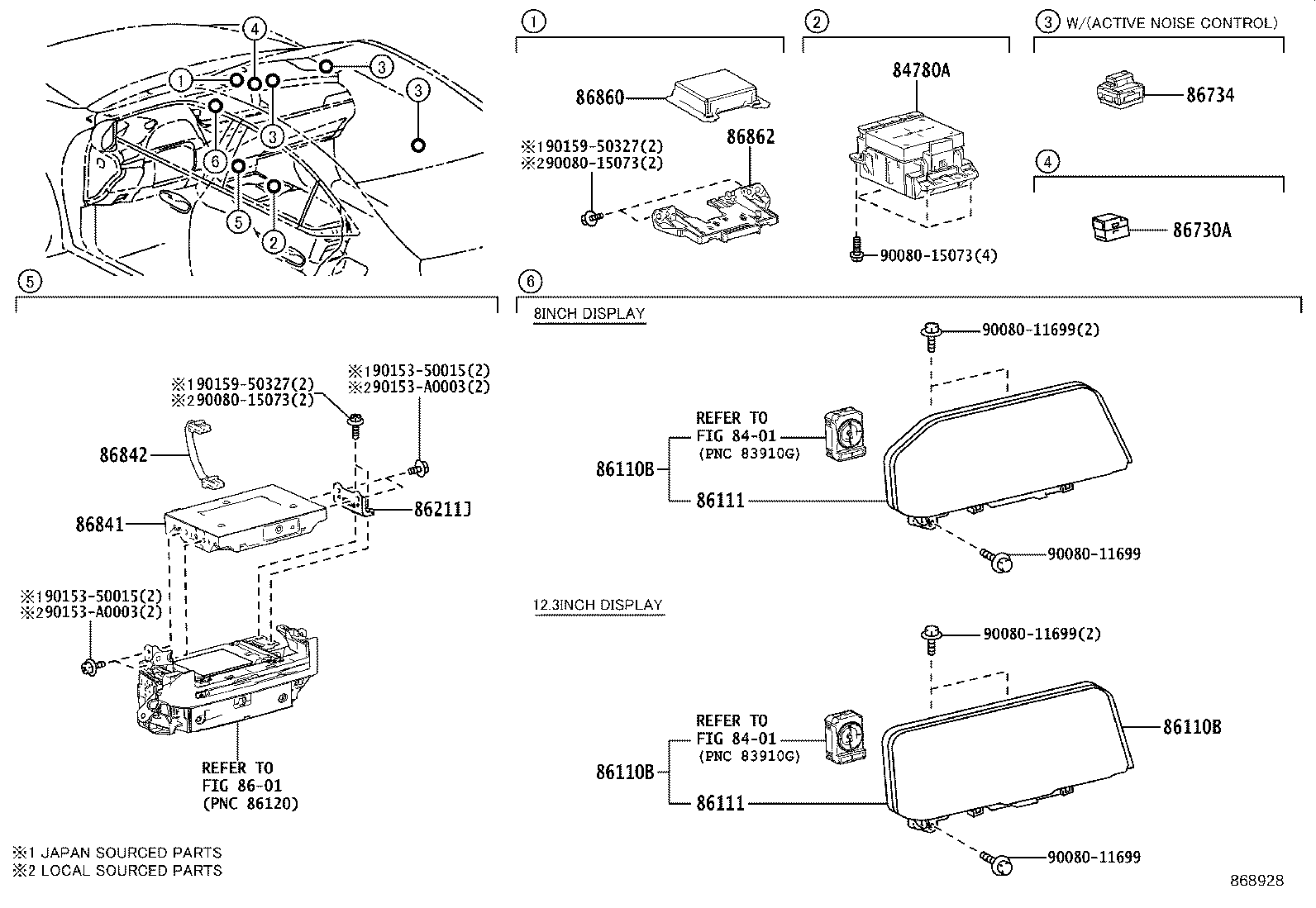

Navigation & Front Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84780A | Controller Assy, Remote Operation |
| 86110B | Multi-display Assy |
| 86111 | Multi-display |
| 86134A | Parts, Multi-display |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86452 | Panel, Sub-cluster Module, NO.1 |
| 86456 | Cover, Multi-media Module |
| 86730A | Microphone Assy, Telephone |
| 86734 | Microphone, Active Noise Control |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
