Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 5 illustrations

Illustrations

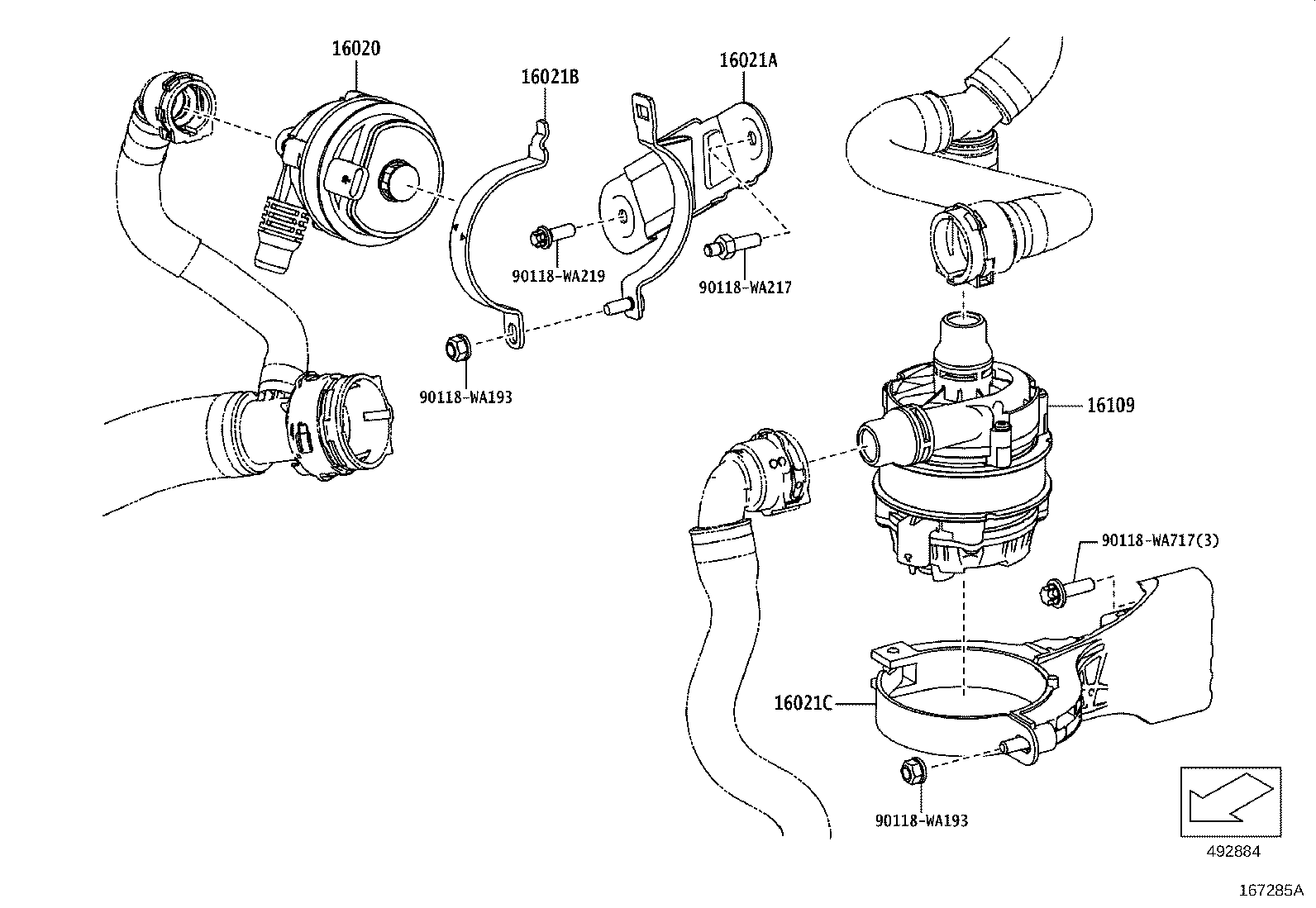

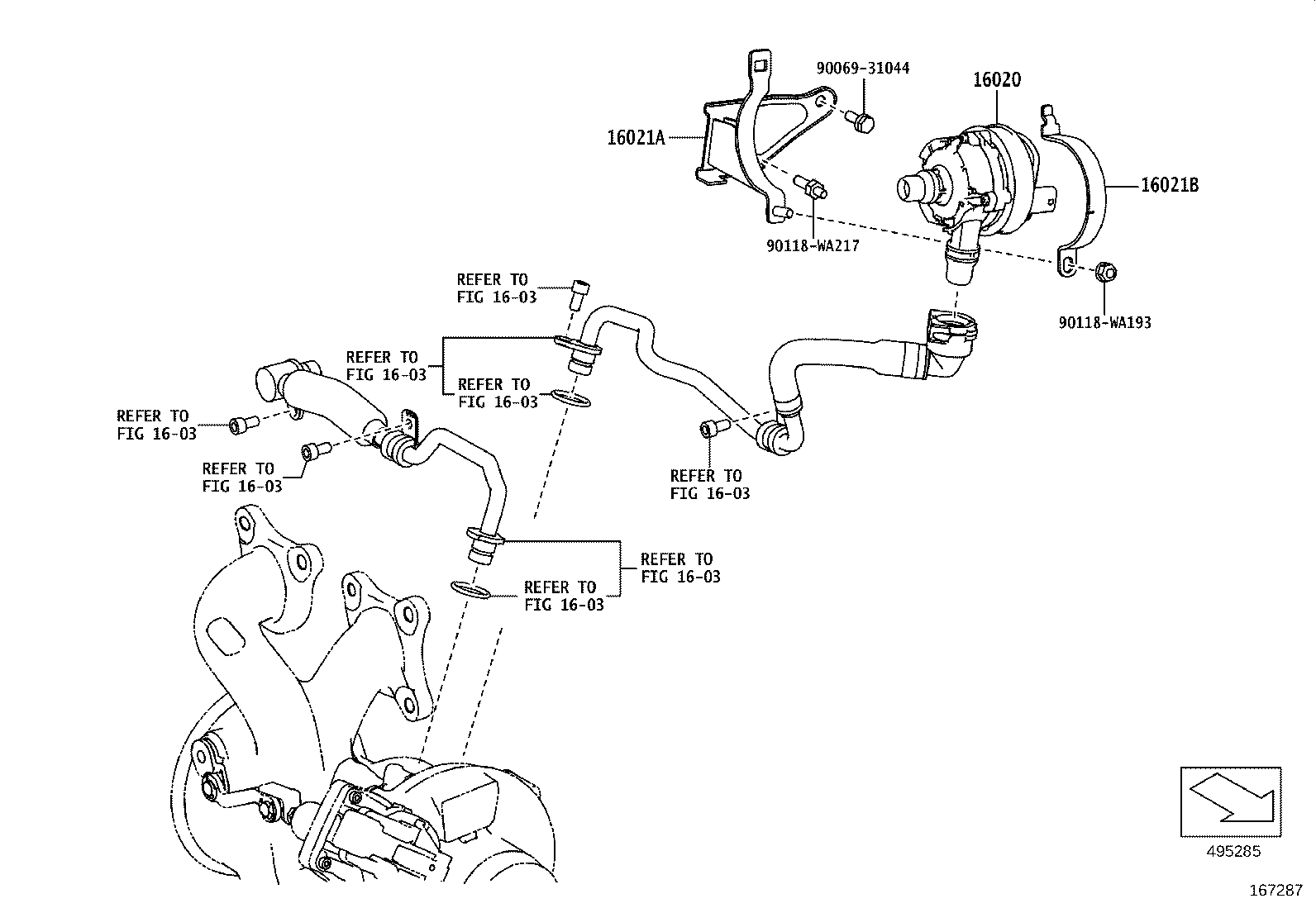

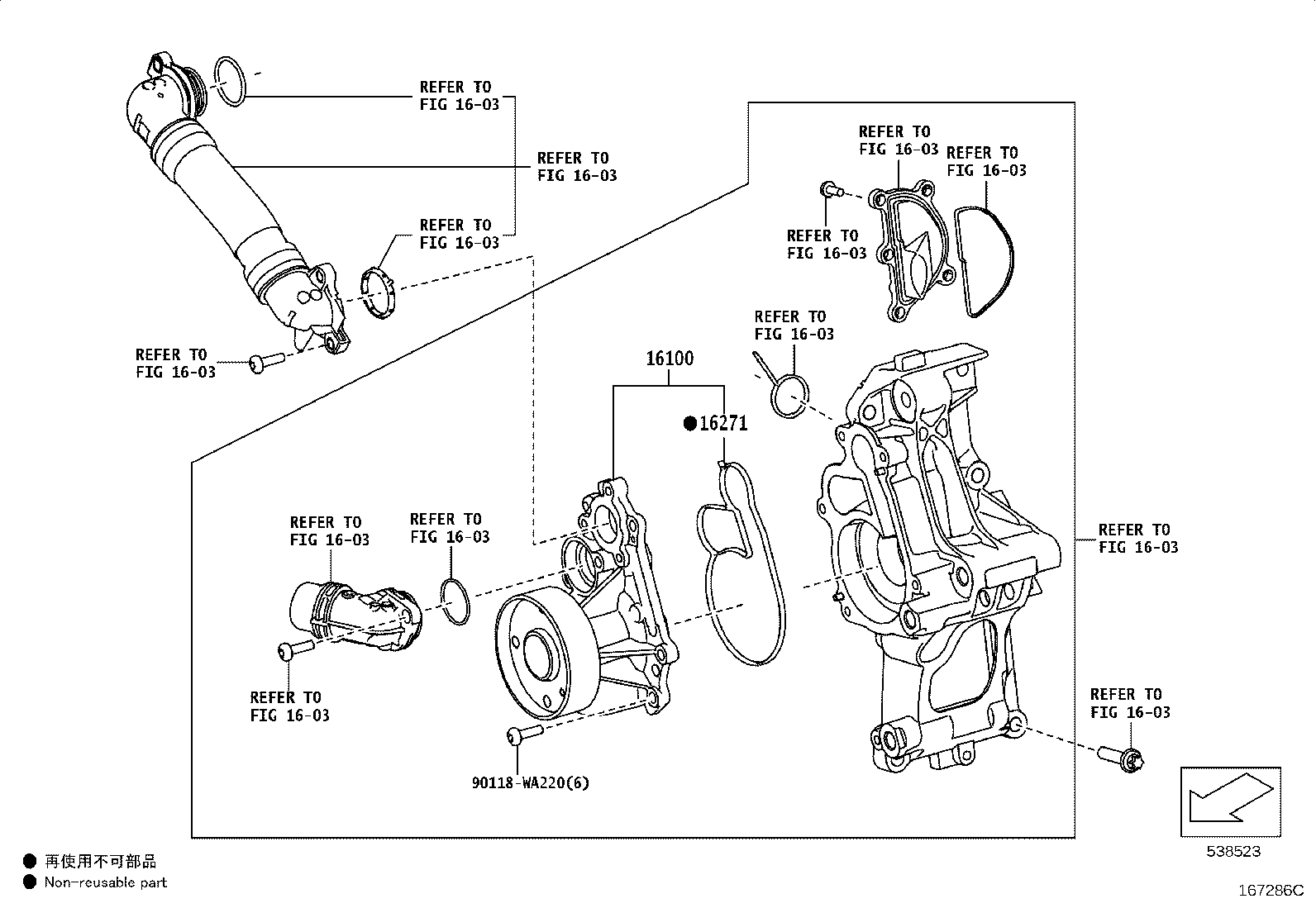

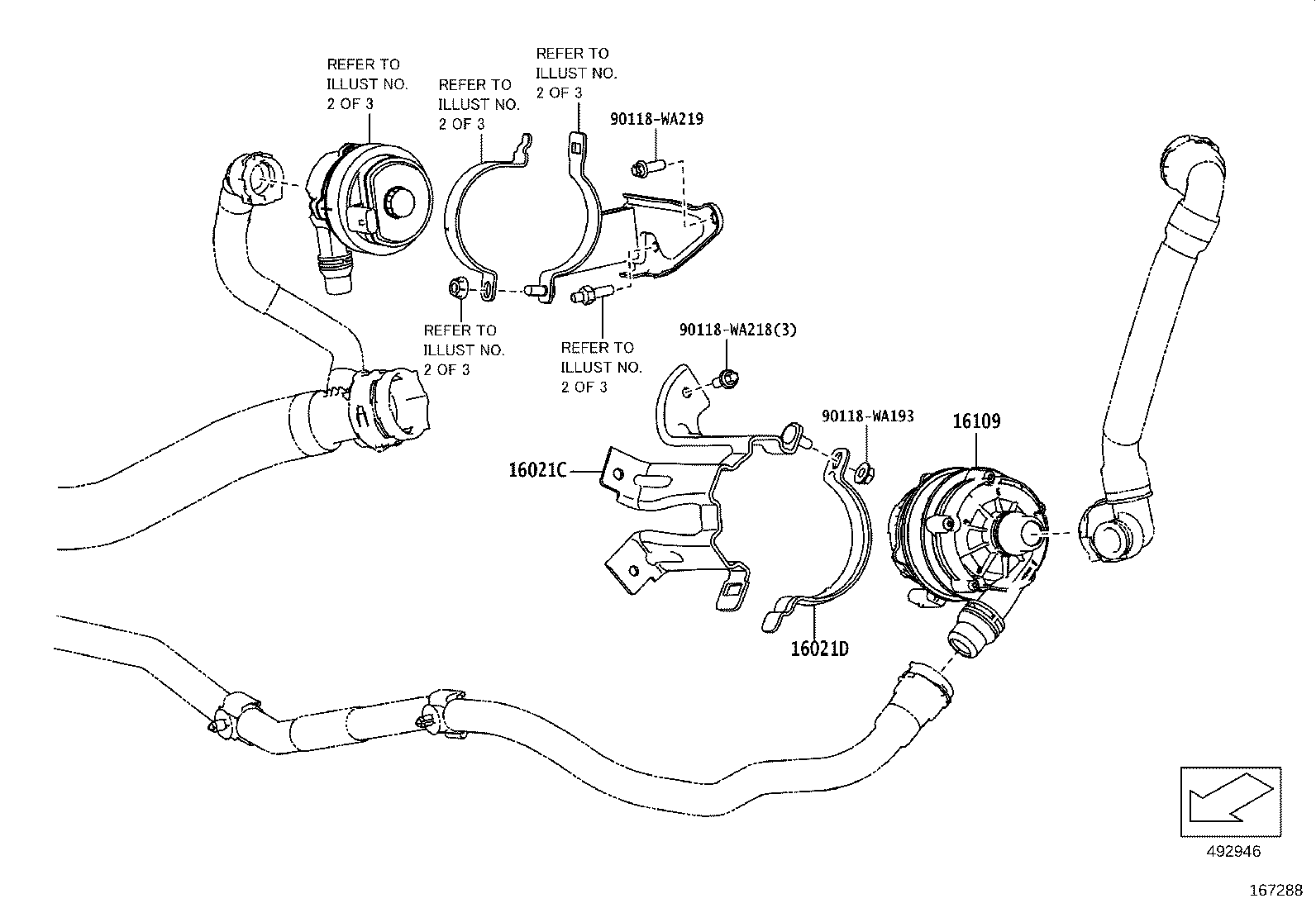

Figure 167284B 167284B 2019-03 → — Figure 167285A 167285A 2019-03 → — Figure 167286C 167286C 2019-03 → — Figure 167287 167287 2019-03 → — Figure 167288 167288 2019-03 → —

Part groups

PNCDescription
16020 Pump Assy, Water
16021A Bracket Sub-assy, Water Pump, NO.1
16021B Bracket Sub-assy, Water Pump, NO.2
16021C Bracket Sub-assy, Water Pump, NO.3
16021D Bracket Sub-assy, Water Pump, NO.4
16100 Pump Assy, Engine Water
16109 Pump Sub-assy, Water
16173 Pulley, Water Pump
16271 Gasket, Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
