Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 9 illustrations

Illustrations

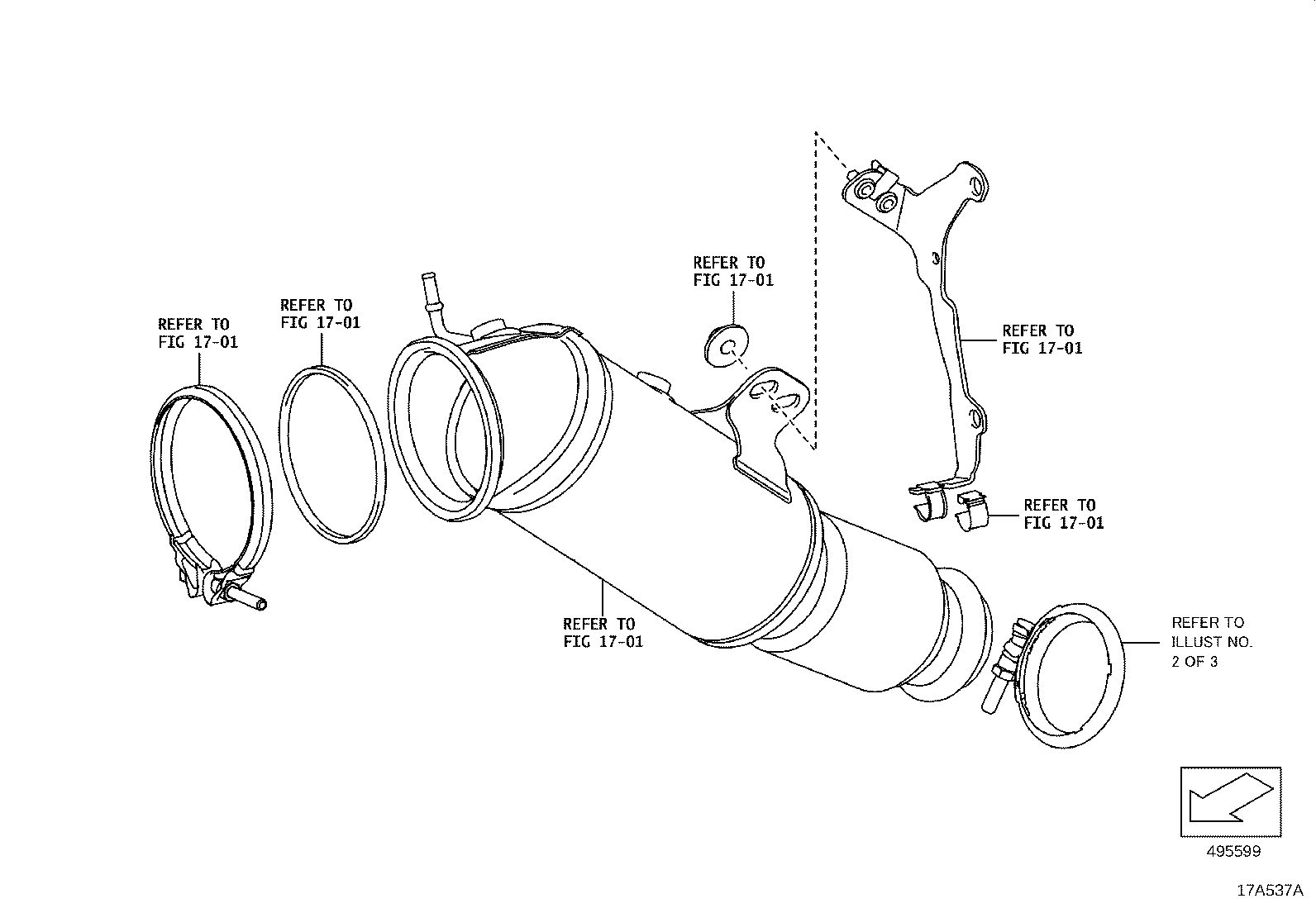

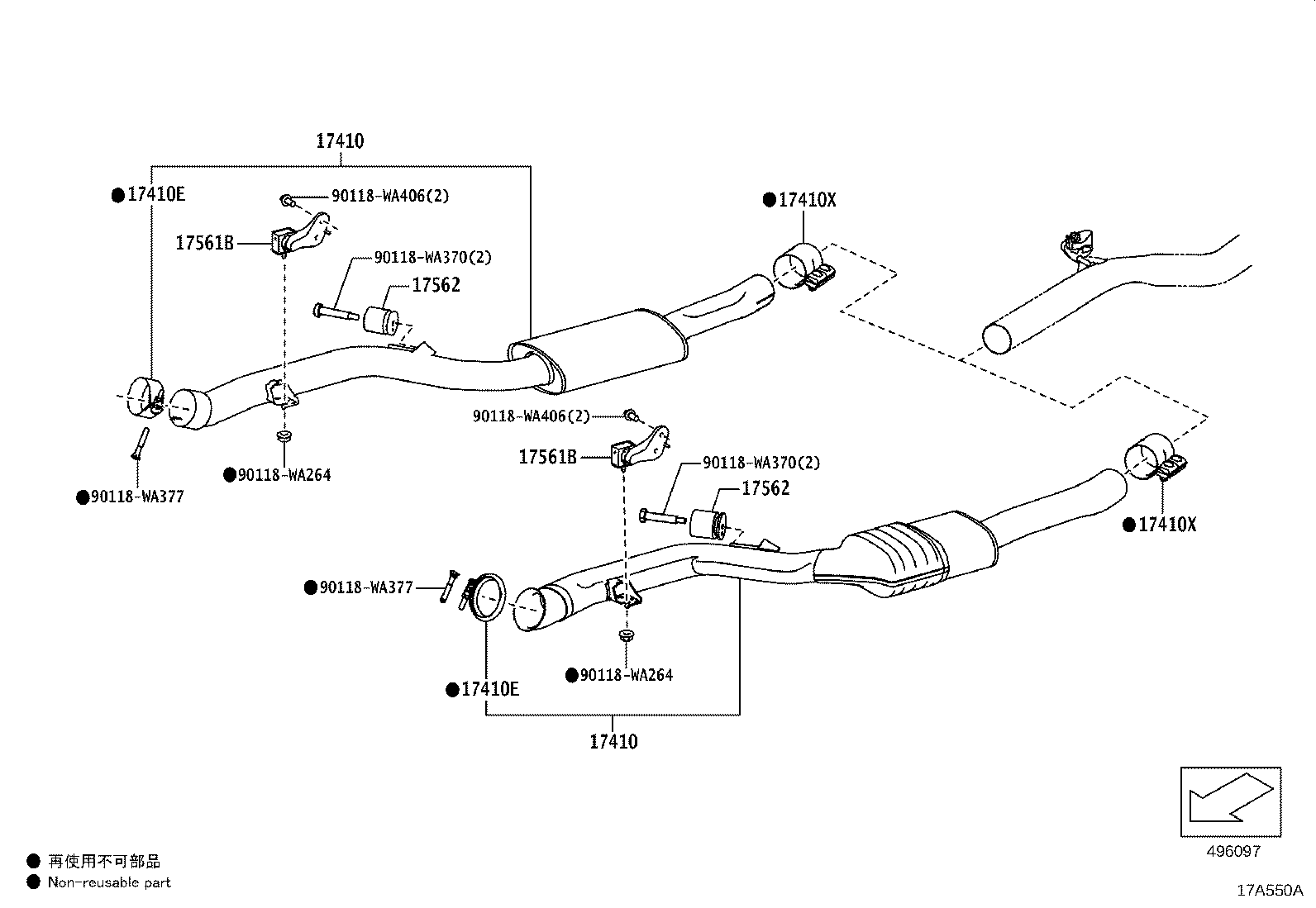

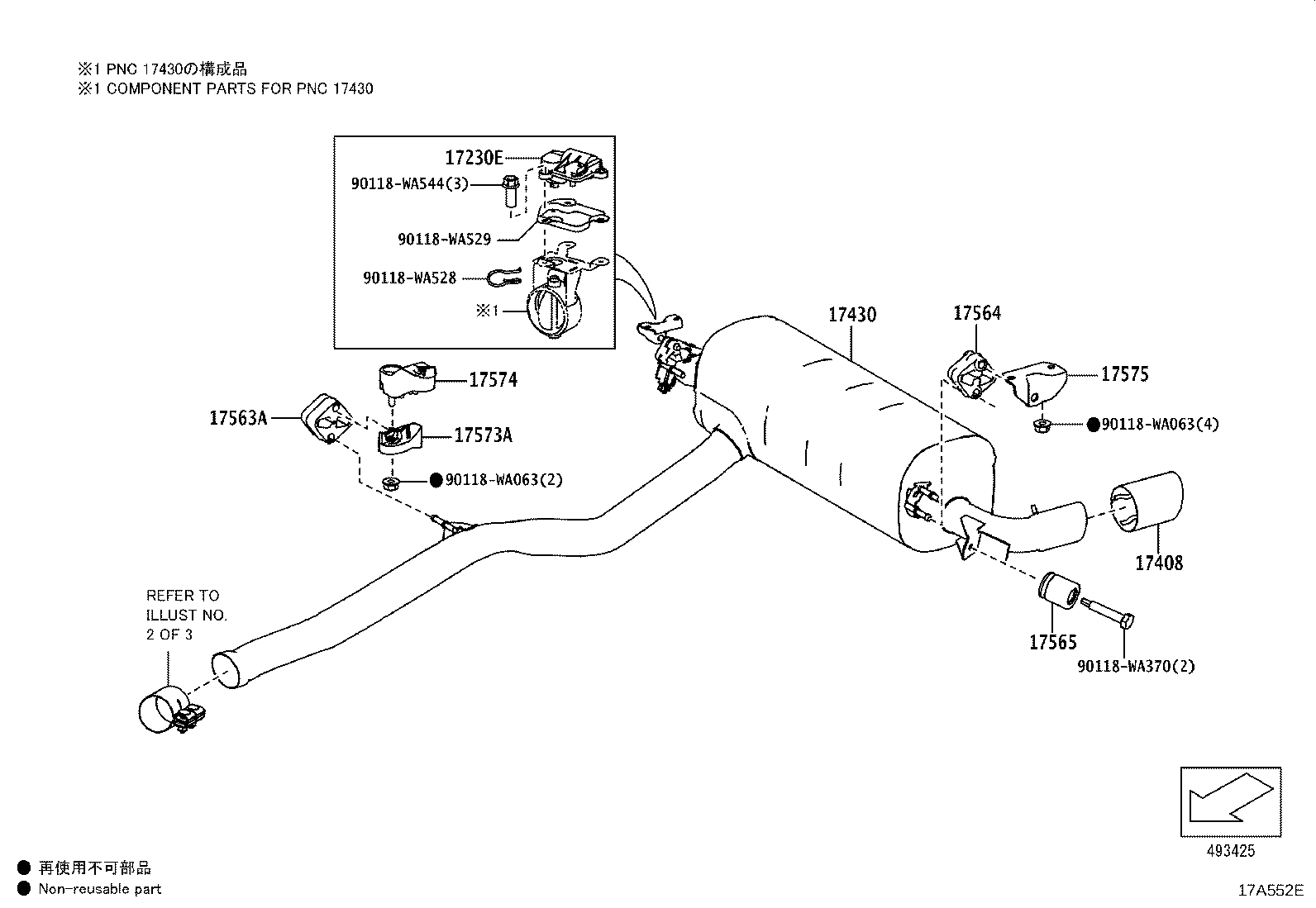

Figure 17A548A 17A548A 2019-03 → — Figure 17A549A 17A549A 2019-03 → — Figure 17A535A 17A535A 2019-03 → — Figure 17A537A 17A537A 2019-03 → — Figure 17B147A 17B147A 2020-03 → — Figure 17A550A 17A550A 2019-03 → — Figure 17A553B 17A553B 2019-03 → — Figure 17A552E 17A552E 2019-03 → — Figure 17A555F 17A555F 2019-03 → —

Part groups

PNCDescription
17230E Actuator Assy, W/Bracket
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410X Clamp NO.1, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17452A Clamp, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
