Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 5 illustrations

Illustrations

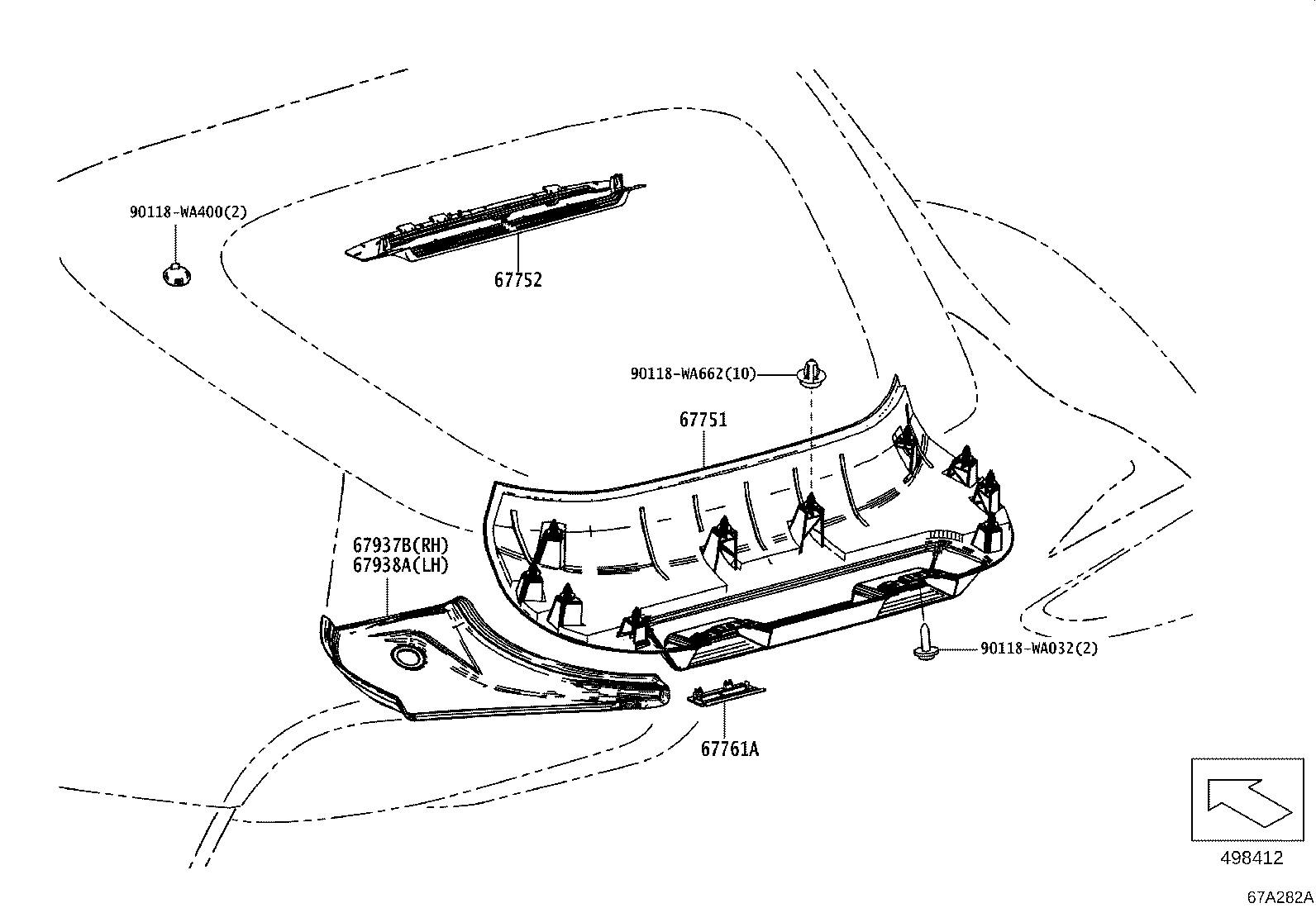

Figure 67A279E 67A279E 2019-03 → — Figure 67A280 67A280 2019-03 → — Figure 67A281B 67A281B 2019-03 → — Figure 67A282A 67A282A 2019-03 → — Figure 67A640B 67A640B 2019-03 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67752 Trim, Back Door, Upper
67761A Cover, Back Door Trim
67881A Weatherstrip, Back Door
67891A Seal, Back Door
67891C Seal, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
