Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · United States
Supported model
Data version 2020-03
Switch & Relay & Computer
66 part groups · 50 illustrations
Illustrations
84K393B
84K390

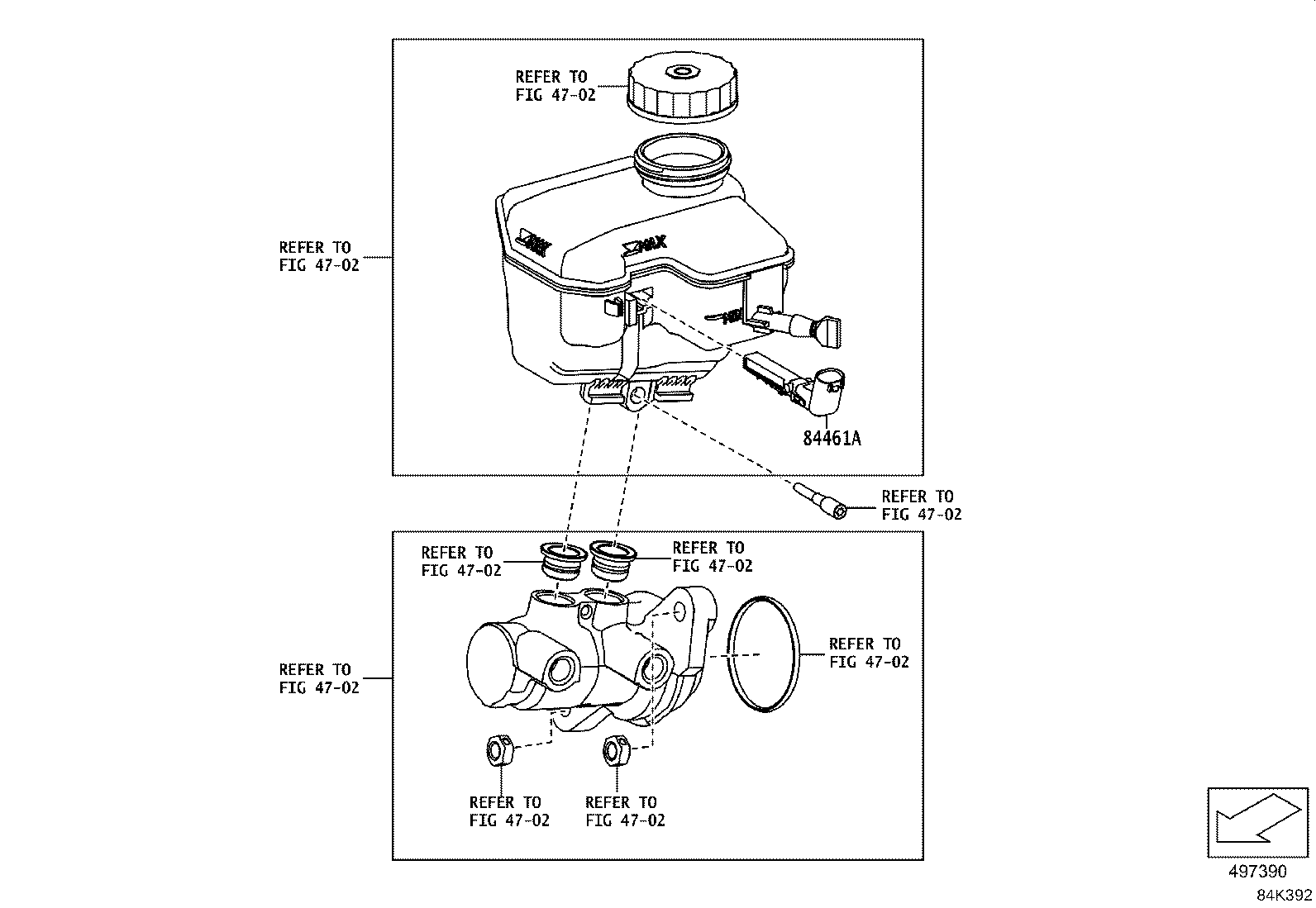

84K392
84K026

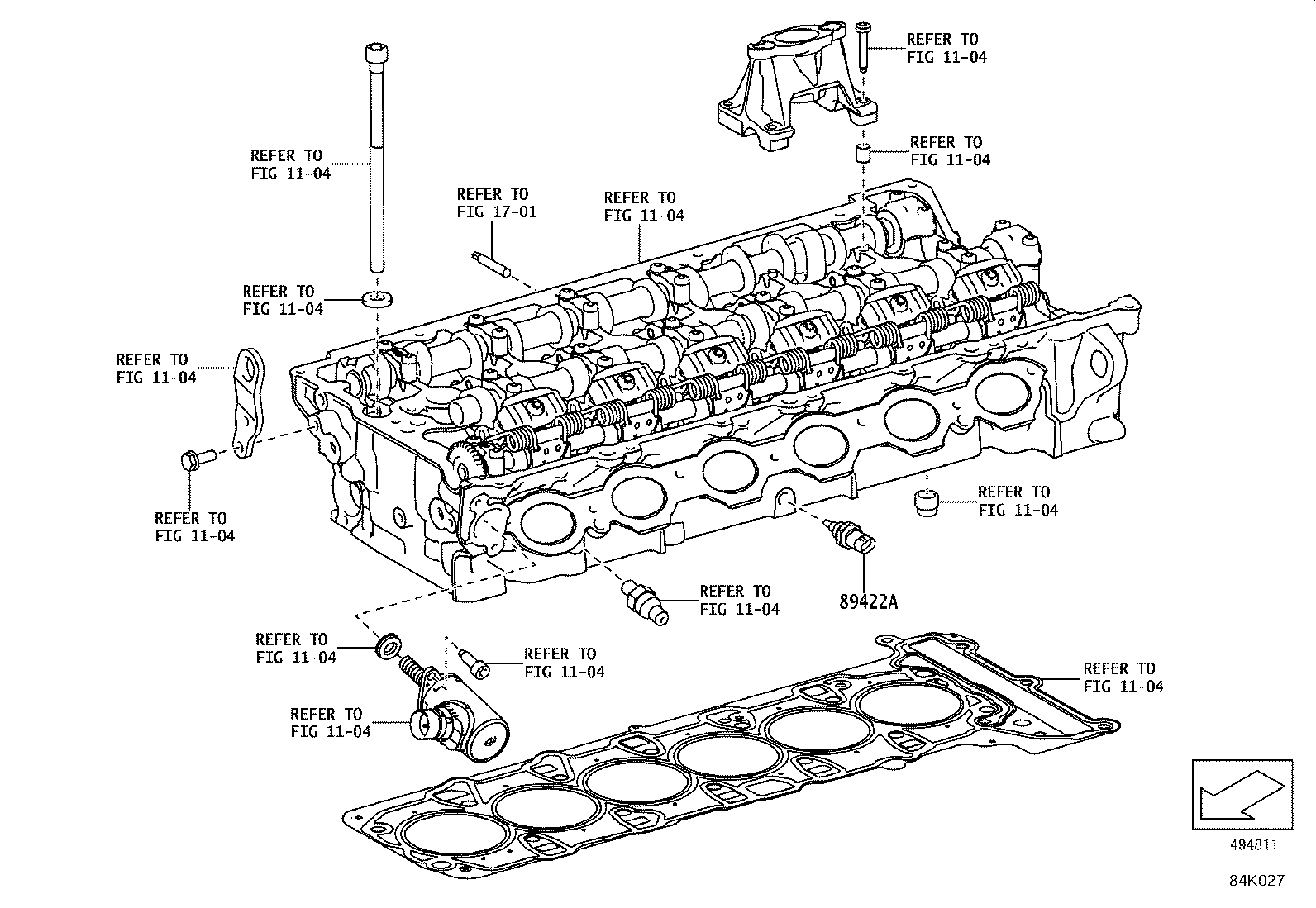

84K027

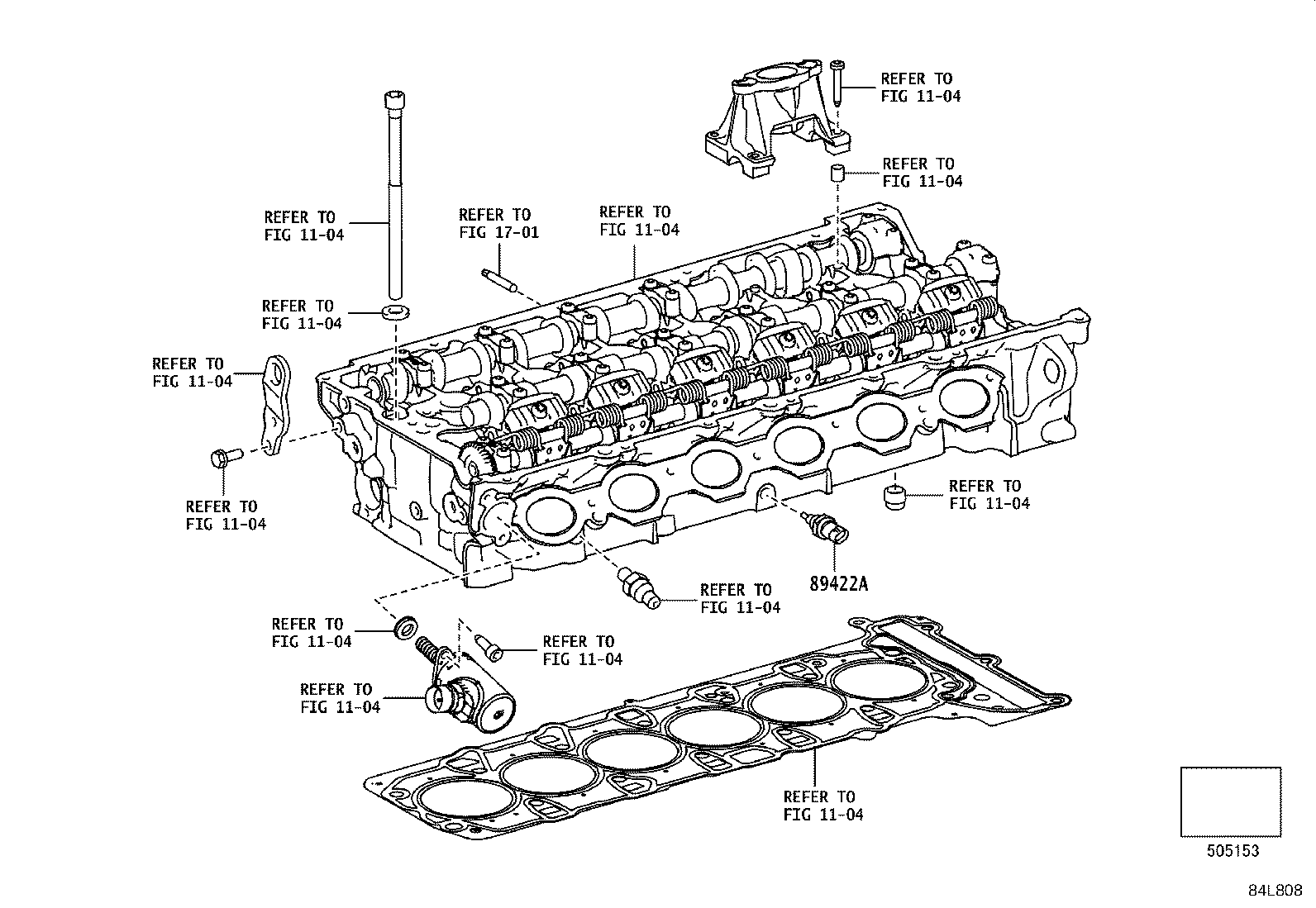

84L808

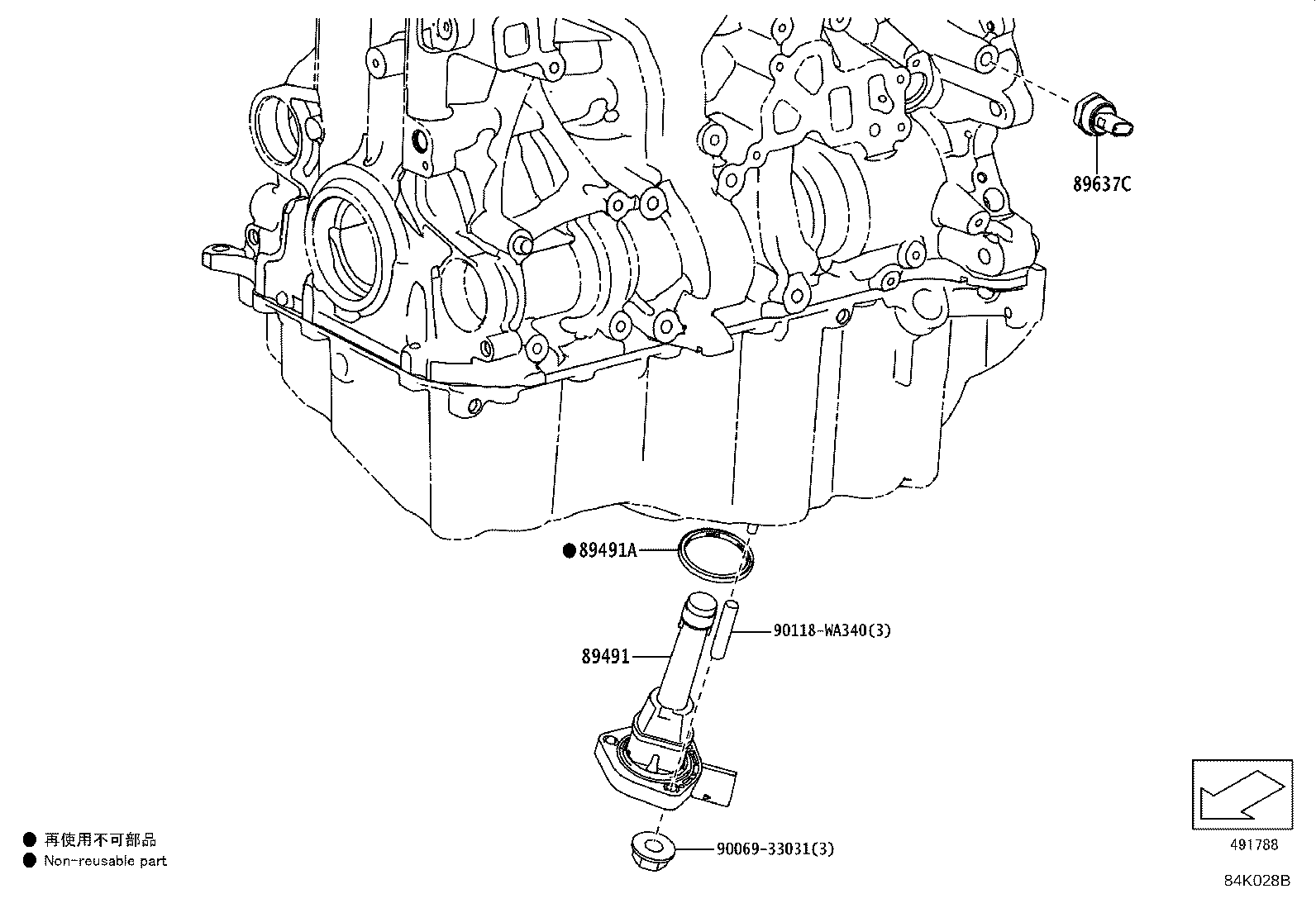

84K028B

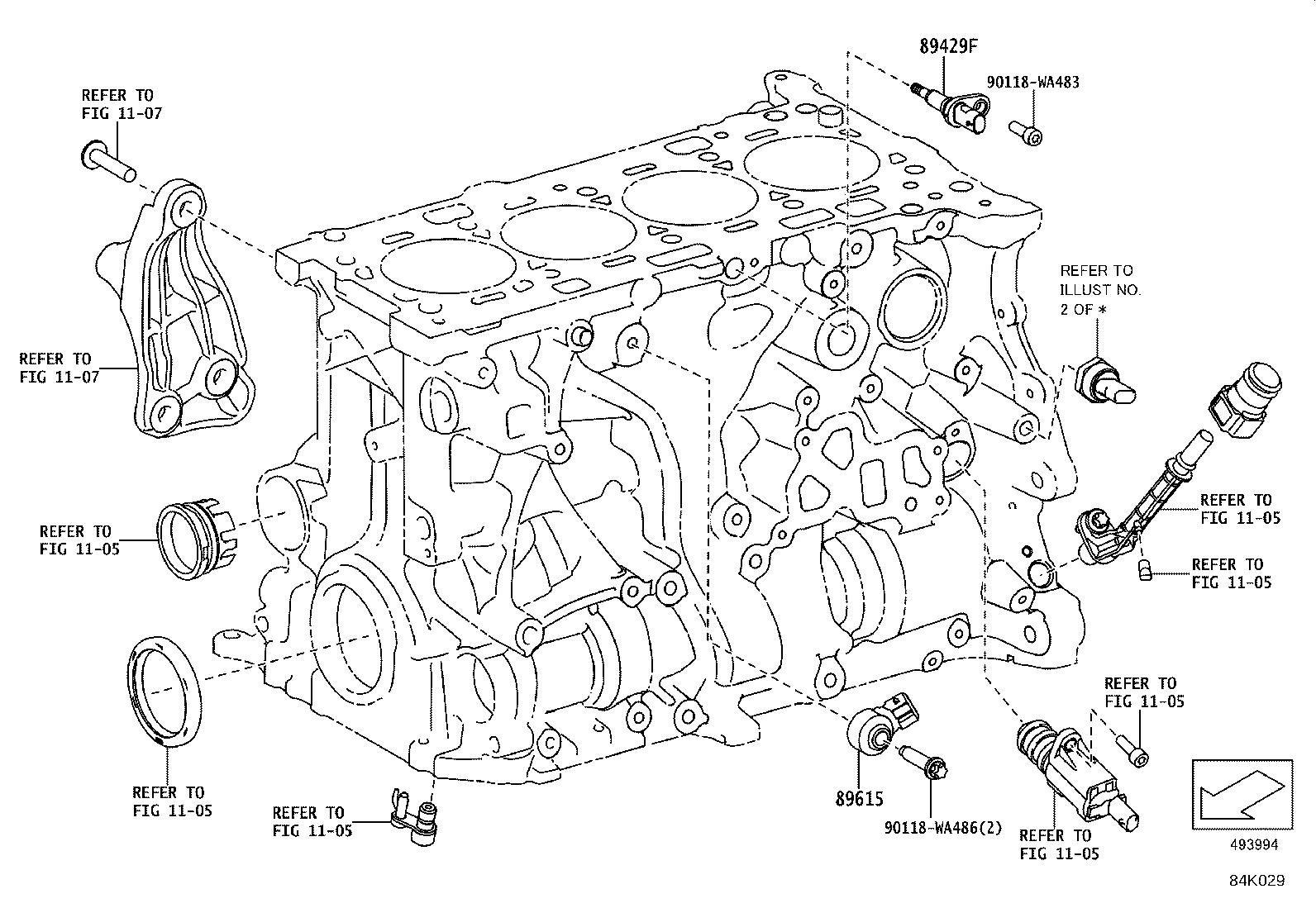

84K029
84K030A

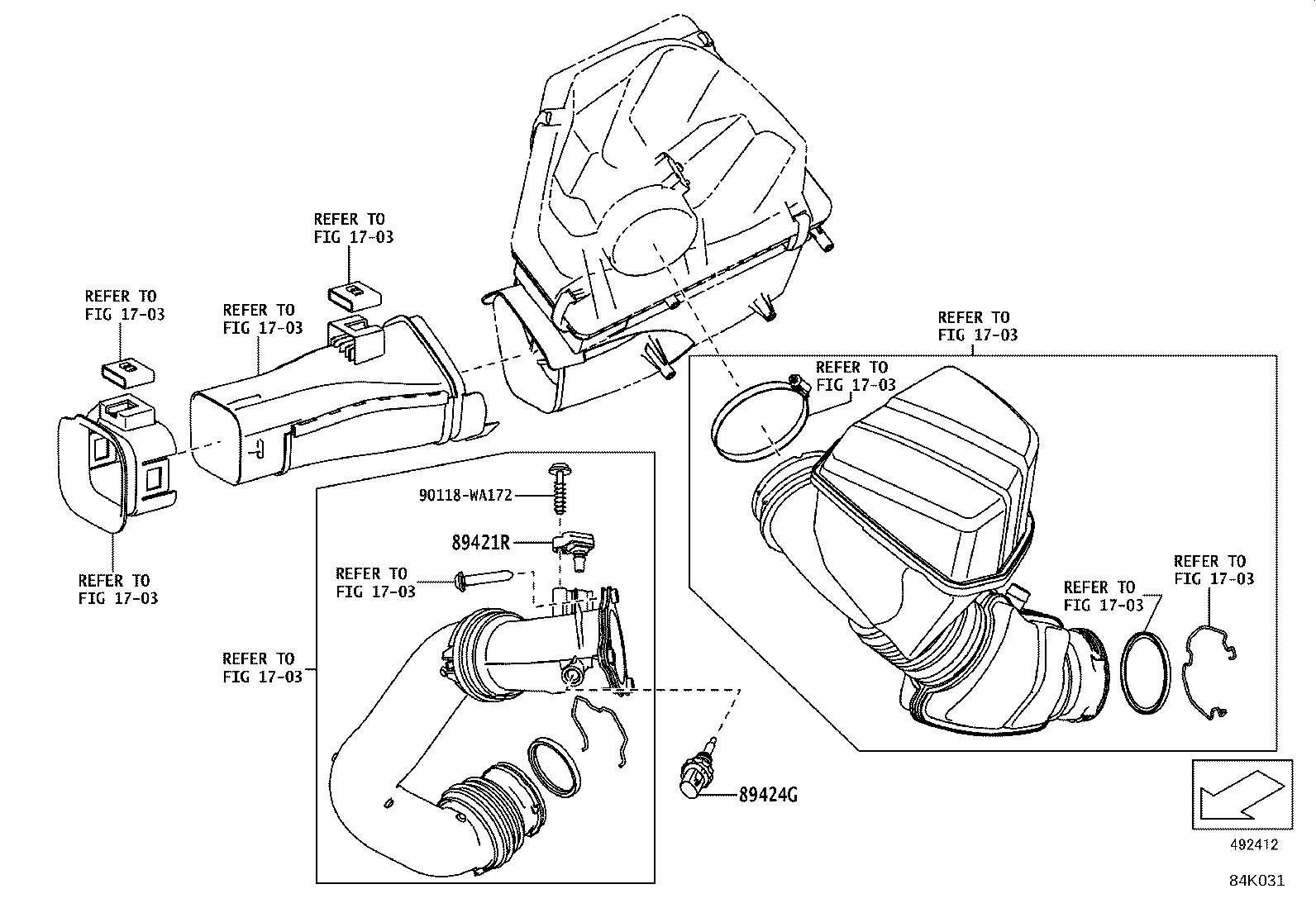

84K031

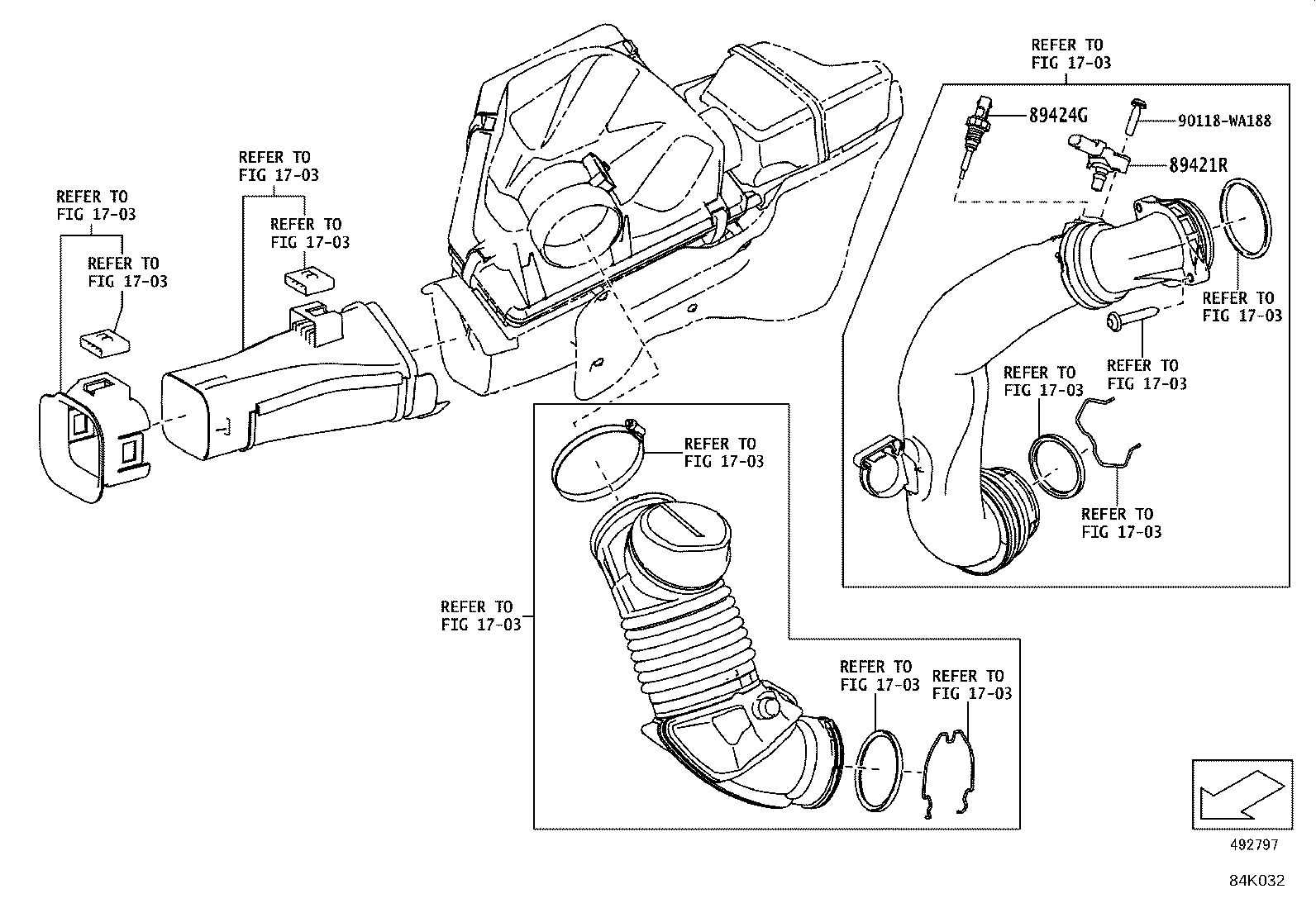

84K032

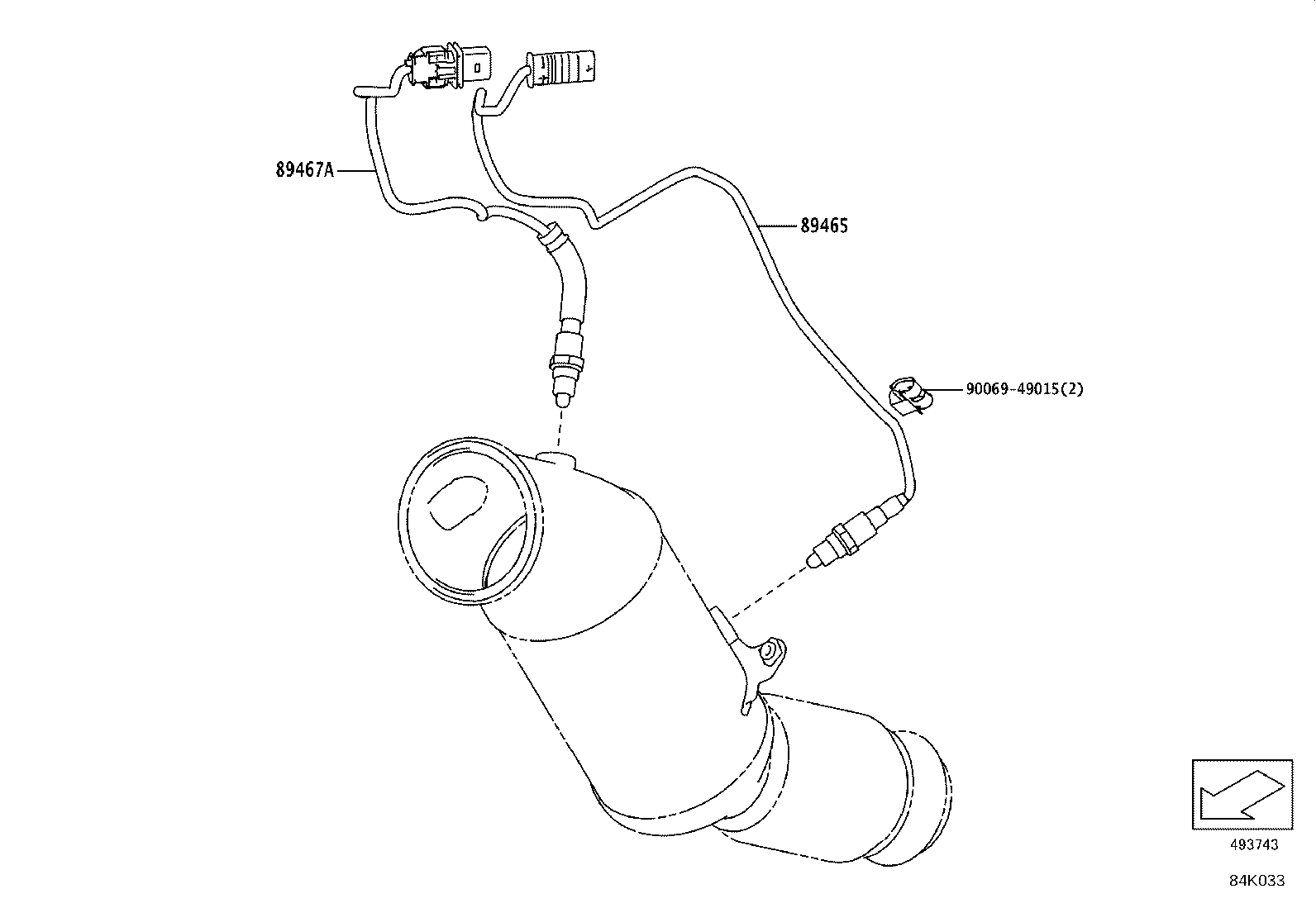

84K033

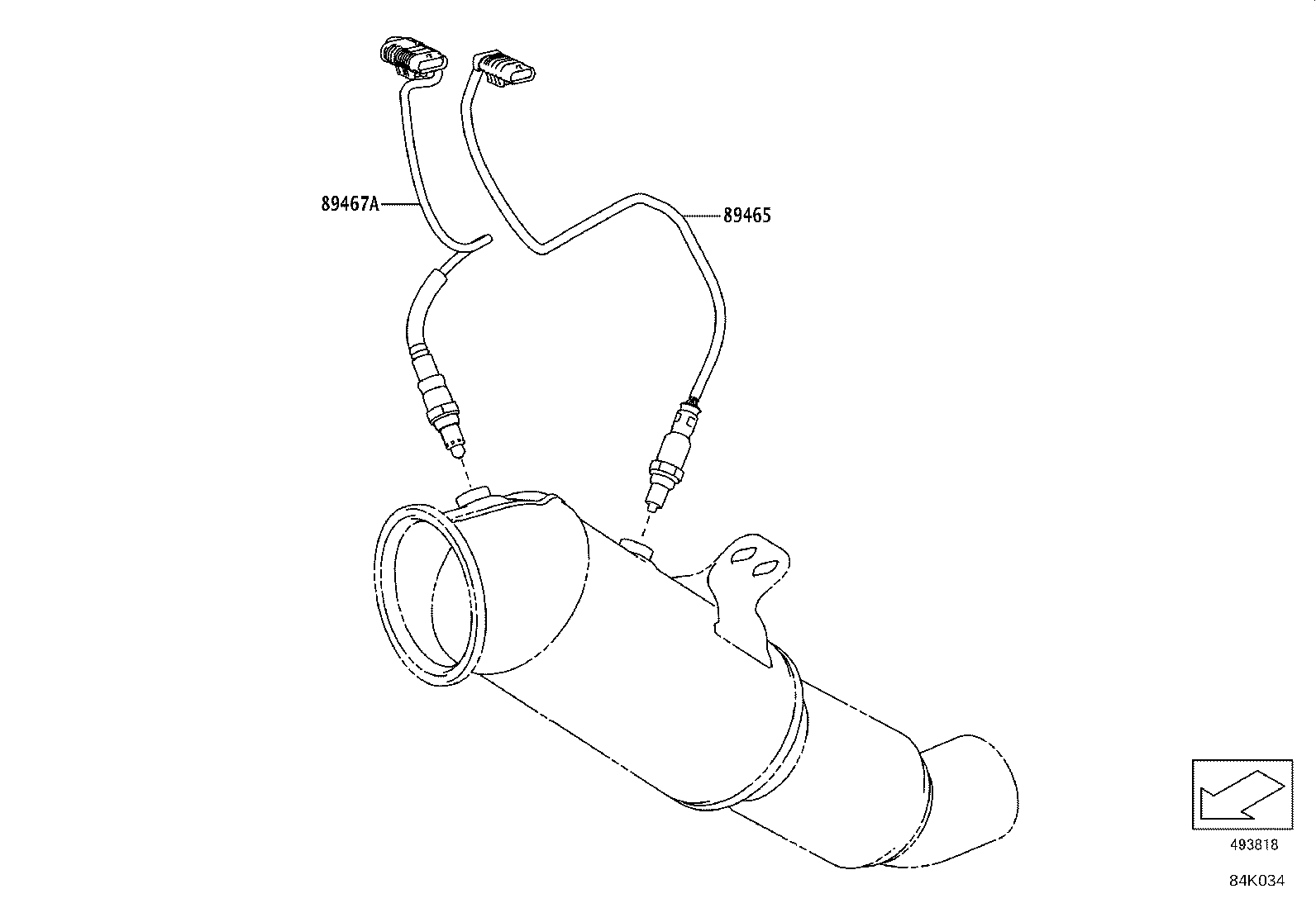

84K034
84K035A
84K036

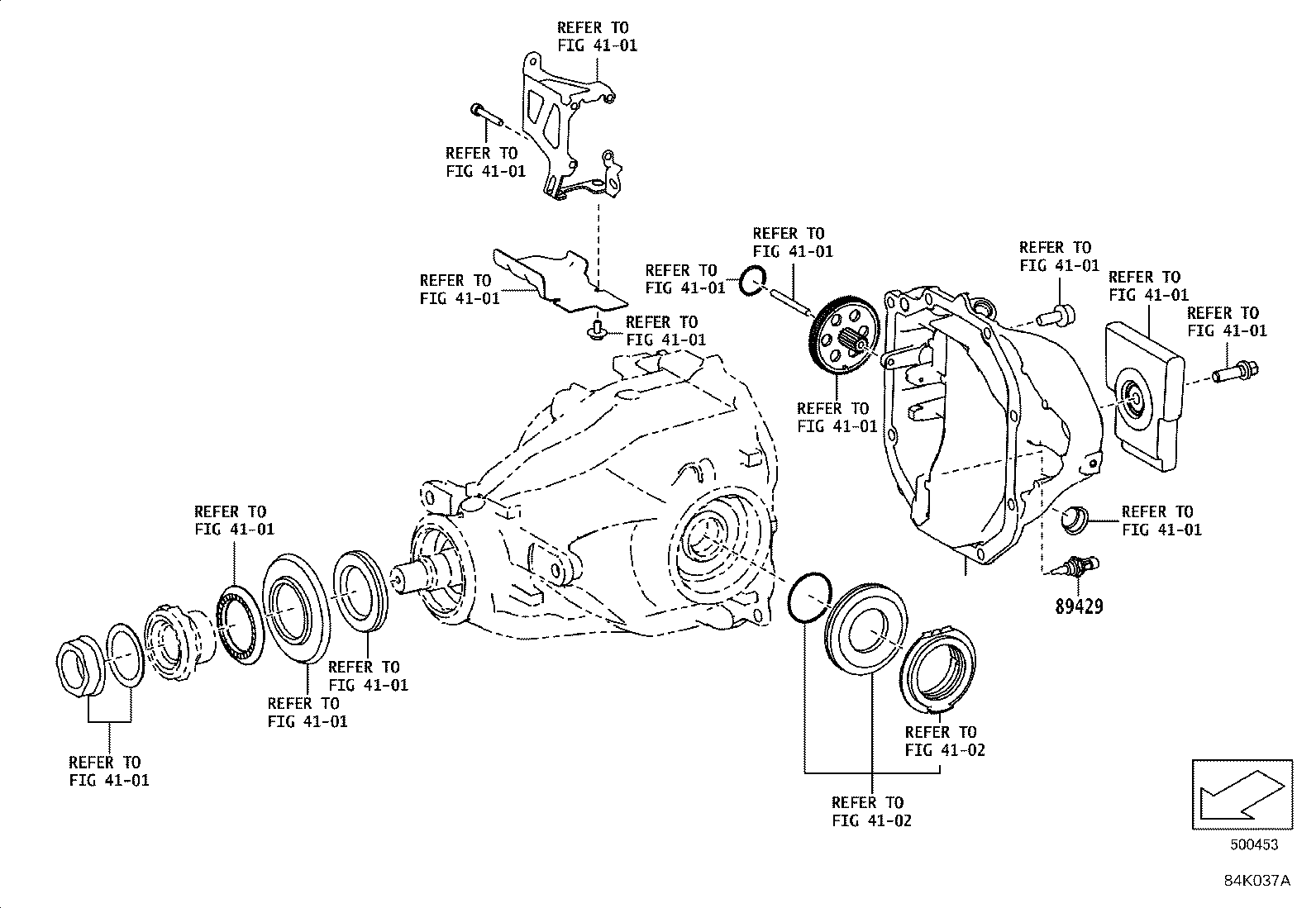

84K037A

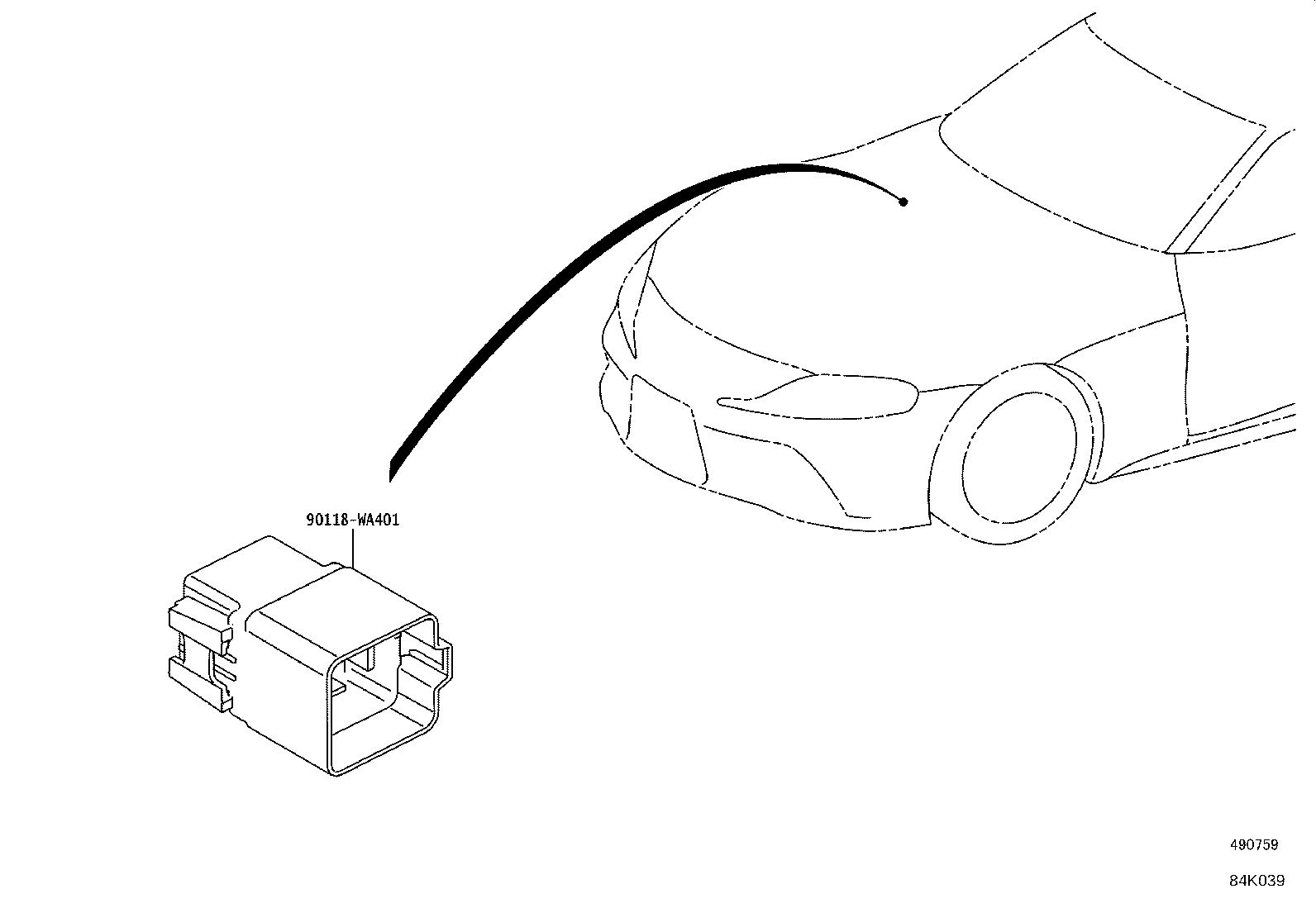

84K039

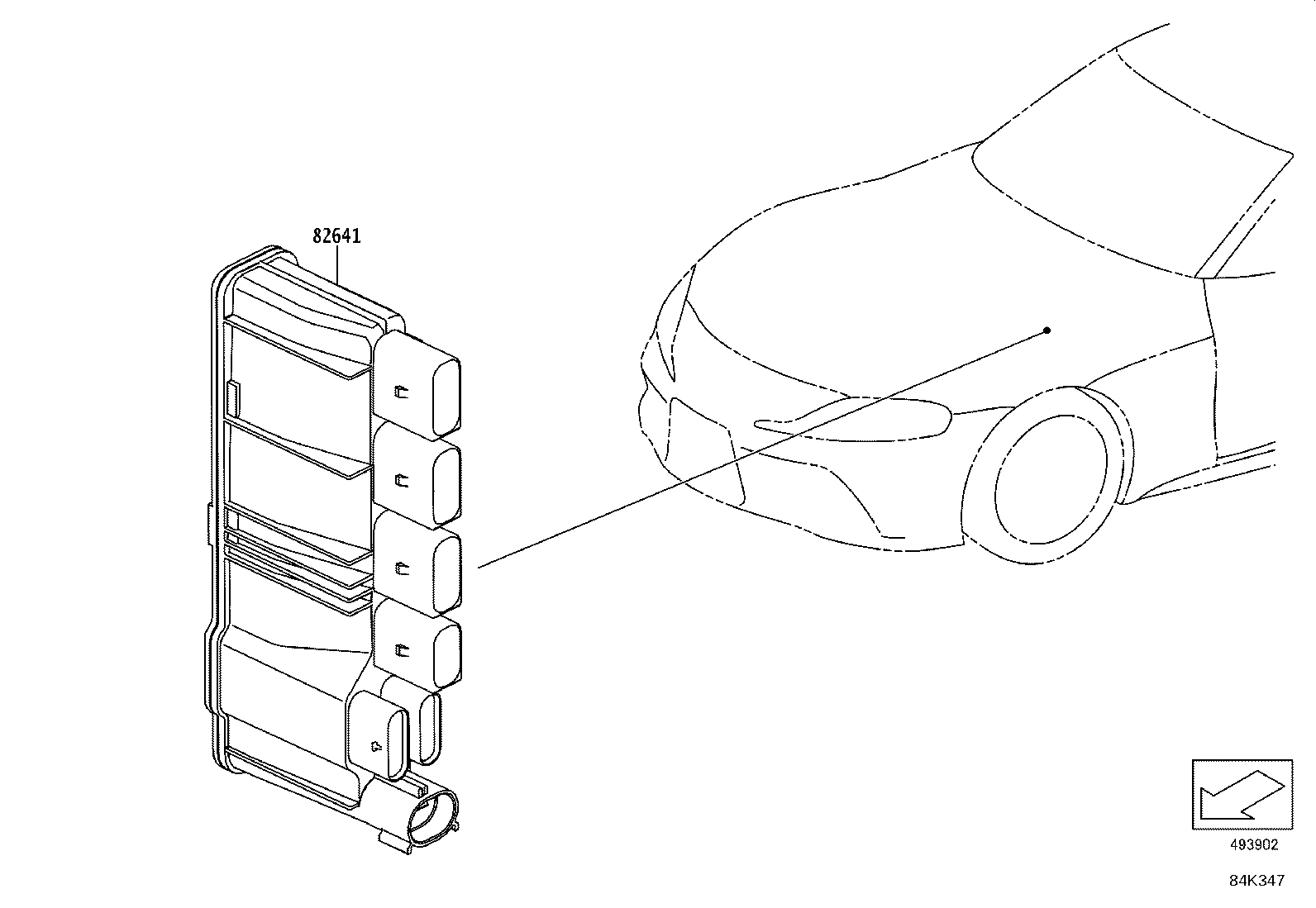

84K347

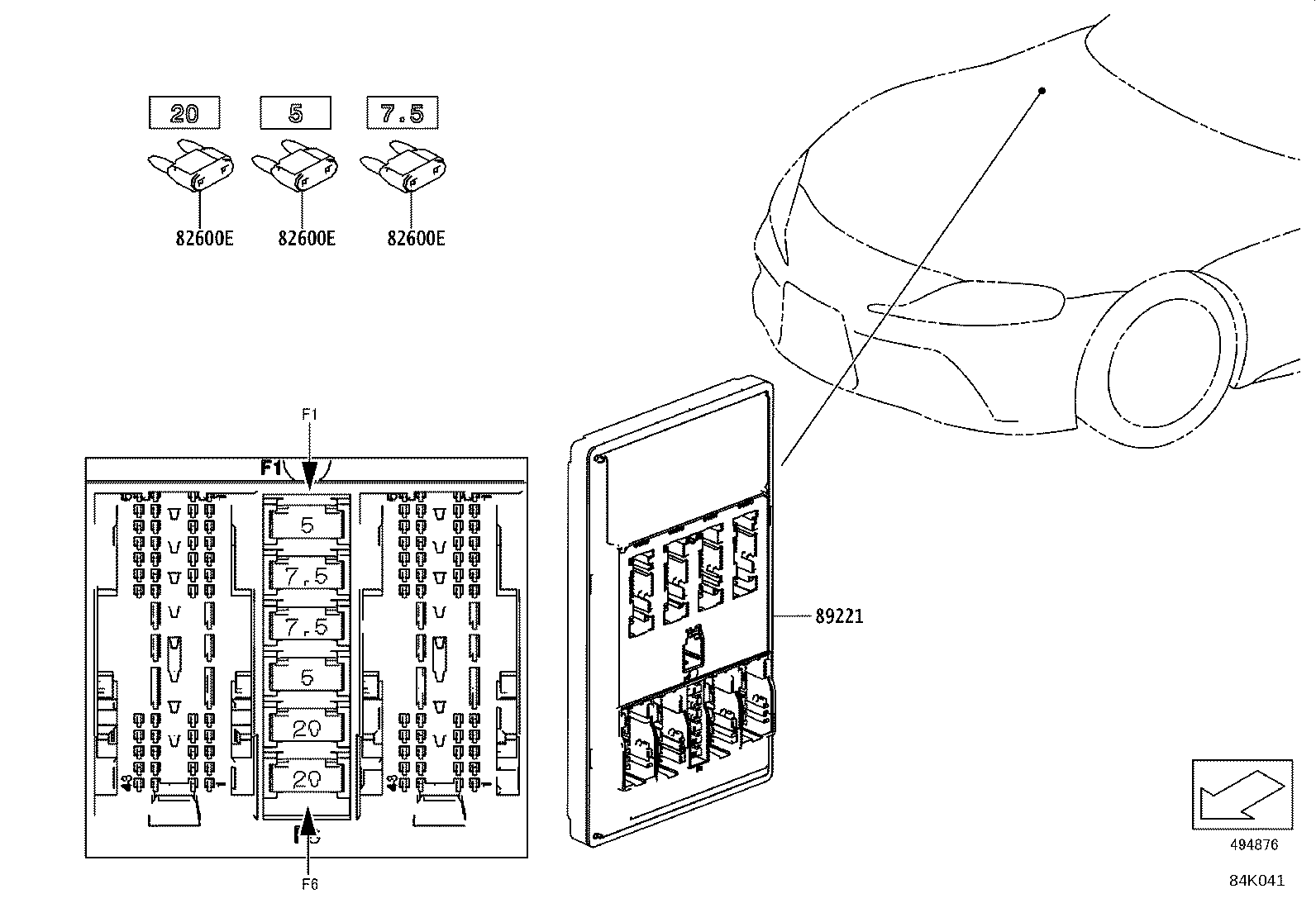

84K041

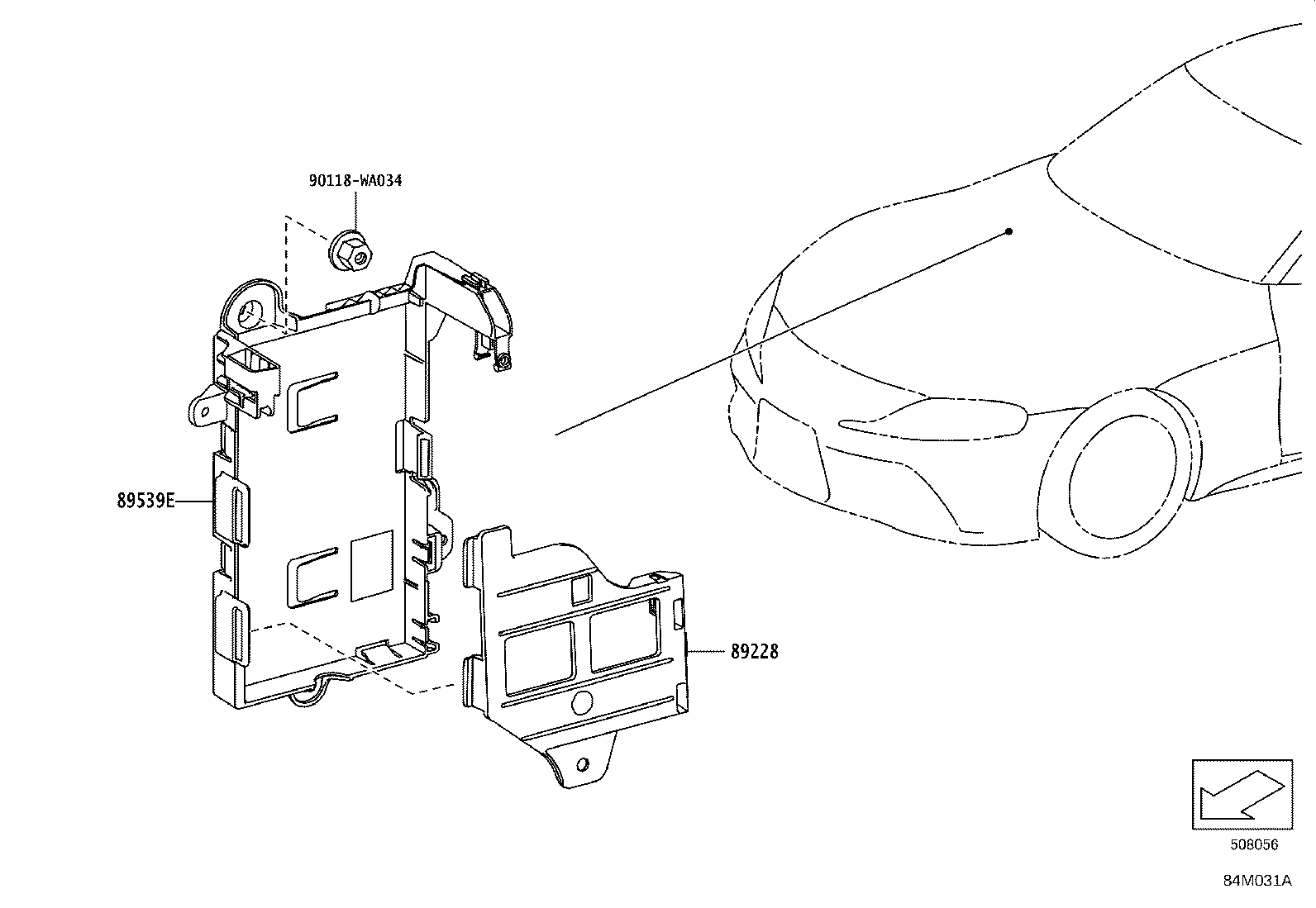

84M031A
84K081

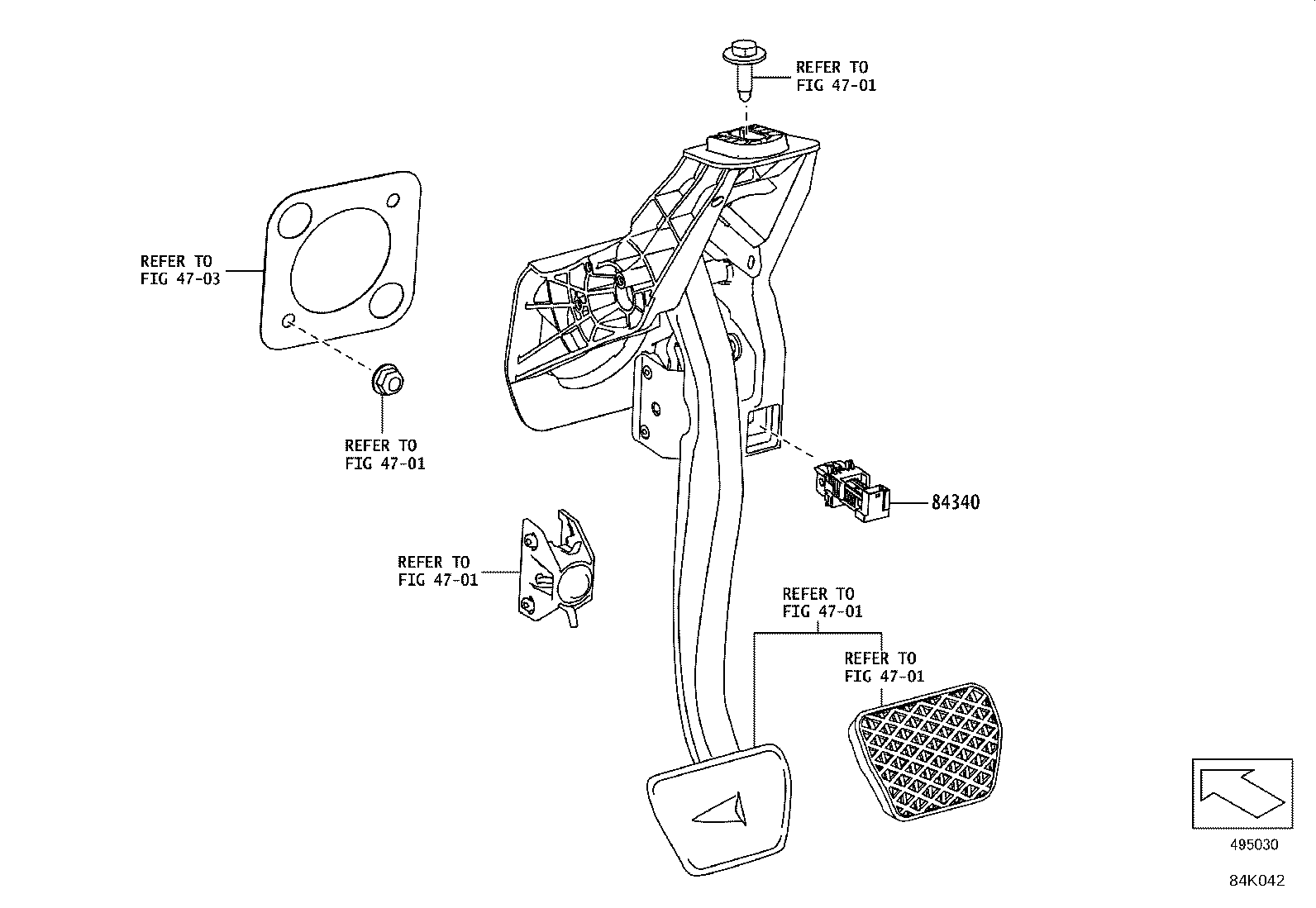

84K042

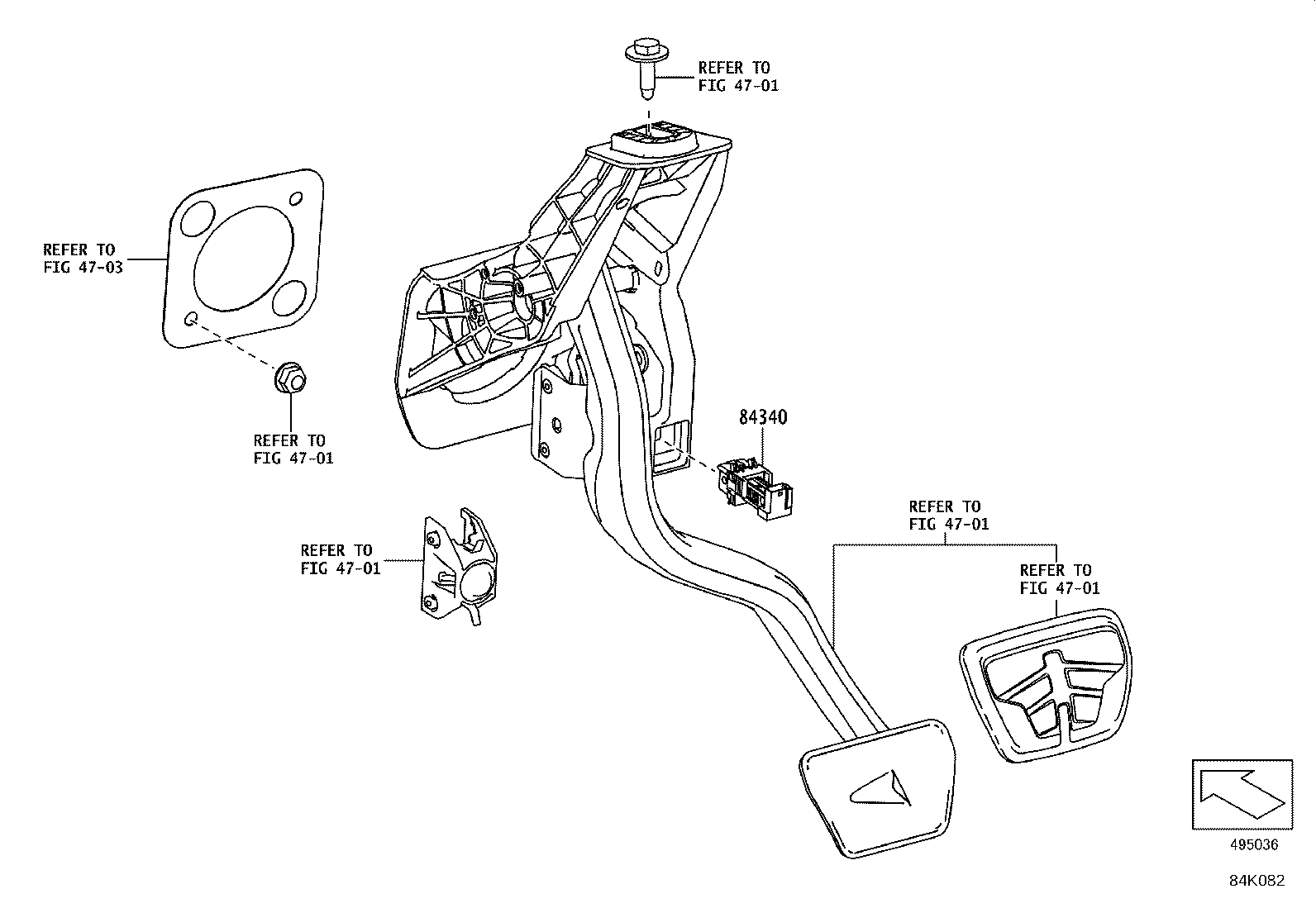

84K082

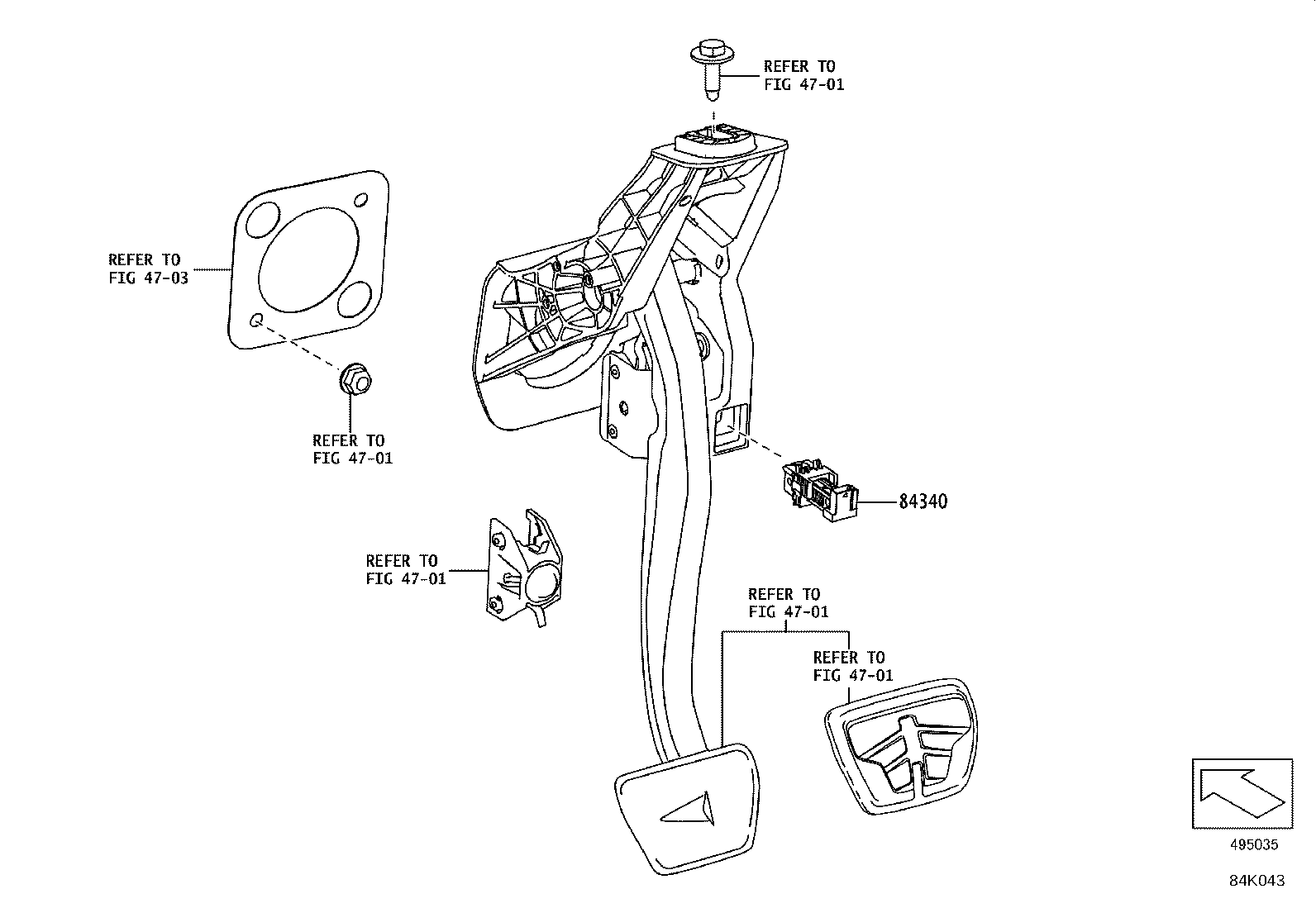

84K043

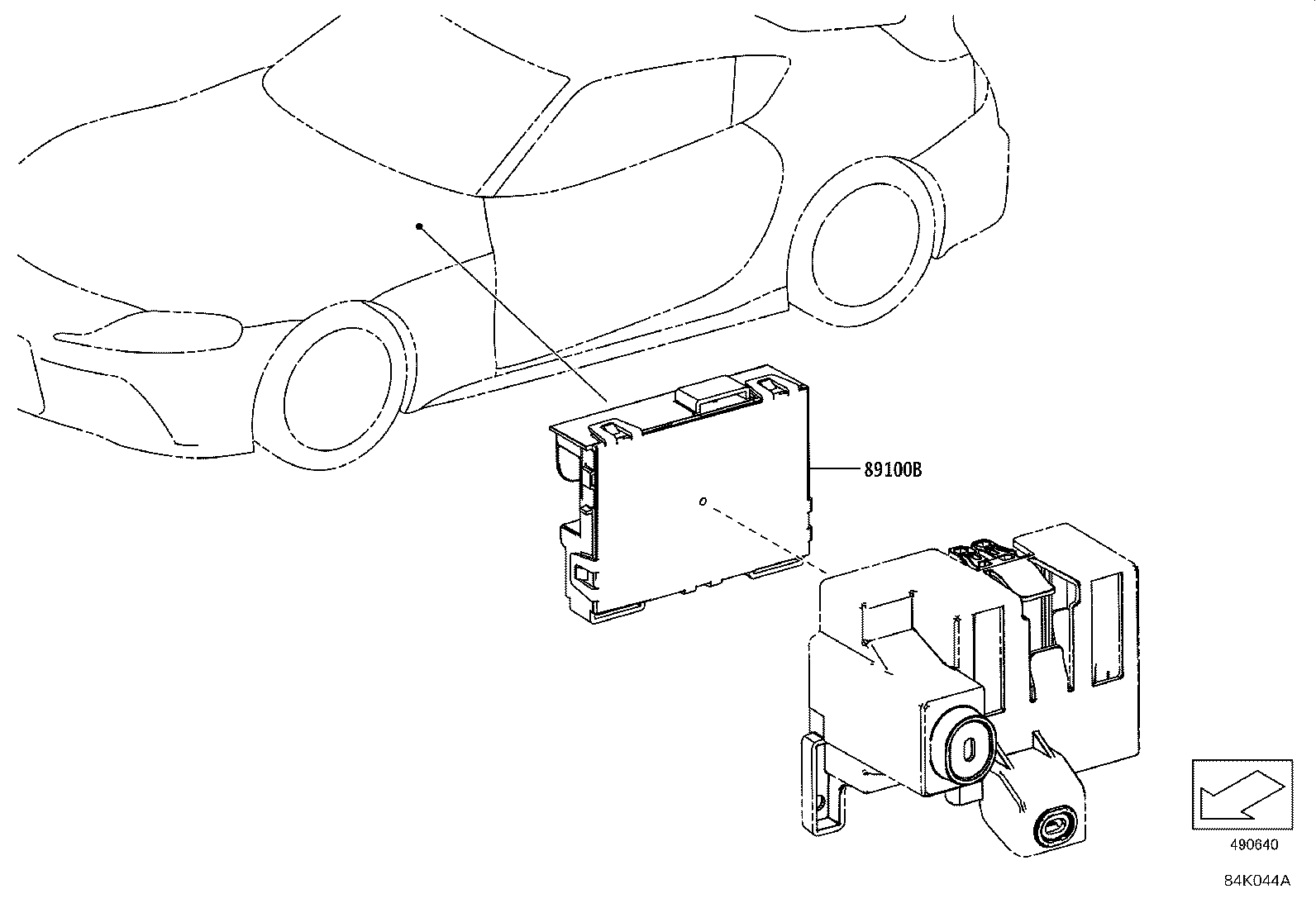

84K044A

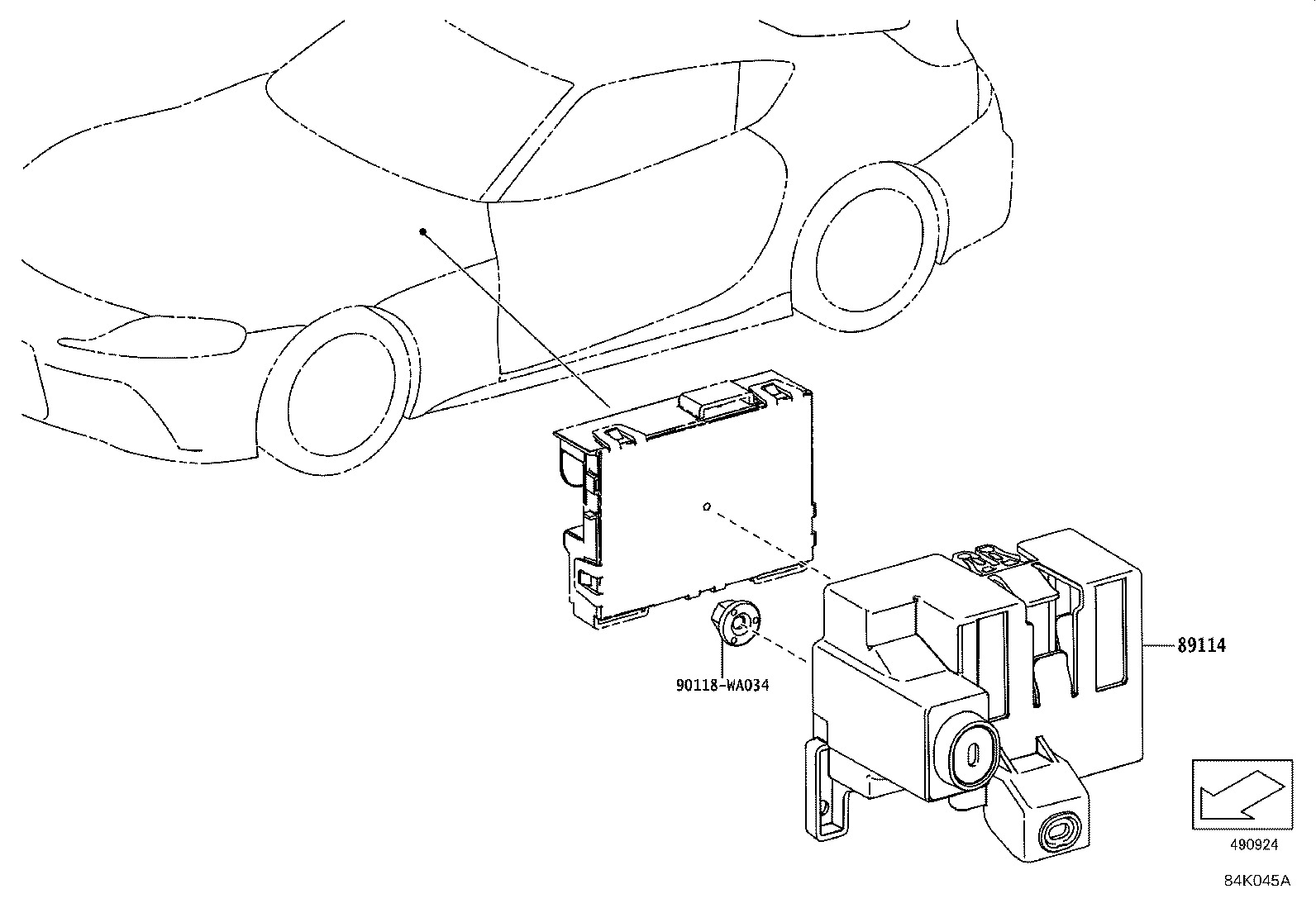

84K045A

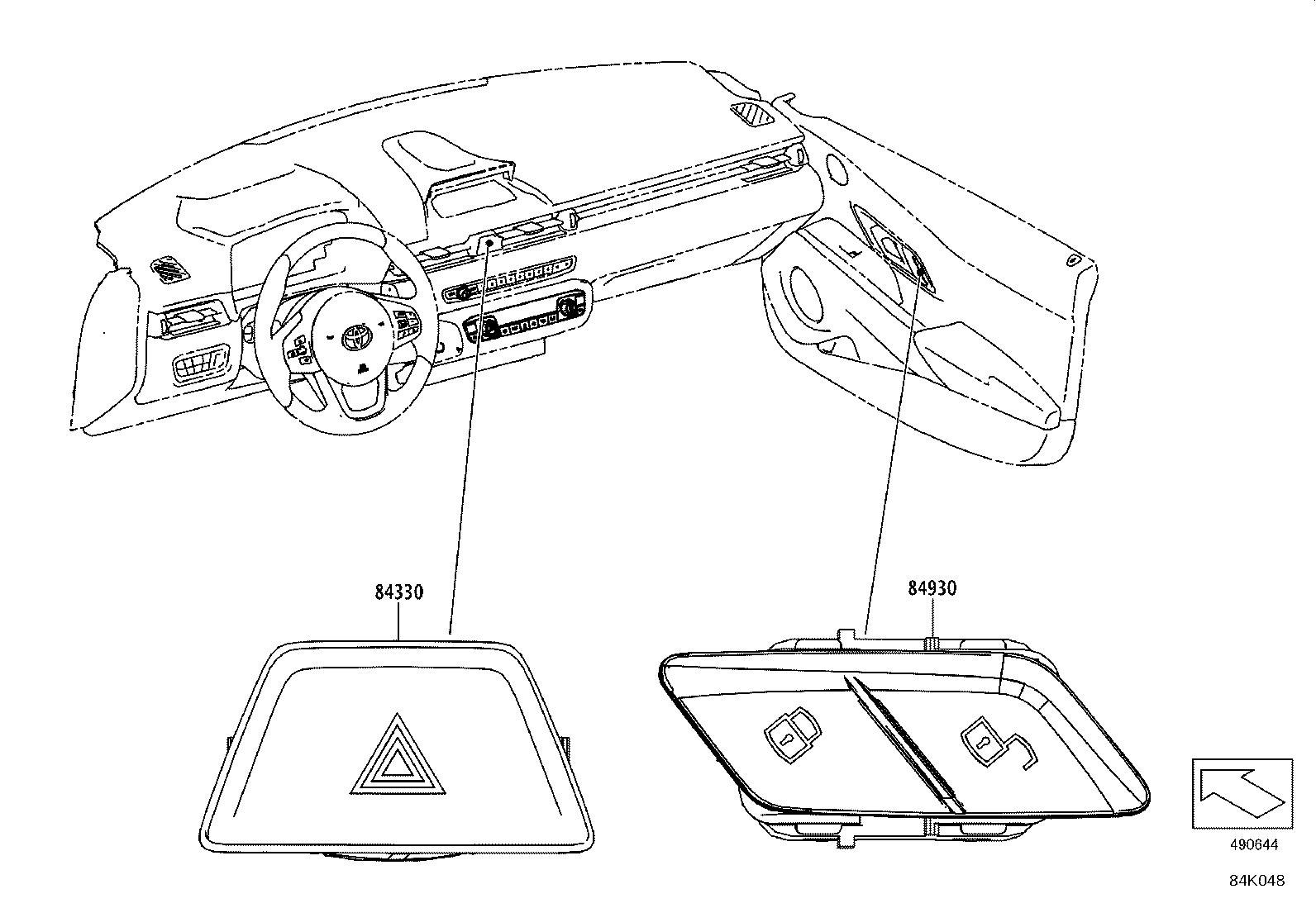

84K048

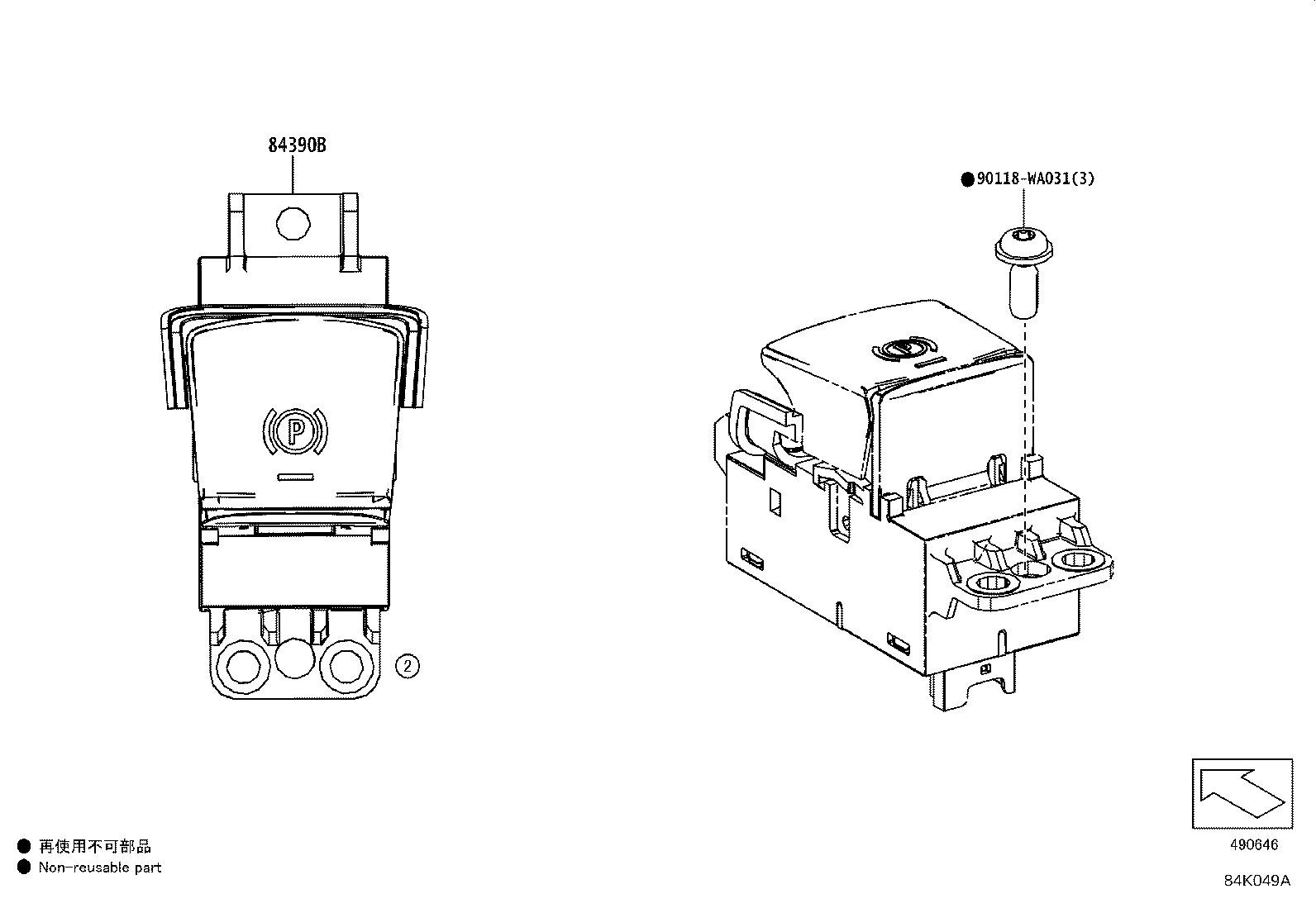

84K049A

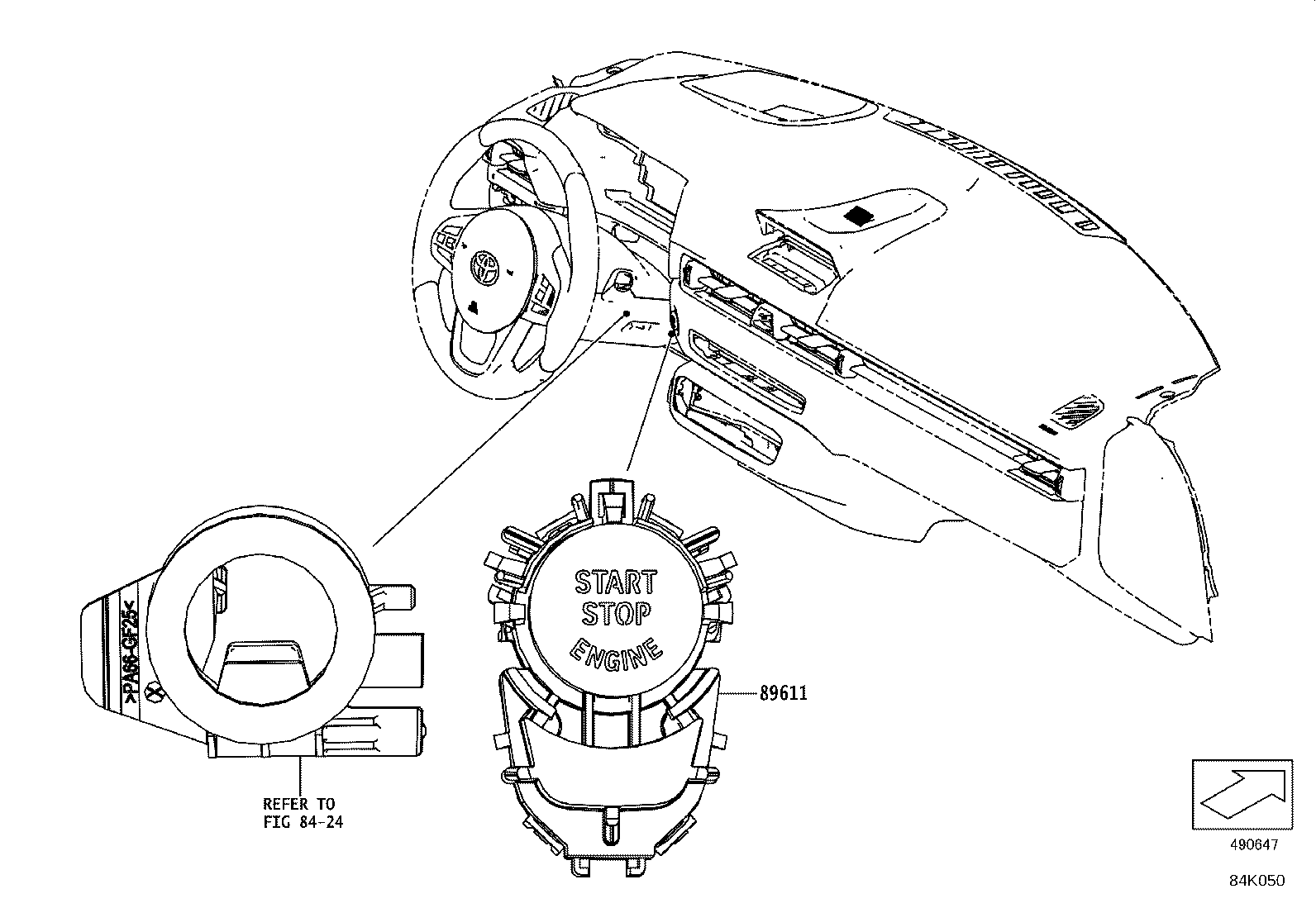

84K050

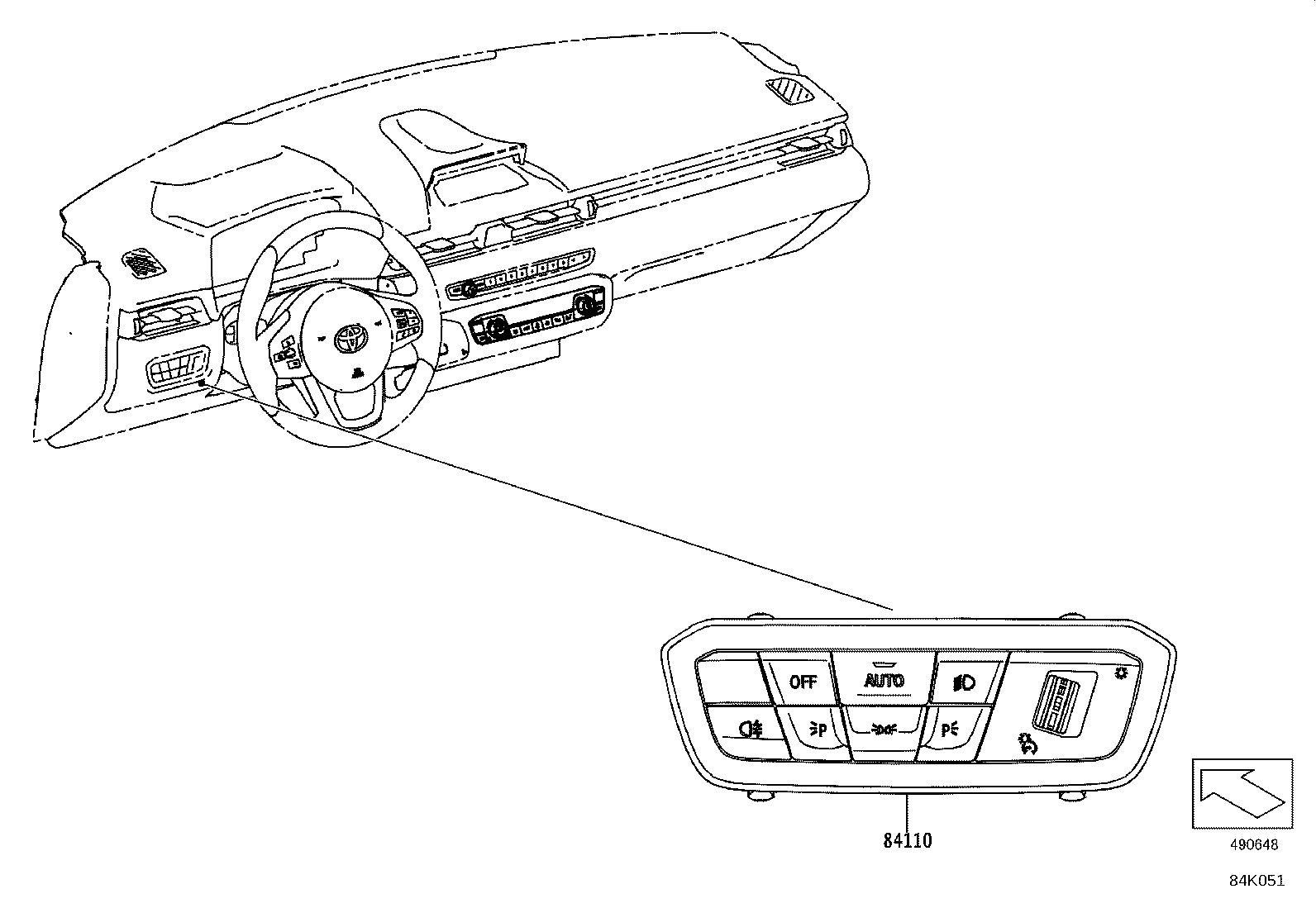

84K051

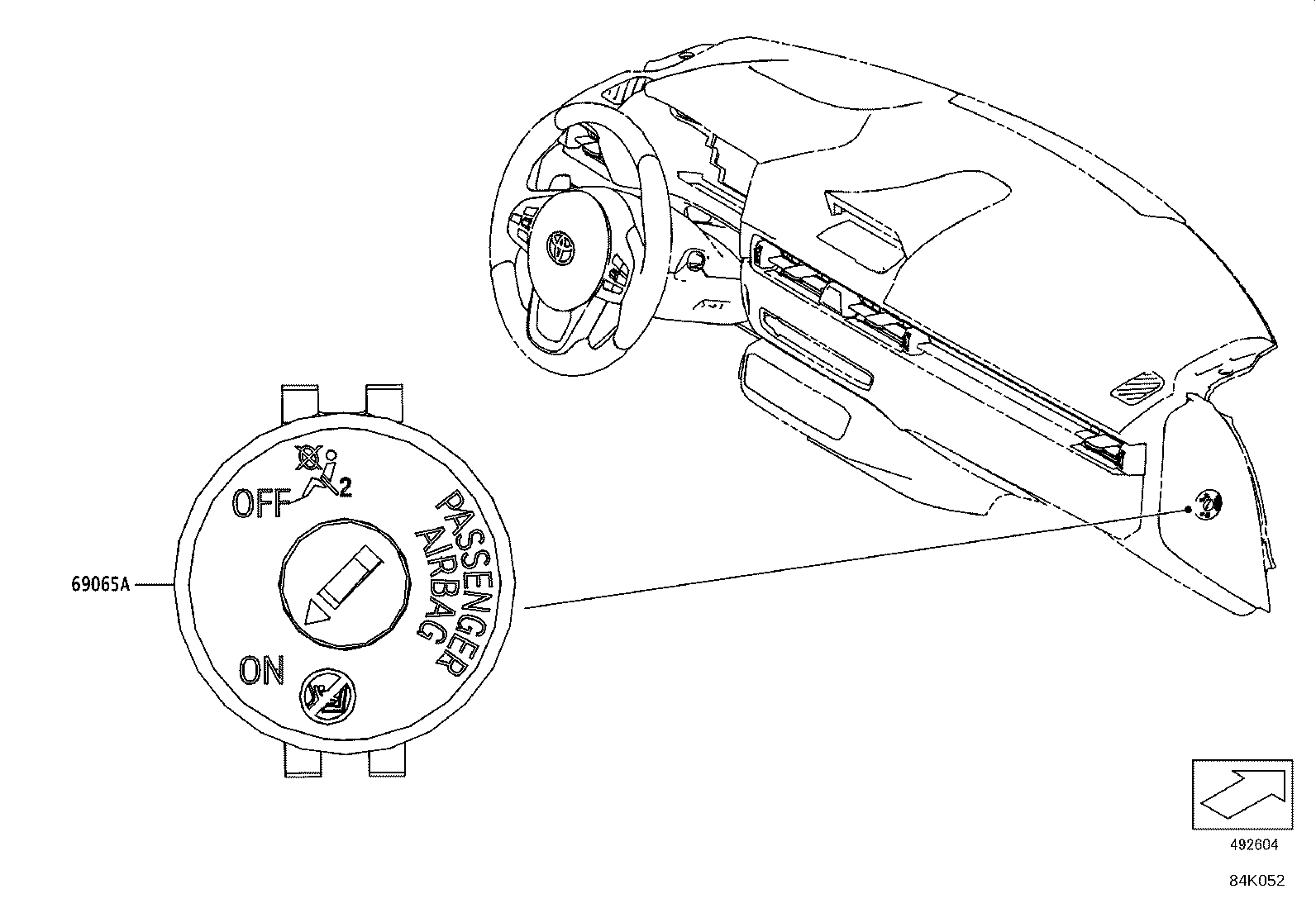

84K052

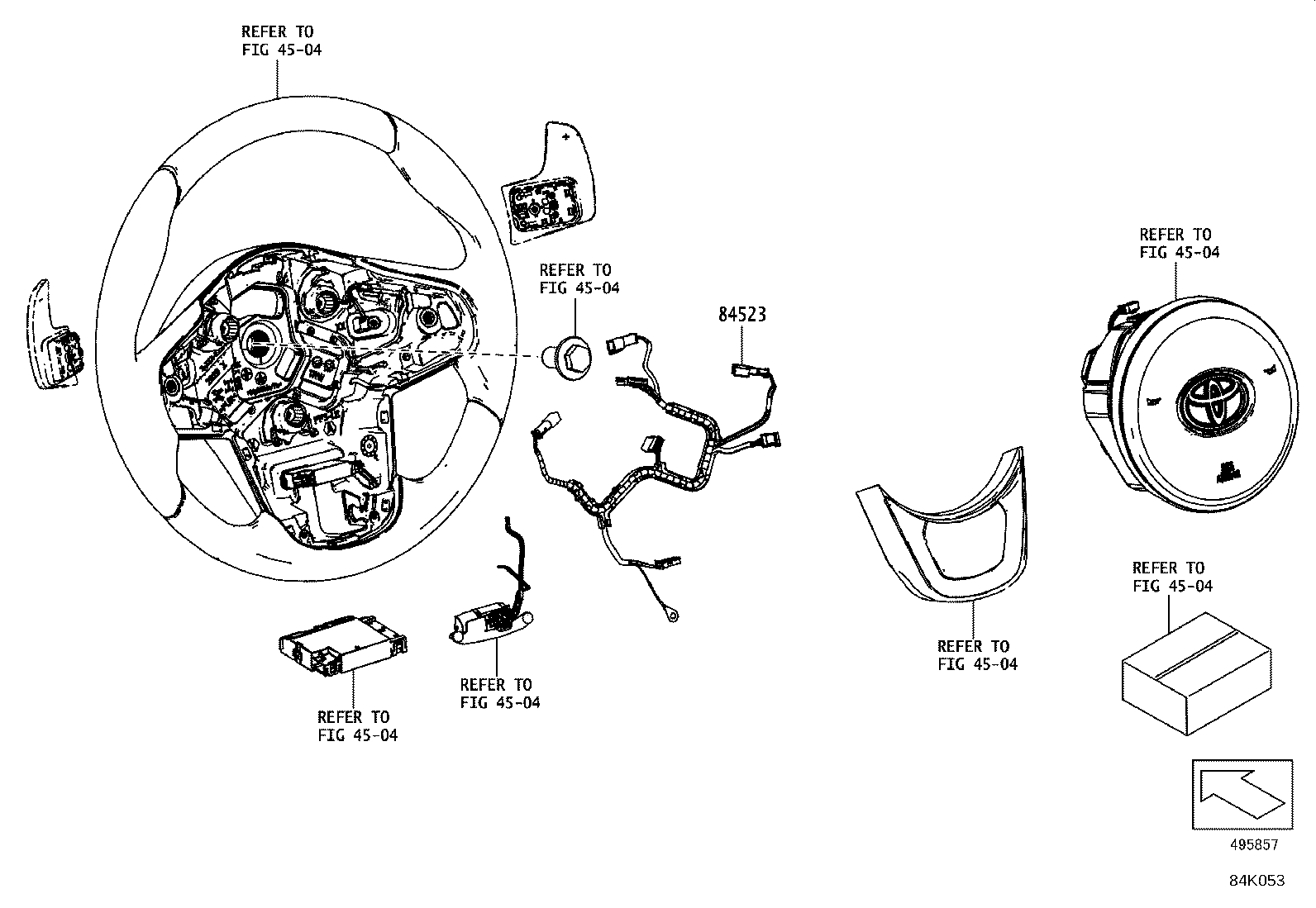

84K053

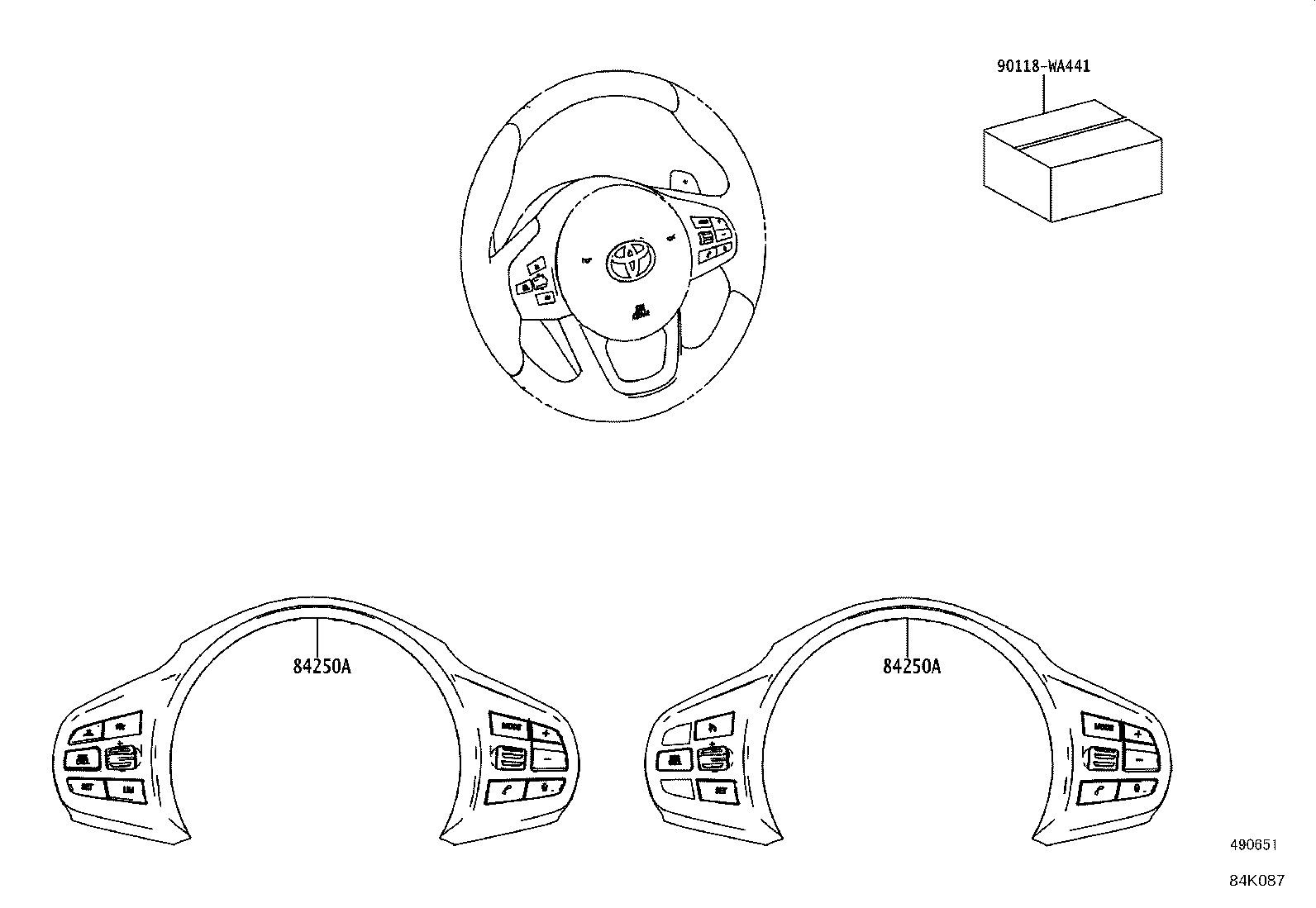

84K087
84K055
84K056A

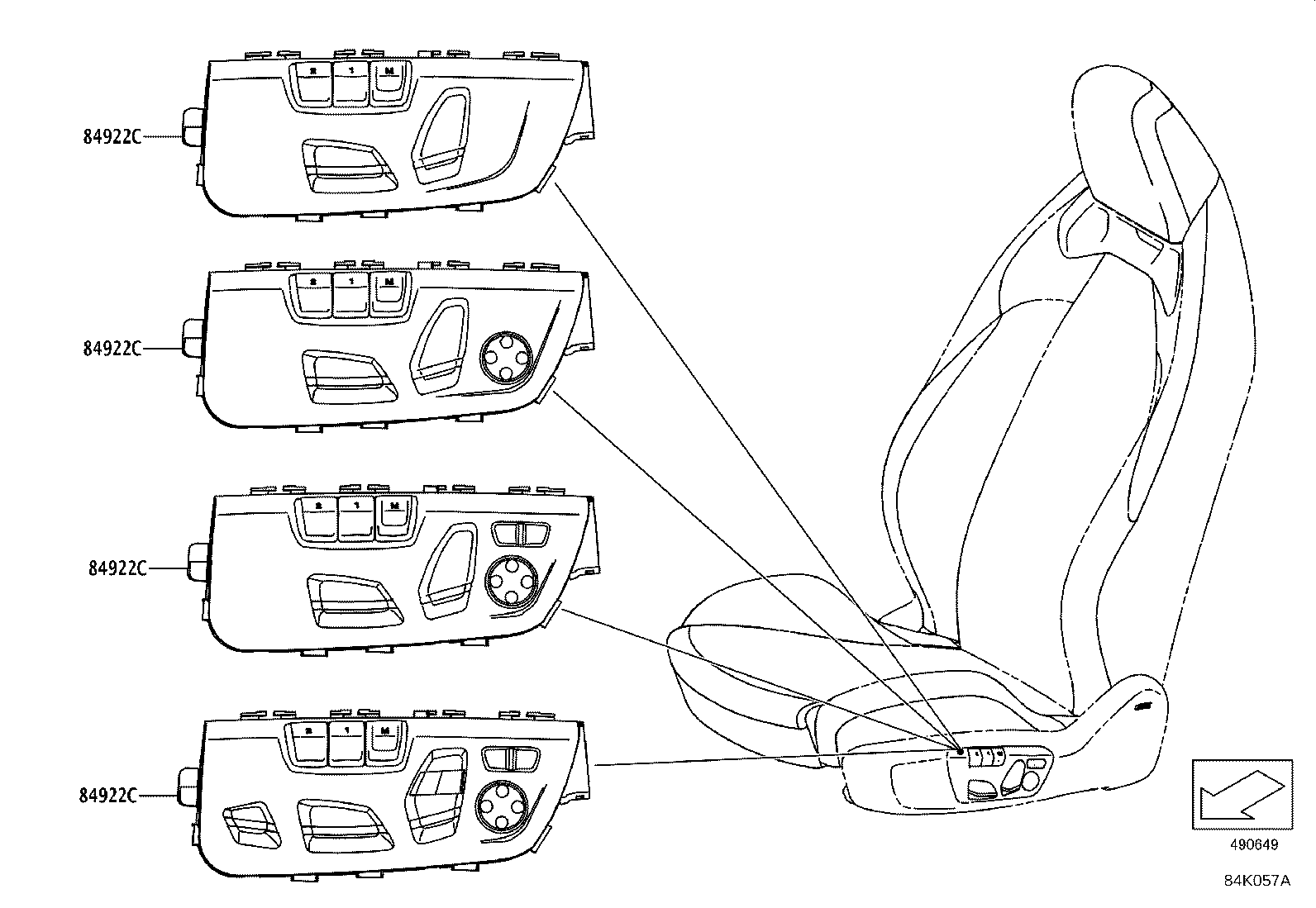

84K057A

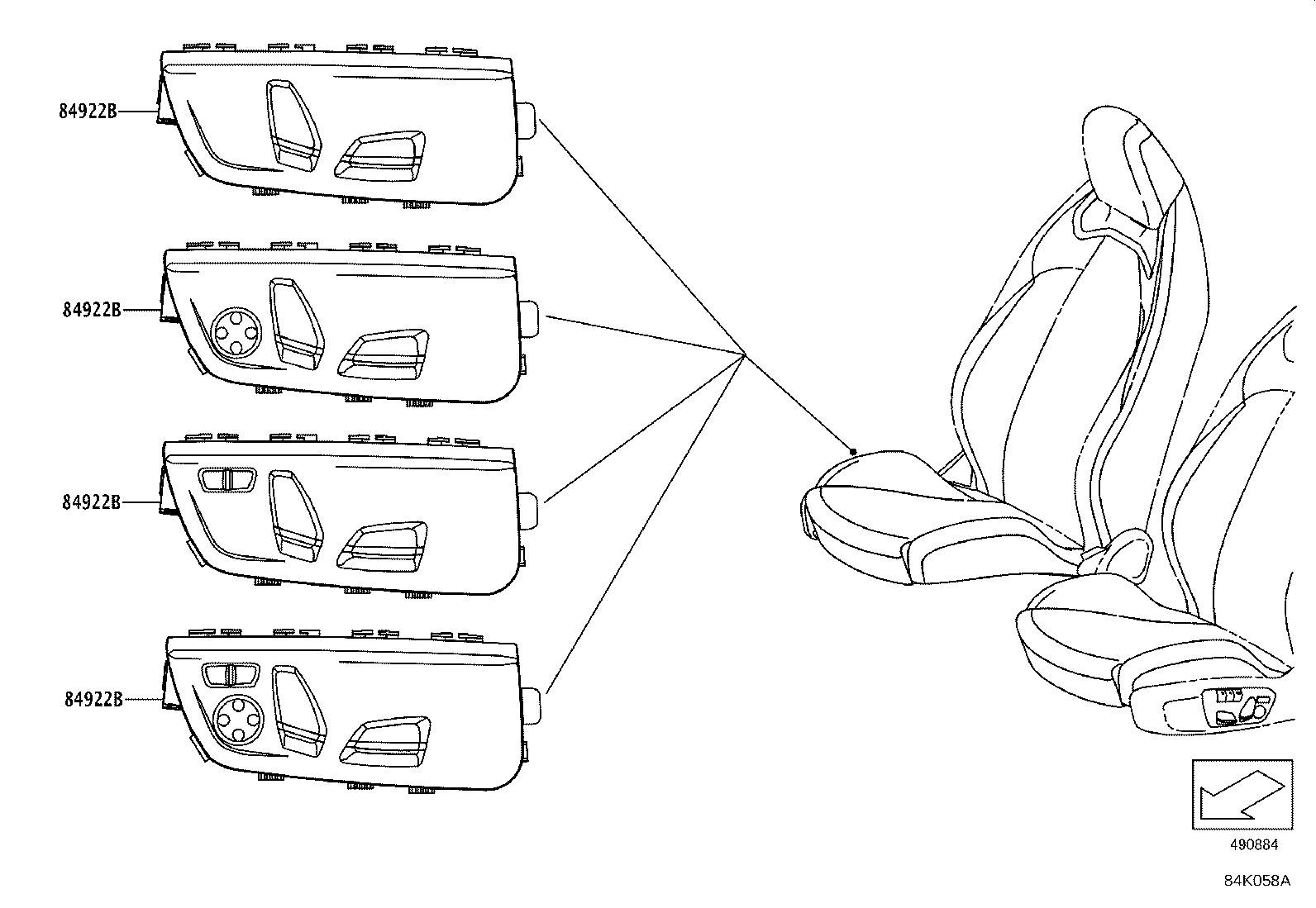

84K058A

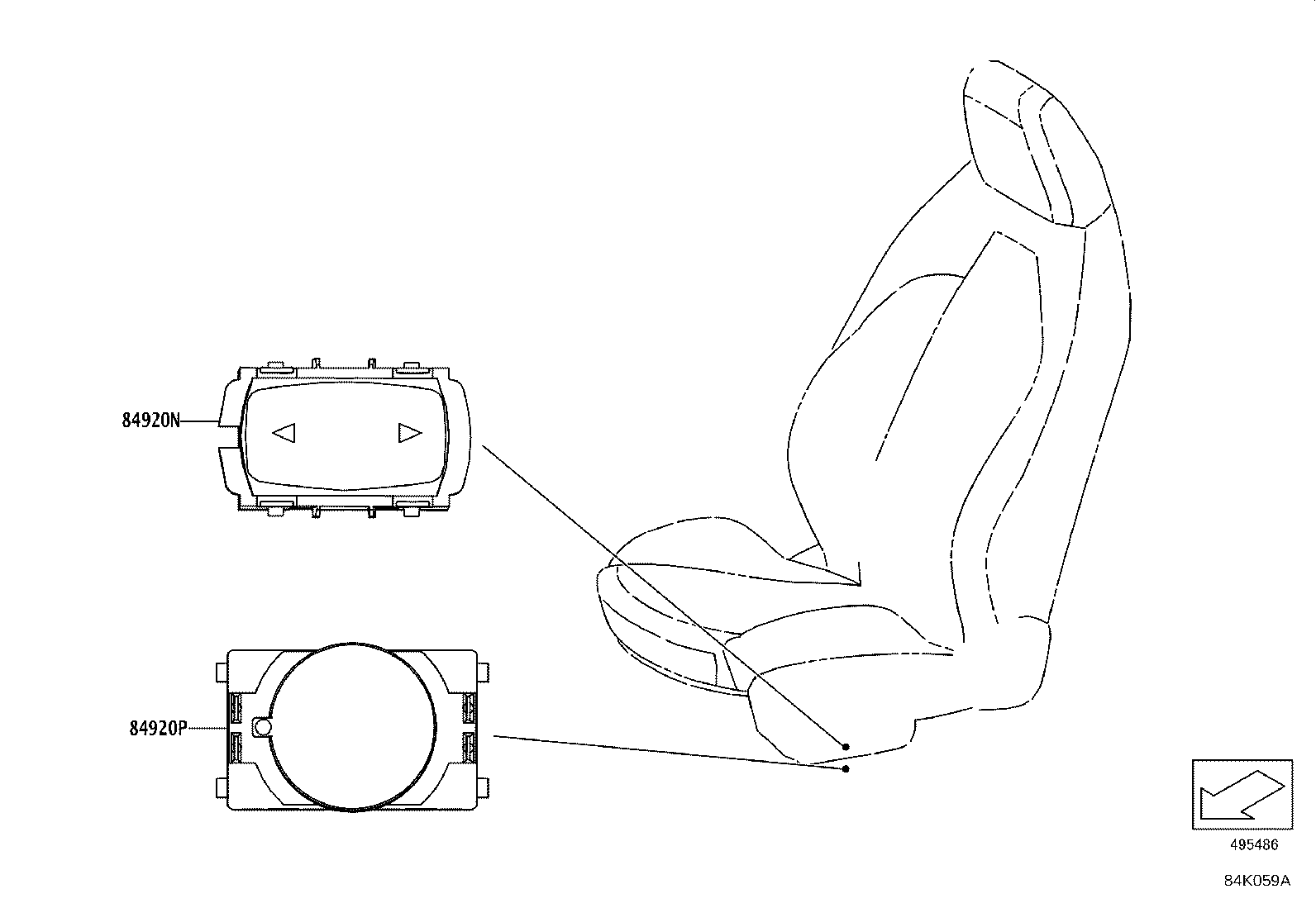

84K059A

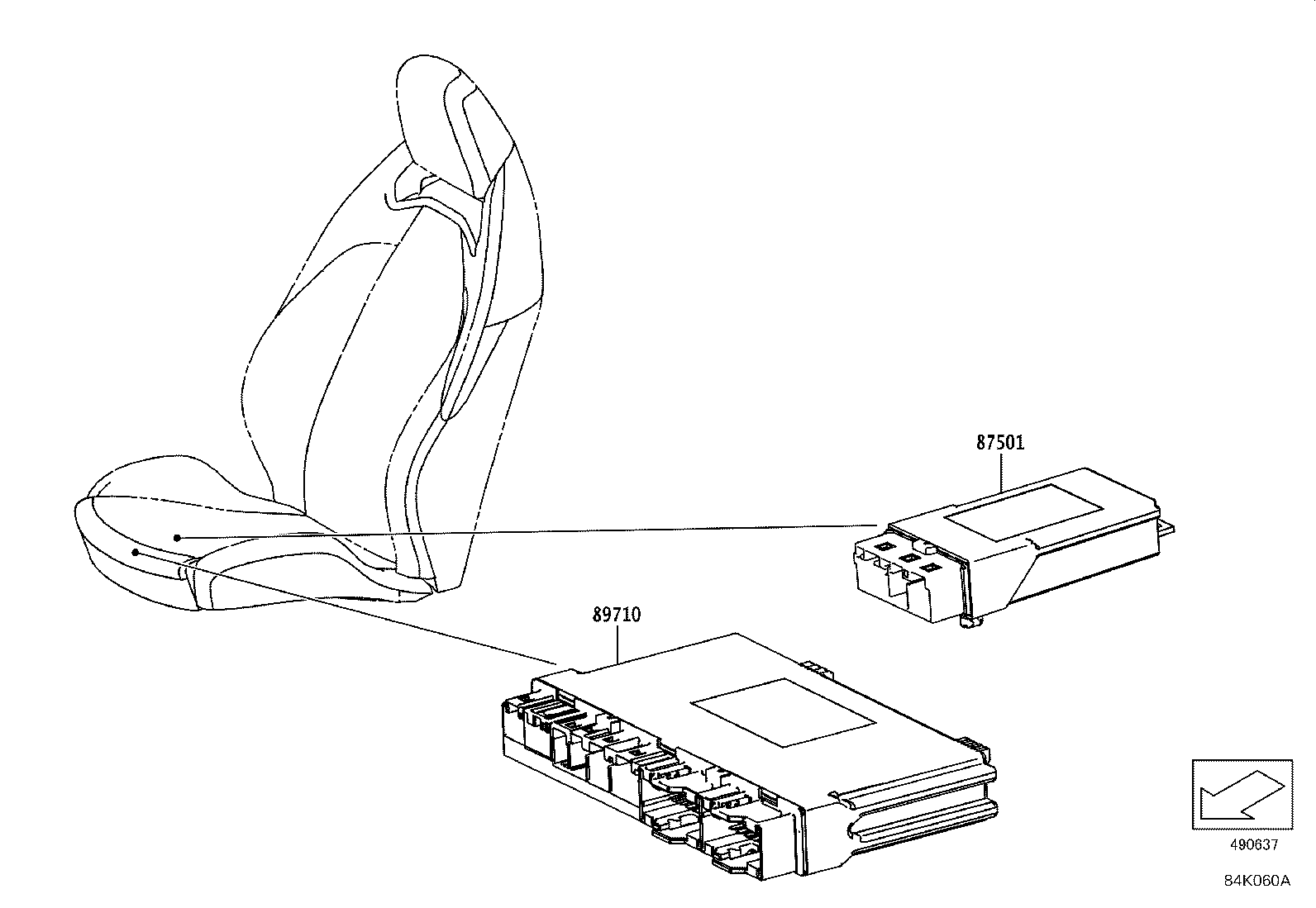

84K060A
84K061
84K062

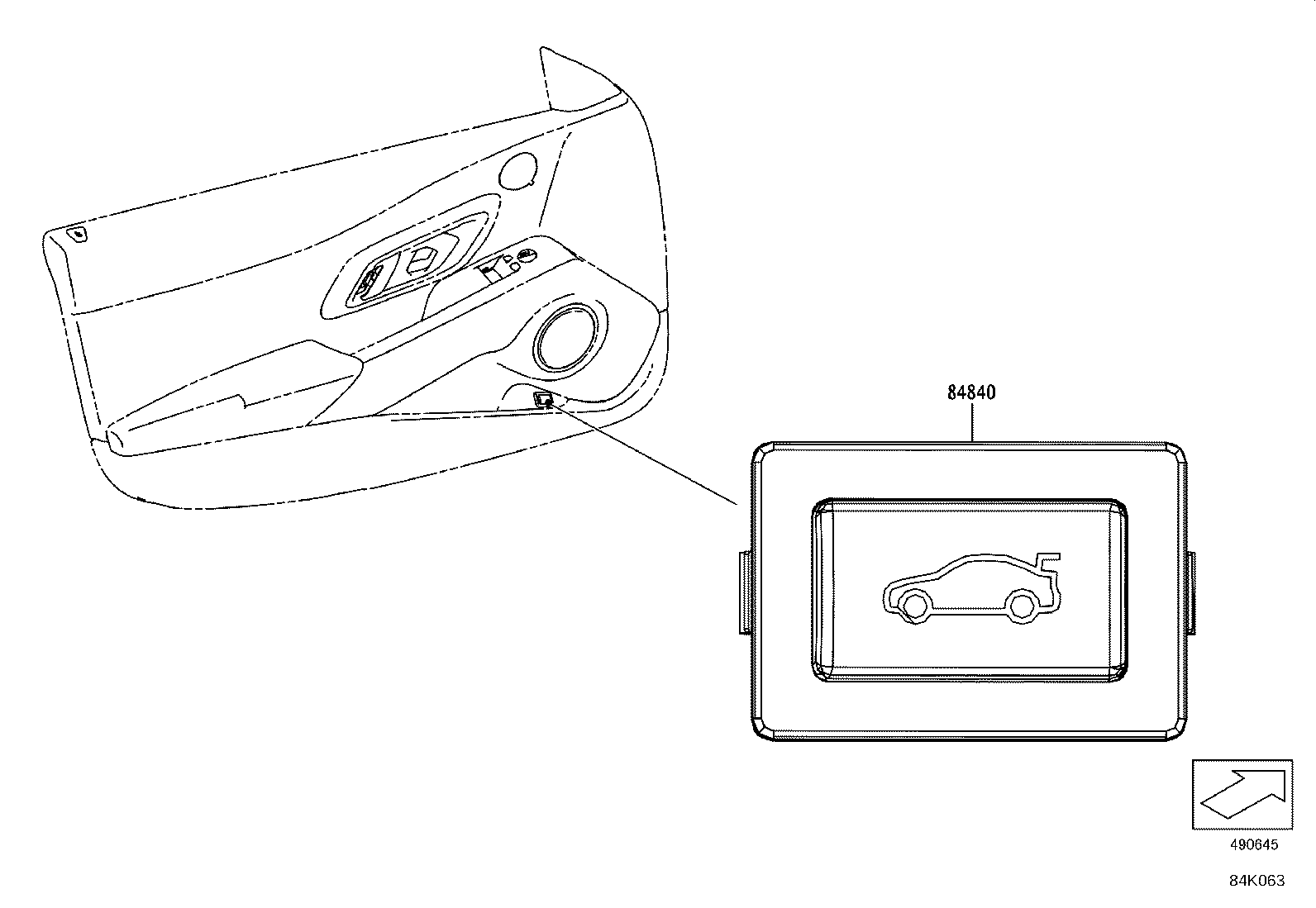

84K063

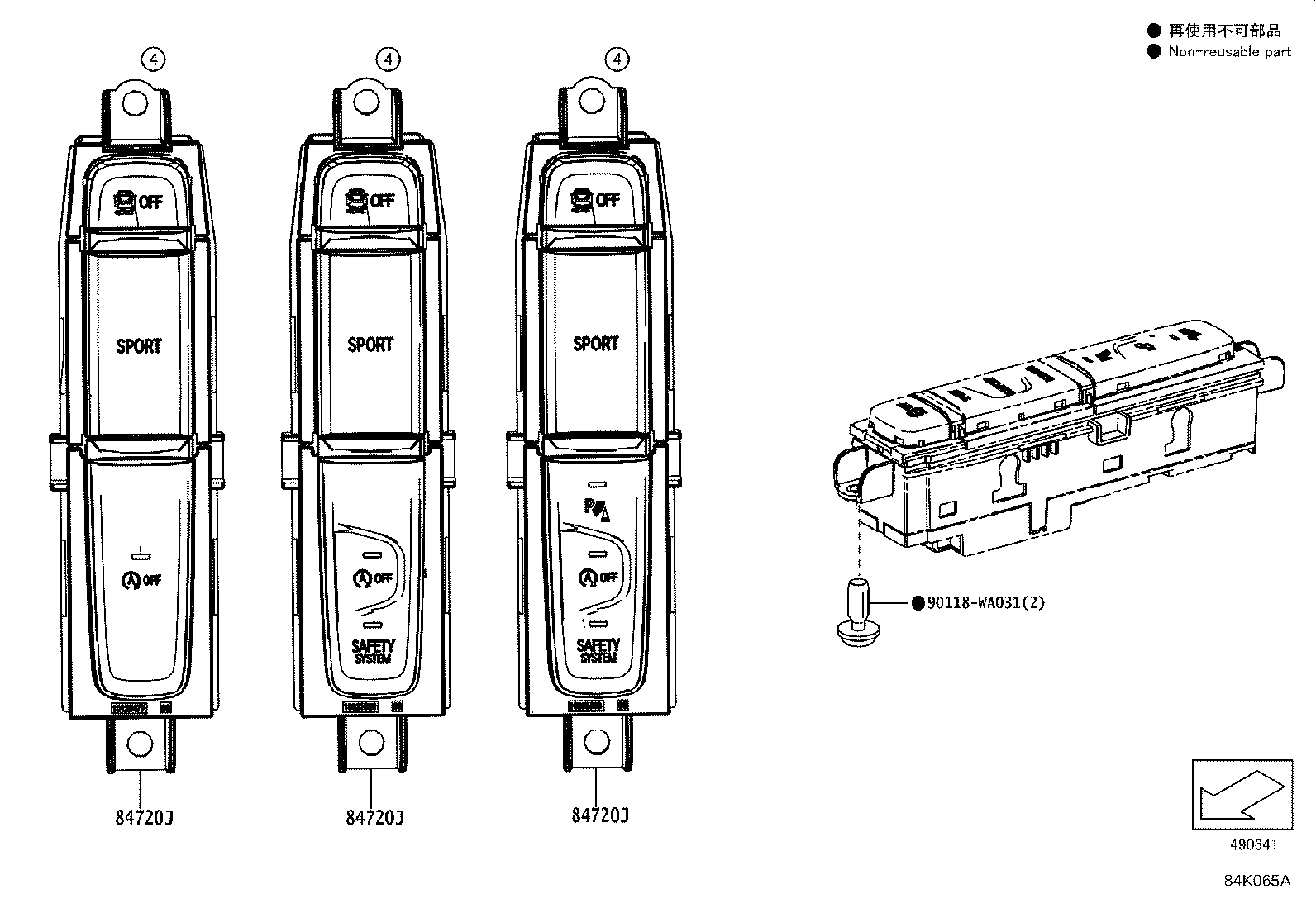

84K065A
84K066B
84K348B

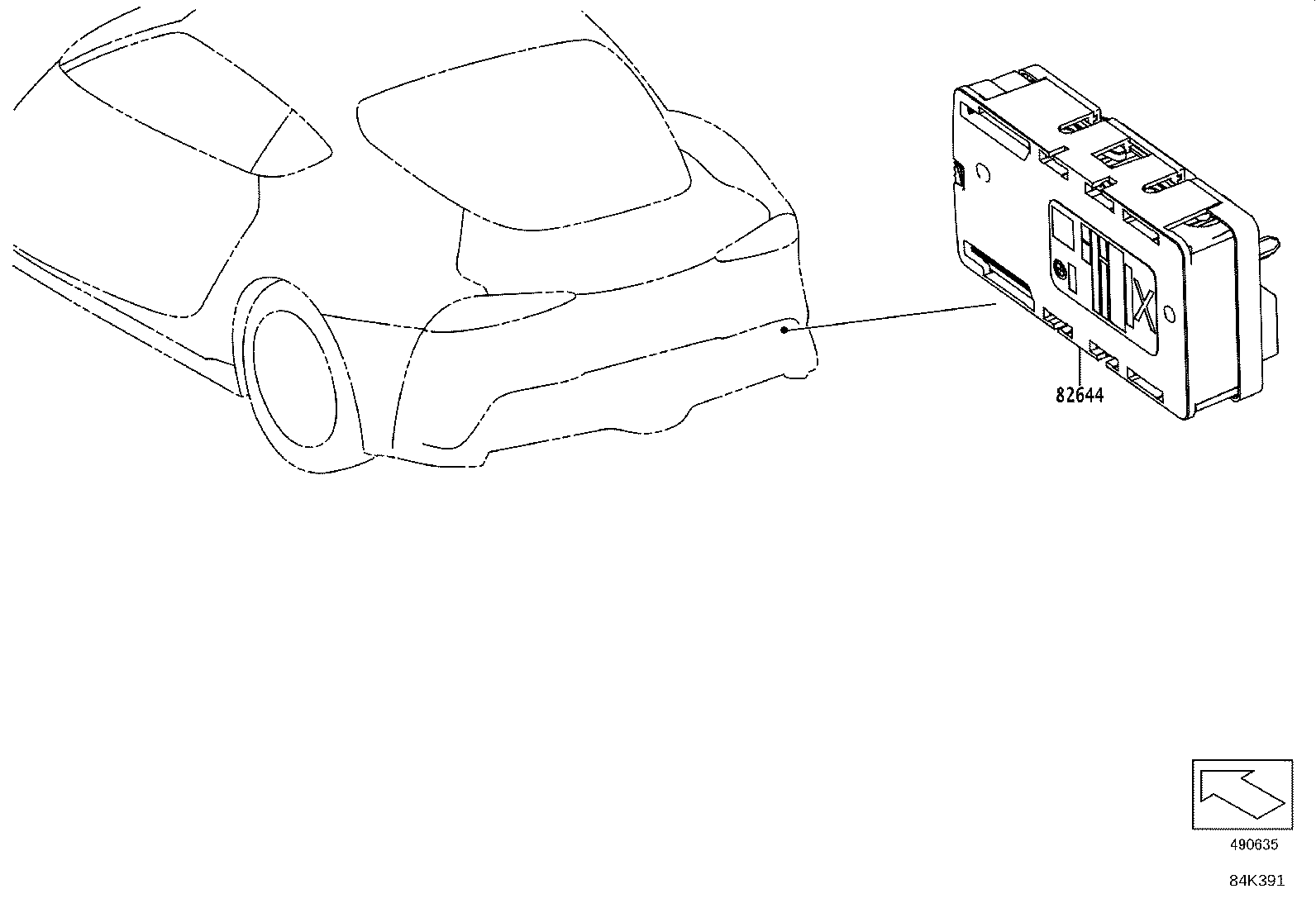

84K391

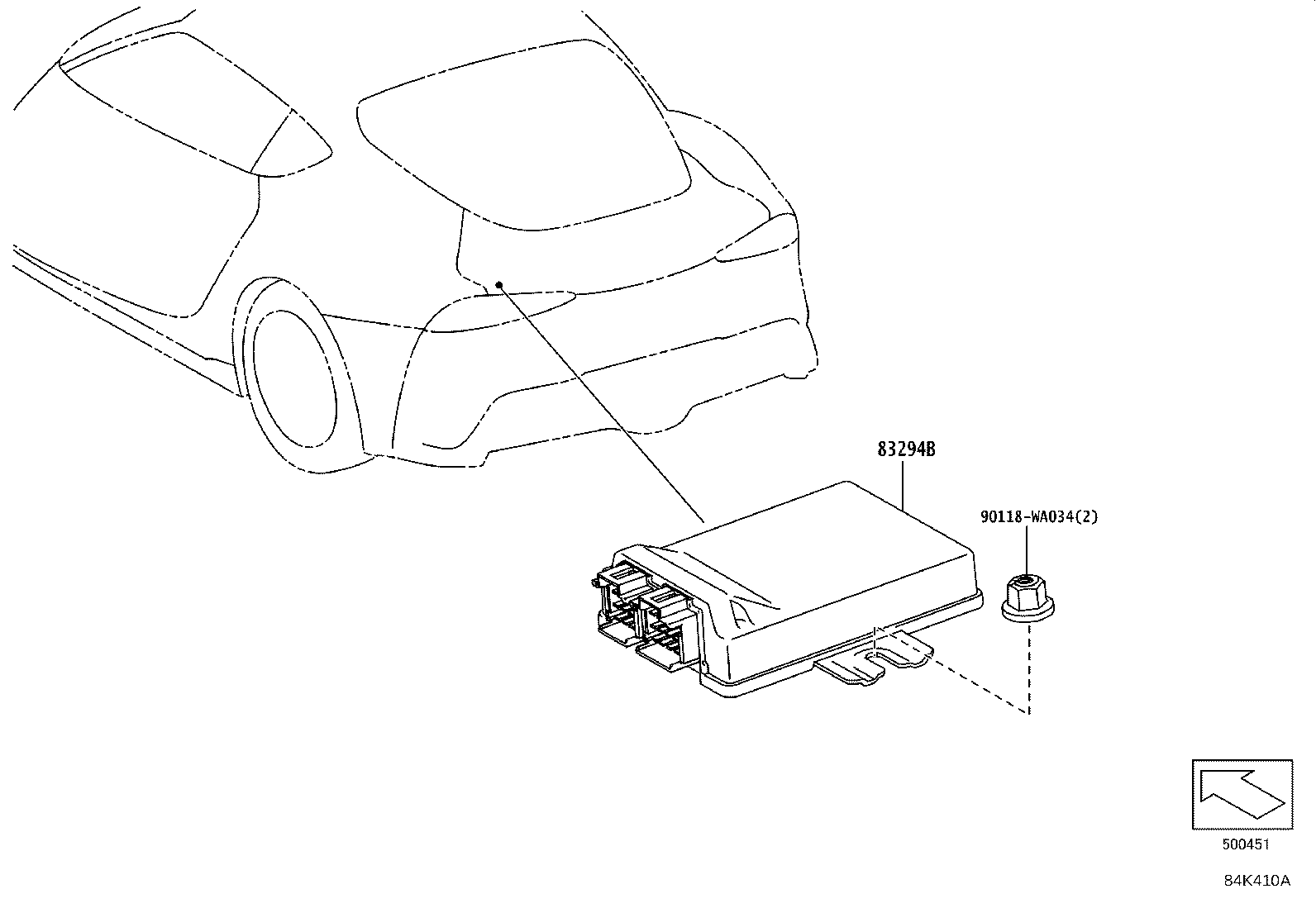

84K410A

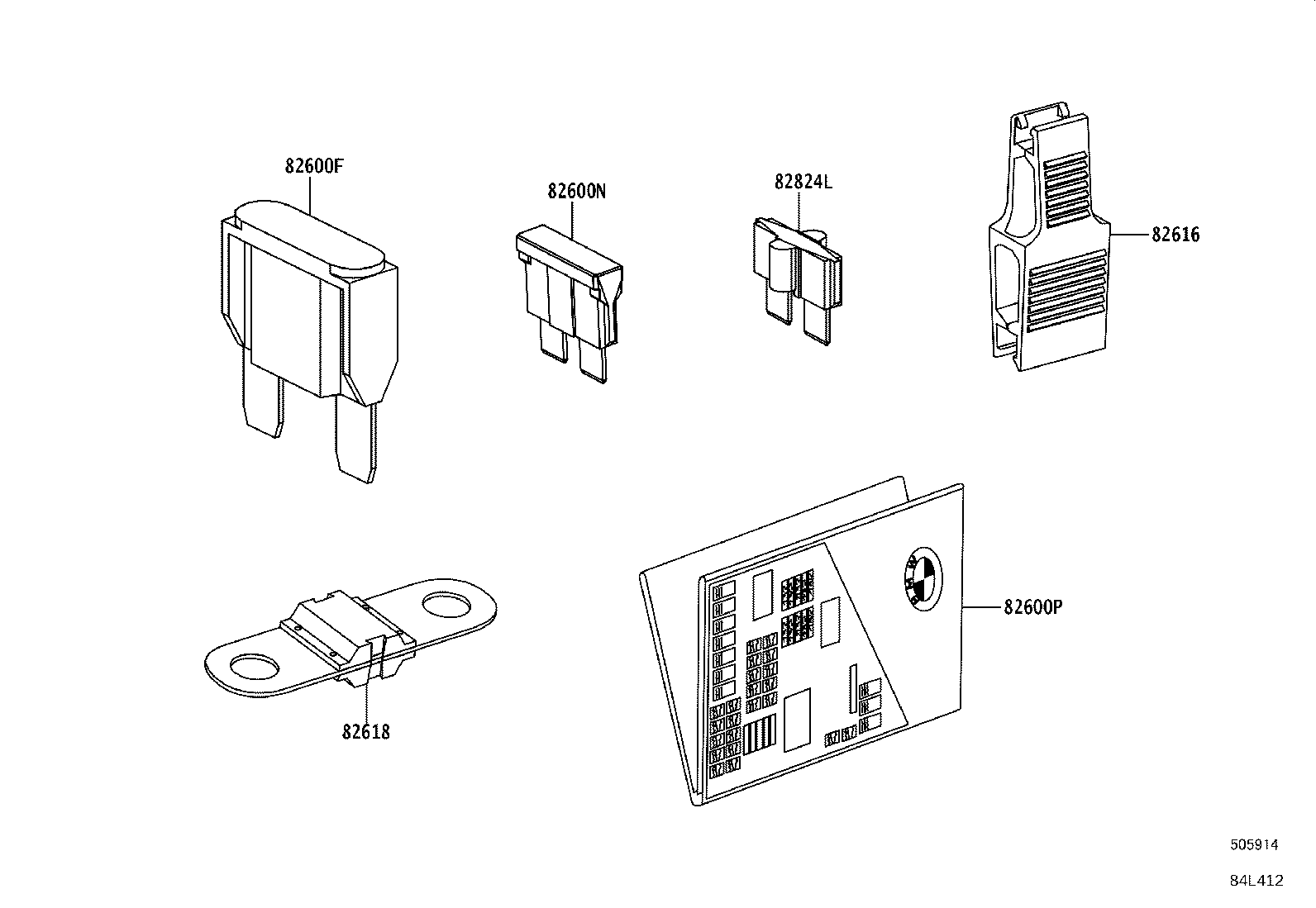

84L412

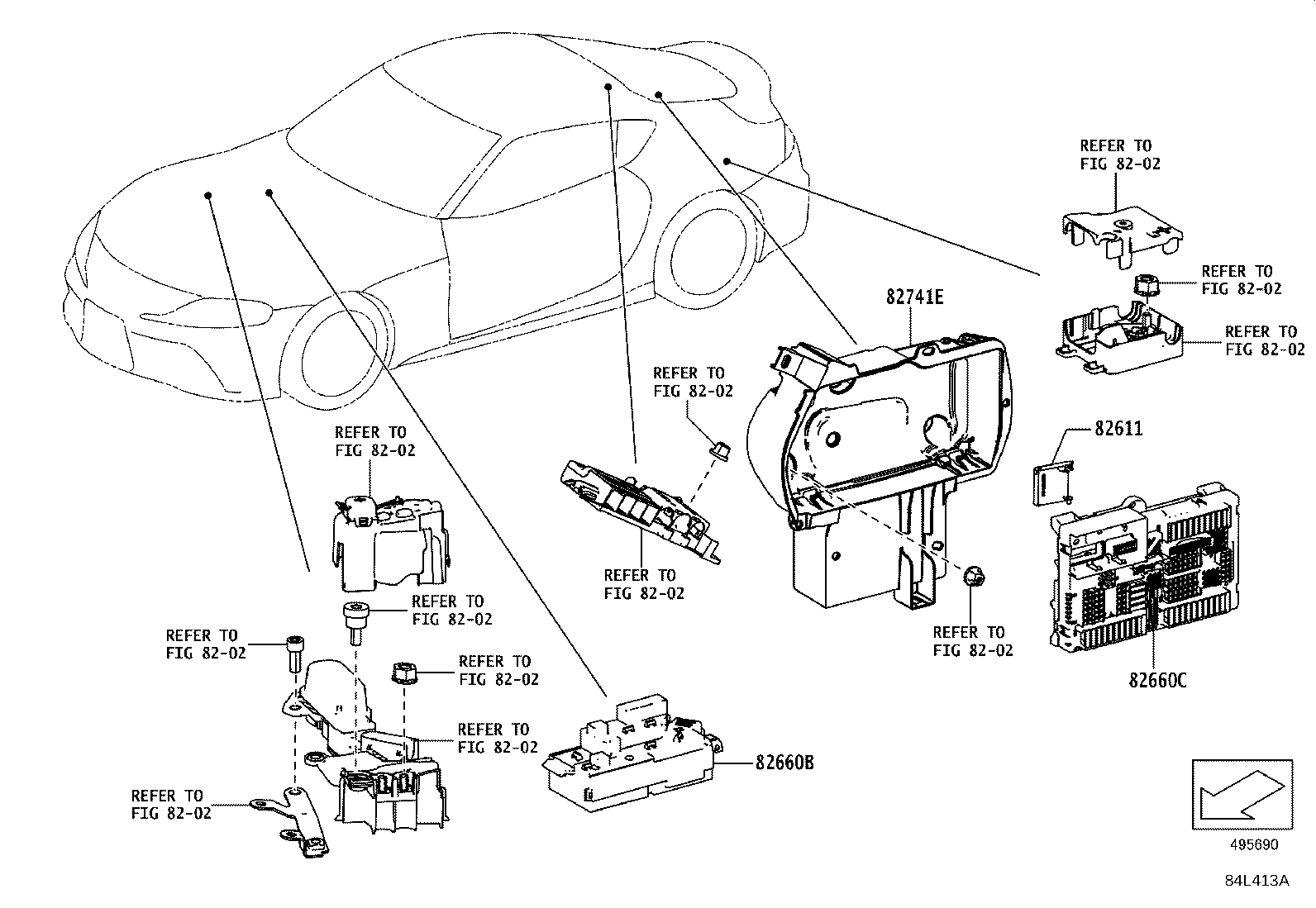

84L413A
84O269
Part groups
| PNC | Description |
|---|---|
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82600N | Fuse |
| 82600P | Map, Fuse Grouping |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82618 | Fuse, Fuse Block |
| 82641 | Relay, Integration NO.1 |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82741E | Block, Luggage Room Relay, NO.1 |
| 82821B | Cover, Connector |
| 82824L | Pin, Short |
| 83294B | Computer, Differential Lock |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84250A | Switch Assy, Steering Pad |

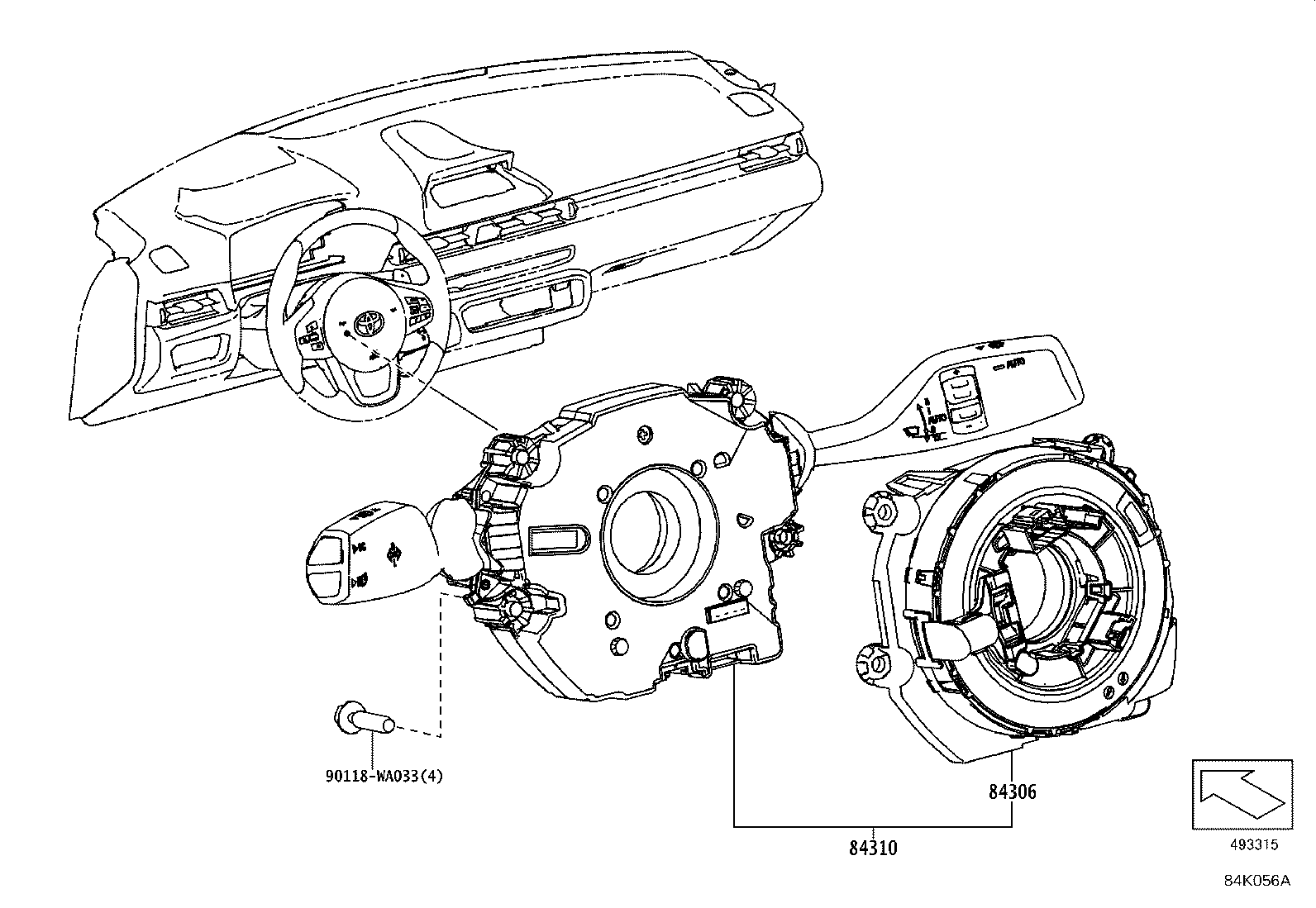

| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |

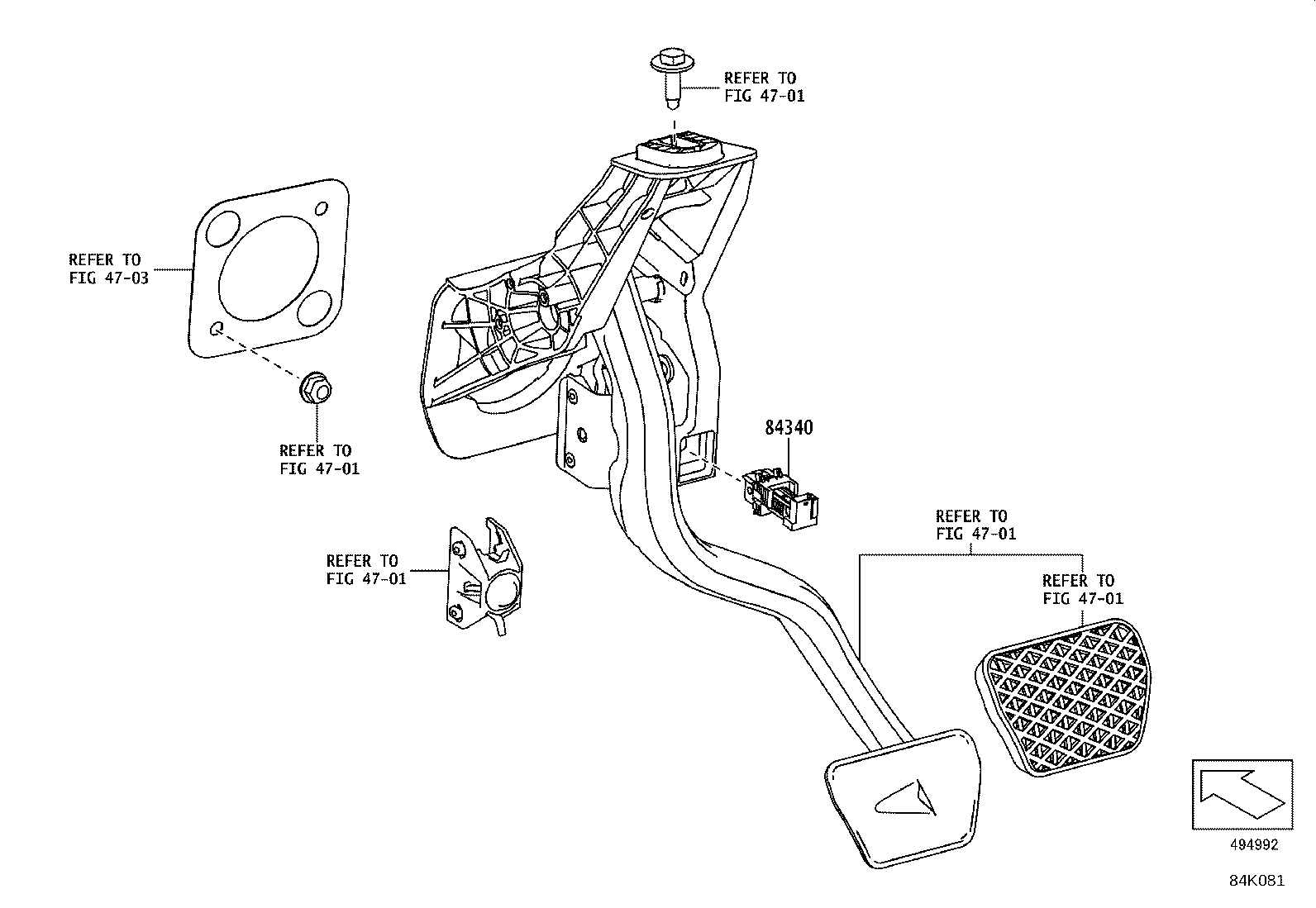

| 84340 | Switch Assy, Stop Lamp |
| 84390B | Switch Assy, Electric Parking Brake |
| 84461A | Switch, Brake Reservoir Level Warning |
| 84523 | Wire, Switch NO.1 |

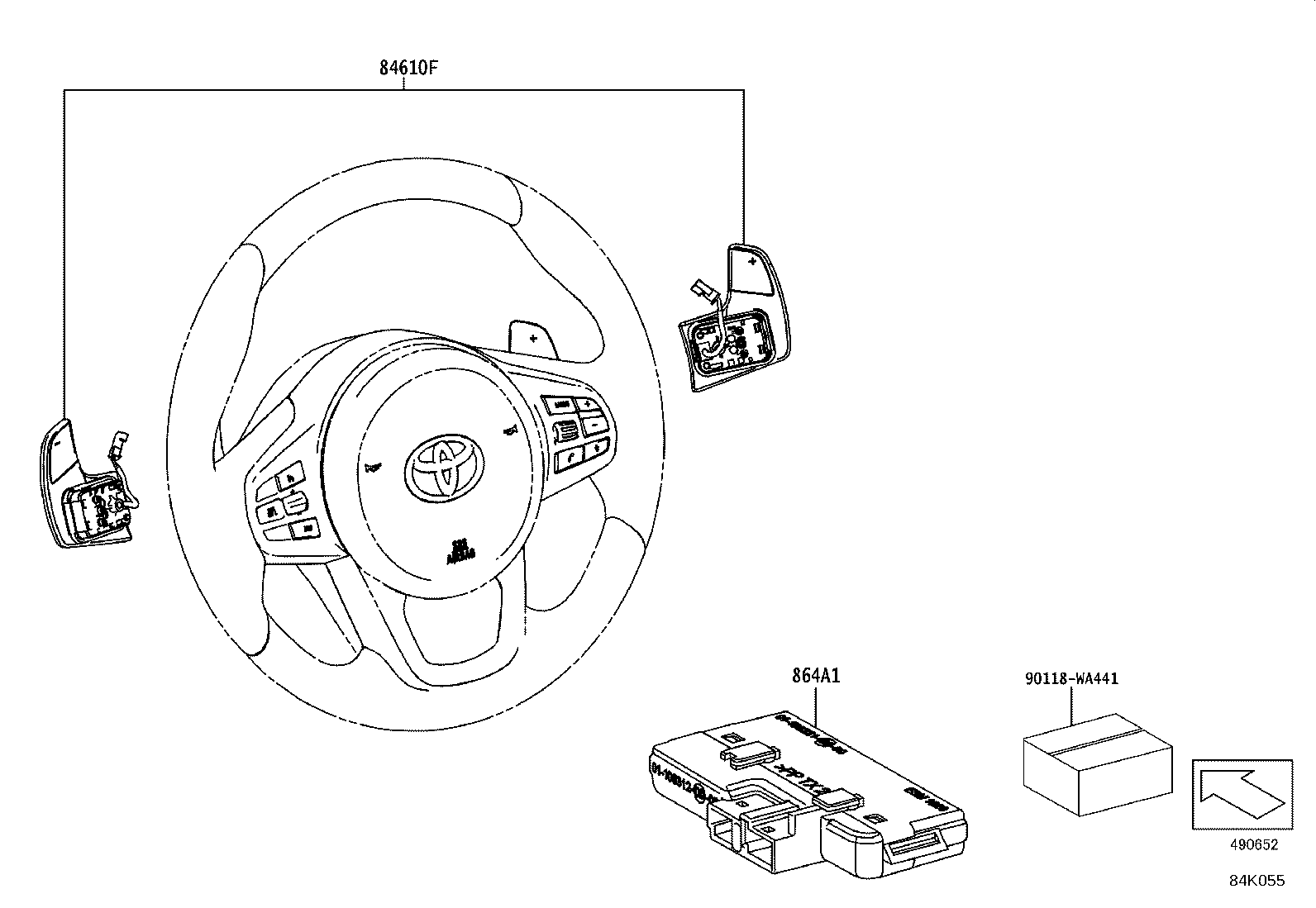

| 84610F | Switch Assy, Transmission Shift |
| 84720J | Switch Assy, Pattern Select |
| 84810 | Switch Assy, Power Window Regulator |

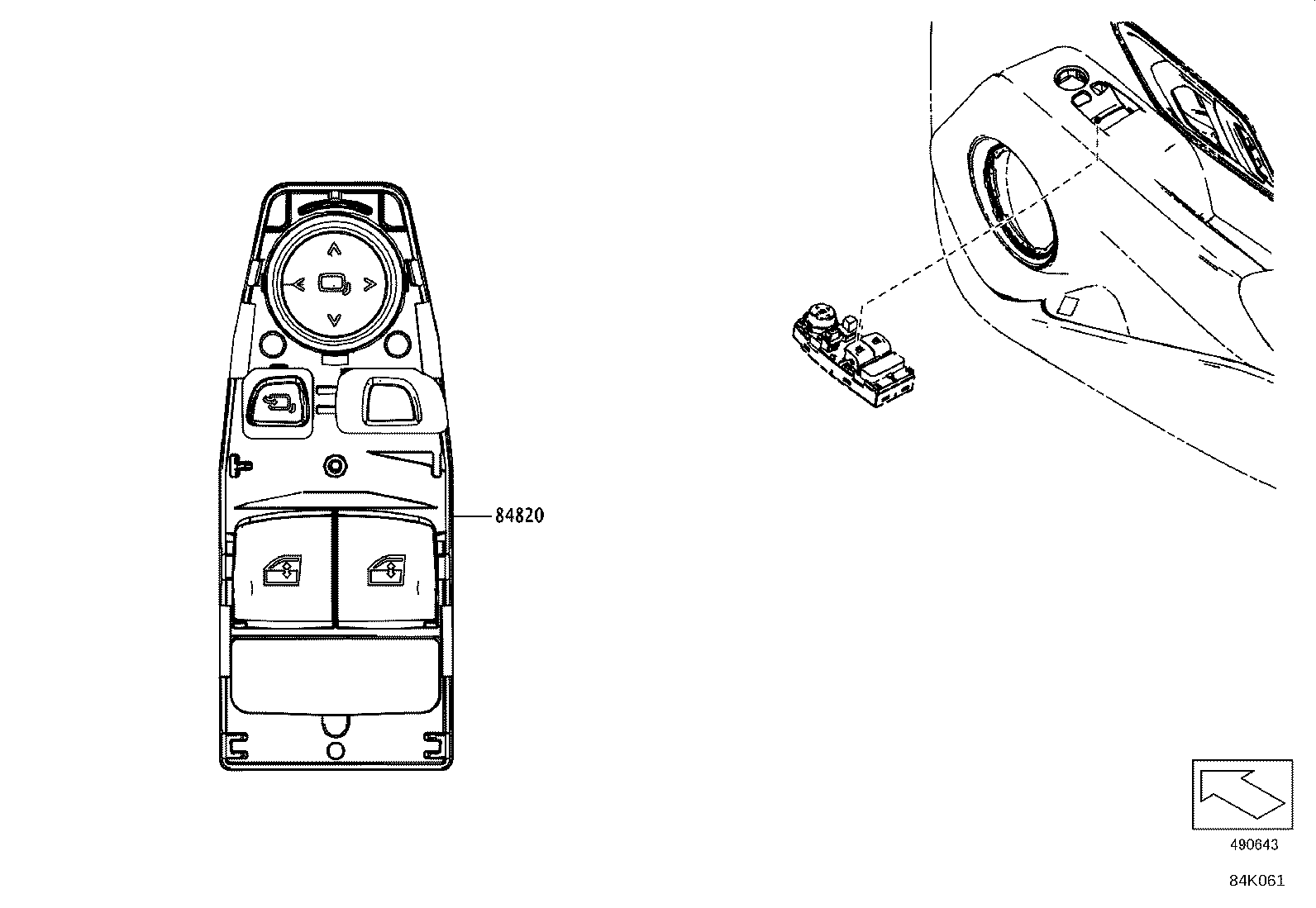

| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84920N | Switch, Front Seatback Support Power Seat |
| 84920P | Switch, Front Lumbar Support Power Seat |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84930 | Switch Assy, Door Control |

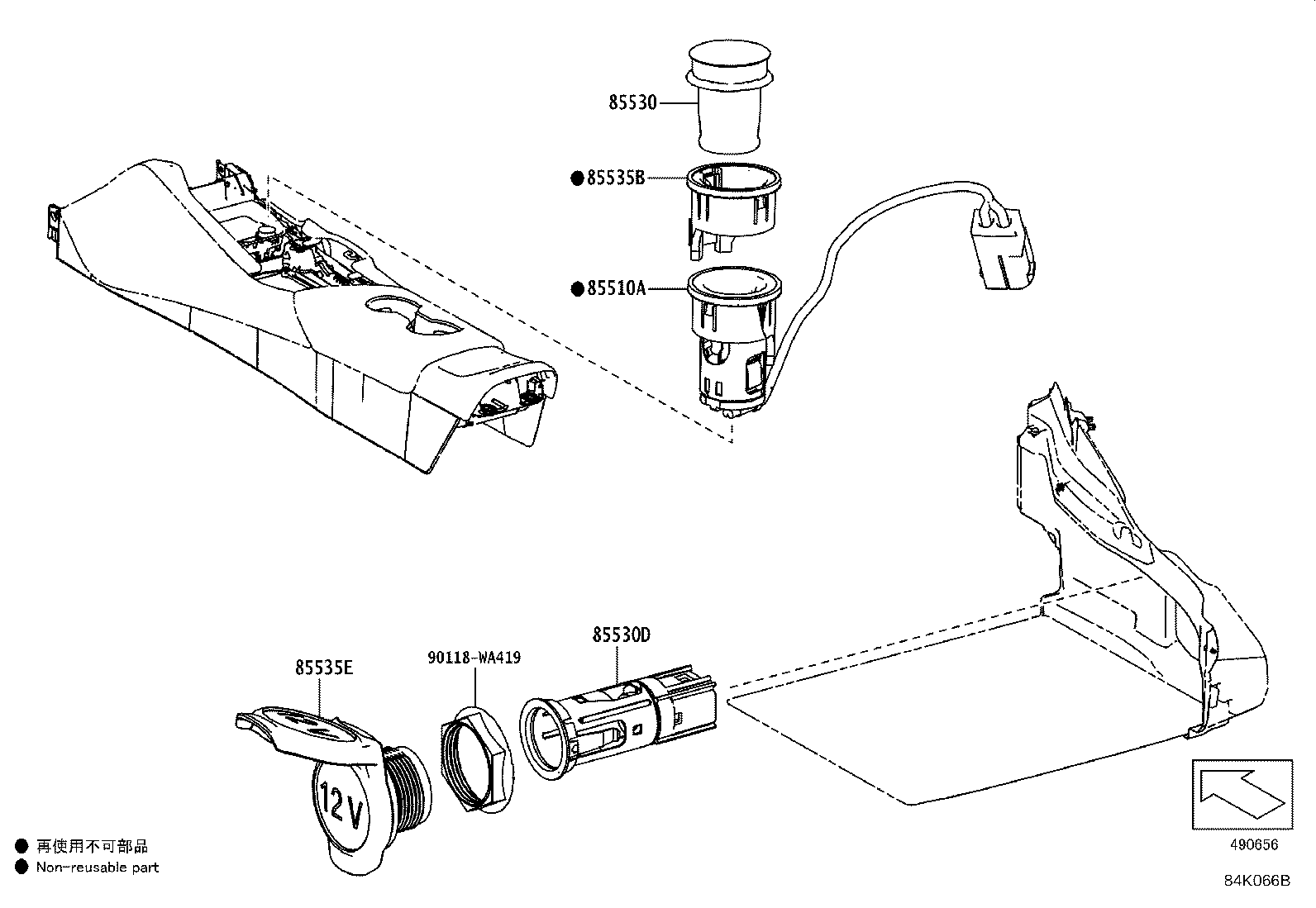

| 85510A | Retainer, Power Outlet Socket |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 864A1 | Computer, Steering Vibration & Heater |
| 87501 | Control Sub-assy, Seat Heater |

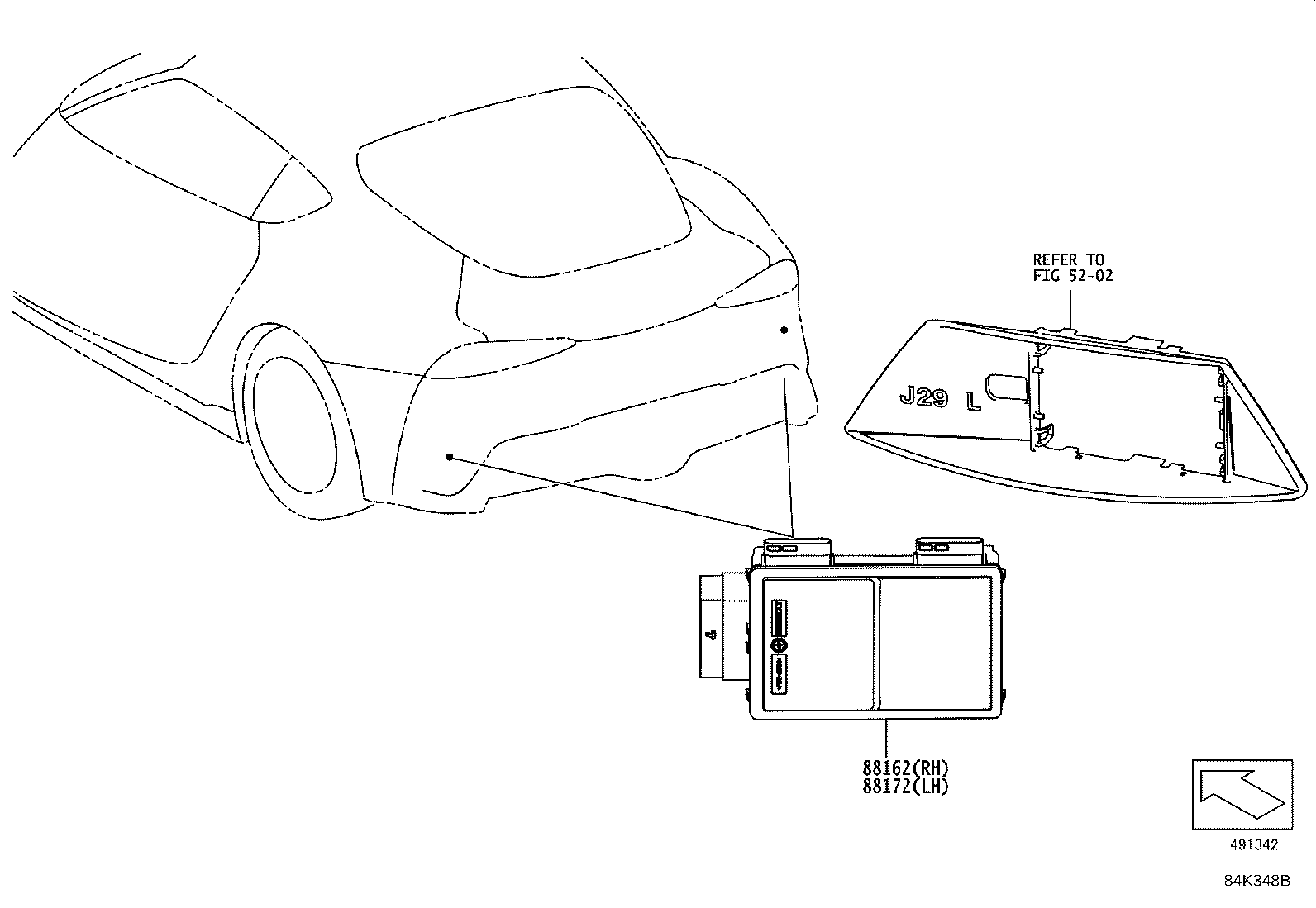

| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89100B | Box, Ethernet Switch |
| 89114 | Holder, Ethernet Switch Box |
| 89221 | Computer, Multiplex Network Body |
| 89228 | Cover, Multiplex Network |
| 89421R | Sensor, Air Pressure |

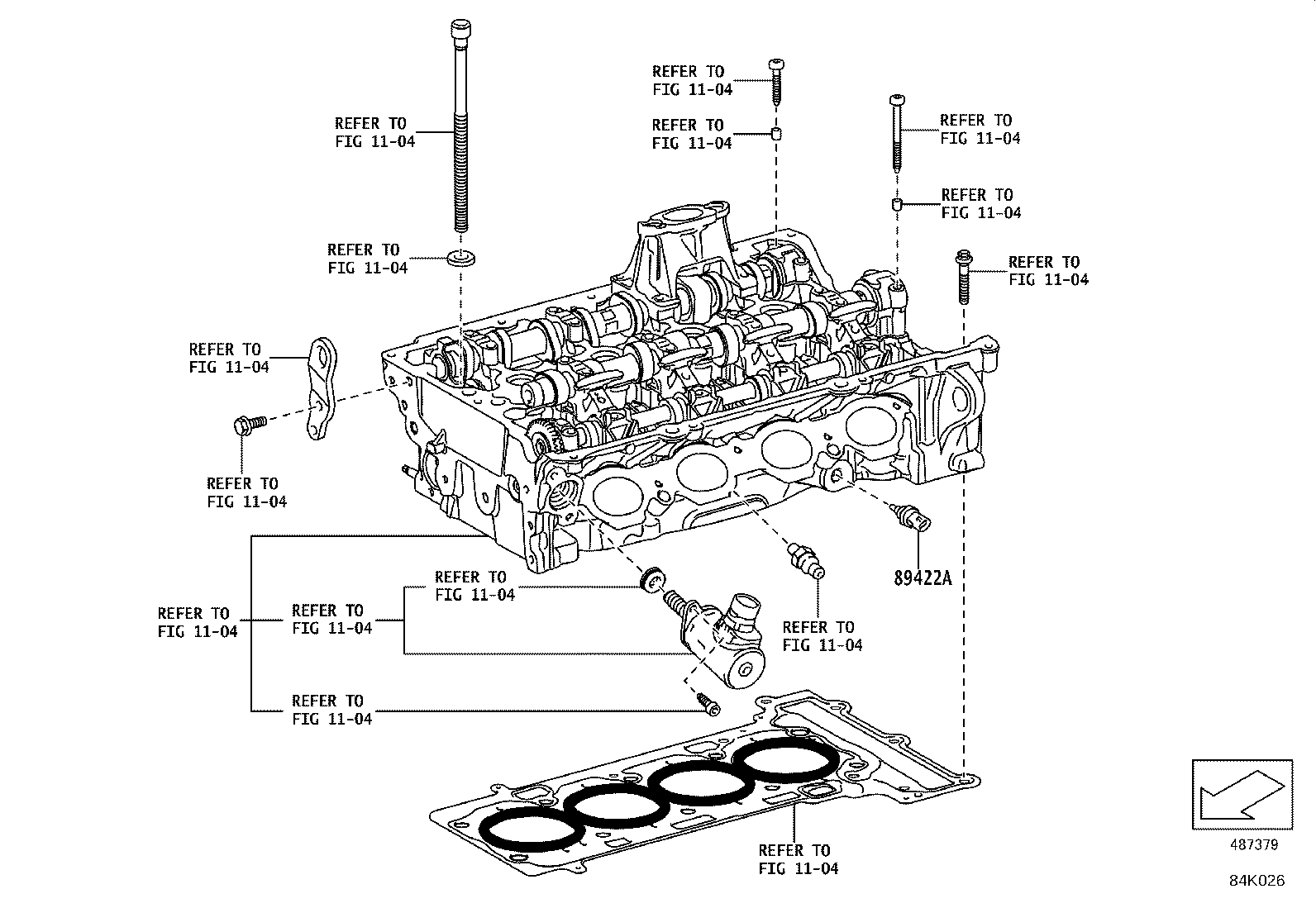

| 89422A | Sensor, Water Temperature |
| 89422N | Sensor, Water Temperature, NO.2 |
| 89424G | Sensor, Inlet Air Temperature |
| 89429 | Sensor, Oil Temperature |
| 89429F | Sensor, Temperature |
| 89437 | Cover, Sensor |
| 89465 | Sensor, Oxygen |
| 89467A | Sensor, Wide Range Air Fuel Ratio |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89539E | Bracket, Computer |
| 89611 | Switch, Push Start |

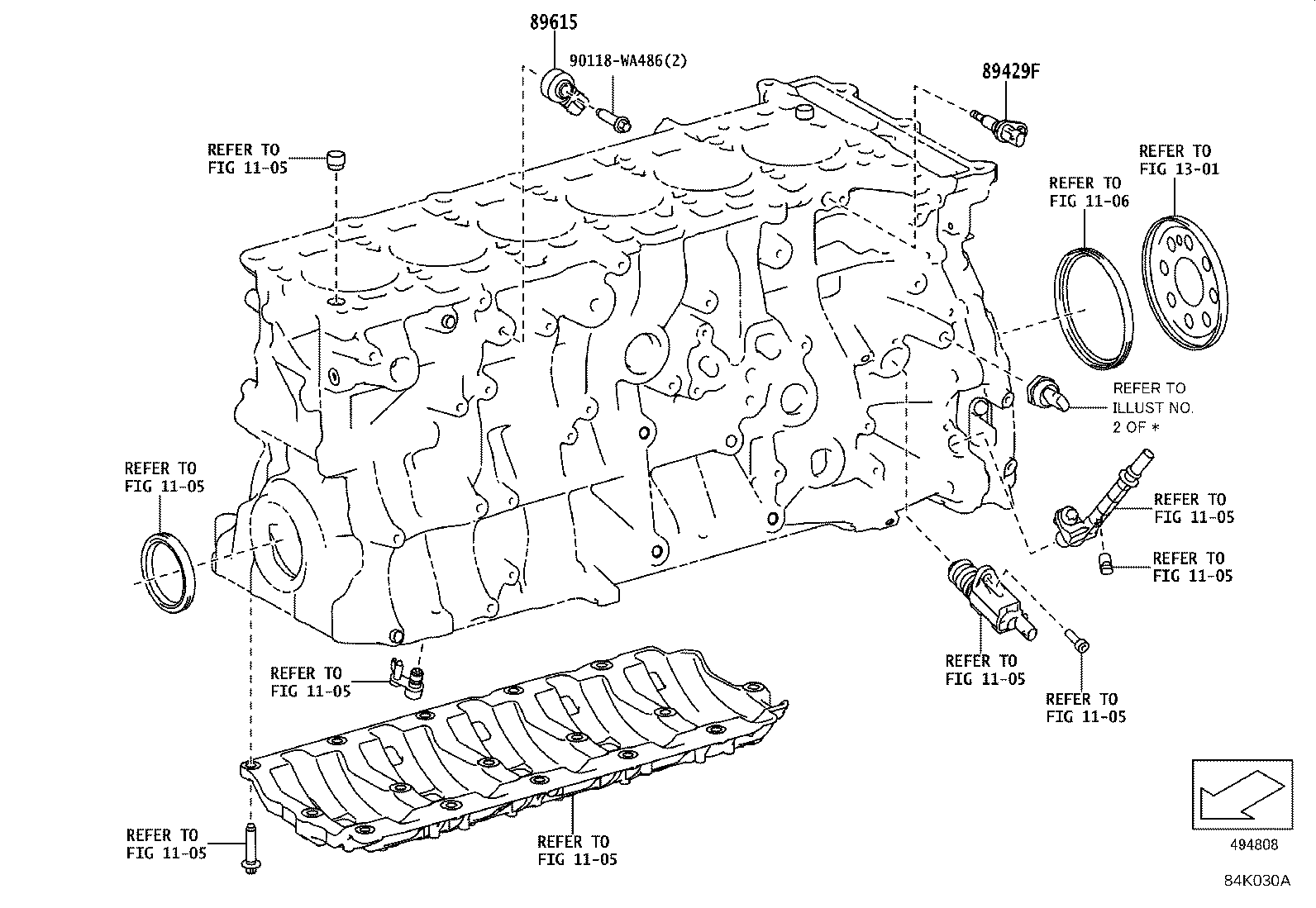

| 89615 | Sensor, Knock Control |
| 89637C | Sensor, Oil Pressure |
| 89710 | Computer Assy, Position Control |
| 89953 | Sensor, Belt Warning Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
