Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · United States
Supported model
Data version 2020-03
Heating & Air Conditioning - Control & Air Duct
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

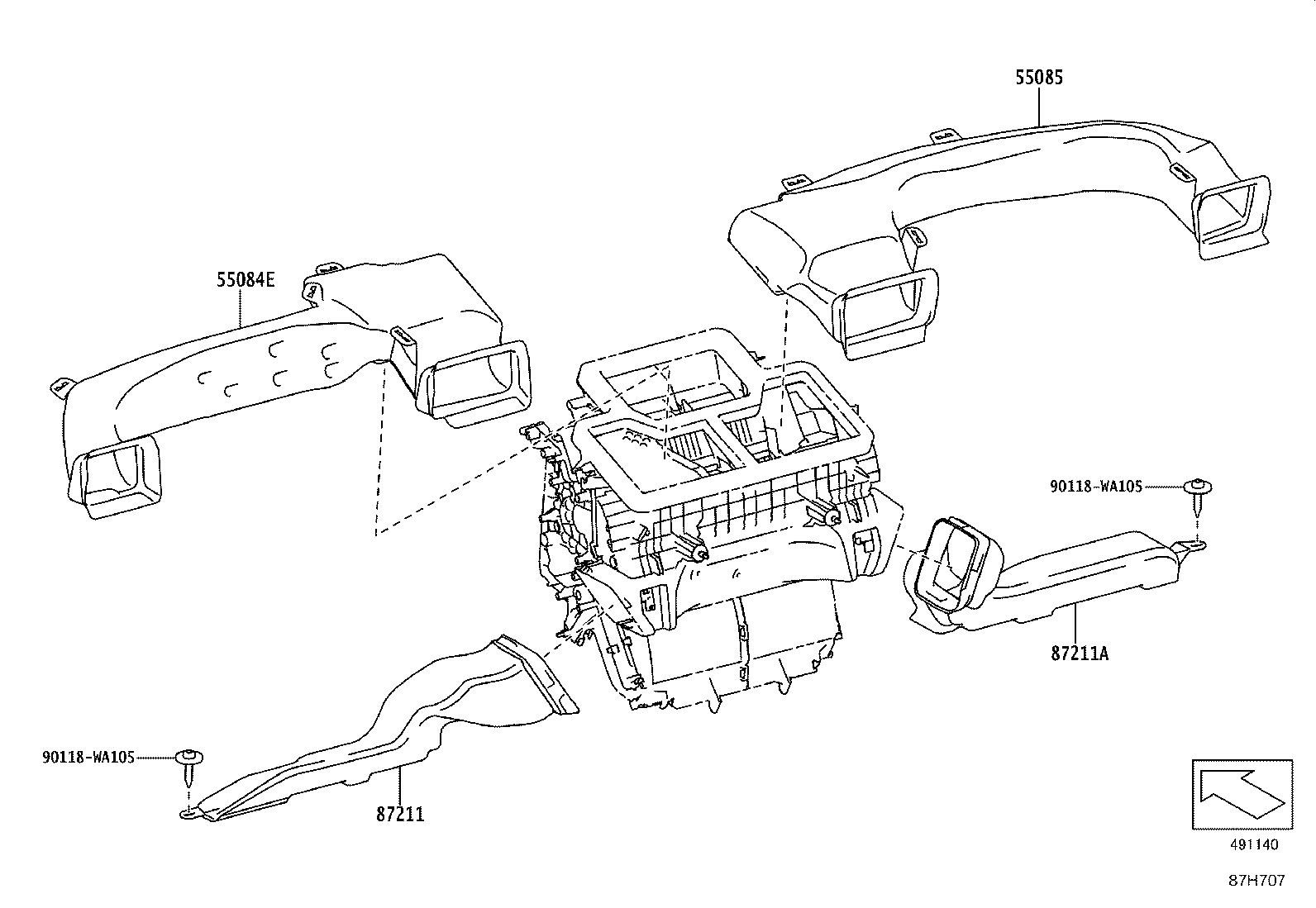

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55900 | Control Assy, Air Conditioner |

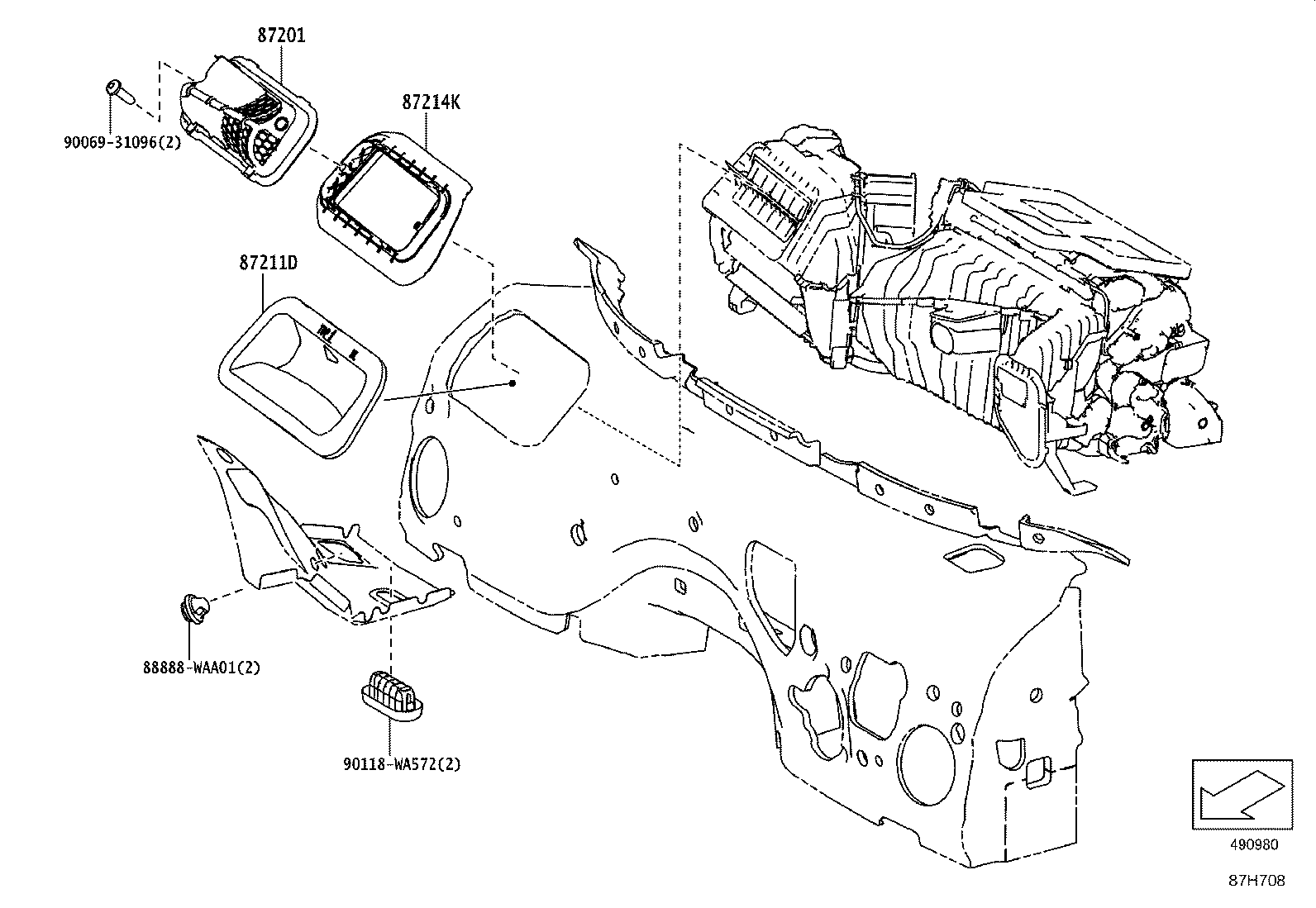

| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211D | Cover, Heater Air Duct Hole |
| 87214K | Bracket, Air Duct |

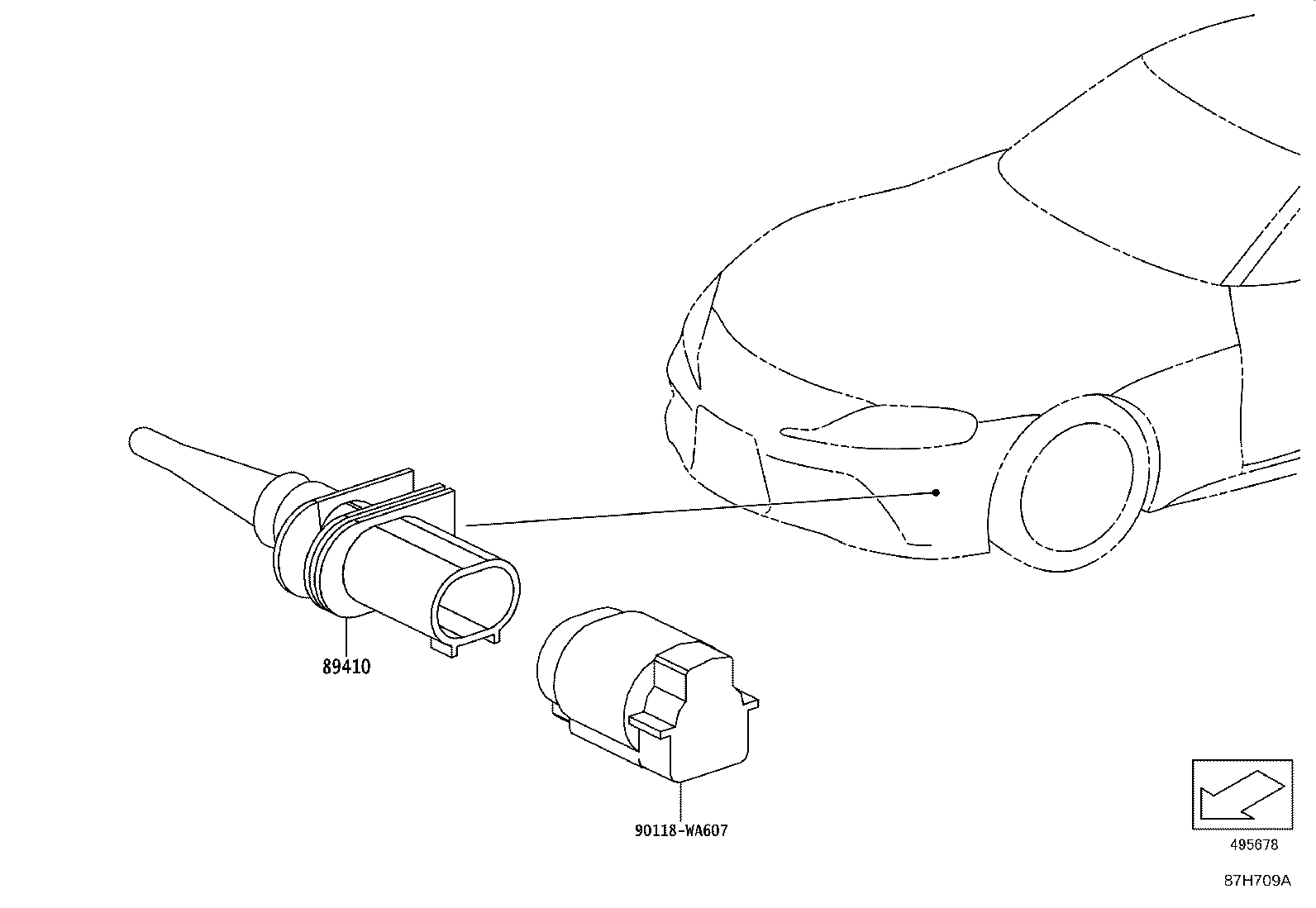

| 89410 | Sensor Assy, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
