Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

21 part groups · 8 illustrations

Illustrations

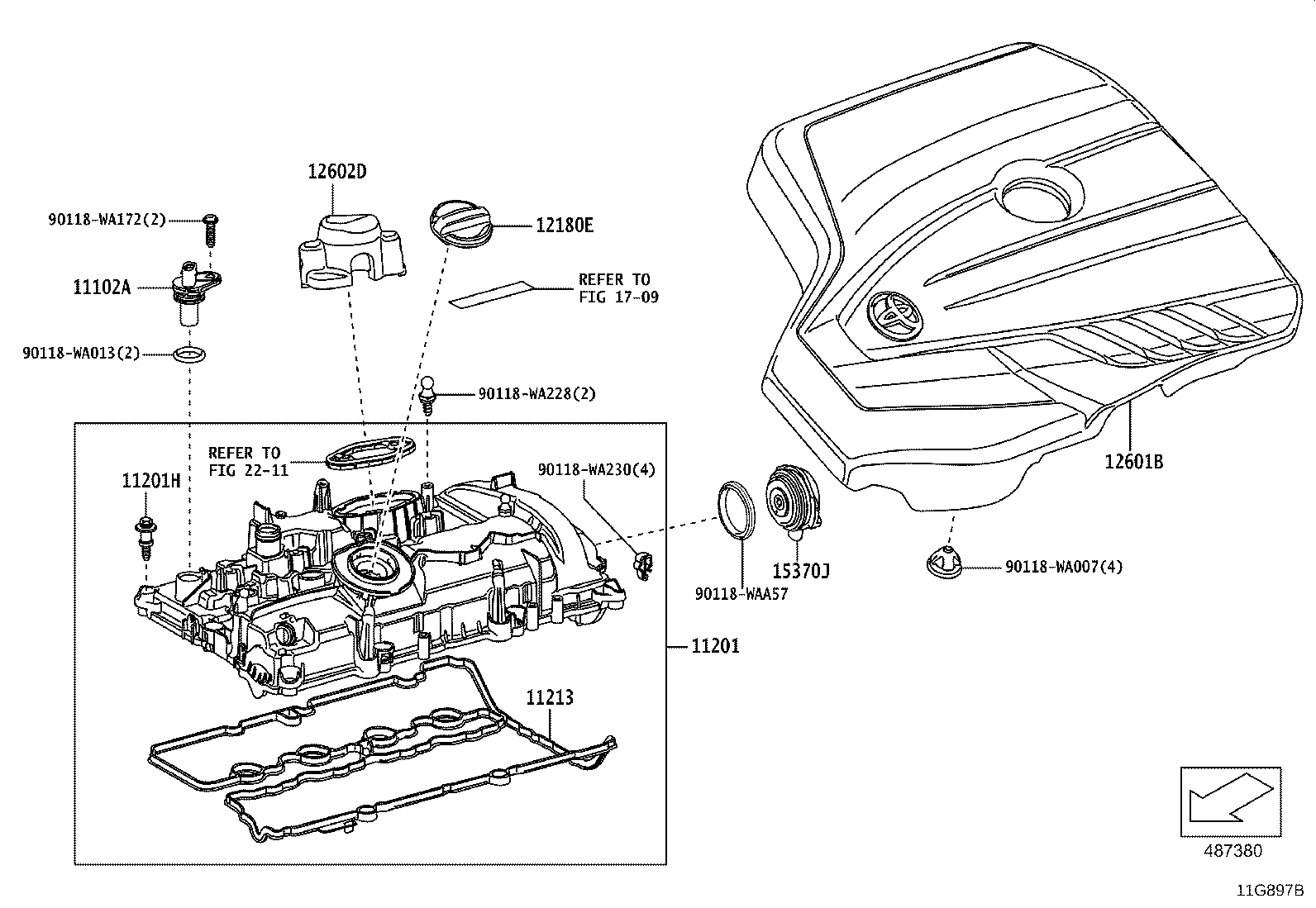

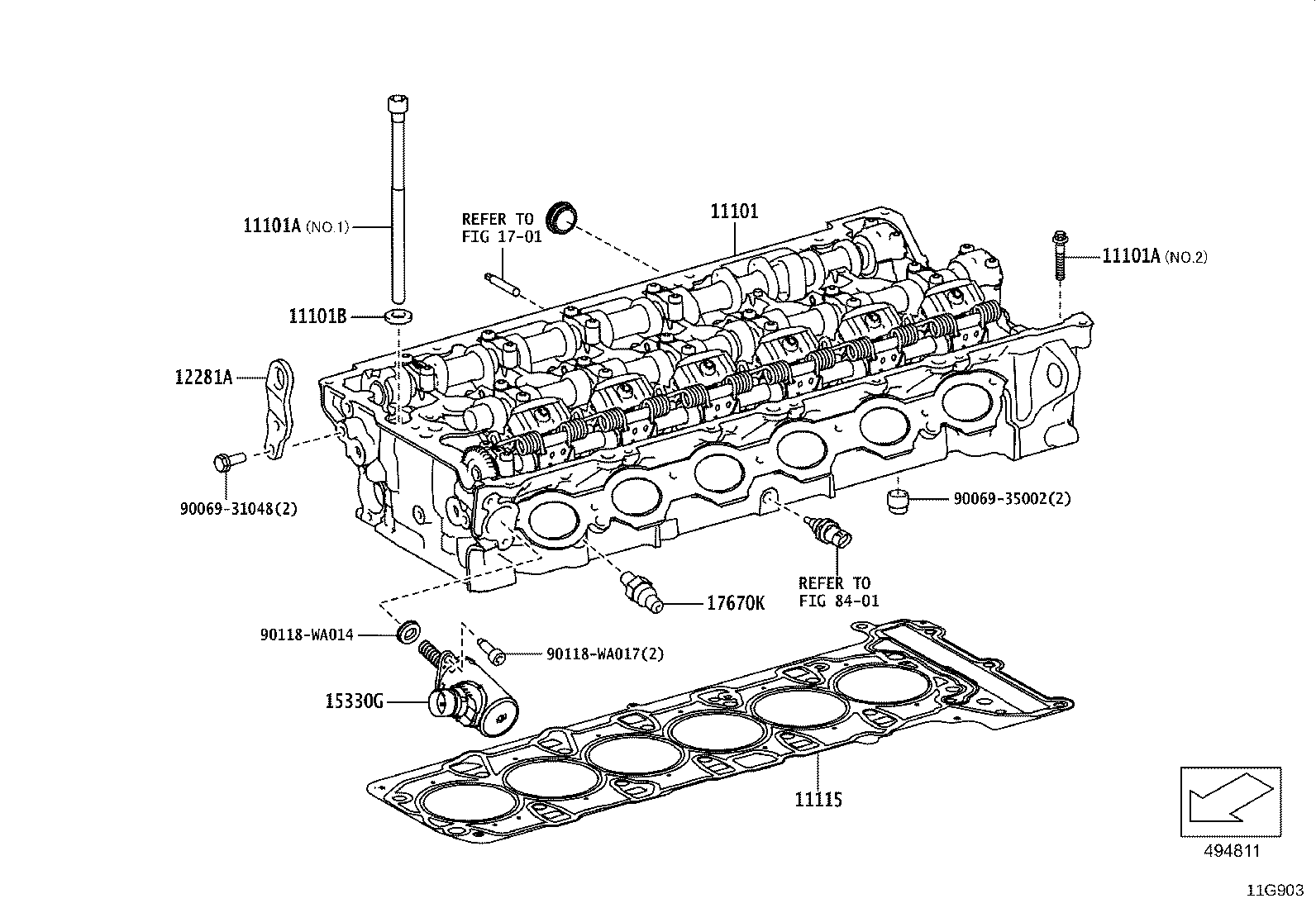

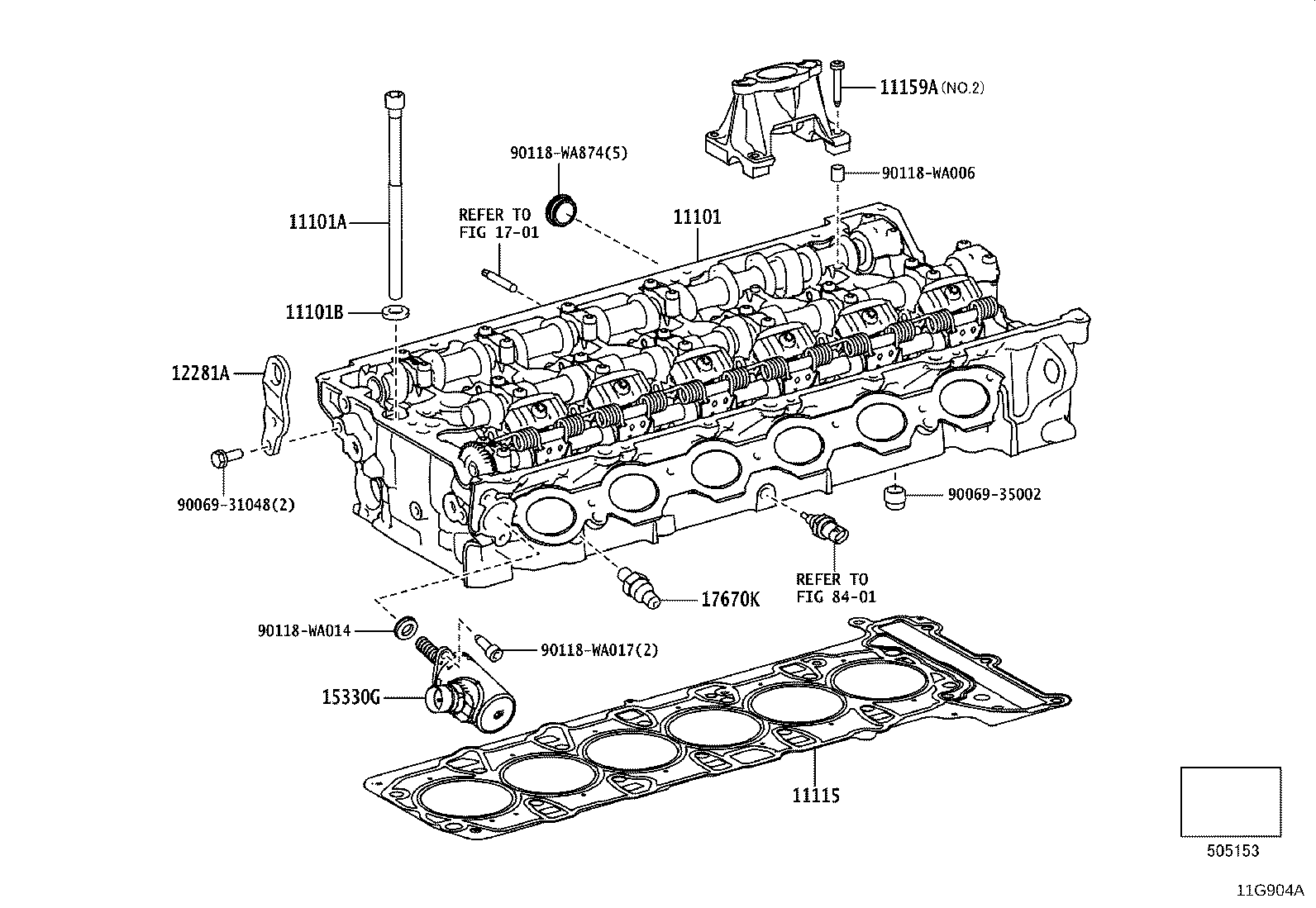

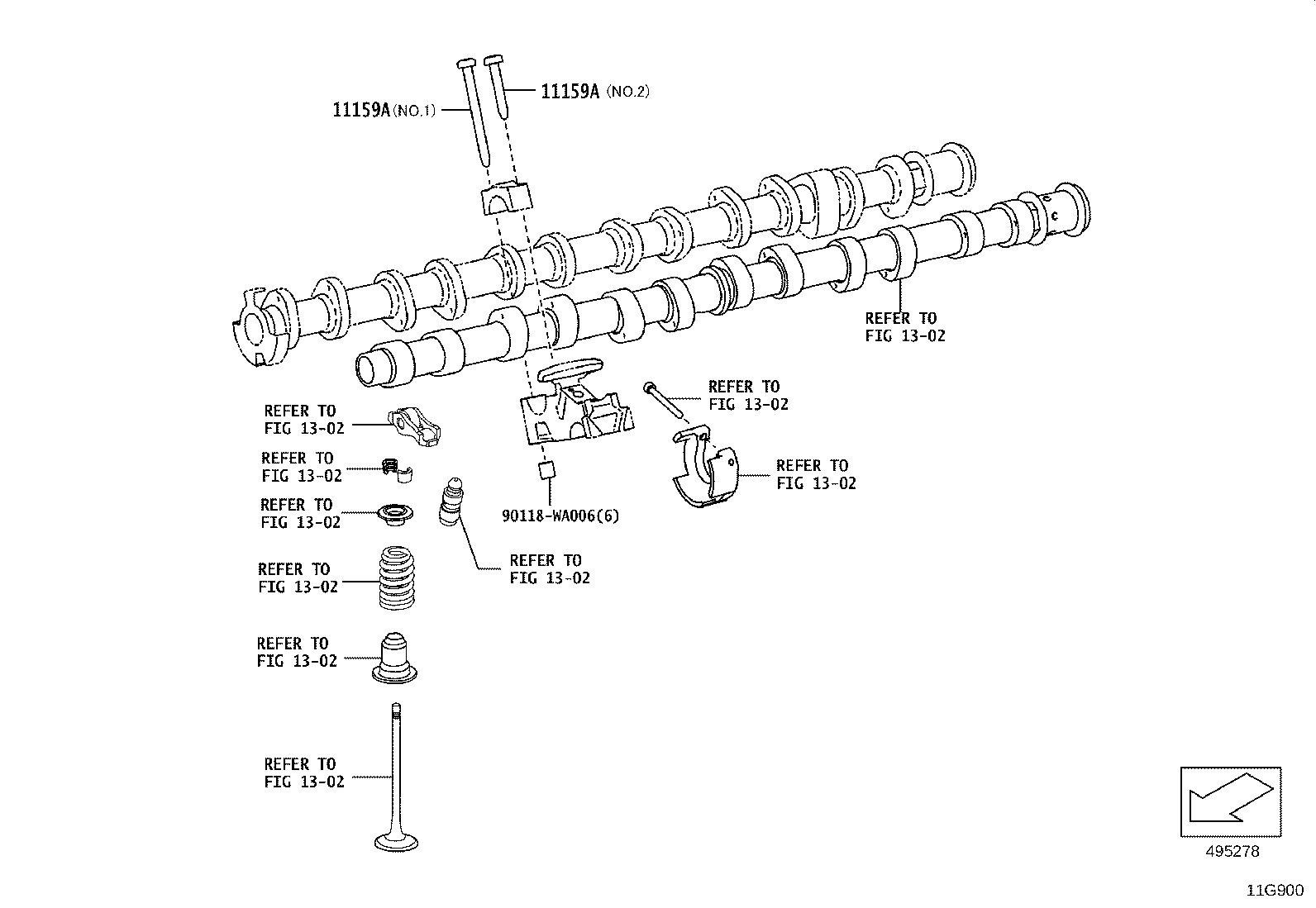

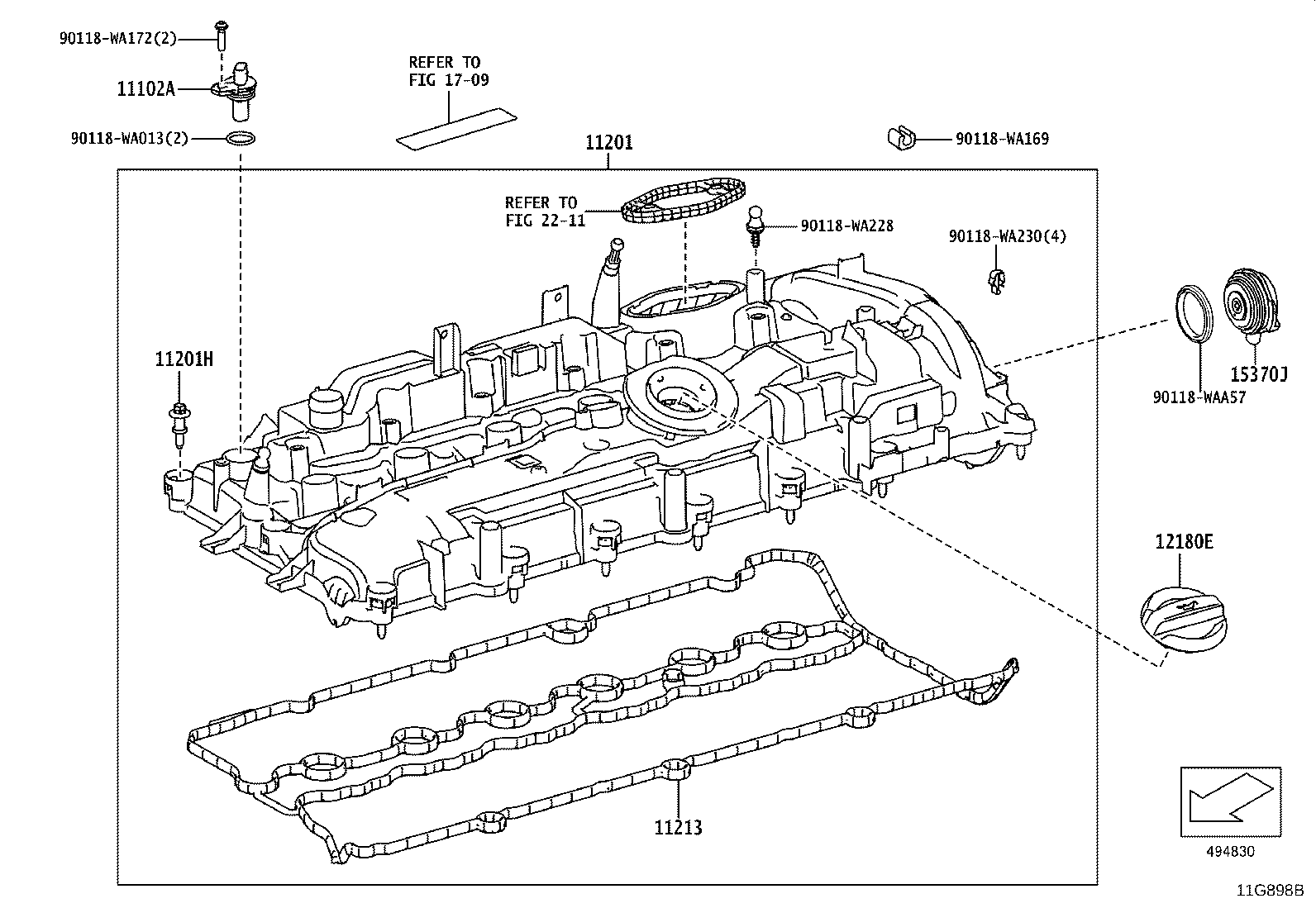

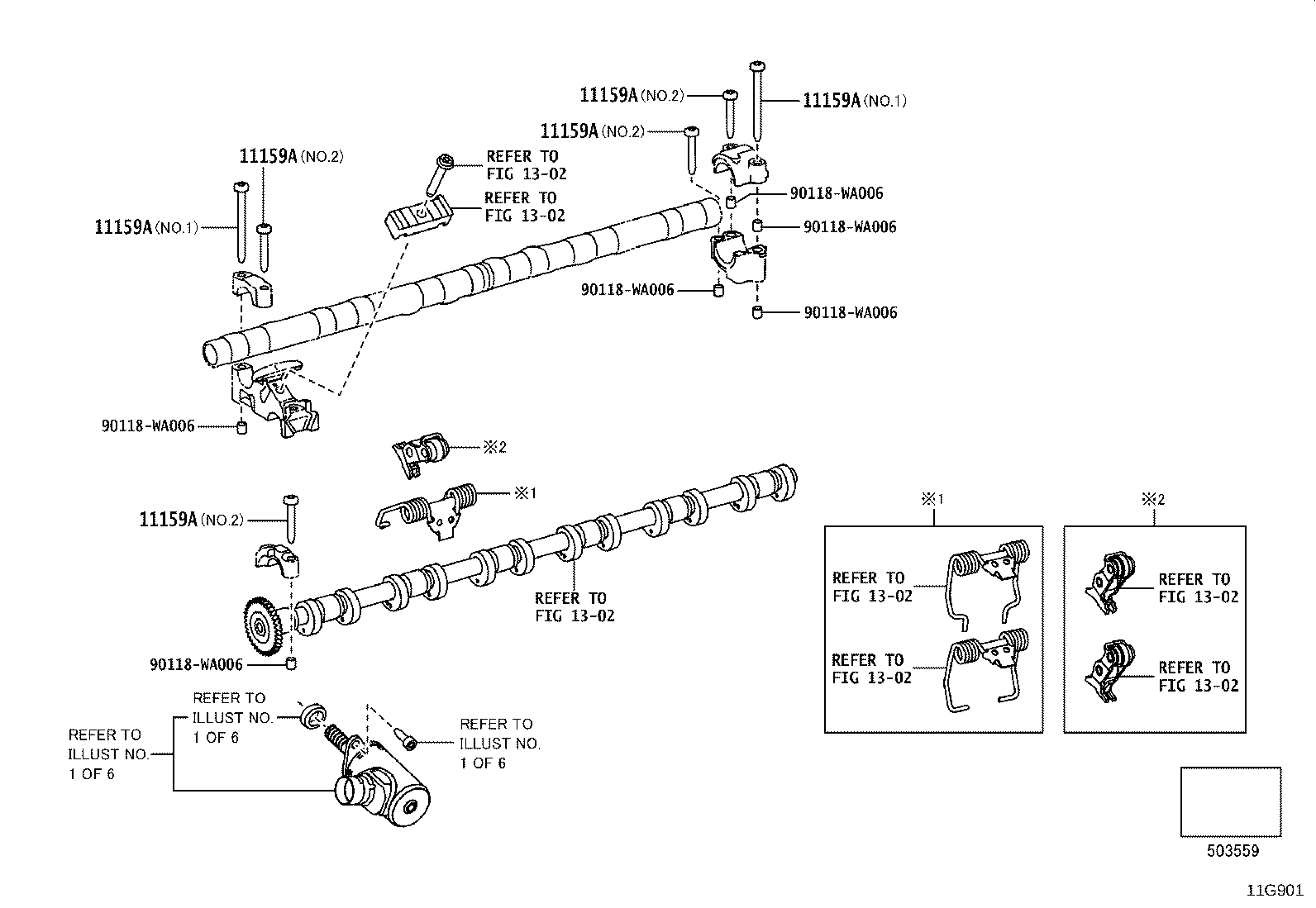

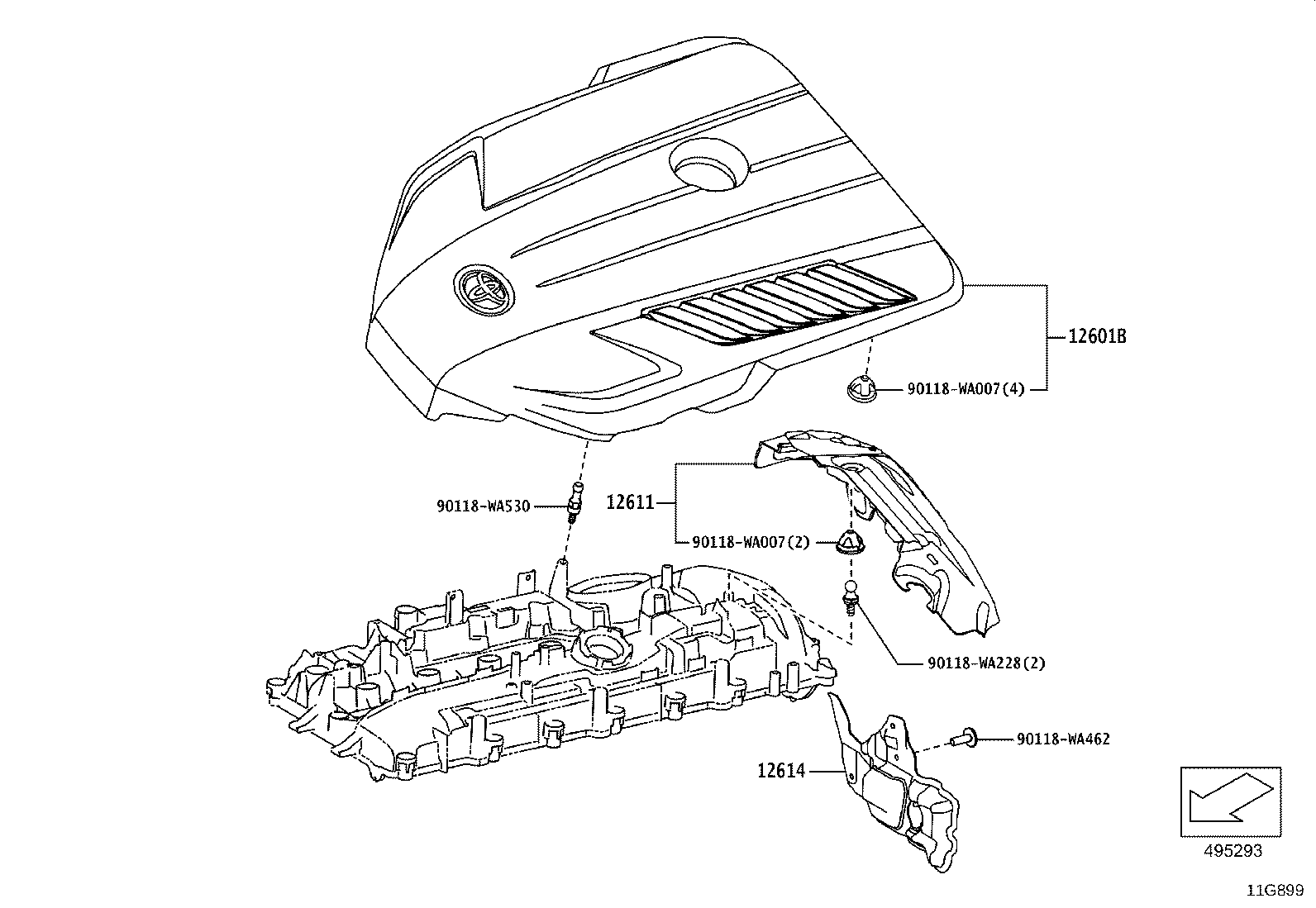

Figure 11G896A 11G896A 2022-07 → — Figure 11G897B 11G897B 2022-07 → — Figure 11G903 11G903 2022-07 → — Figure 11G904A 11G904A 2022-07 → — Figure 11G898B 11G898B 2022-07 → — Figure 11G899 11G899 2022-07 → — Figure 11G900 11G900 2022-07 → — Figure 11G901 11G901 2022-07 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11102A Sensor, Camshaft Position
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11115 Gasket, Cylinder Head
11155B Pin, Ring
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12180E Cap Assy, Oil Filler
12281A Hanger, Engine, NO.1
12601B Cover Sub-assy, Engine, NO.1
12602D Cover Sub-assy, Engine, NO.2
12611 Cover, Engine, NO.1
12614 Cover, Engine, NO.4
15330G Motor, Servo
15370J Actuator, Vanos
17670K Valve Assy, Air By-pass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
