Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

2 part groups · 2 illustrations

Illustrations

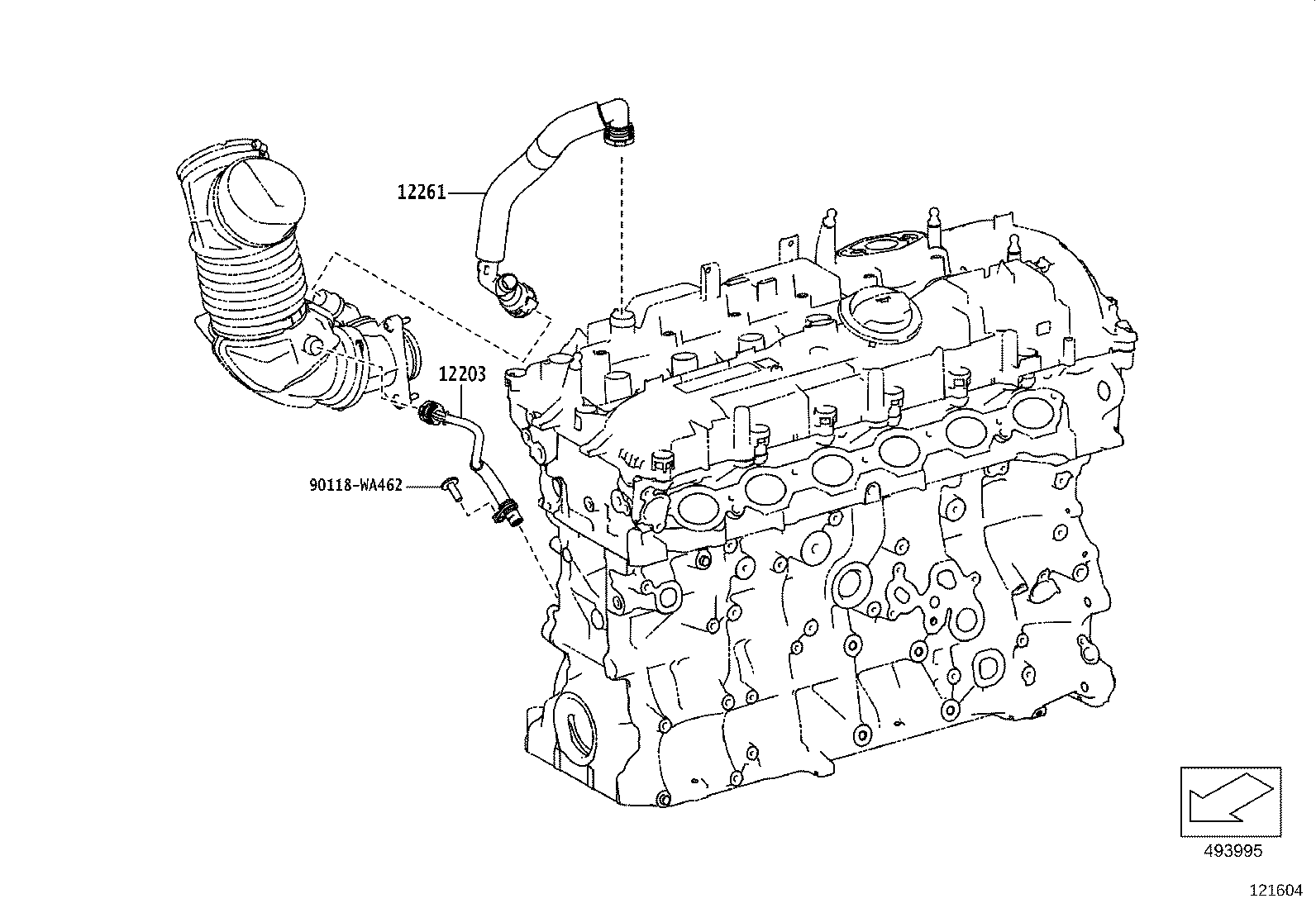

Figure 121603 121603 2022-07 → — Figure 121604 121604 2022-07 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12261 Hose, Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
