Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

10 part groups · 2 illustrations

Illustrations

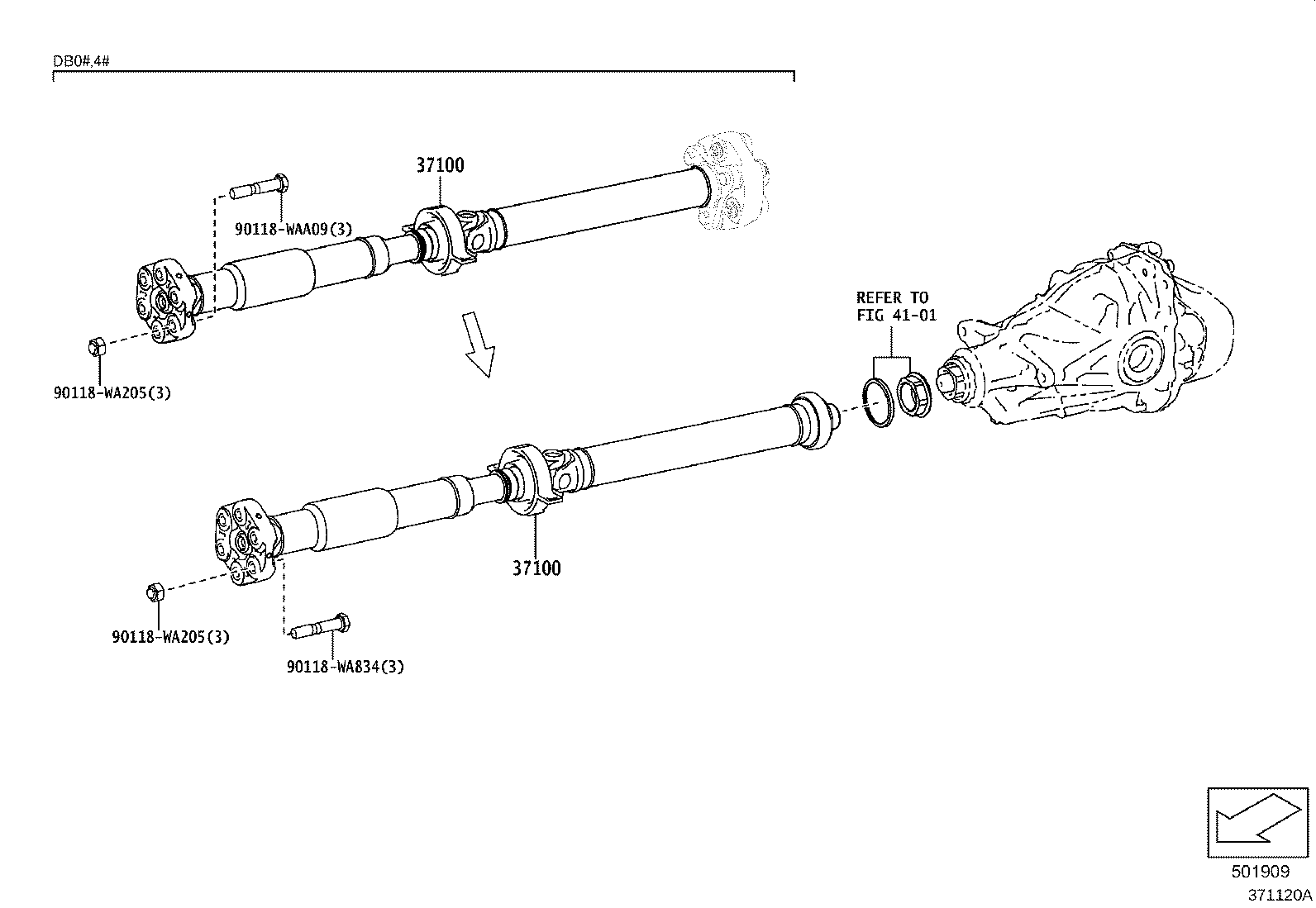

Figure 371119A 371119A 2022-07 → — Figure 371120A 371120A 2022-07 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37205B Damper Ring
37230 Bearing Assy, Center Support, NO.1
37334D Boot, Rear Propeller Shaft
37381 Sleeve, Propeller Shaft Spline
37511 Coupling, Flexible
37511A Bolt (FOR FLEXIBLE COUPLING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
