Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

6 part groups · 7 illustrations

Illustrations

Figure 84P820 84P820 2022-07 → — Figure 84P819 84P819 2022-07 → — Figure 84P562 84P562 2022-07 → — Figure 84P564 84P564 2022-07 → — Figure 84P565 84P565 2022-07 → — Figure 84P566 84P566 2022-07 → — Figure 84P567 84P567 2022-07 → —

Part groups

PNCDescription

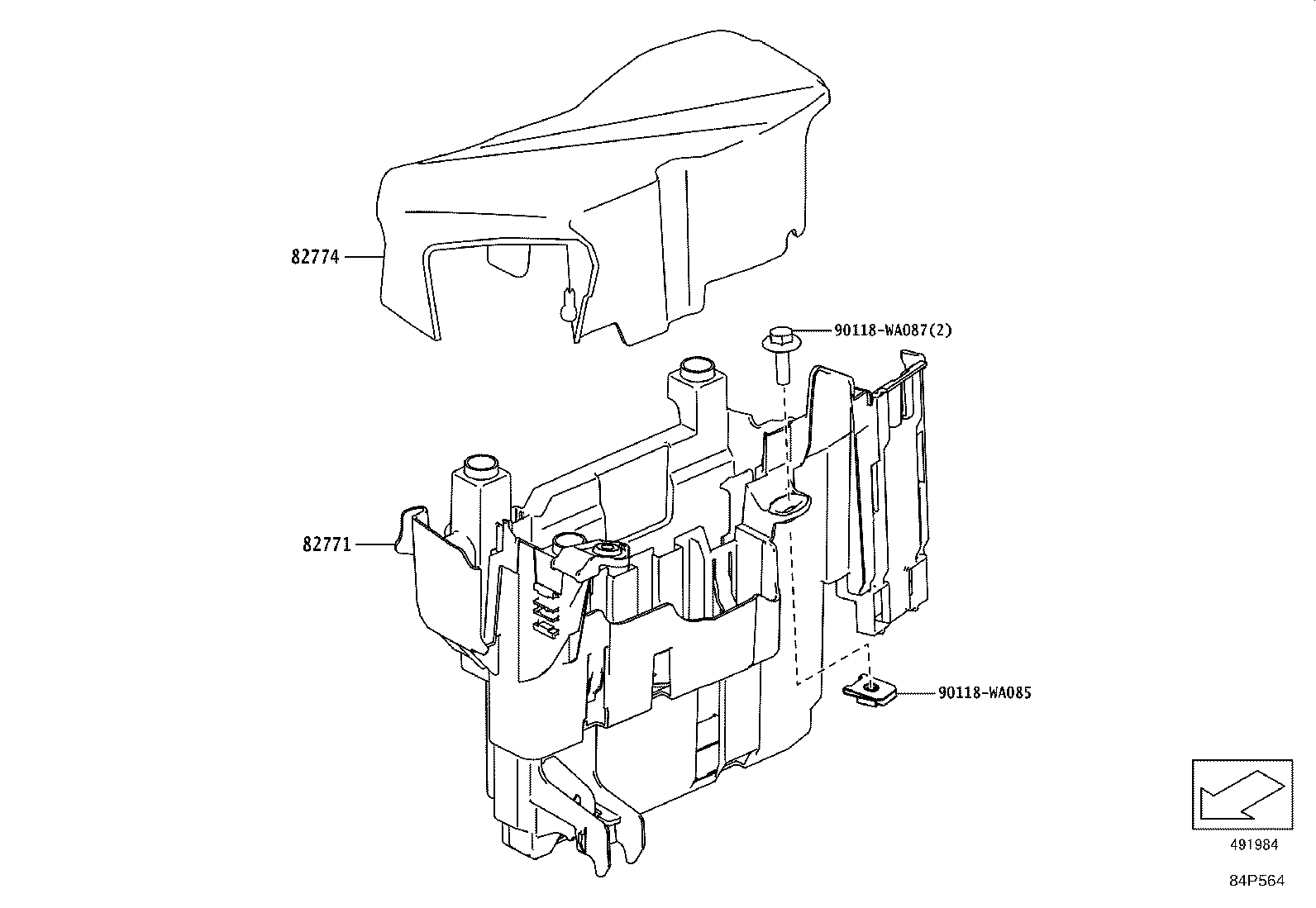

82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu

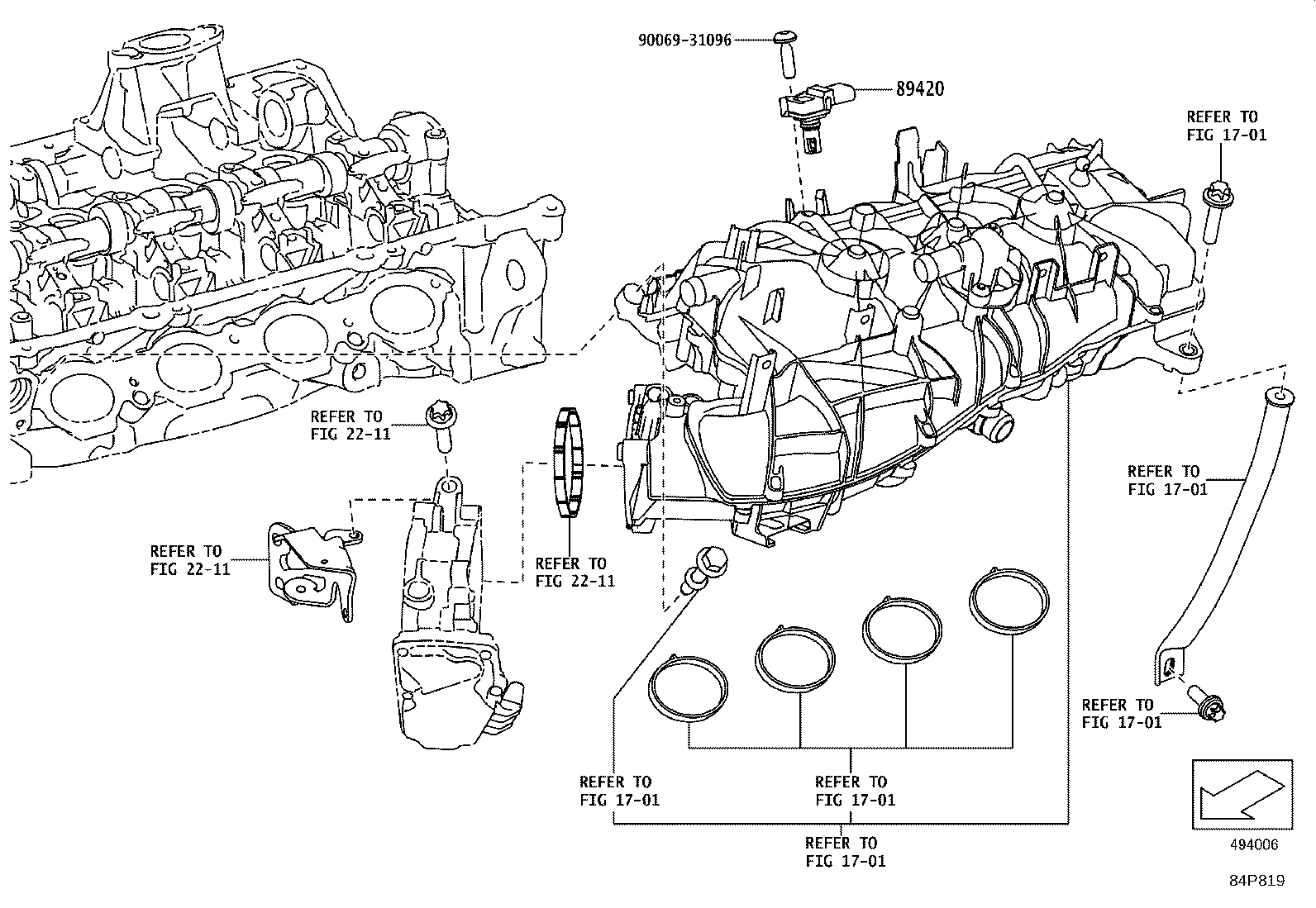

89420 Sensor Assy, Vacuum

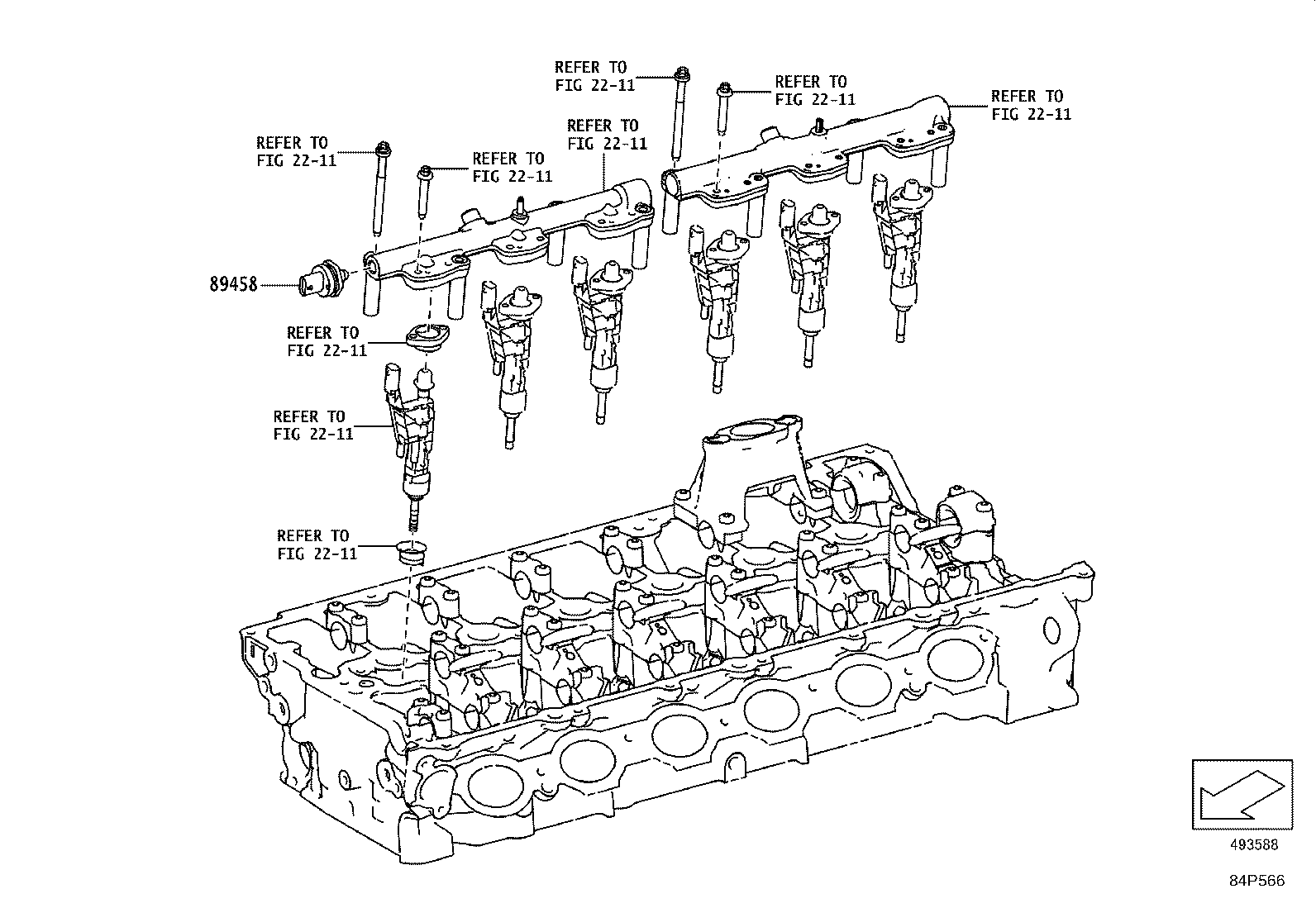

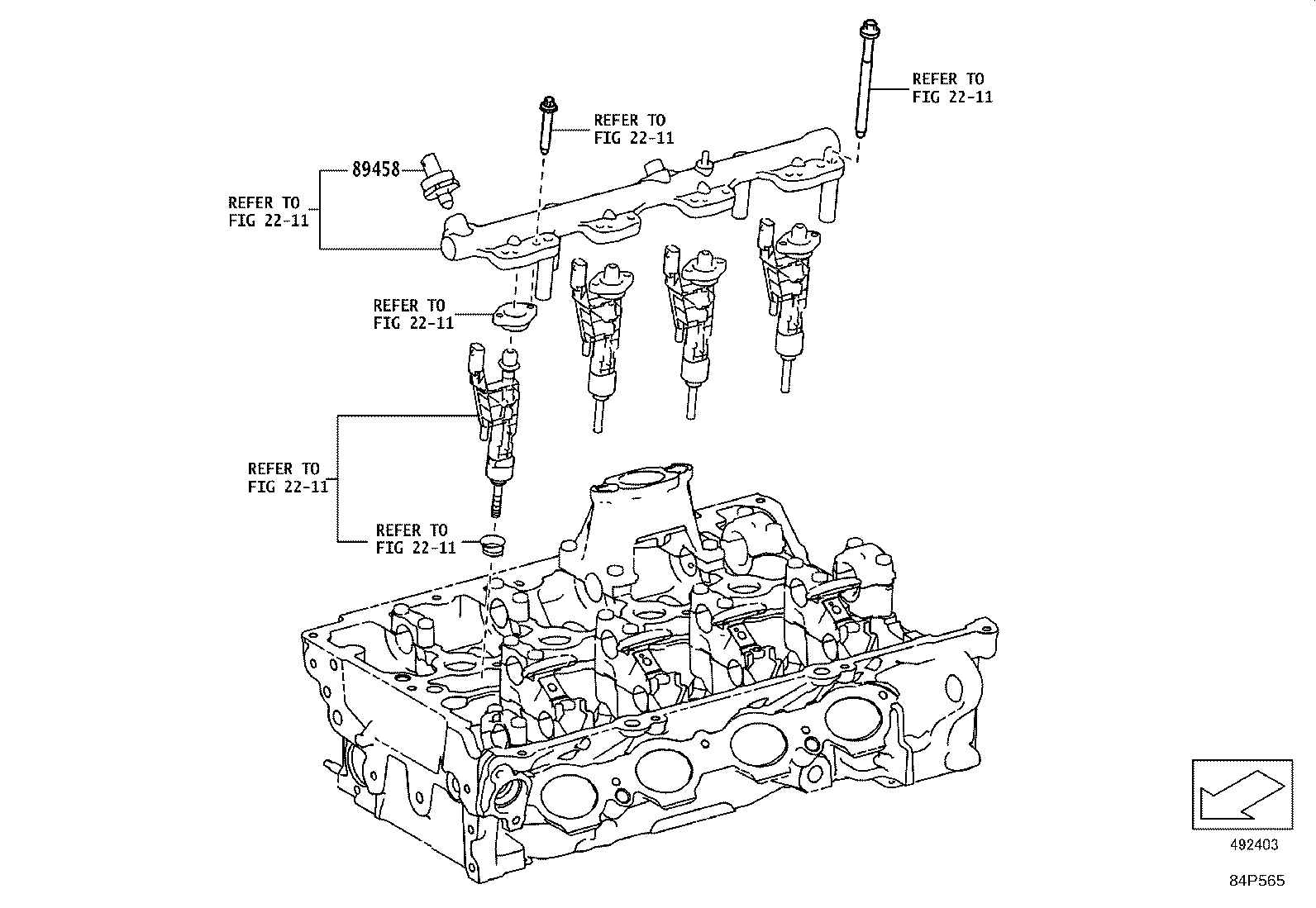

89458 Sensor, Fuel Pressure

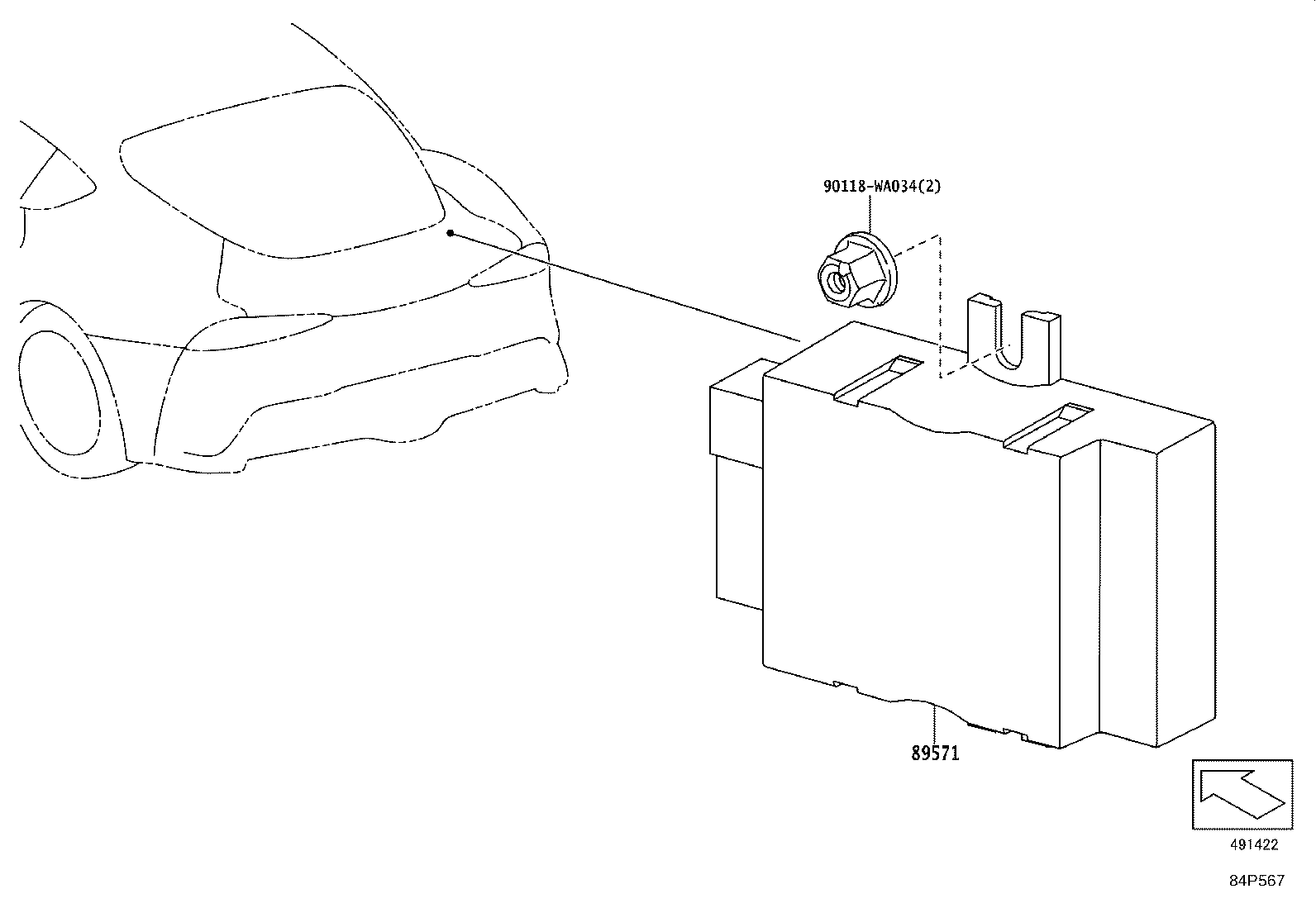

89571 Computer, Fuel Pump Control

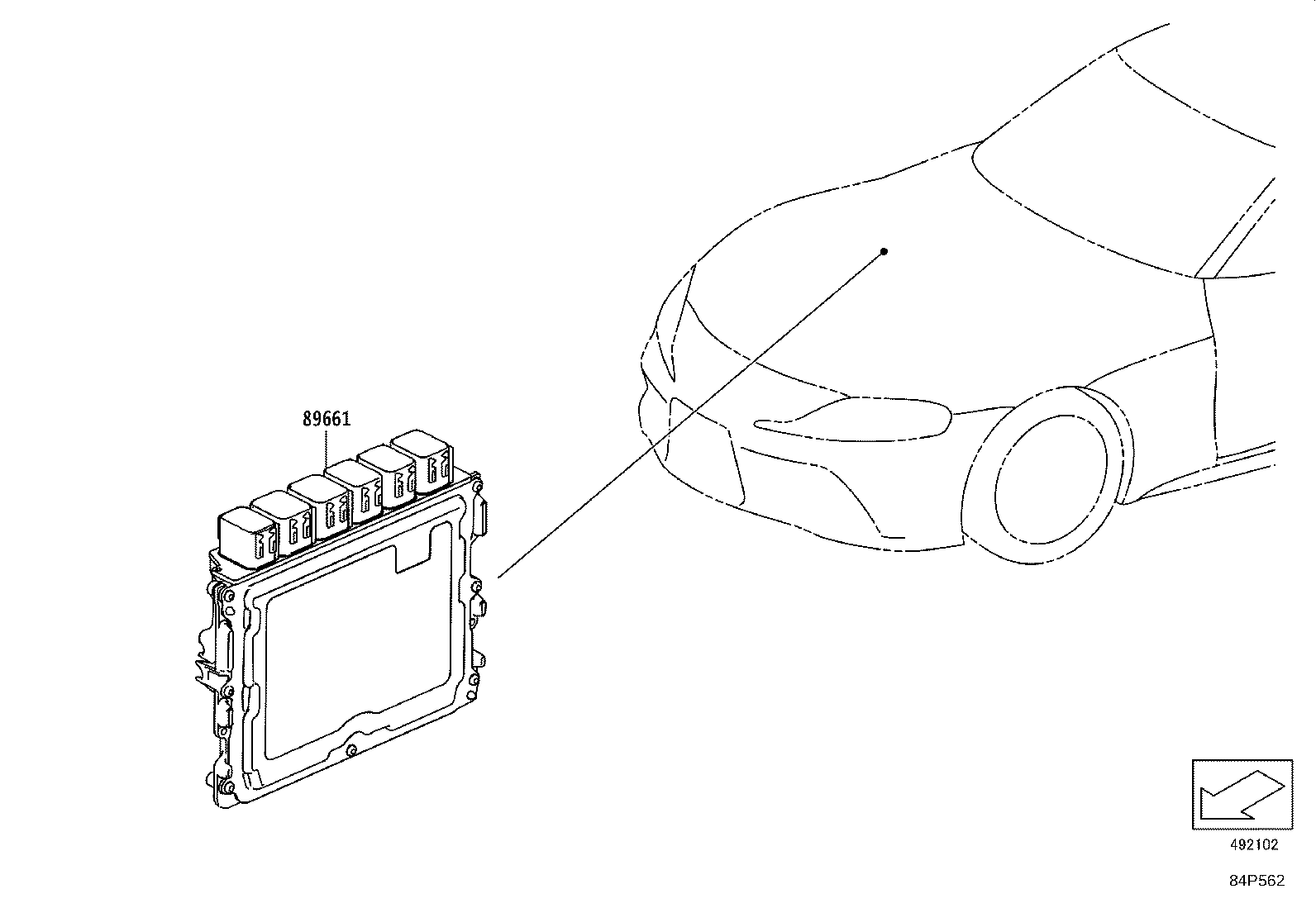

89661 Computer, Engine Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
