Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

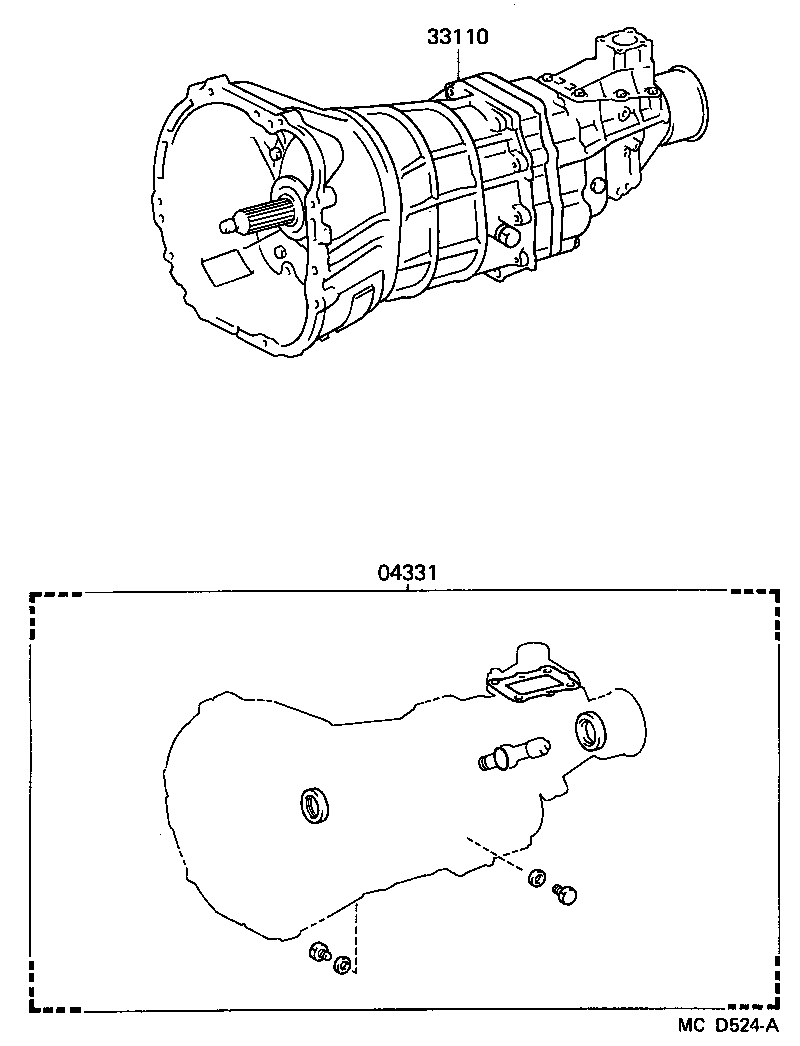

Figure MCD057A MCD057A 1986-01 → — Figure MCD524A MCD524A 1986-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
