Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · United States

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 5 illustrations

Illustrations

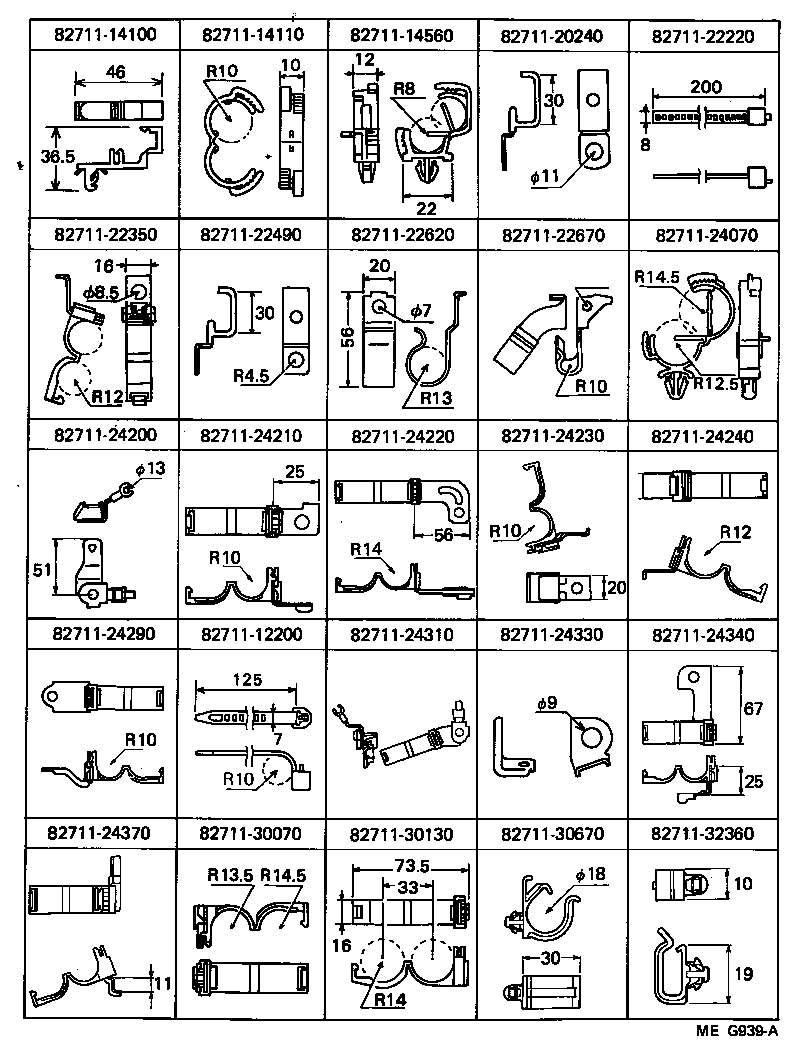

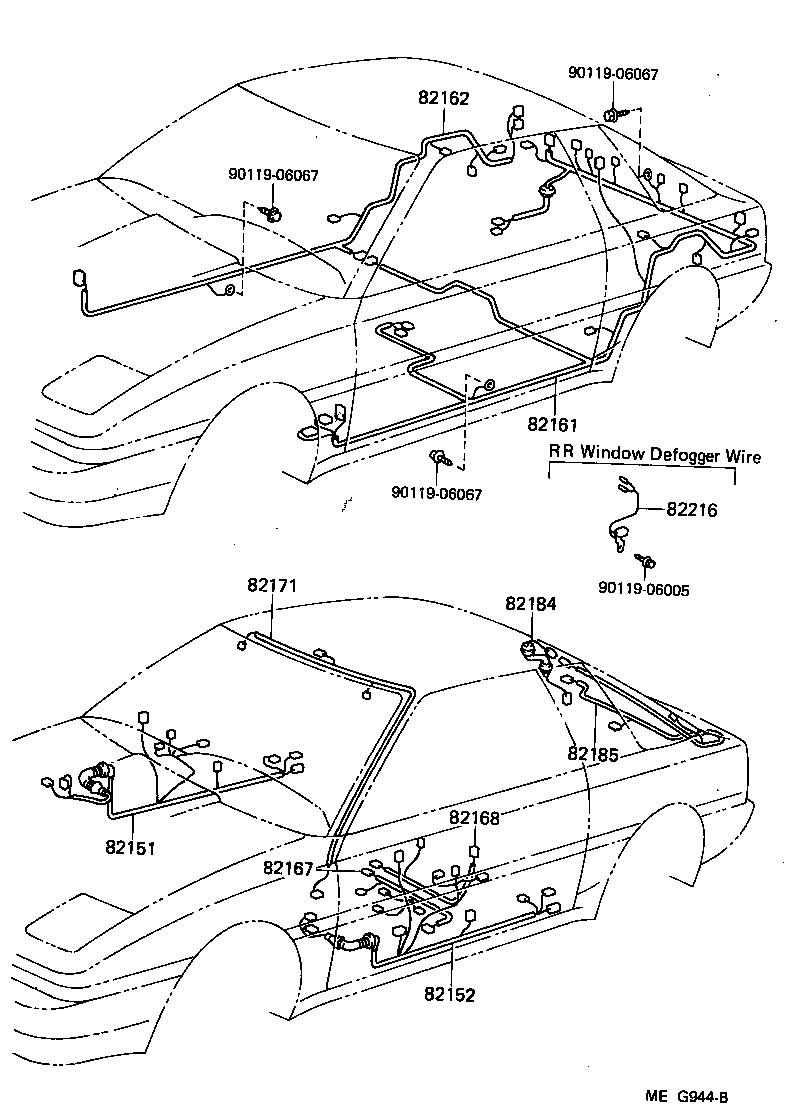

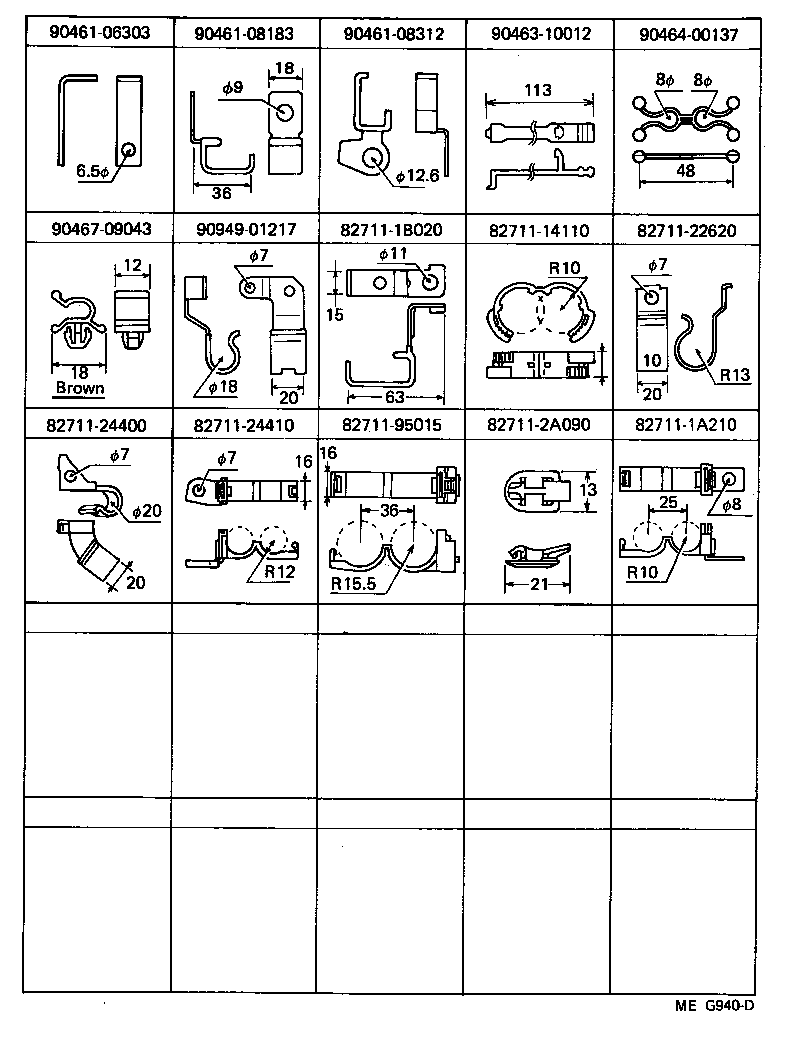

Figure MEG943B MEG943B 1986-01 → — Figure MEG944B MEG944B 1986-01 → — Figure MEH778 MEH778 1986-01 → — Figure MEG939A MEG939A 1986-01 → — Figure MEG940D MEG940D 1986-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210B Fusible Link
82210C Fusible Link
82216 Wire, Rear Window Defogger
82233 Wire, Computer
82241C Wire, Relay
82345 Diode
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823A Cap, Terminal, NO.2

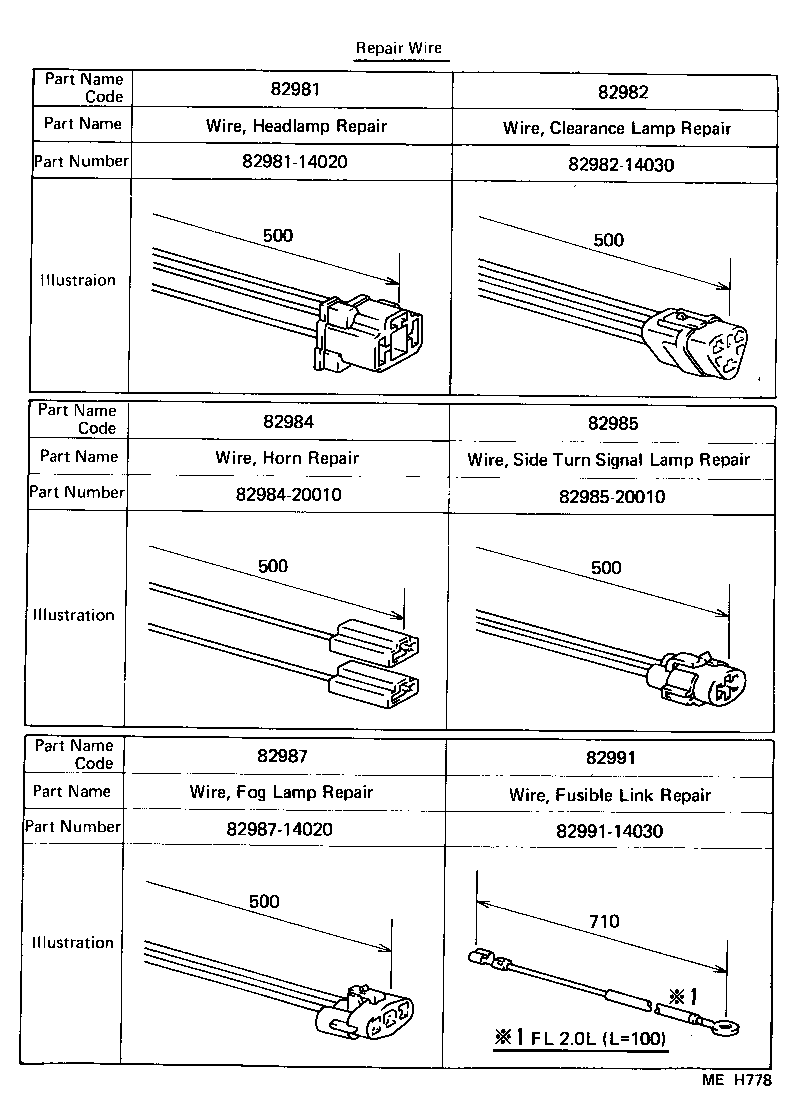

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
