Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · United States

Discontinued model Data version 1999-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

3 part groups · 2 illustrations

Illustrations

Figure 150132A

150132A 1993-05 → —

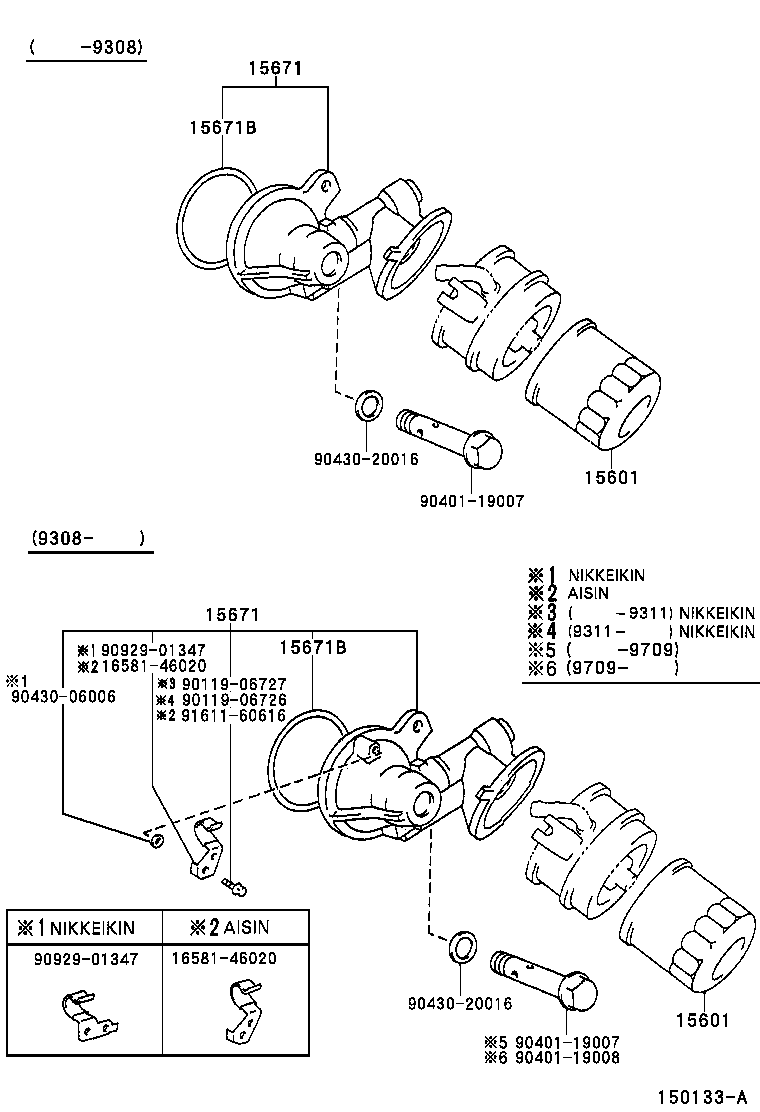

Figure 150133A

150133A 1993-05 → —

Part groups

PNC	Description
15601	Filter Sub-assy, Oil
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
