Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · United States

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 2 illustrations

Illustrations

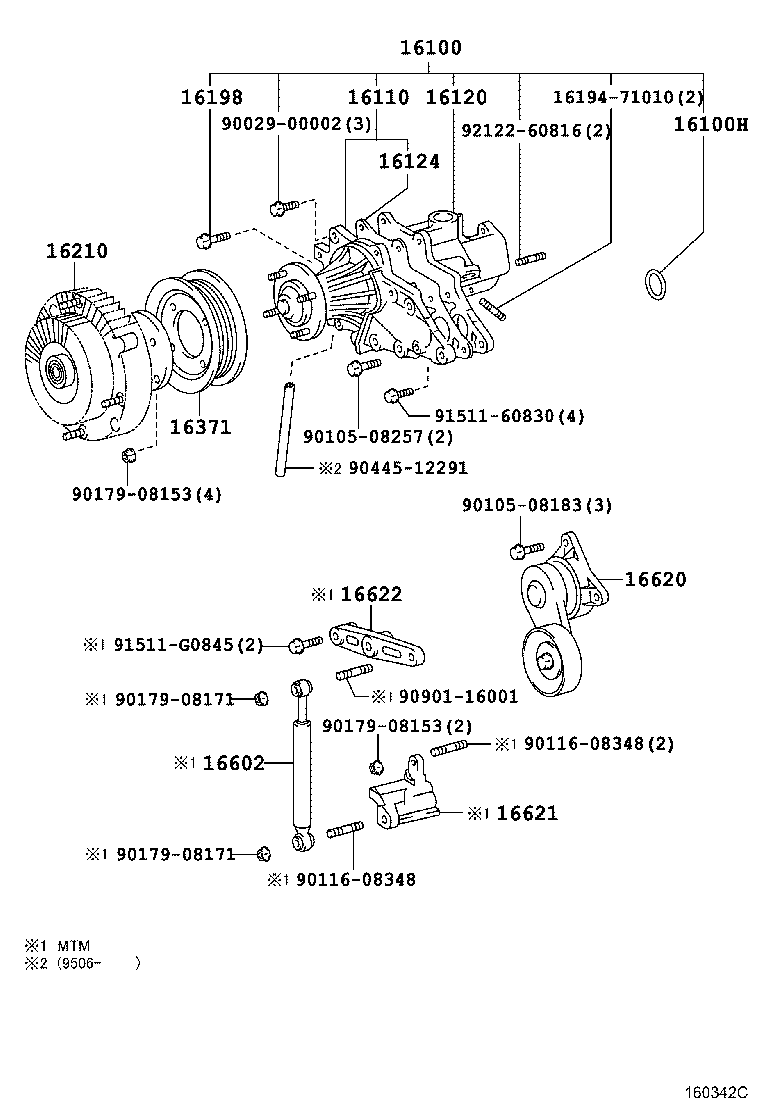

Figure 161063A 161063A 1993-05 → — Figure 160342C 160342C 1993-05 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16110 Pump Assy, Water, W/O Coupling
16120 Cover Assy, Water Pump
16124 Gasket, Water Pump Cover
16193 Bolt, Stud(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16371 Pulley, Fan
16602 Absorber Sub-assy, Belt Tensioner
16620 Tensioner Assy, V-ribbed Belt
16621 Bracket, V-ribbed Belt Tensioner
16622 Arm, V-ribbed Belt Tensioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
