Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · United States
Discontinued model
Data version 1999-02
Switch & Relay & Computer
86 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |

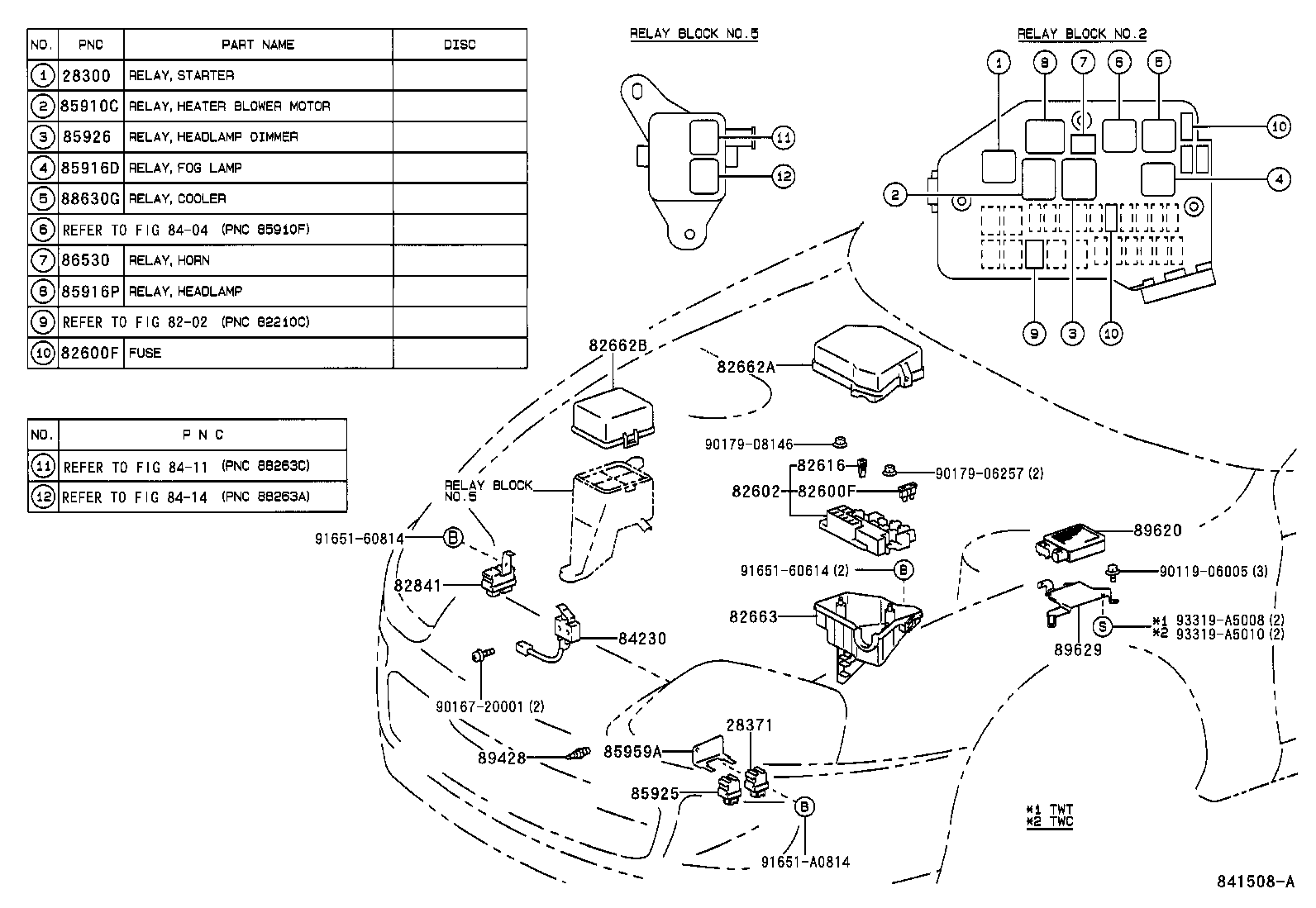

| 82602 | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |

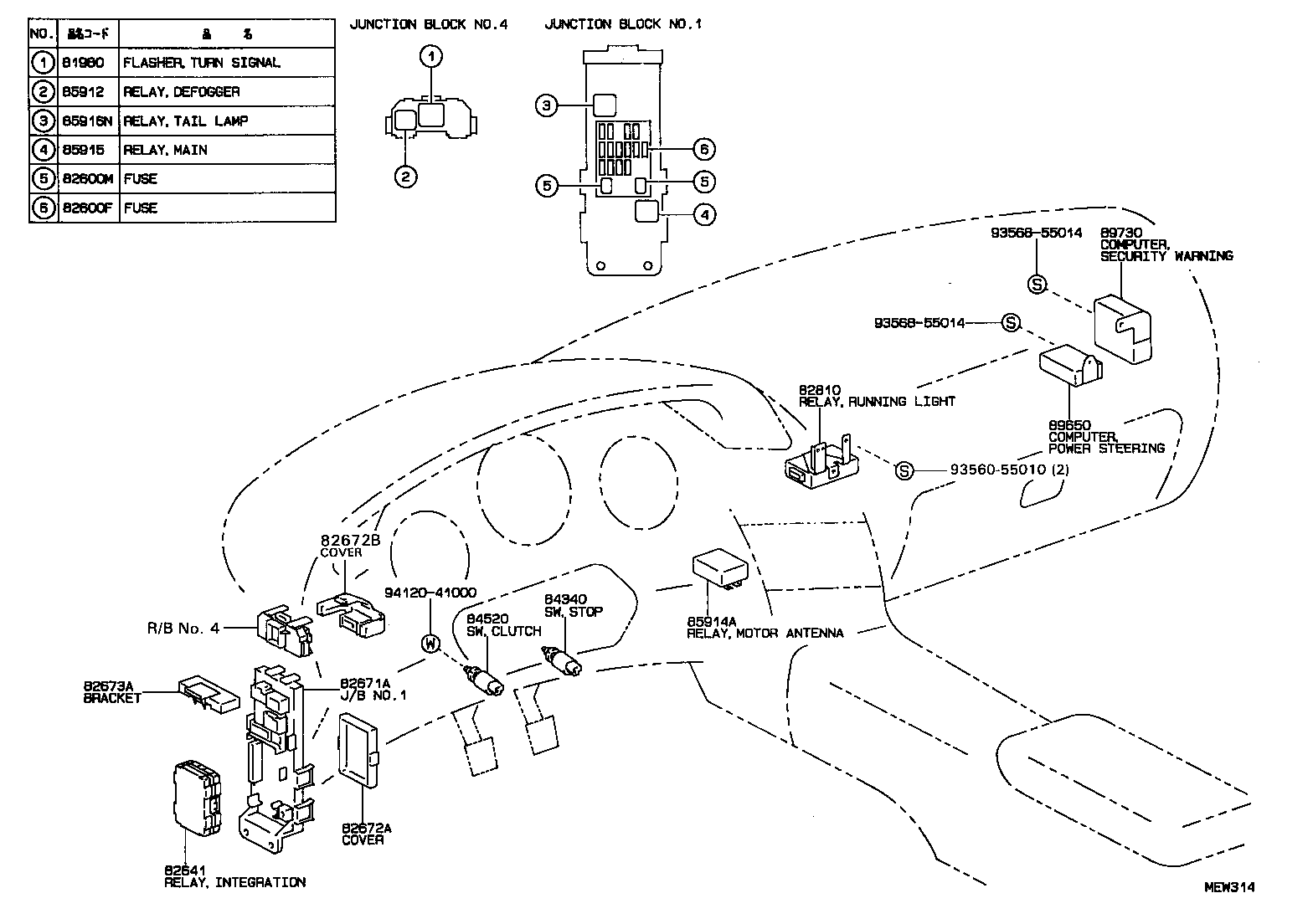

| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82810 | Relay Assy, Running Light |
| 82841 | Relay, Running Light Voltage Control |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84230 | Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84242 | Switch, Glove Box Lamp |
| 84306 | Cable Sub-assy, Spiral |

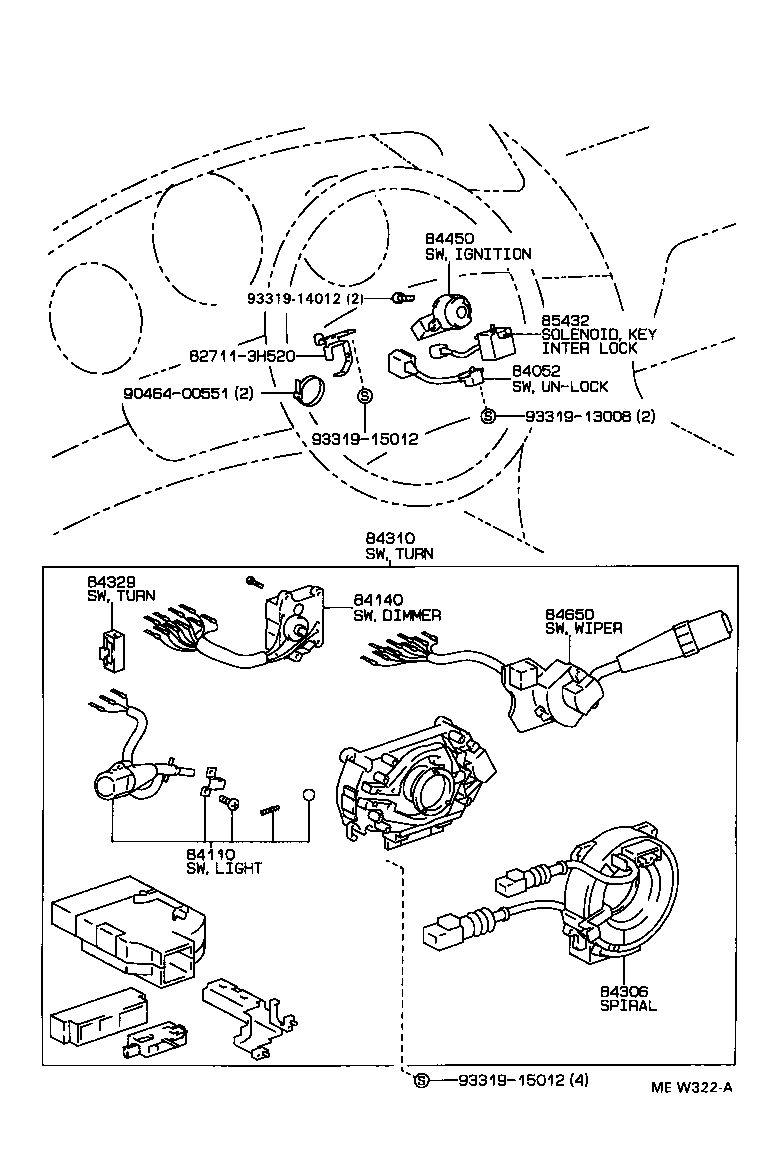

| 84310 | Switch Assy, Turn Signal |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84532 | Switch, Room Lamp Retainer |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84727 | Switch, Shift Lock Control |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |

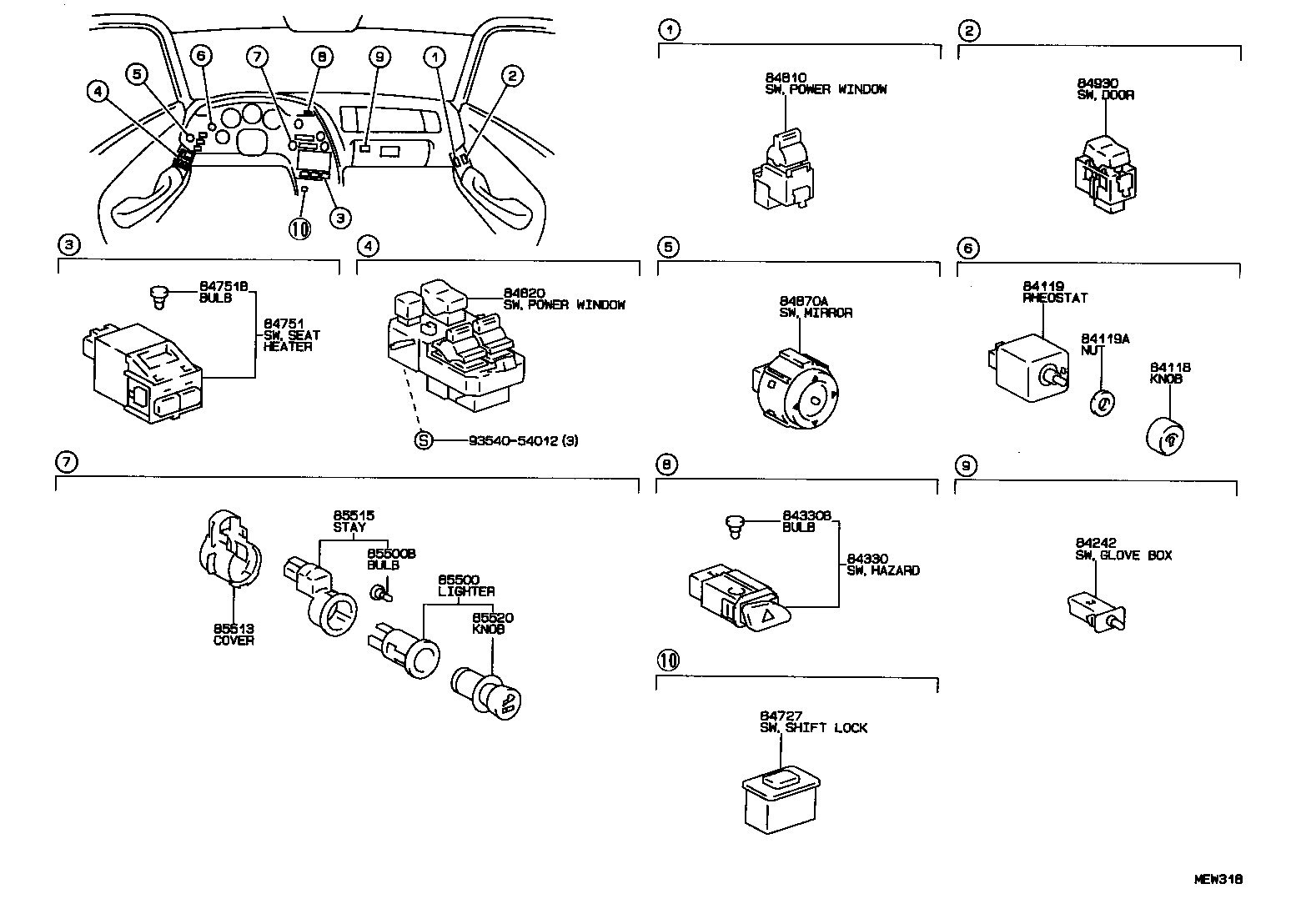

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84903A | Switch Sub-assy, Door Unlock |
| 84921 | Knob, Power Seat Switch |
| 84922 | Switch, Front Power Seat |
| 84930 | Switch Assy, Door Control |

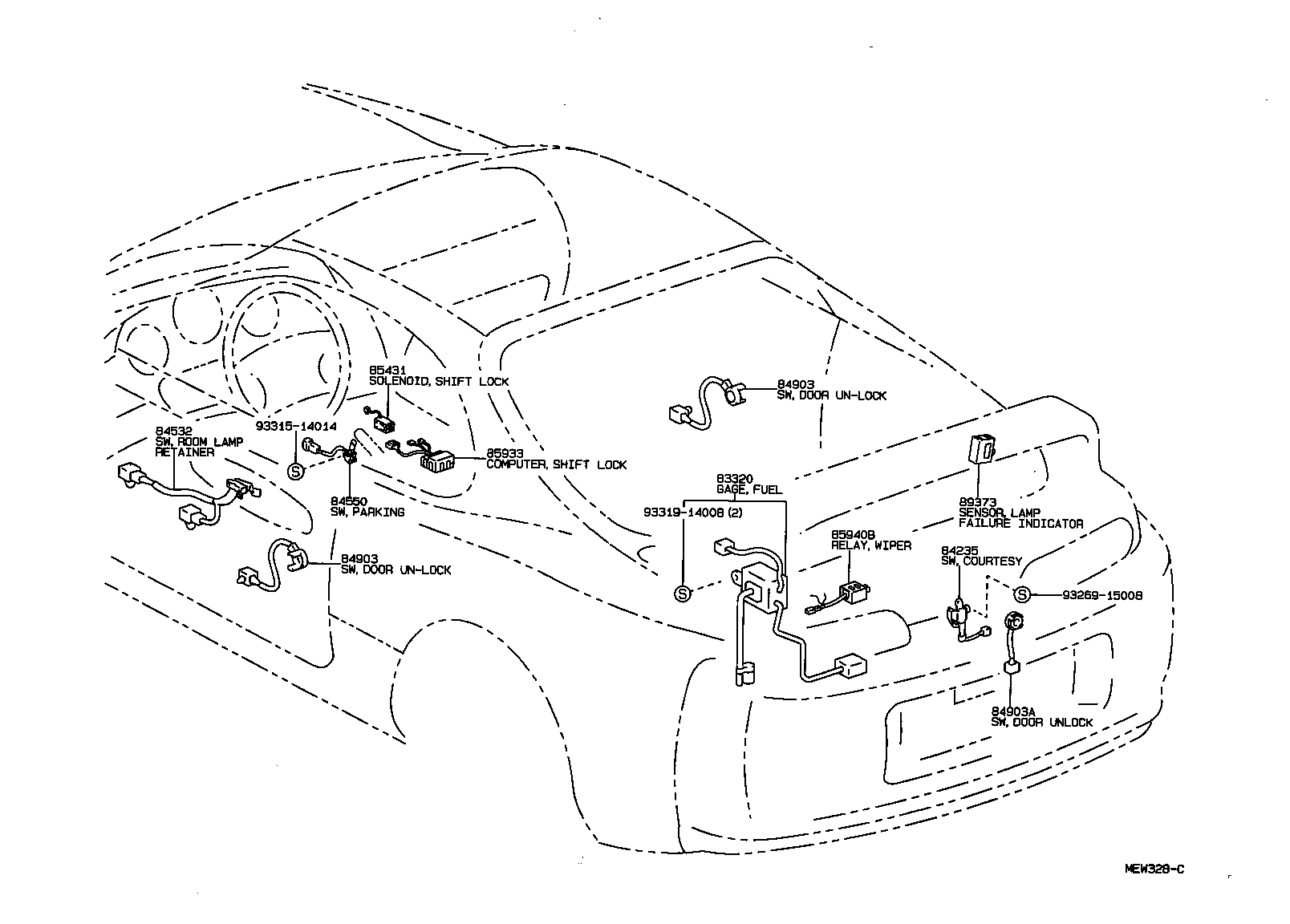

| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85914A | Relay, Motor Antenna Control |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85925 | Relay, Radiator Fan |
| 85926 | Relay, Headlamp Dimmer |
| 85933 | Computer, Shift Lock Control |
| 85940B | Relay Assy, Rear Wiper |
| 85959A | Holder, Relay |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 89373 | Sensor, Lamp Failure Indicator |
| 89428 | Switch, Temperature Detect, NO.2 |

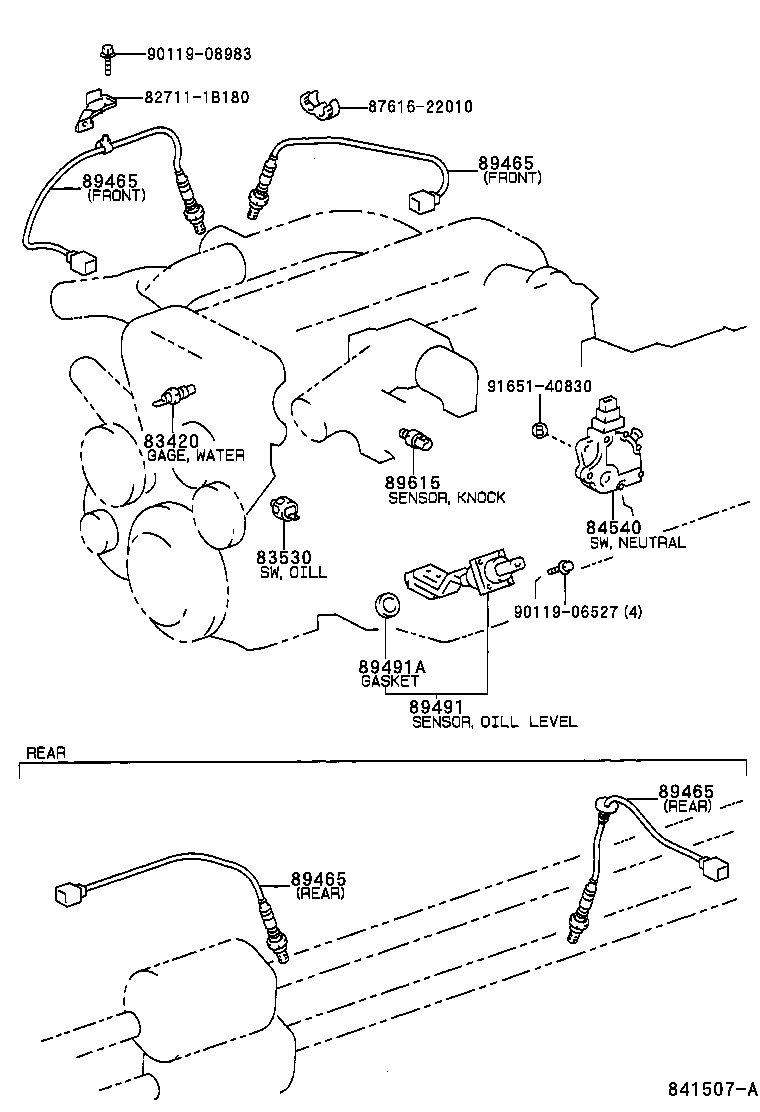

| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89650 | Computer Assy, Power Steering |
| 89730 | Computer Assy, Security Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
