Toyota Supra
2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States
Supported model
Data version 2020-03

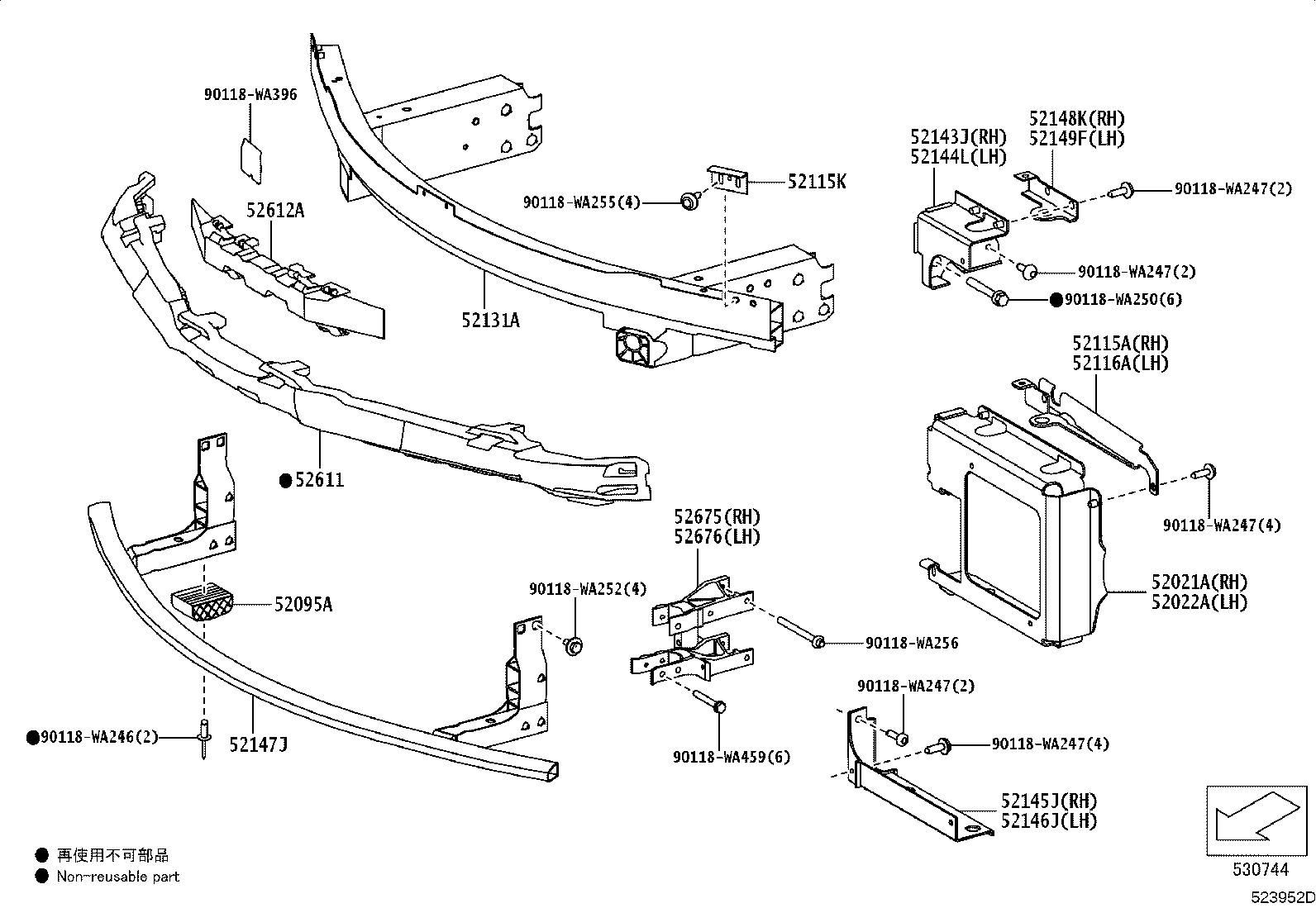

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021A — Reinforcement Sub-assy, Front Bumper, RH | ||||
| 57107-WAA01 |
Reinforcement Sub-assy, Front Bumper, RH
2020-03 → —
|
DB03 | — | |
| 57107-WAA01 |
Reinforcement Sub-assy, Front Bumper, RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 57107-WAA01 |
Reinforcement Sub-assy, Front Bumper, RH
2020-07 → —
|
DB23 | — | |
| 52022A — Reinforcement Sub-assy, Front Bumper, LH | ||||
| 57108-WAA01 |
Reinforcement Sub-assy, Front Bumper, LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 57108-WAA01 |
Reinforcement Sub-assy, Front Bumper, LH
2020-03 → —
|
DB03 | — | |
| 57108-WAA01 |
Reinforcement Sub-assy, Front Bumper, LH
2020-07 → —
|
DB23 | — | |
| 52095A — Absorber, Impact | ||||
| 52095-WAA01 |
Absorber, Impact
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52095-WAA01 |
Absorber, Impact
2020-03 → —
|
DB03 | — | |
| 52095-WAA01 |
Absorber, Impact
2020-07 → —
|
DB23 | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 57141-WAA01 |
Support, Front Bumper Side, RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 57141-WAA01 |
Support, Front Bumper Side, RH
2020-03 → —
|
DB03 | — | |
| 57141-WAA01 |
Support, Front Bumper Side, RH
2020-07 → —
|
DB23 | — | |
| 52115K — Support, Front Bumper Side | ||||
| 52115-WAA01 |
Support, Front Bumper Side
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52115-WAA01 |
Support, Front Bumper Side
2020-07 → —
|
DB23 | — | |
| 52115-WAA01 |
Support, Front Bumper Side
2020-03 → —
|
DB03 | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 57142-WAA01 |
Support, Front Bumper Side, LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 57142-WAA01 |
Support, Front Bumper Side, LH
2020-03 → —
|
DB03 | — | |
| 57142-WAA01 |
Support, Front Bumper Side, LH
2020-07 → —
|
DB23 | — | |
| 52131A — Reinforcement, Front Bumper | ||||
| 52021-WAA01 |
Reinforcement, Front Bumper
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52021-WAA01 |
Reinforcement, Front Bumper
2020-03 → —
|
DB03 | — | |
| 52021-WAA01 |
Reinforcement, Front Bumper
2020-07 → —
|
DB23 | — | |
| 52143J — Bracket, Auxiliary Coolant Radiator, Upper RH | ||||
| 52143-WAA01 |
Bracket, Auxiliary Coolant Radiator, Upper RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52144L — Bracket, Auxiliary Coolant Radiator, Upper LH | ||||
| 52144-WAA01 |
Bracket, Auxiliary Coolant Radiator, Upper LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52145J — Bracket, Auxiliary Coolant Radiator, Lower RH | ||||
| 52145-WAA01 |
Bracket, Auxiliary Coolant Radiator, Lower RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52146J — Bracket, Auxiliary Coolant Radiator, Lower LH | ||||
| 52146-WAA01 |
Bracket, Auxiliary Coolant Radiator, Lower LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52147J — Reinforcement, Front Bumper, Lower | ||||
| 52147-WAA01 |
Reinforcement, Front Bumper, Lower
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52147-WAA01 |
Reinforcement, Front Bumper, Lower
2020-03 → —
|
DB03 | — | |
| 52147-WAA01 |
Reinforcement, Front Bumper, Lower
2020-07 → —
|
DB23 | — | |
| 52148K — Plate, Auxiliary Coolant Radiator Bracket, RH | ||||
| 52148-WAA02 |
Plate, Auxiliary Coolant Radiator Bracket, RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52149F — Plate, Auxiliary Coolant Radiator Bracket, LH | ||||
| 52149-WAA01 |
Plate, Auxiliary Coolant Radiator Bracket, LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-WAA01 |
Absorber, Front Bumper Energy
2020-07 → —
|
DB23 | — | |
| 52611-WAA01 |
Absorber, Front Bumper Energy
2020-03 → —
|
DB03 | — | |
| 52611-WAA01 |
Absorber, Front Bumper Energy
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52612A — Support, Front Bumper Energy Absorber | ||||
| 52612-WAA01 |
Support, Front Bumper Energy Absorber
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52612-WAA01 |
Support, Front Bumper Energy Absorber
2020-03 → —
|
DB03 | — | |
| 52612-WAA01 |
Support, Front Bumper Energy Absorber
2020-07 → —
|
DB23 | — | |
| 52675 — Support, Front Bumper Lower Side, RH | ||||
| 52675-WAA01 |
Support, Front Bumper Lower Side, RH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52675-WAA01 |
Support, Front Bumper Lower Side, RH
2020-03 → —
|
DB03 | — | |
| 52675-WAA01 |
Support, Front Bumper Lower Side, RH
2020-07 → —
|
DB23 | — | |
| 52676 — Support, Front Bumper Lower Side, LH | ||||
| 52676-WAA01 |
Support, Front Bumper Lower Side, LH
2019-03 → 2020-02
ended
|
DB43 | — | |
| 52676-WAA01 |
Support, Front Bumper Lower Side, LH
2020-03 → —
|
DB03 | — | |
| 52676-WAA01 |
Support, Front Bumper Lower Side, LH
2020-07 → —
|
DB23 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
