Cylinder Head

21 part groups · 9 illustrations

Illustrations

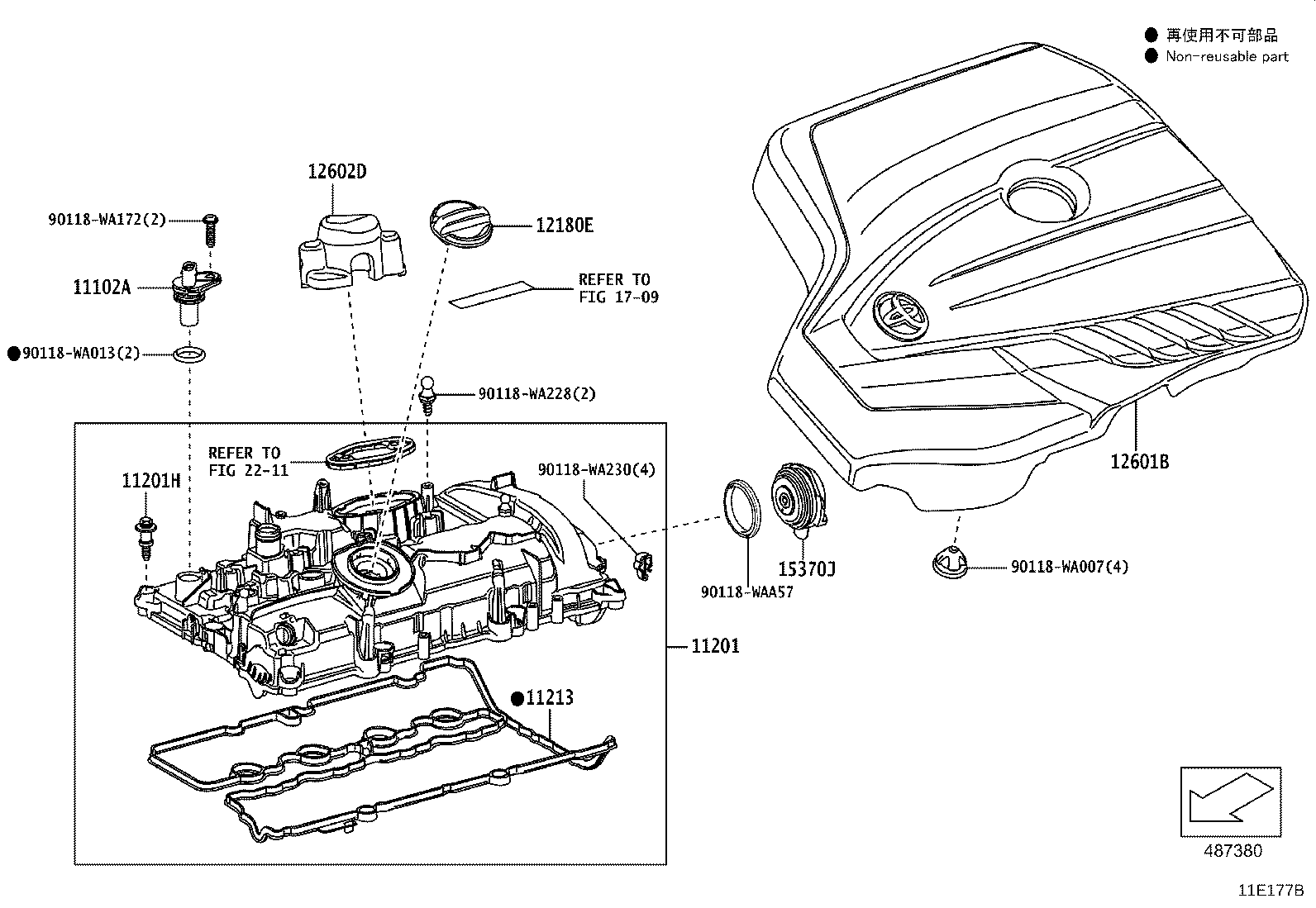

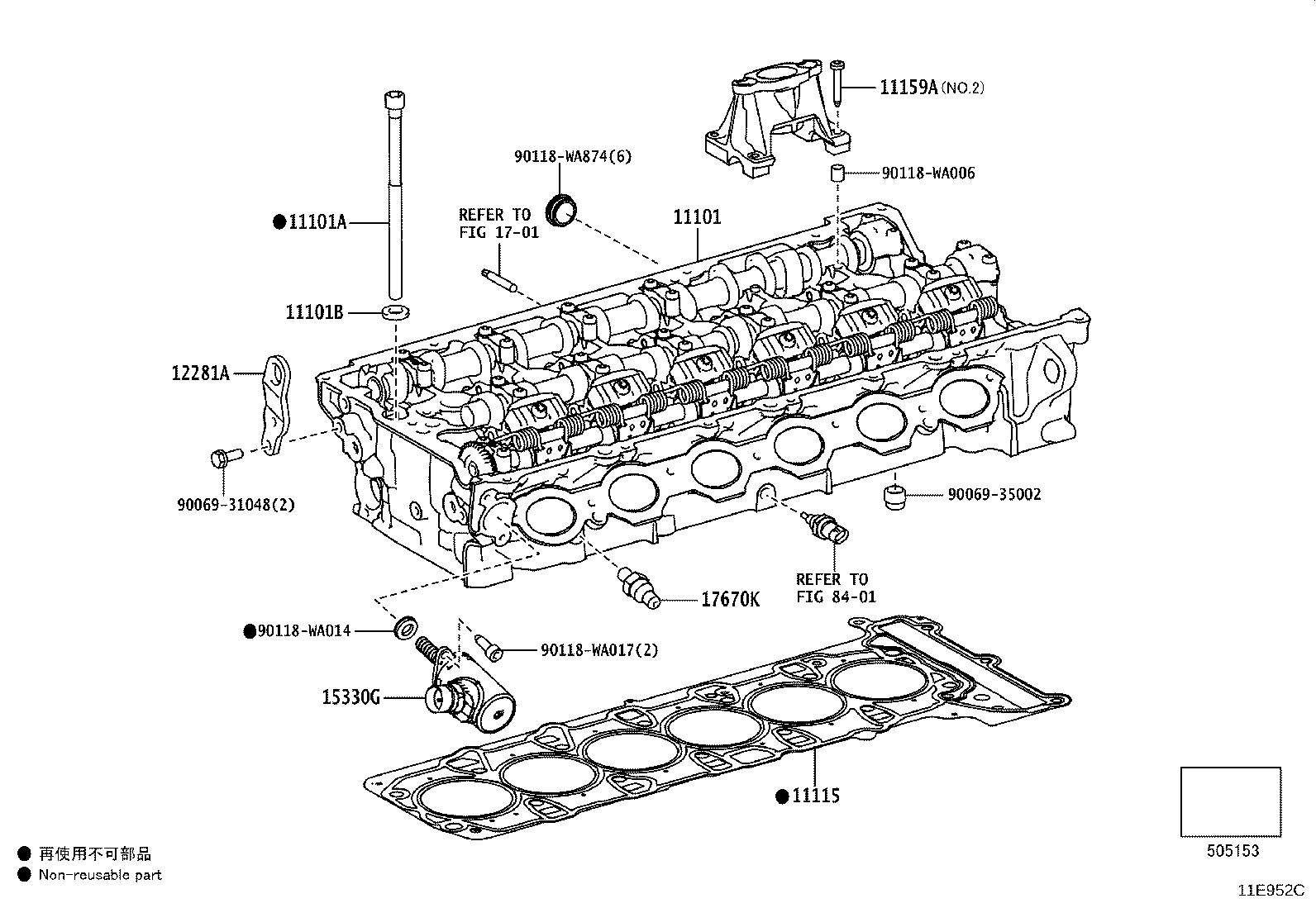

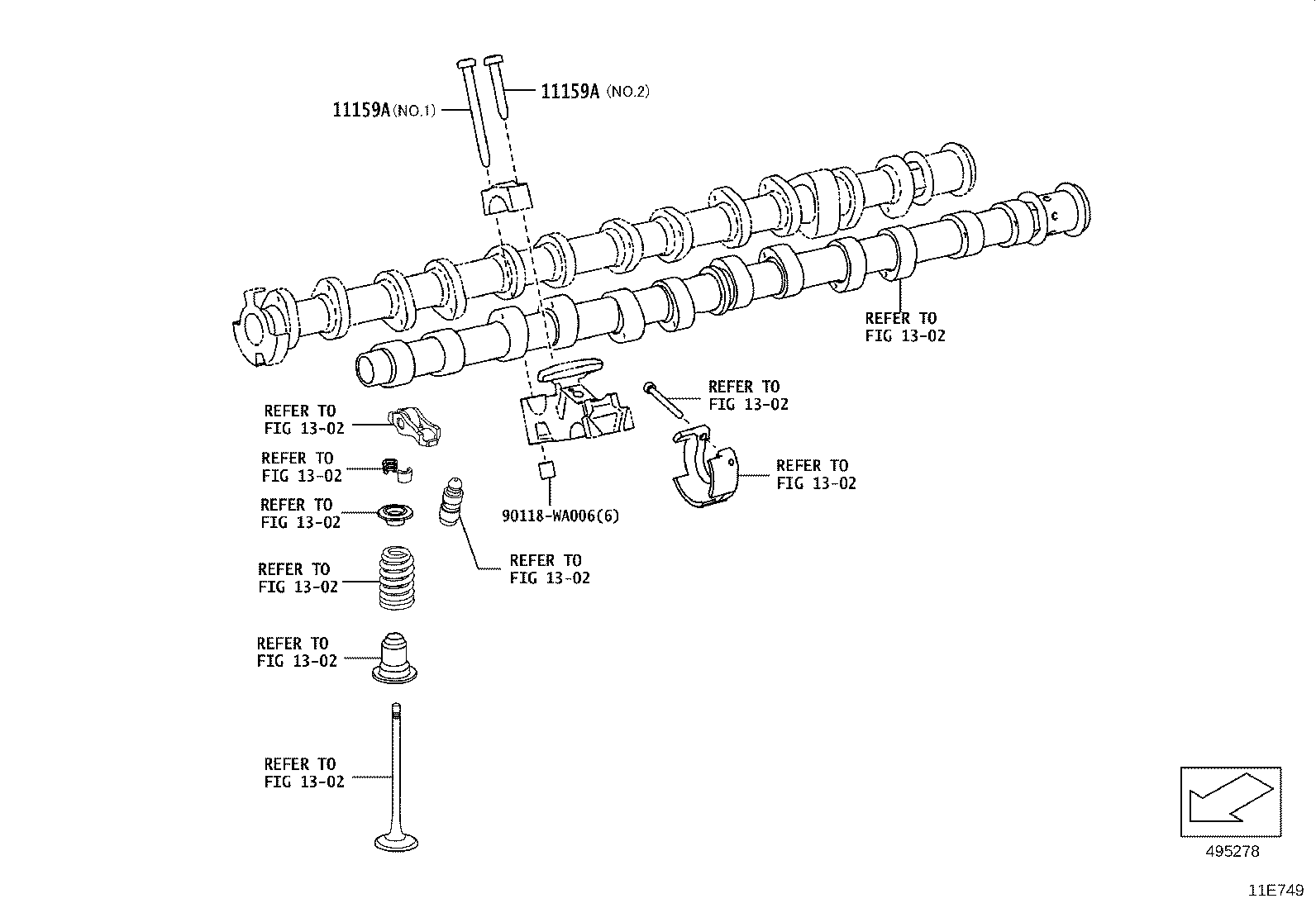

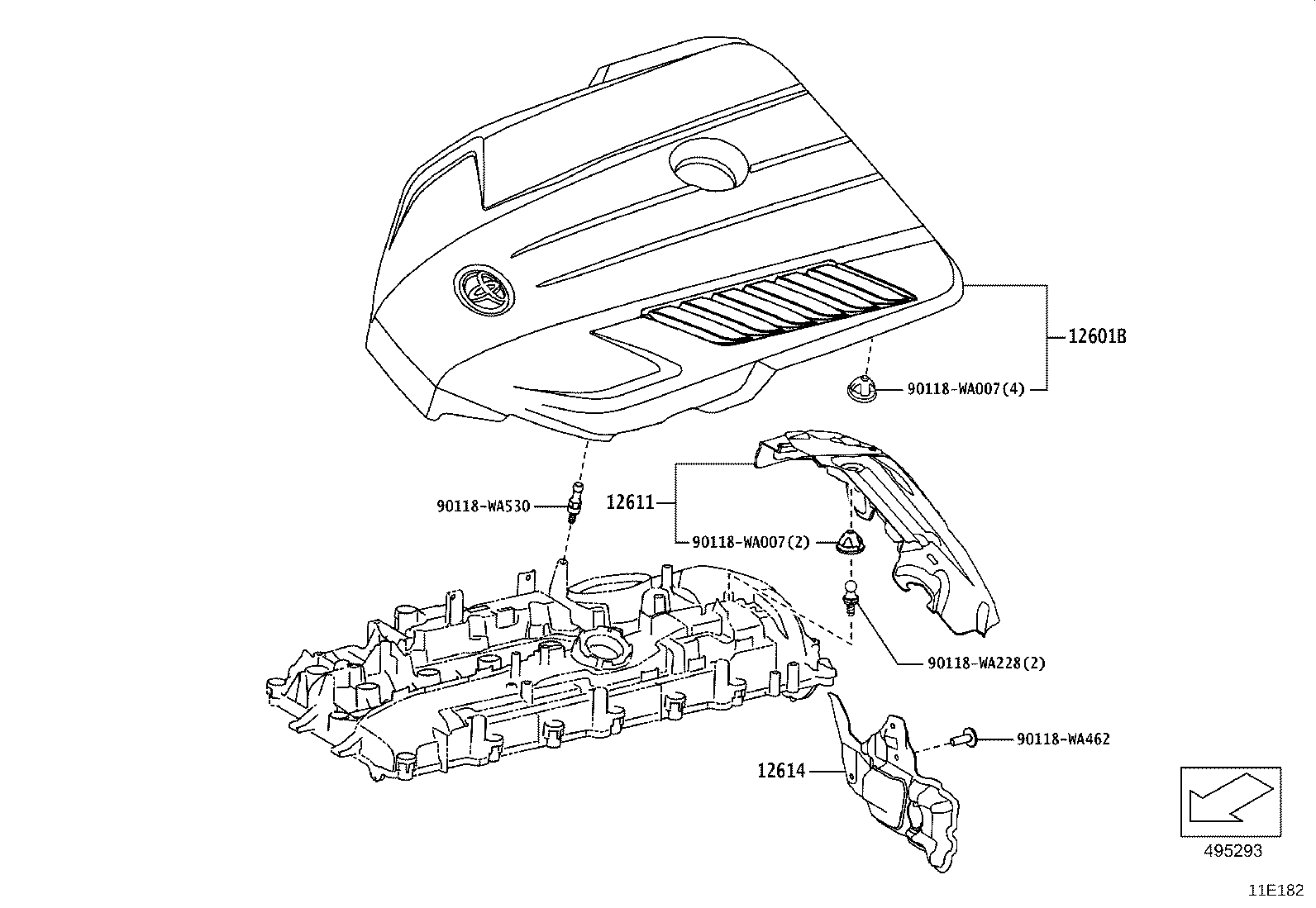

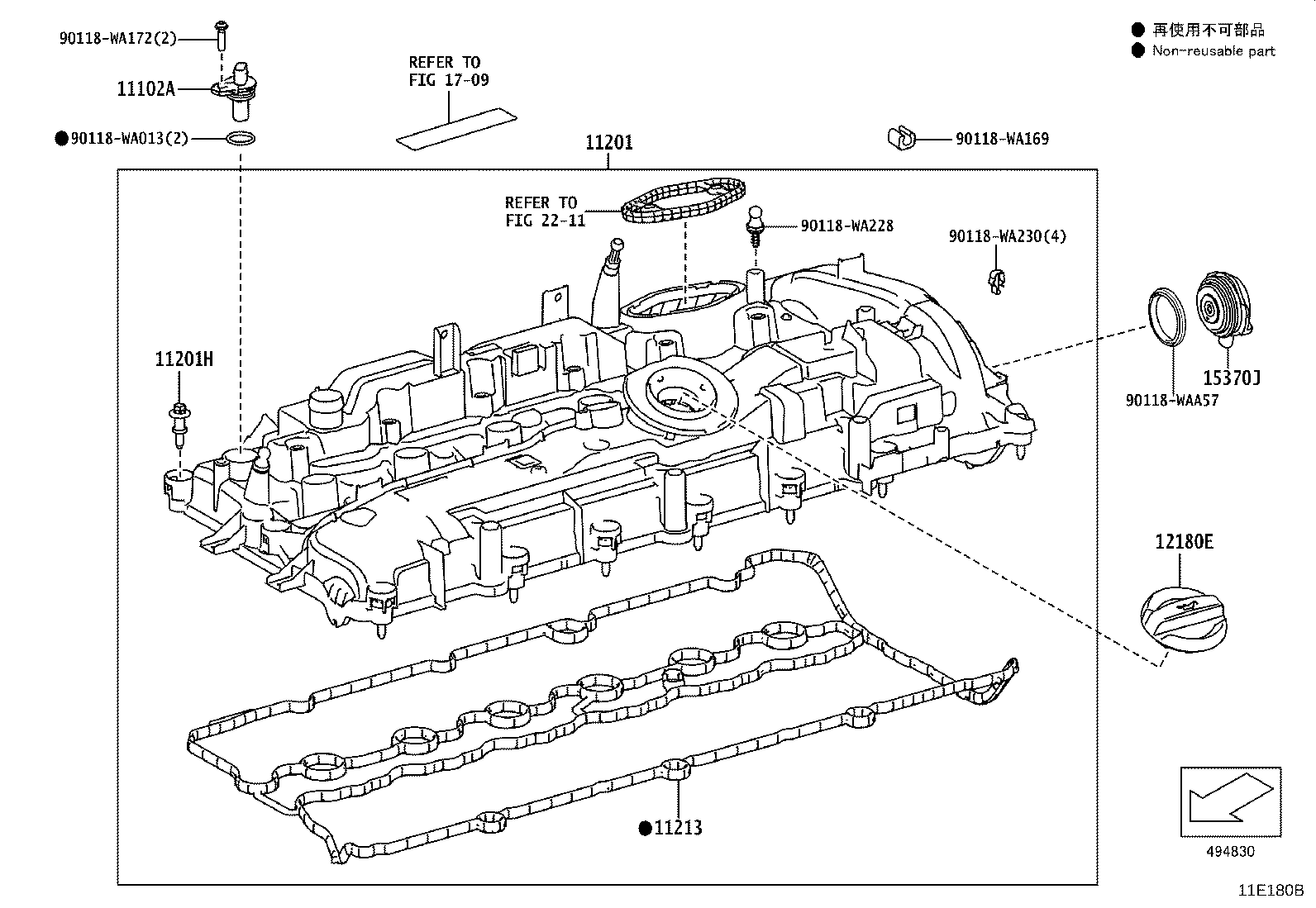

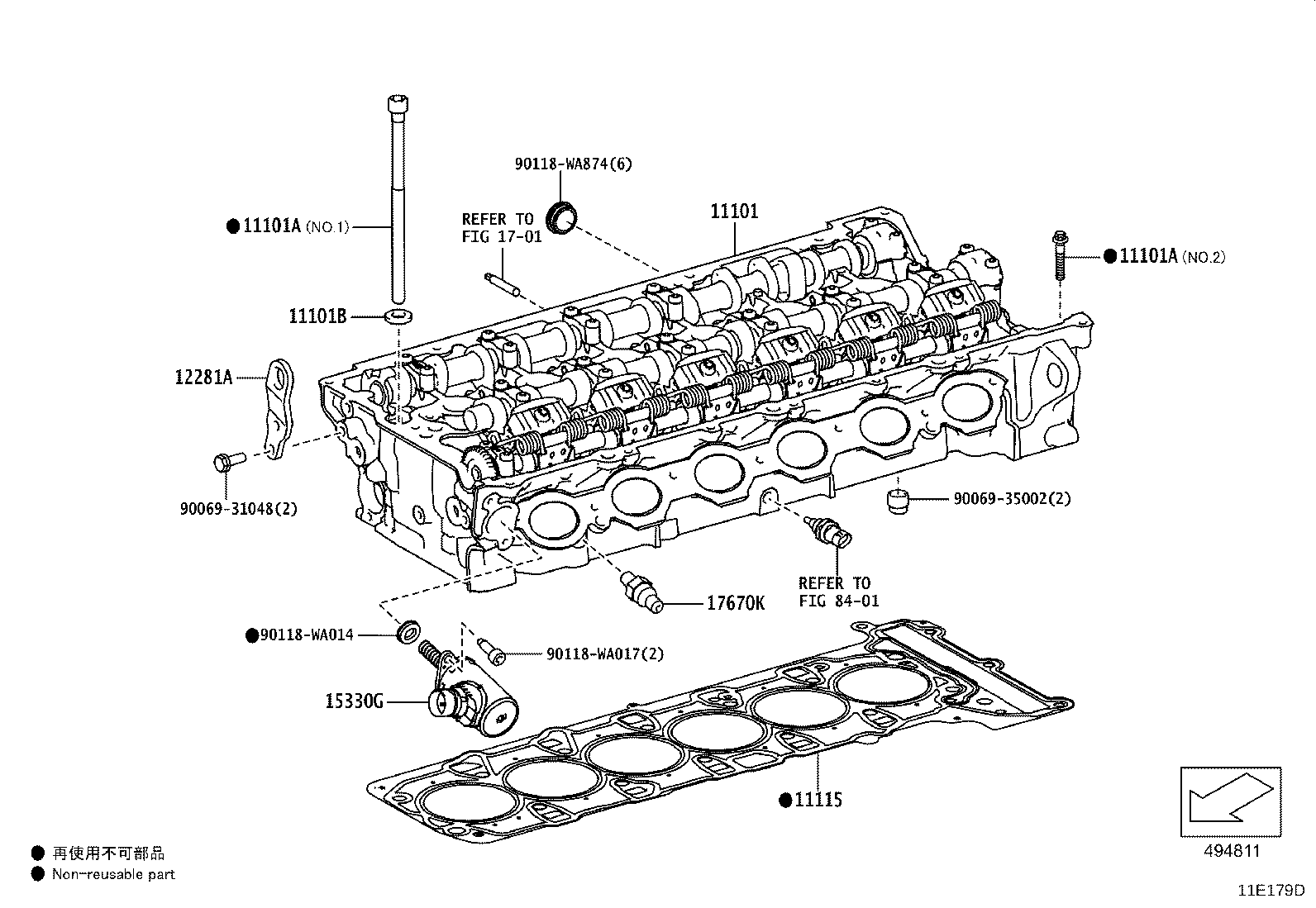

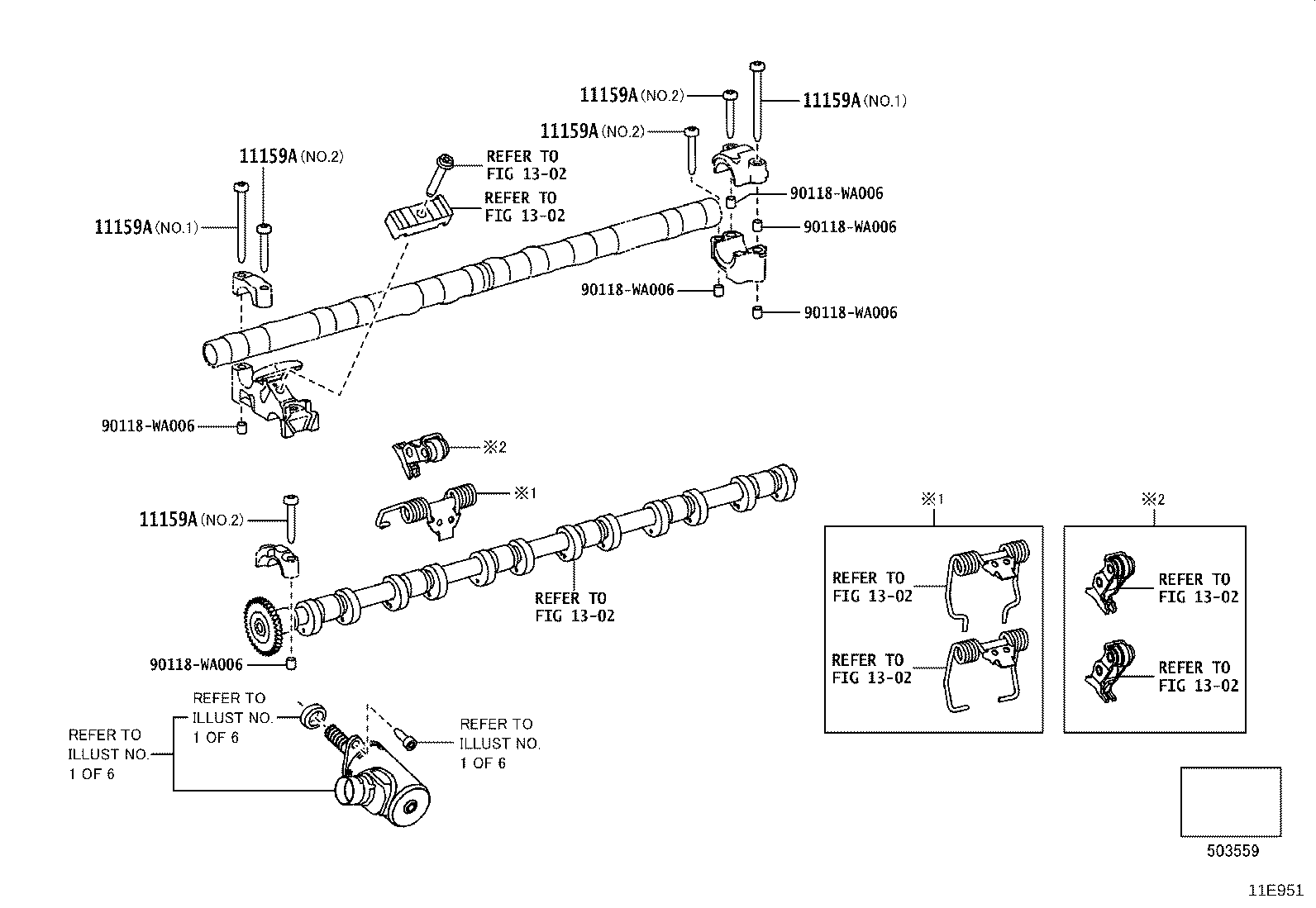

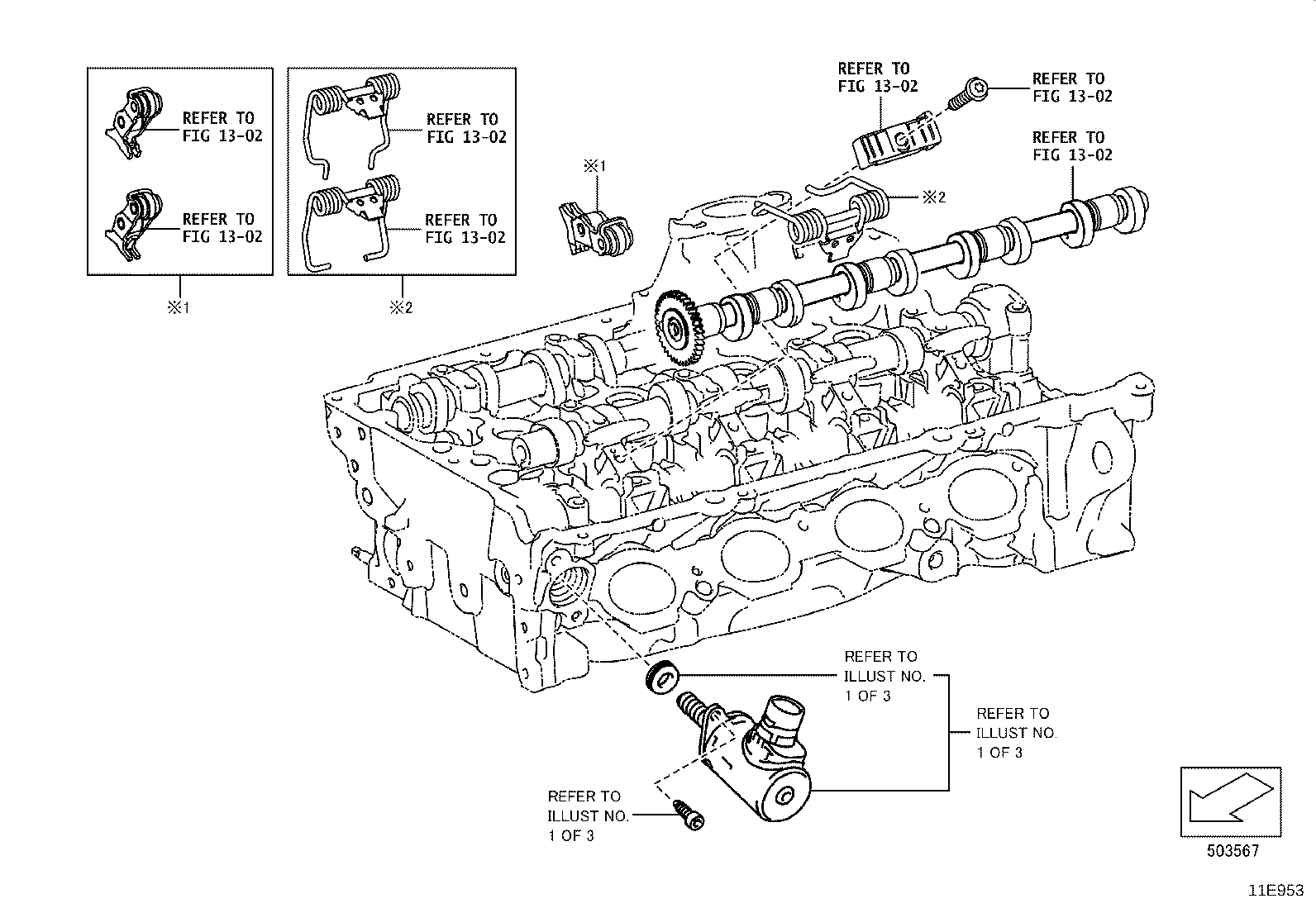

Figure 11E176C 11E176C 2020-07 → — Figure 11E177B 11E177B 2020-07 → — Figure 11E953 11E953 2020-07 → — Figure 11E179D 11E179D 2019-03 → — Figure 11E952C 11E952C 2020-03 → — Figure 11E180B 11E180B 2019-03 → — Figure 11E182 11E182 2019-03 → — Figure 11E749 11E749 2019-03 → — Figure 11E951 11E951 2019-03 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11102A Sensor, Camshaft Position
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11103F Bolt(FOR CAMSHAFT HOUSING SET)
11115 Gasket, Cylinder Head
11155B Pin, Ring
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12180E Cap Assy, Oil Filler
12281A Hanger, Engine, NO.1
12601B Cover Sub-assy, Engine, NO.1
12602D Cover Sub-assy, Engine, NO.2
12611 Cover, Engine, NO.1
12614 Cover, Engine, NO.4
15330G Motor, Servo
15370J Actuator, Vanos
17670K Valve Assy, Air By-pass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
