Engine Oil Pump

5 part groups · 2 illustrations

Illustrations

Figure 153113A

153113A 2020-07 → —

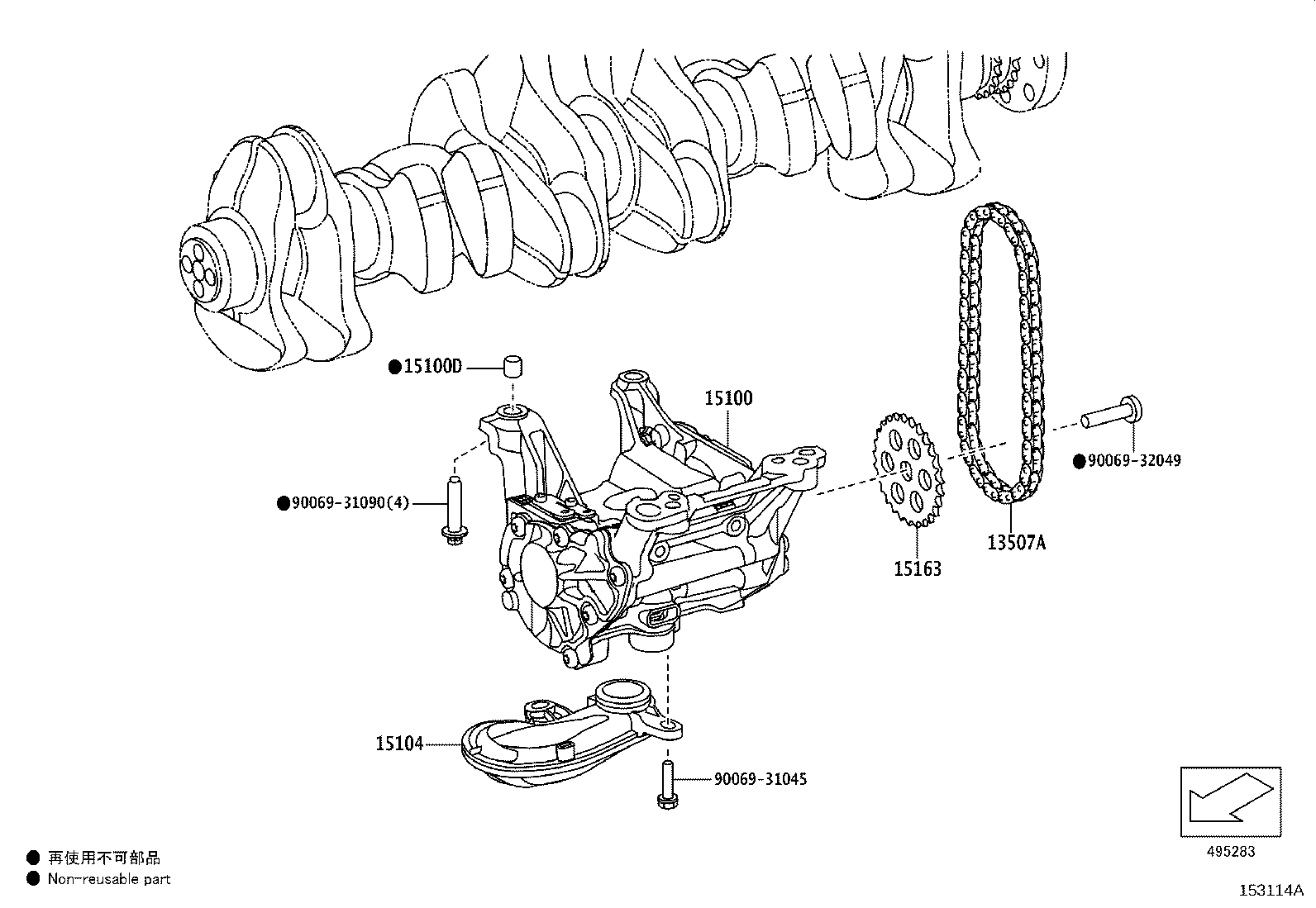

Figure 153114A

153114A 2019-03 → —

Part groups

PNC	Description
13507A	Chain Sub-assy, Oil Pump Drive
15100	Pump Assy, Oil
15100D	Pin(FOR OIL PUMP SET)
15104	Strainer Sub-assy, Oil
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
