Toyota Supra

2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

10 part groups · 9 illustrations

Illustrations

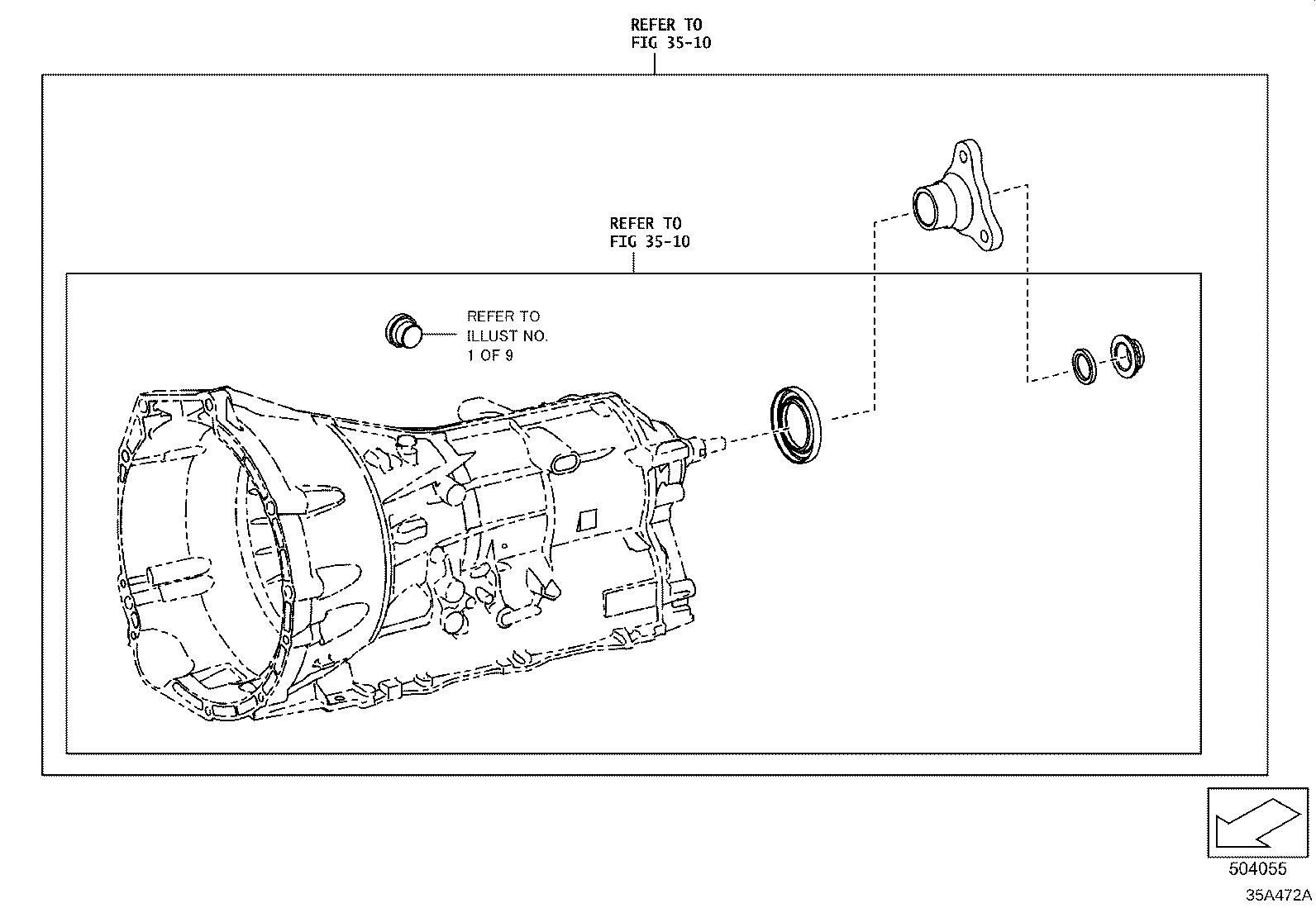

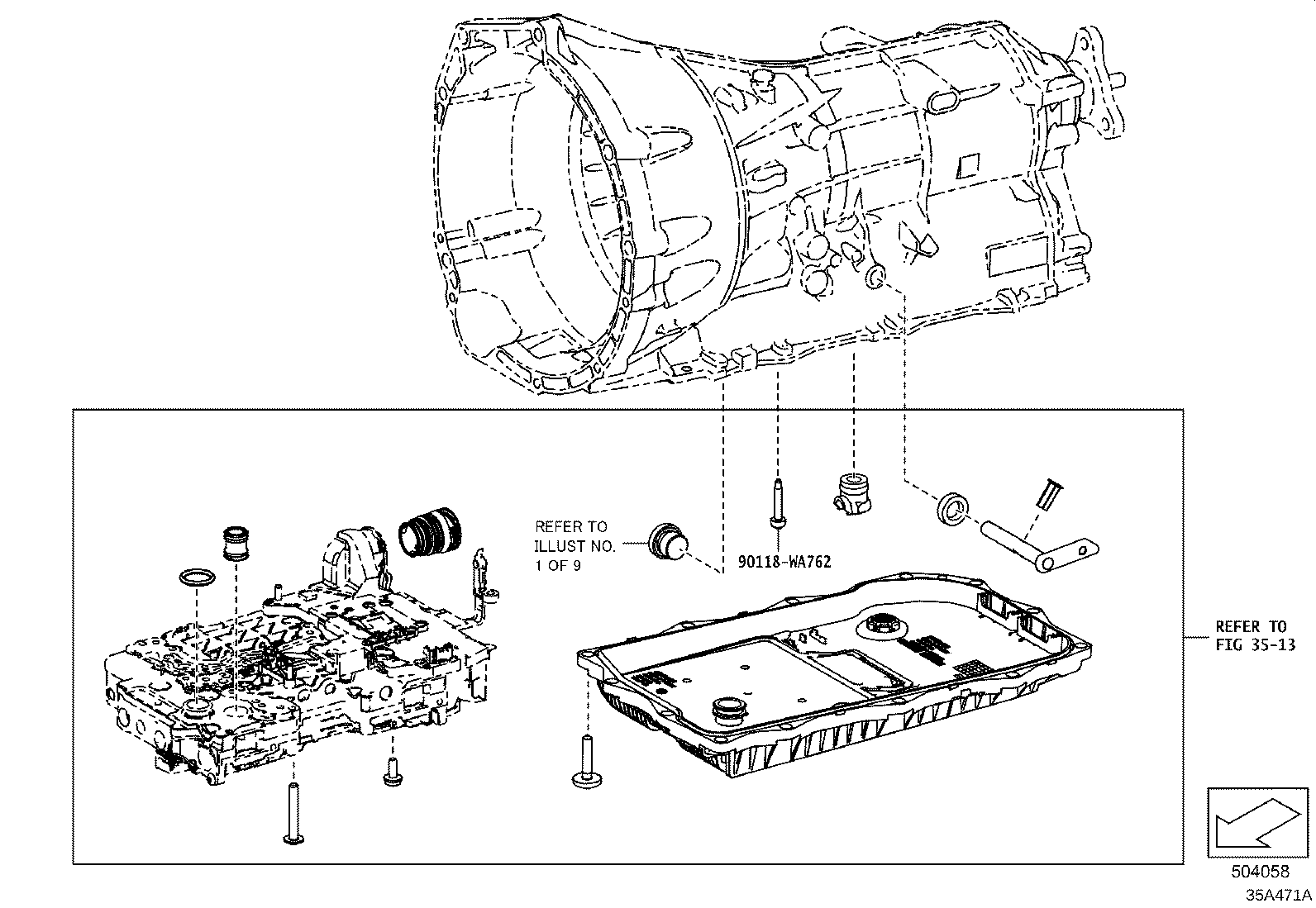

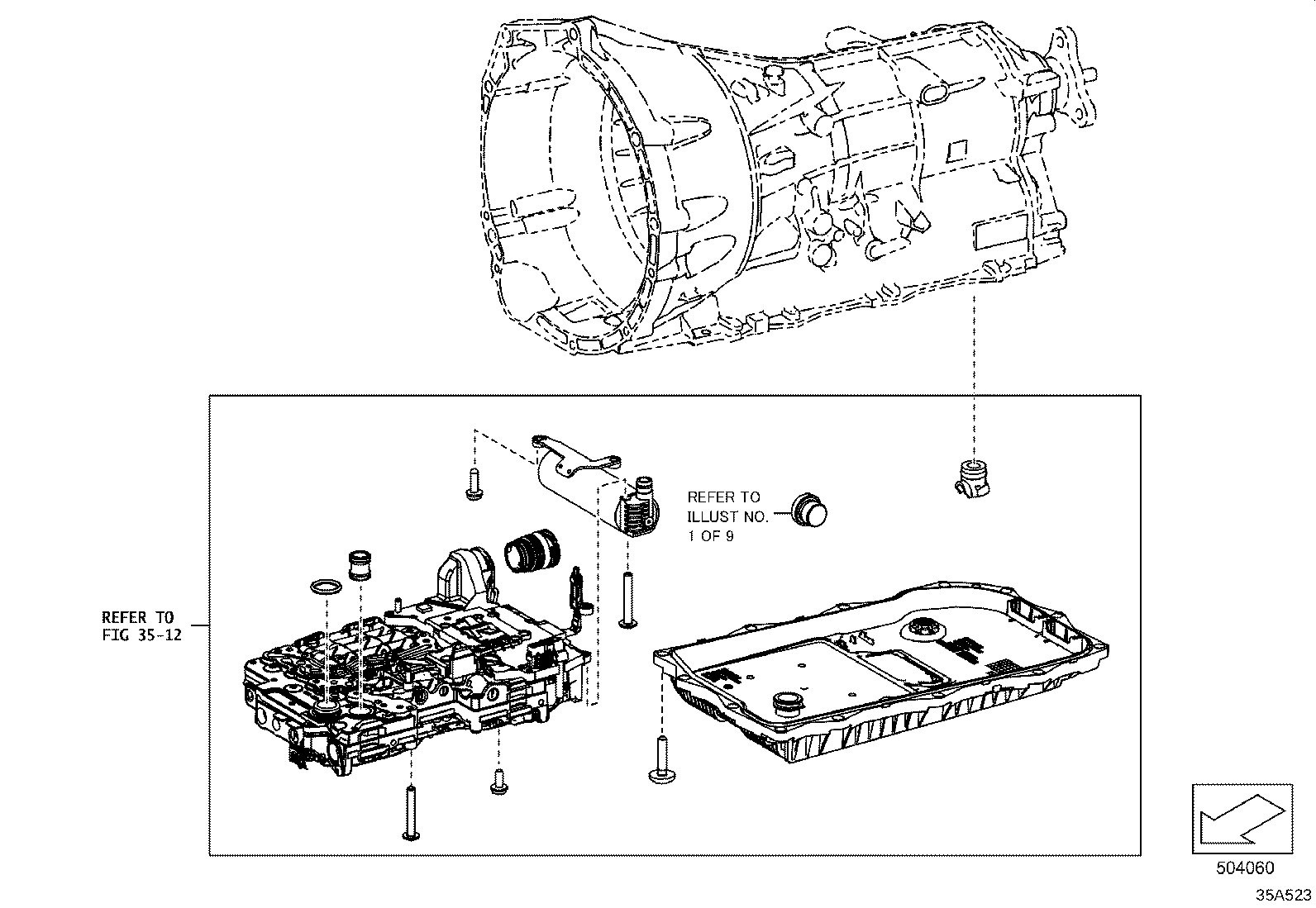

Figure 35A473C 35A473C 2019-03 → — Figure 35A472A 35A472A 2019-03 → — Figure 35A513D 35A513D 2019-03 → — Figure 35A365B 35A365B 2019-03 → — Figure 35A475C 35A475C 2019-03 → — Figure 35A514 35A514 2019-03 → — Figure 35A515 35A515 2019-03 → — Figure 35A471A 35A471A 2019-03 → — Figure 35A523 35A523 2019-03 → —

Part groups

PNCDescription

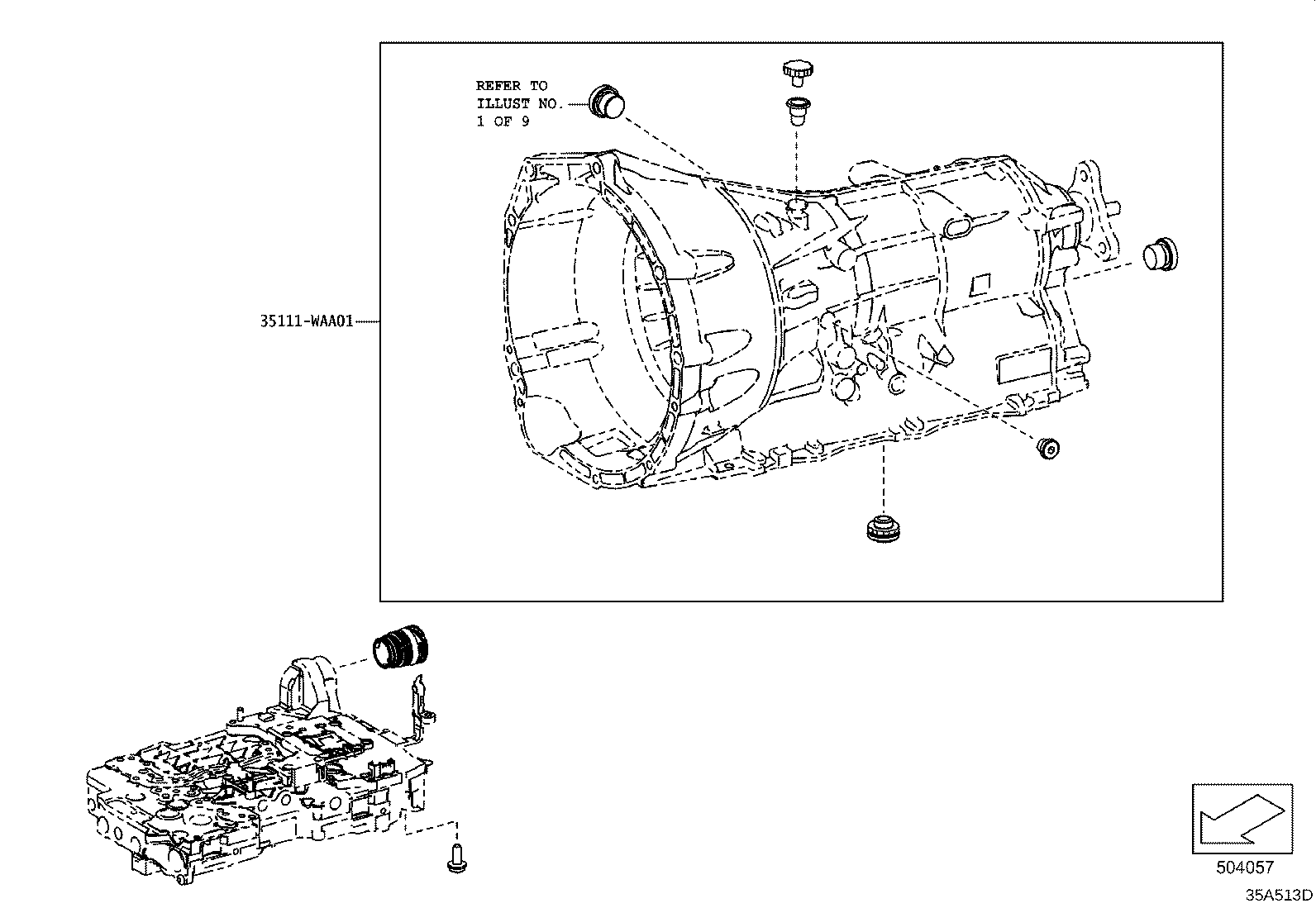

35104A Plug, Automatic Transmission Case

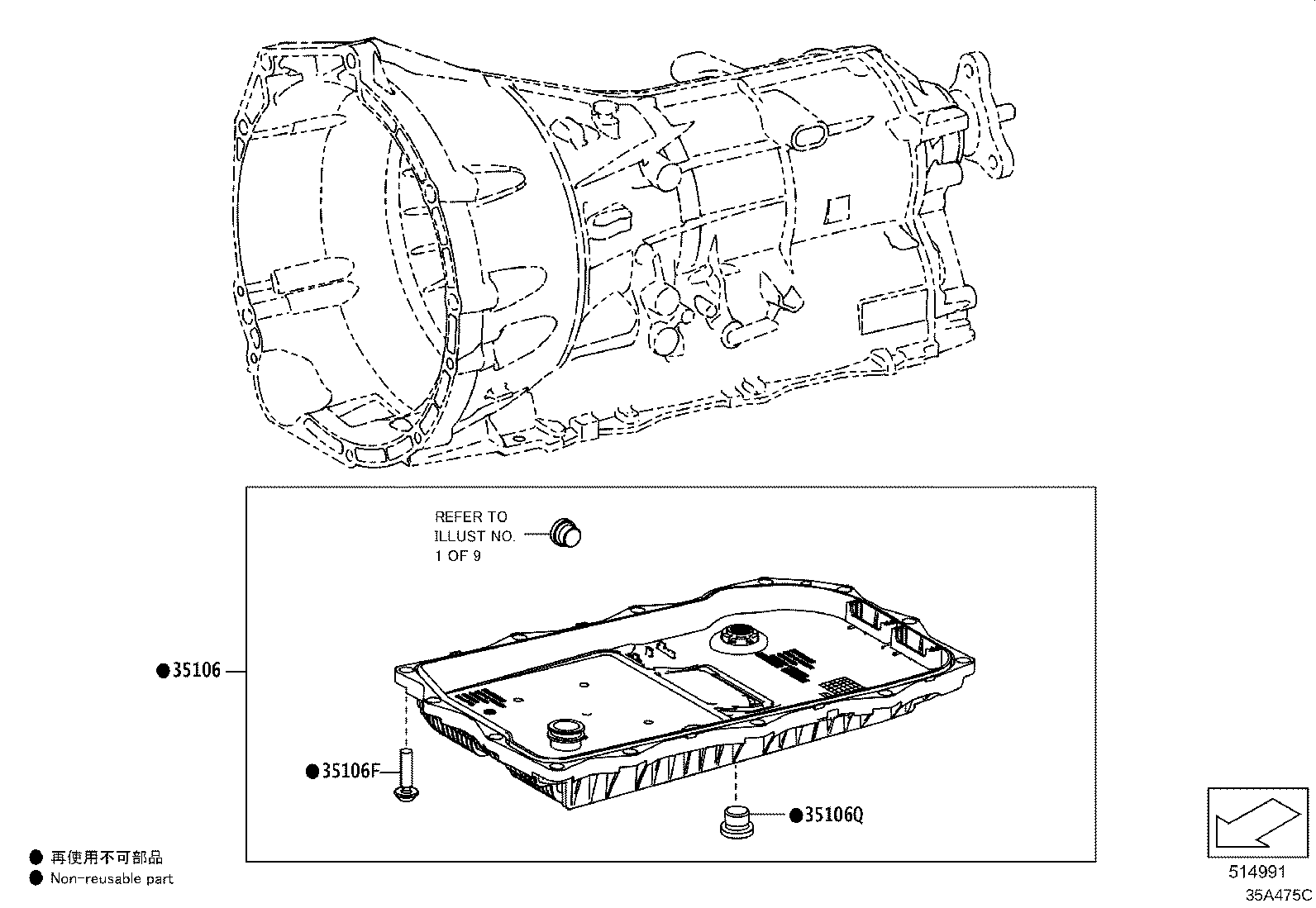

35106 Pan Sub-assy, Automatic Transmission Oil
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)

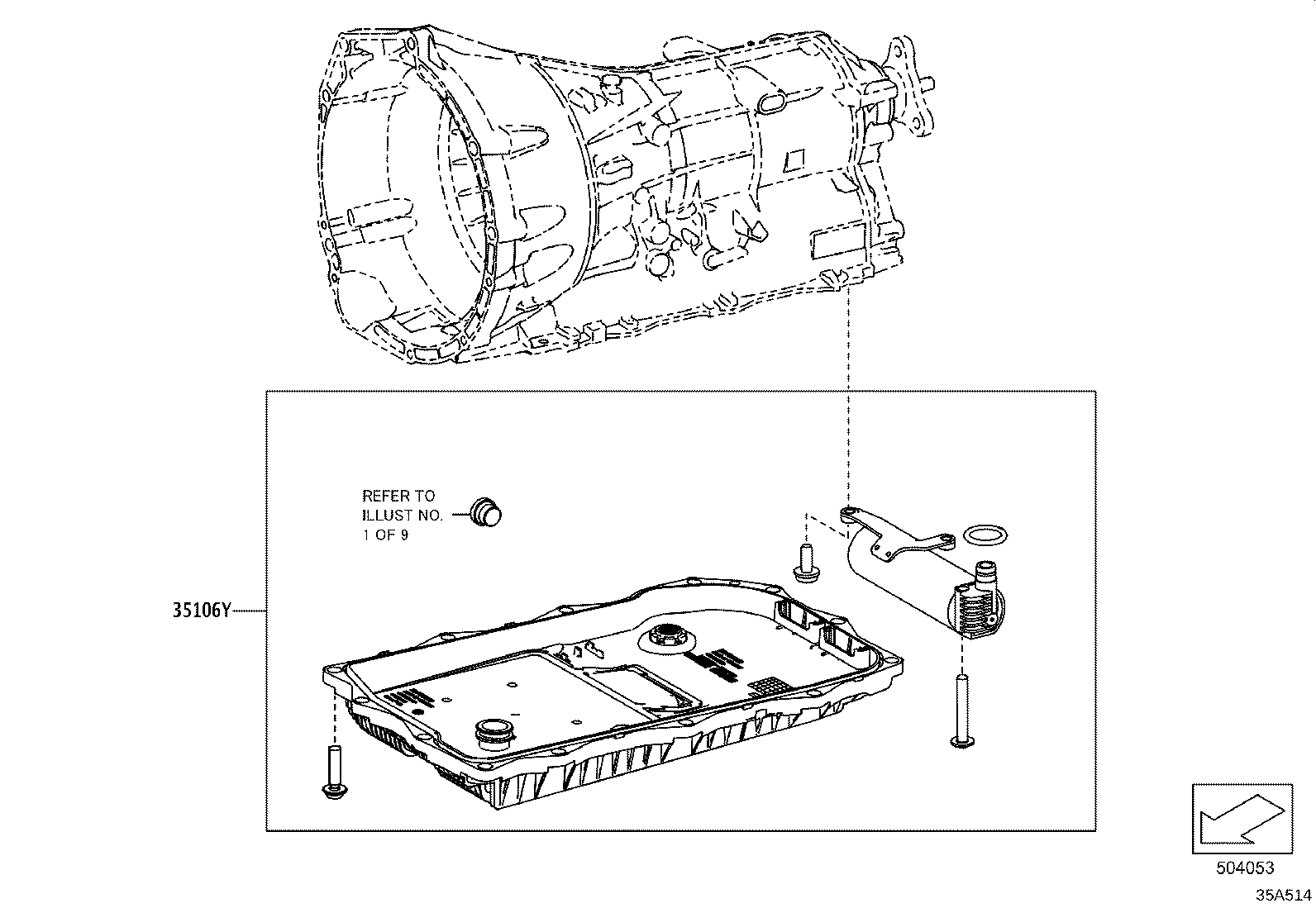

35106Y Repair Kit(FOR HYDRAULIC FLUID TANK)

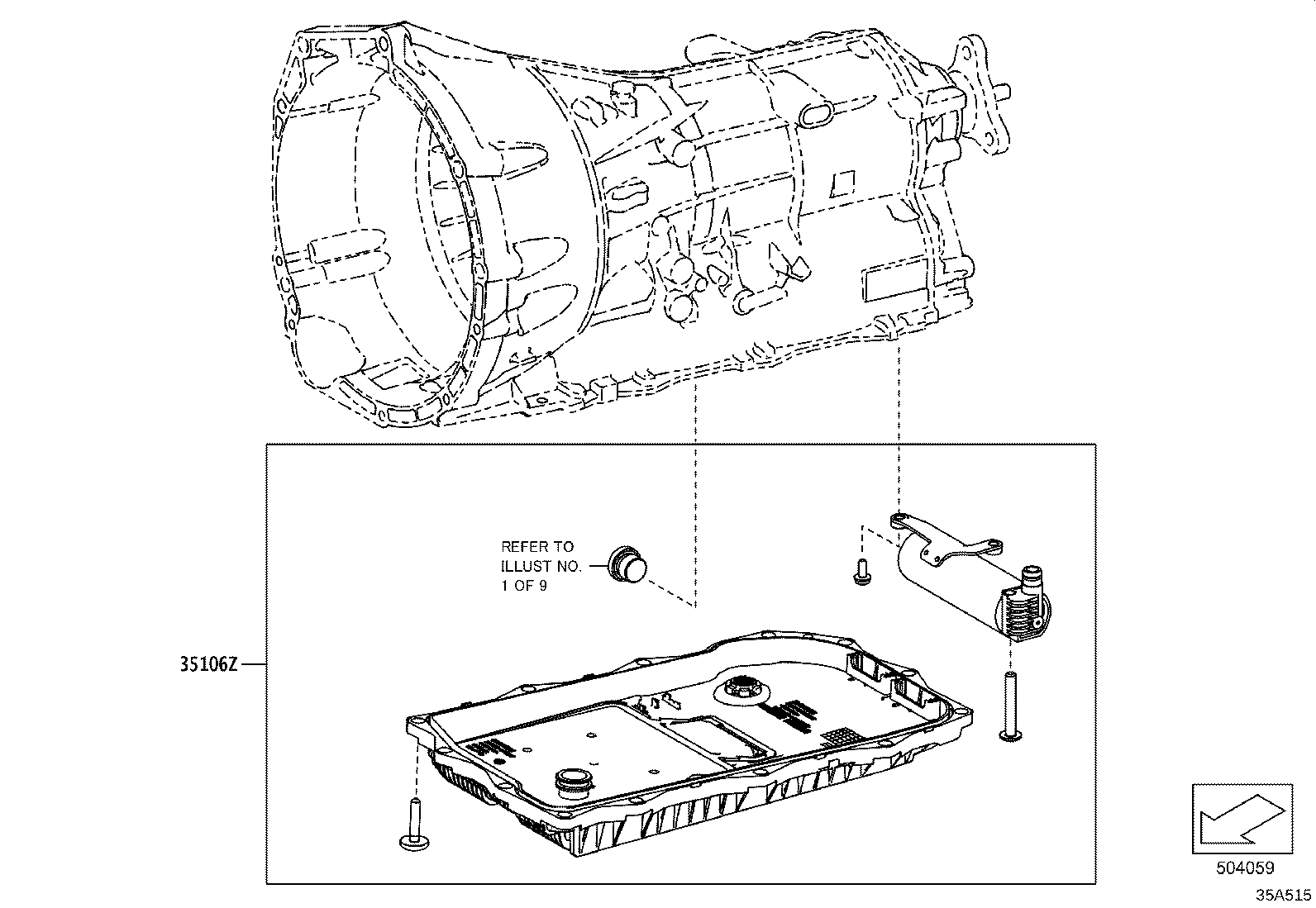

35106Z Repair Kit(FOR OIL RESERVOIR)

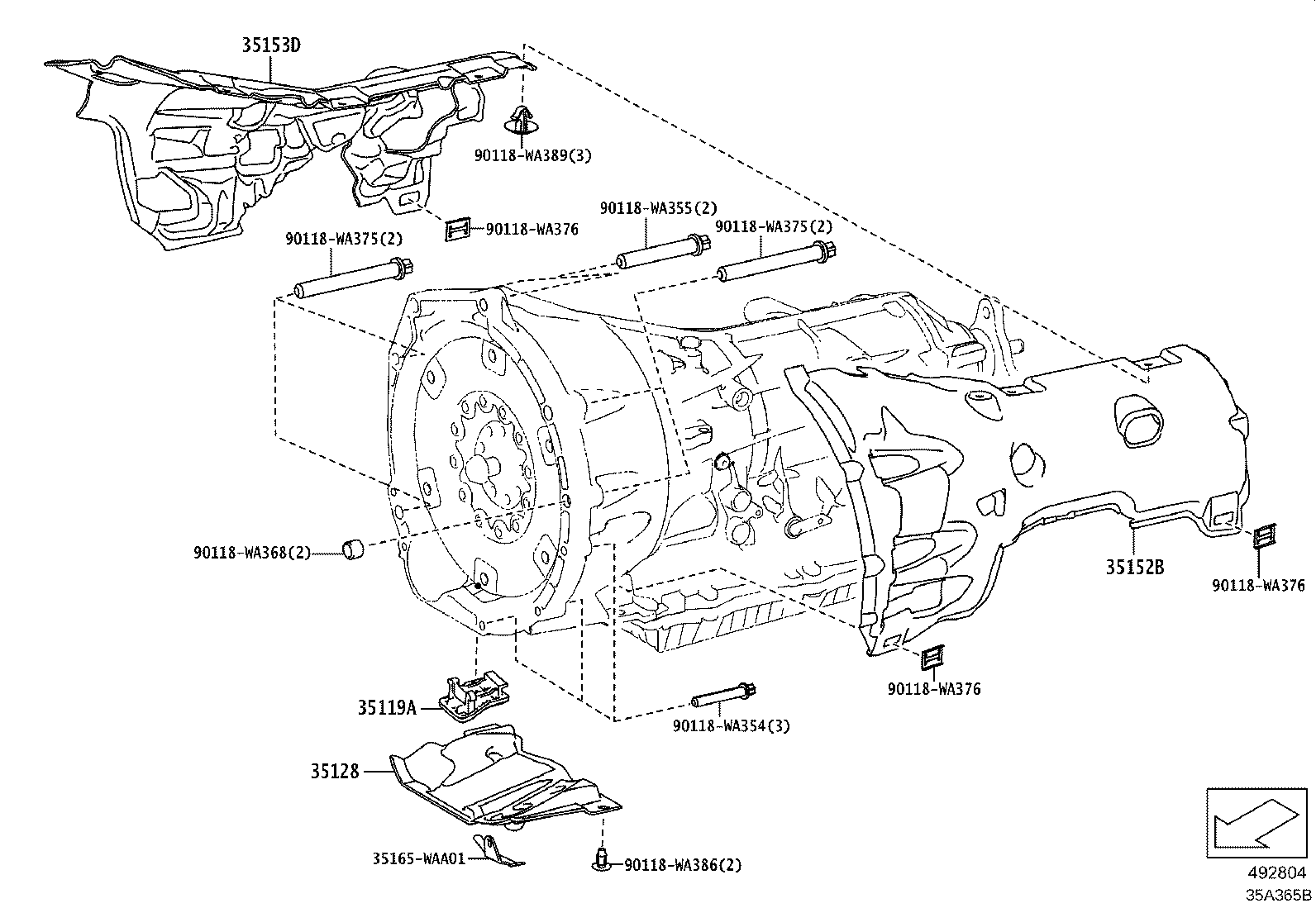

35119A Cover, Transmission Housing
35128 Cover, Transmission Housing Under (ATM)
35152B Cover, Transmission Case, Side, LH
35153D Cover, Transmission Case, Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
