Toyota Supra

2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

29 part groups · 7 illustrations

Illustrations

Figure 554399D 554399D 2019-03 → — Figure 554368B 554368B 2019-03 → — Figure 554369A 554369A 2019-03 → — Figure 554370B 554370B 2019-03 → — Figure 554371D 554371D 2019-03 → — Figure 554400B 554400B 2019-03 → — Figure 554373A 554373A 2019-03 → —

Part groups

PNCDescription

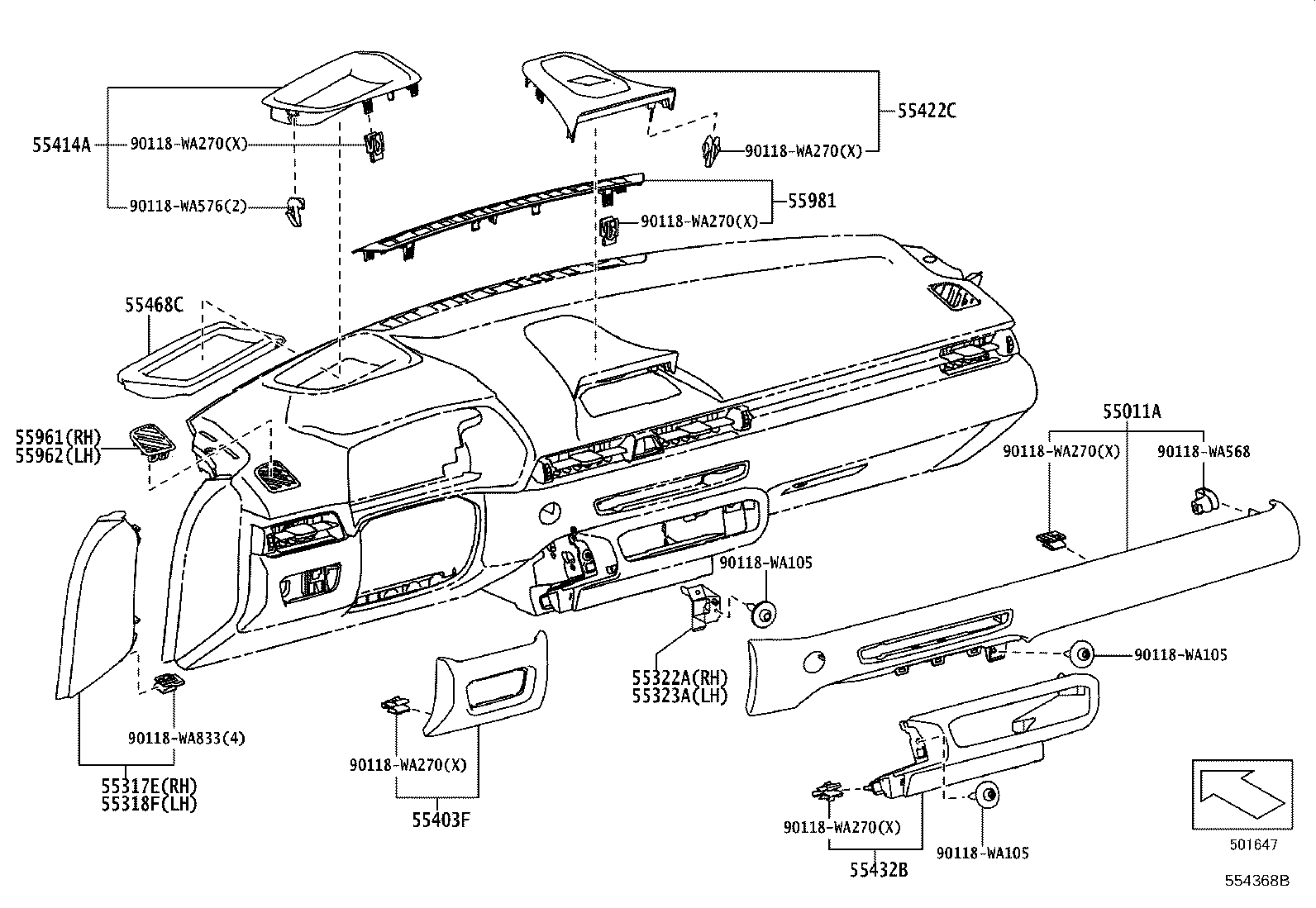

55011A Garnish Sub-assy, Instrument Panel, NO.1
55054 Stopper Sub-assy, Glove Compartment Door

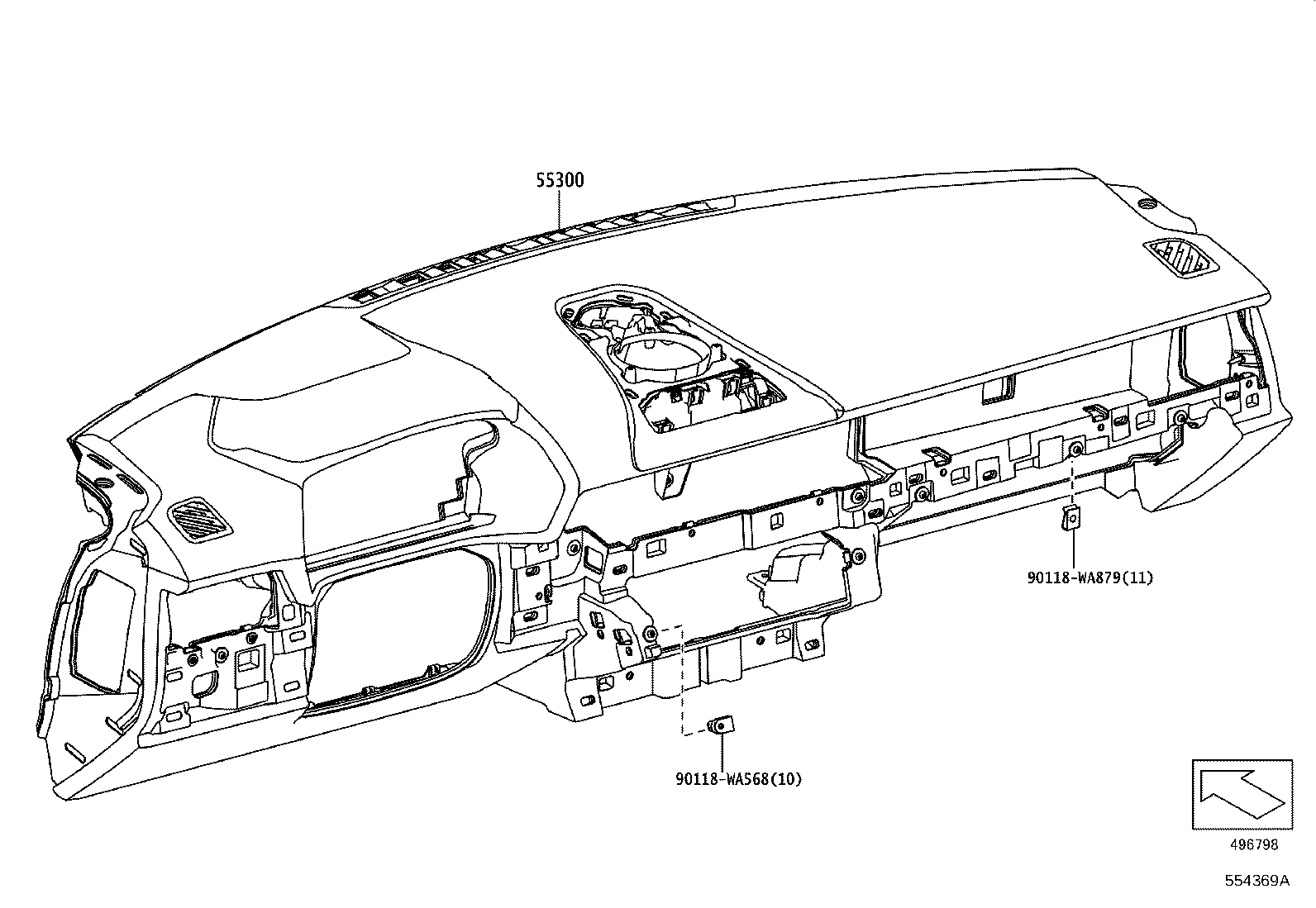

55300 Panel Assy, Instrument, Upper

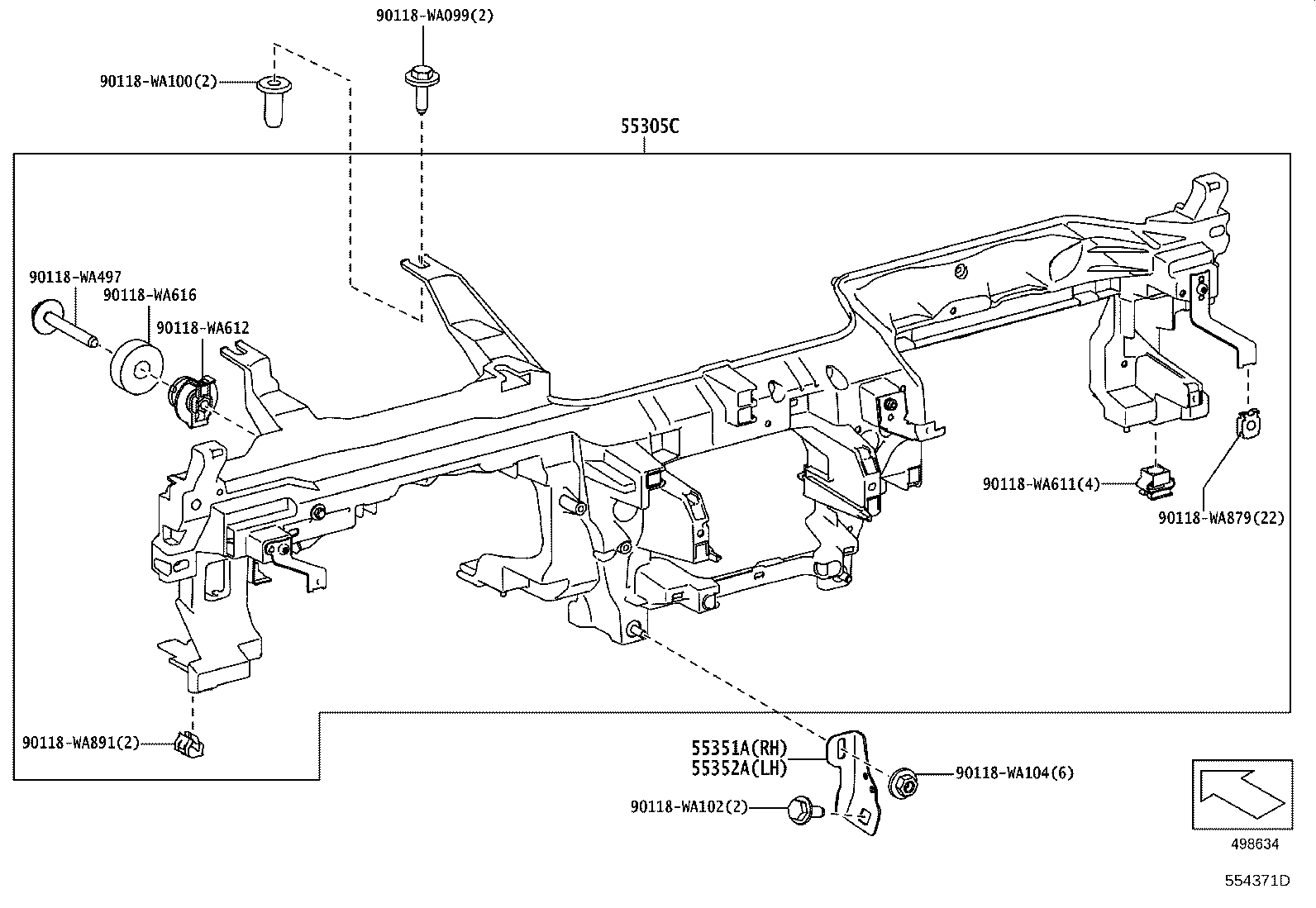

55305C Reinforcement Sub-assy, Instrument Panel
55312 Panel, Instrument, Lower
55317 Patch, Instrument Panel
55317E Panel, Instrument Side, NO.1
55318F Panel, Instrument Side, NO.2
55322A Bracket, Instrument Panel, NO.2
55323A Bracket, Instrument Panel, NO.3
55351A Brace, Instrument Panel TO Floor
55352A Brace, Instrument Panel TO Floor, NO.2
55403F Panel Sub-assy, Instrument Panel Finish
55414A Panel, Instrument Cluster Finish, End
55422C Panel, Instrument Cluster Finish, Center Upper
55432B Panel, Instrument Panel Finish, Lower
55468C Seal, Instrument Cluster Finish Panel, NO.1

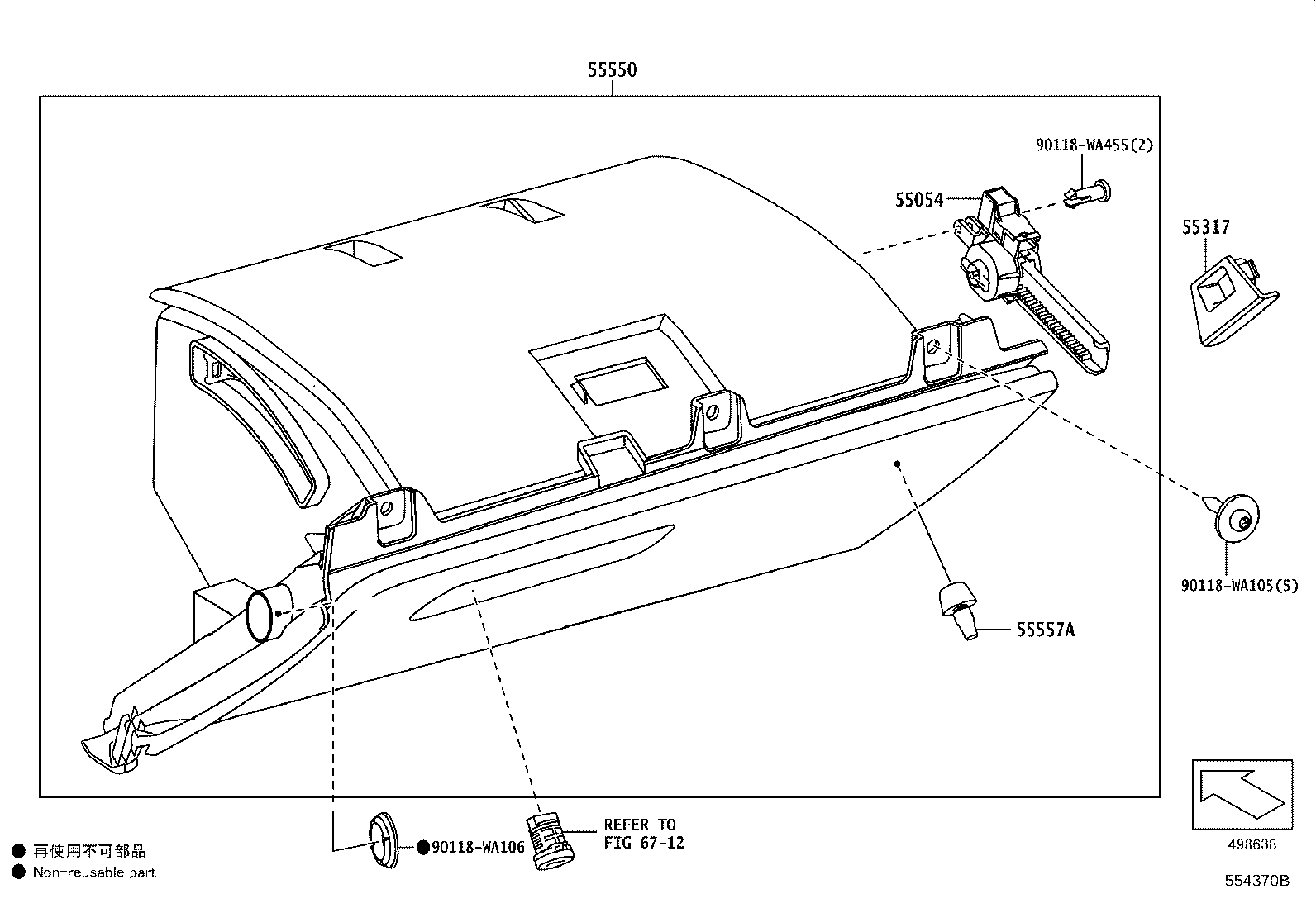

55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2

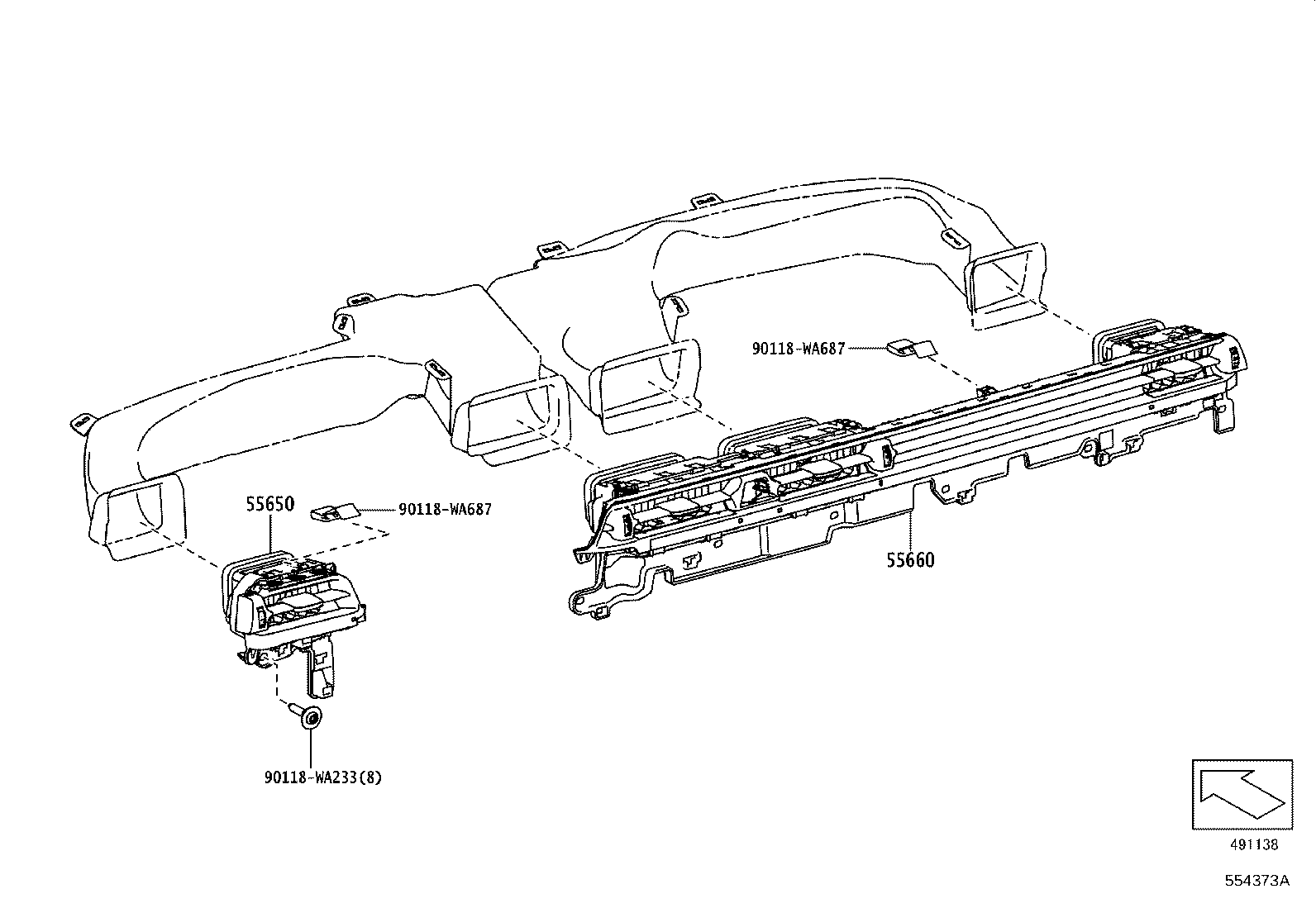

55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1

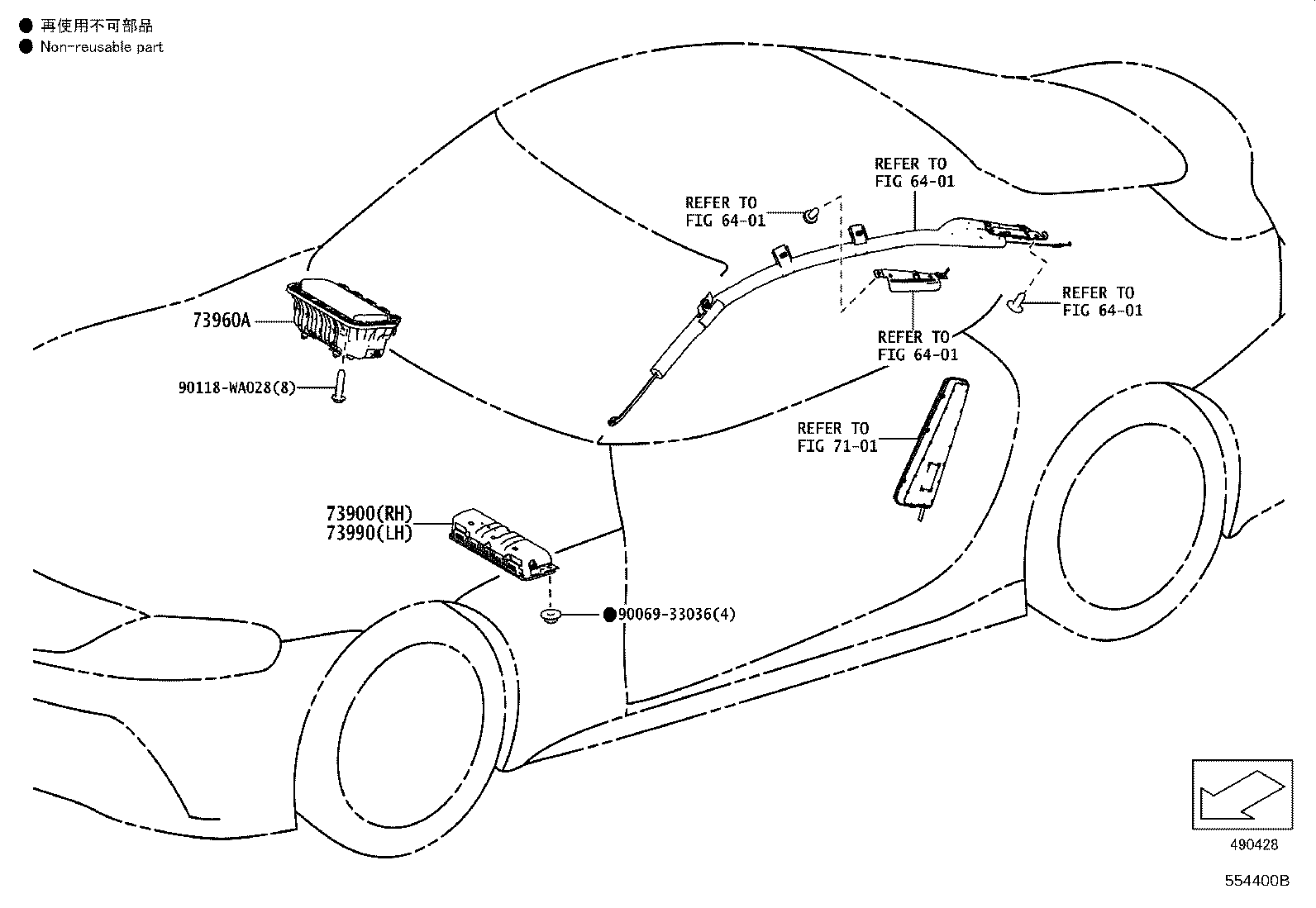

73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
