Toyota Supra
2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States
Supported model
Data version 2020-03
Fuel Tank & Tube
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 77001A | Tank Sub-assy, Fuel |

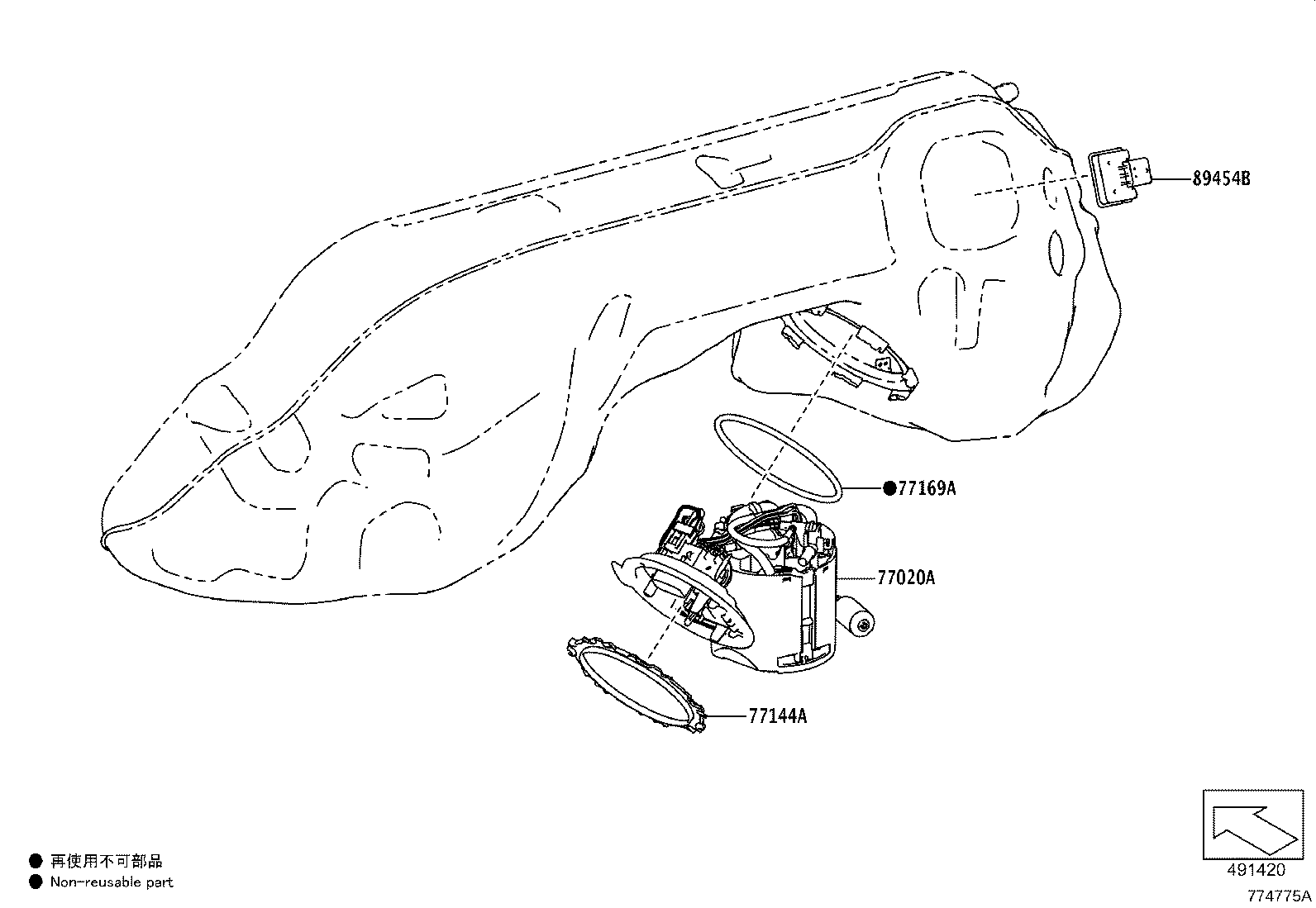

| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77144A | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |

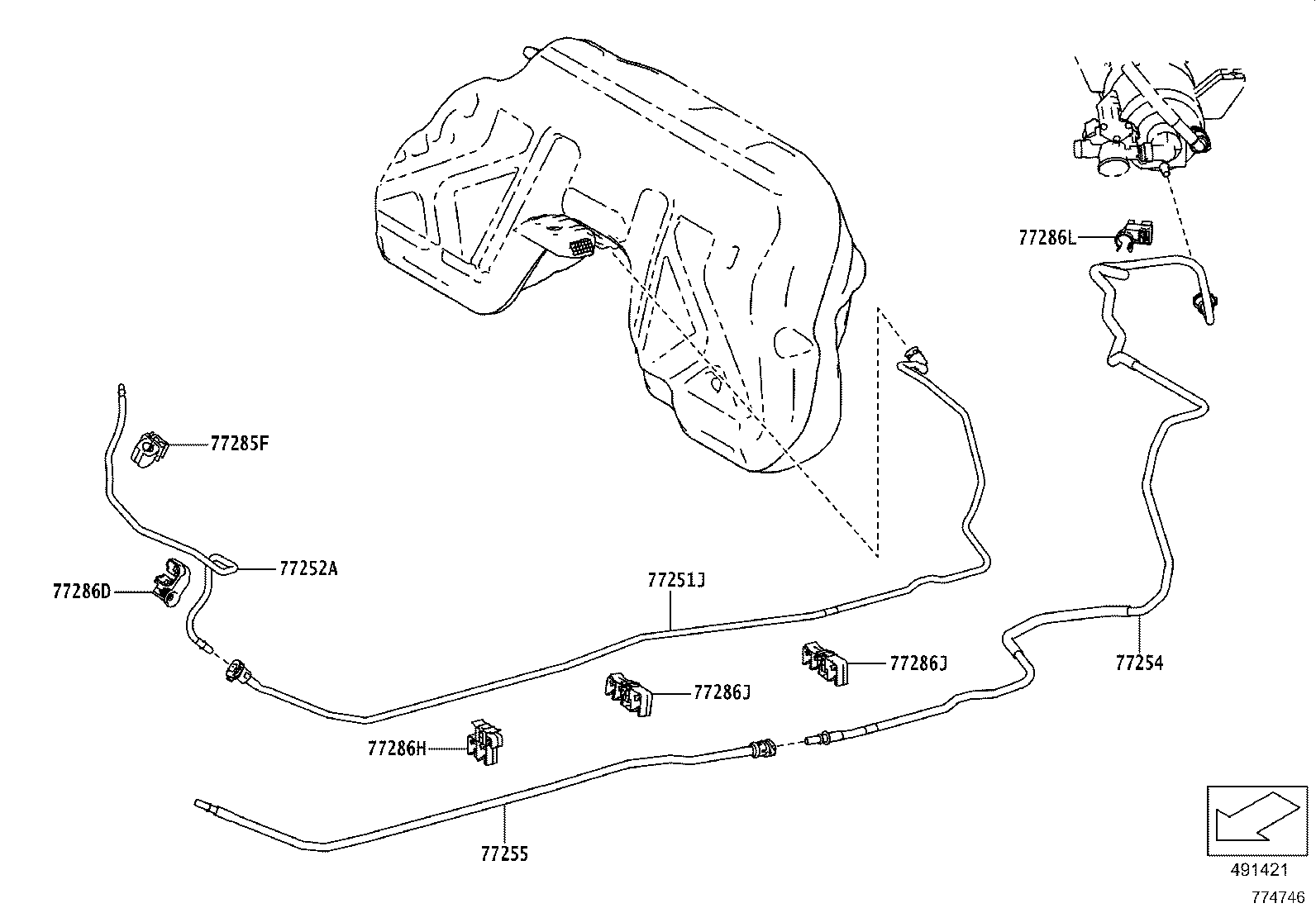

| 77251J | Tube, Fuel Main, NO.1 |
| 77252A | Tube, Fuel Main, NO.2 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77281L | Clamp, Fuel Hose |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |

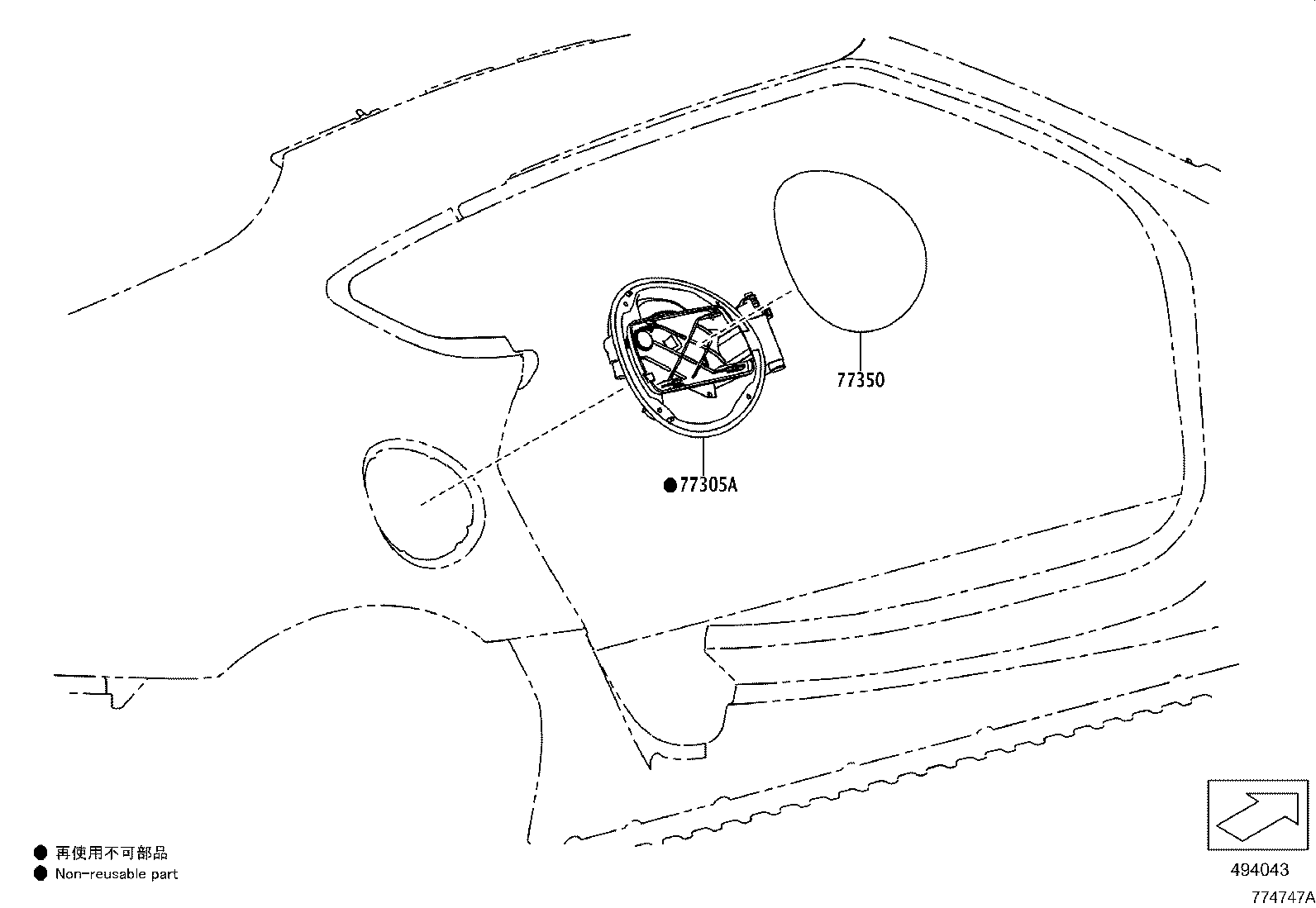

| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77310A | Cap Assy, Fuel Tank |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77601E | Band Sub-assy, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77651B | Cushion, Fuel Tank |

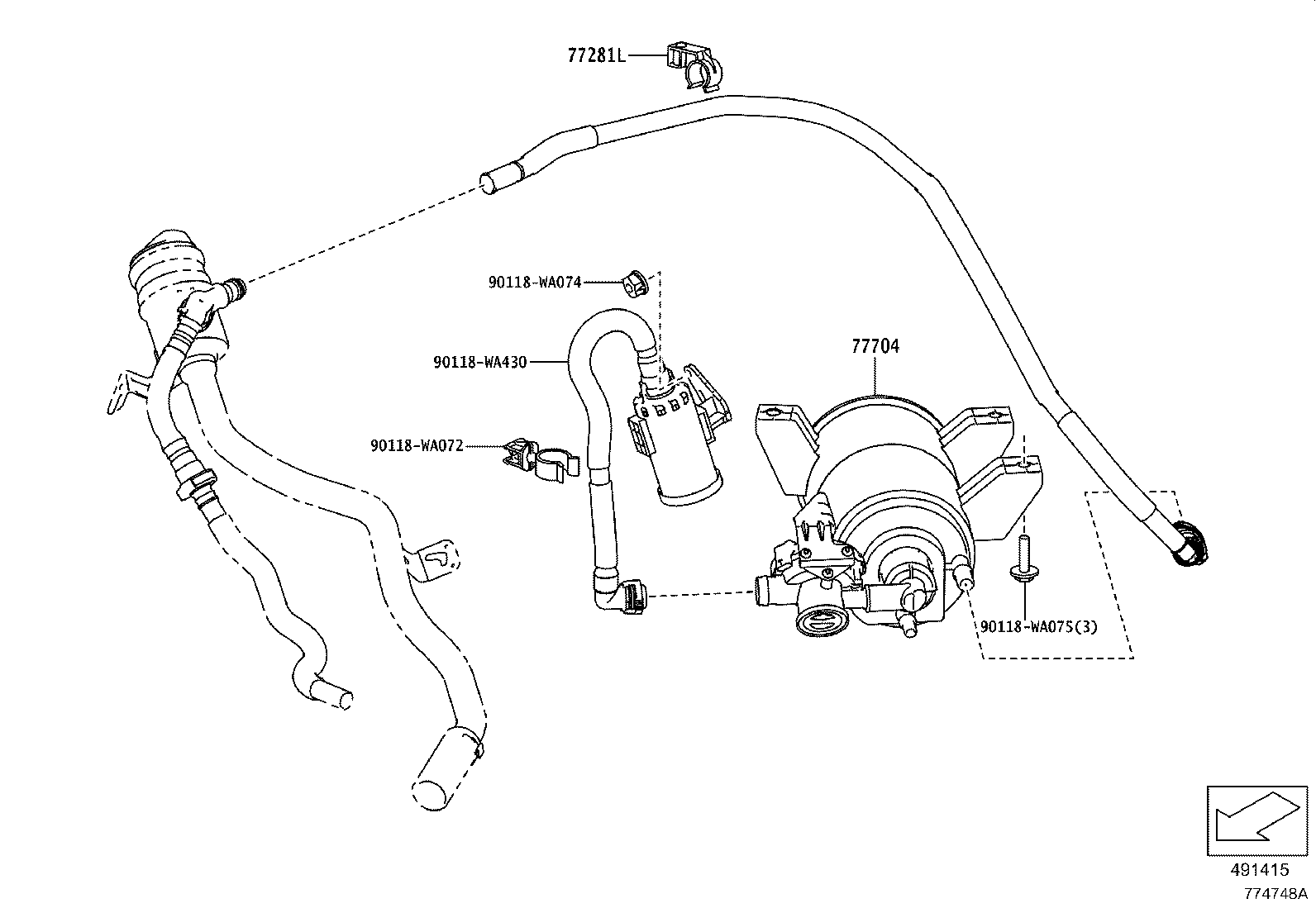

| 77704 | Canister Sub-assy, Charcoal |
| 89454B | Sensor, Fuel Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
