Toyota Supra

2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

6 part groups · 8 illustrations

Illustrations

Figure 84K017 84K017 2019-03 → — Figure 84K018 84K018 2019-03 → — Figure 84K019 84K019 2019-03 → — Figure 84K020 84K020 2019-03 → — Figure 84K021A 84K021A 2019-03 → — Figure 84K022 84K022 2019-03 → — Figure 84K023 84K023 2019-03 → — Figure 84K024 84K024 2019-03 → —

Part groups

PNCDescription

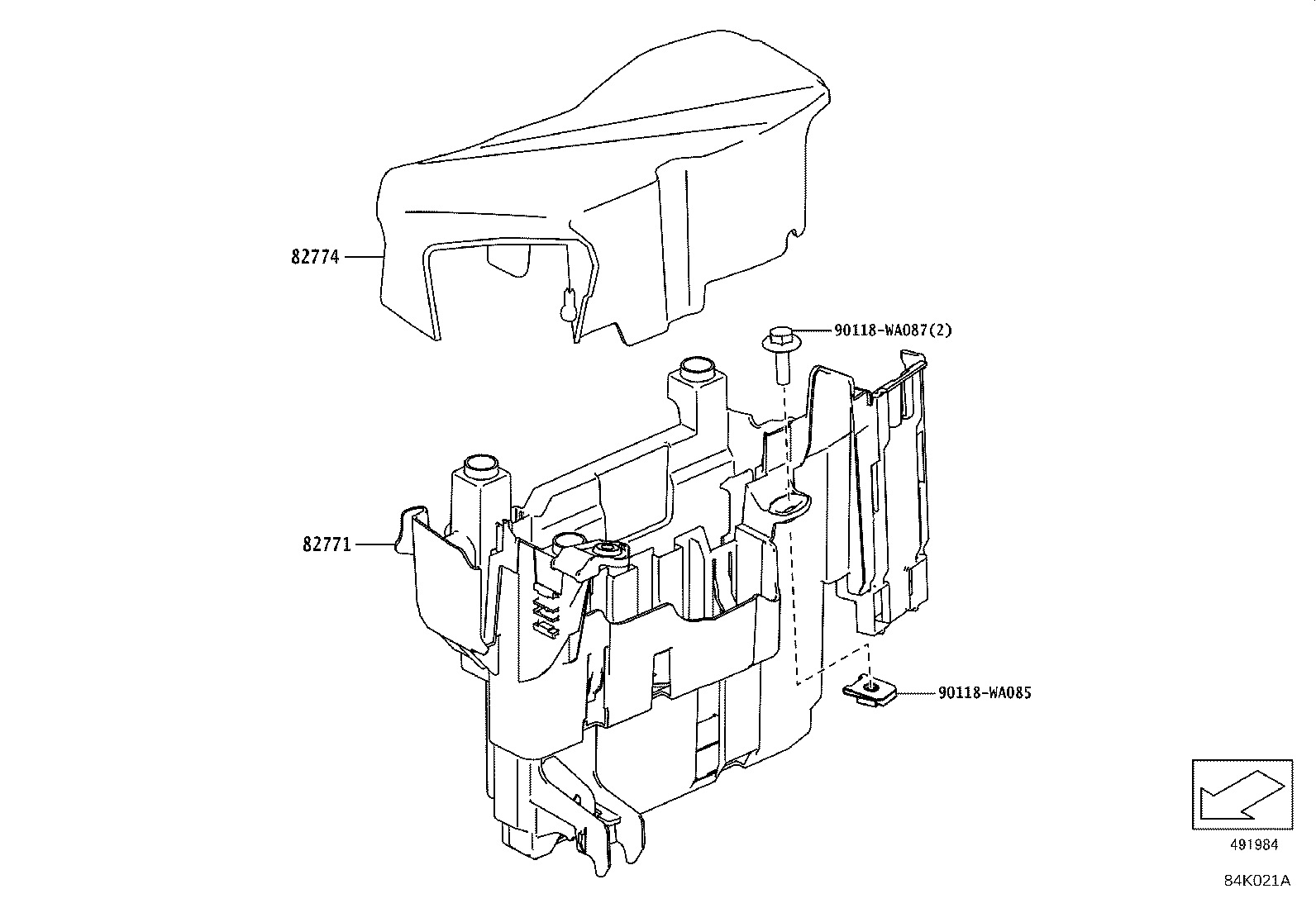

82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu

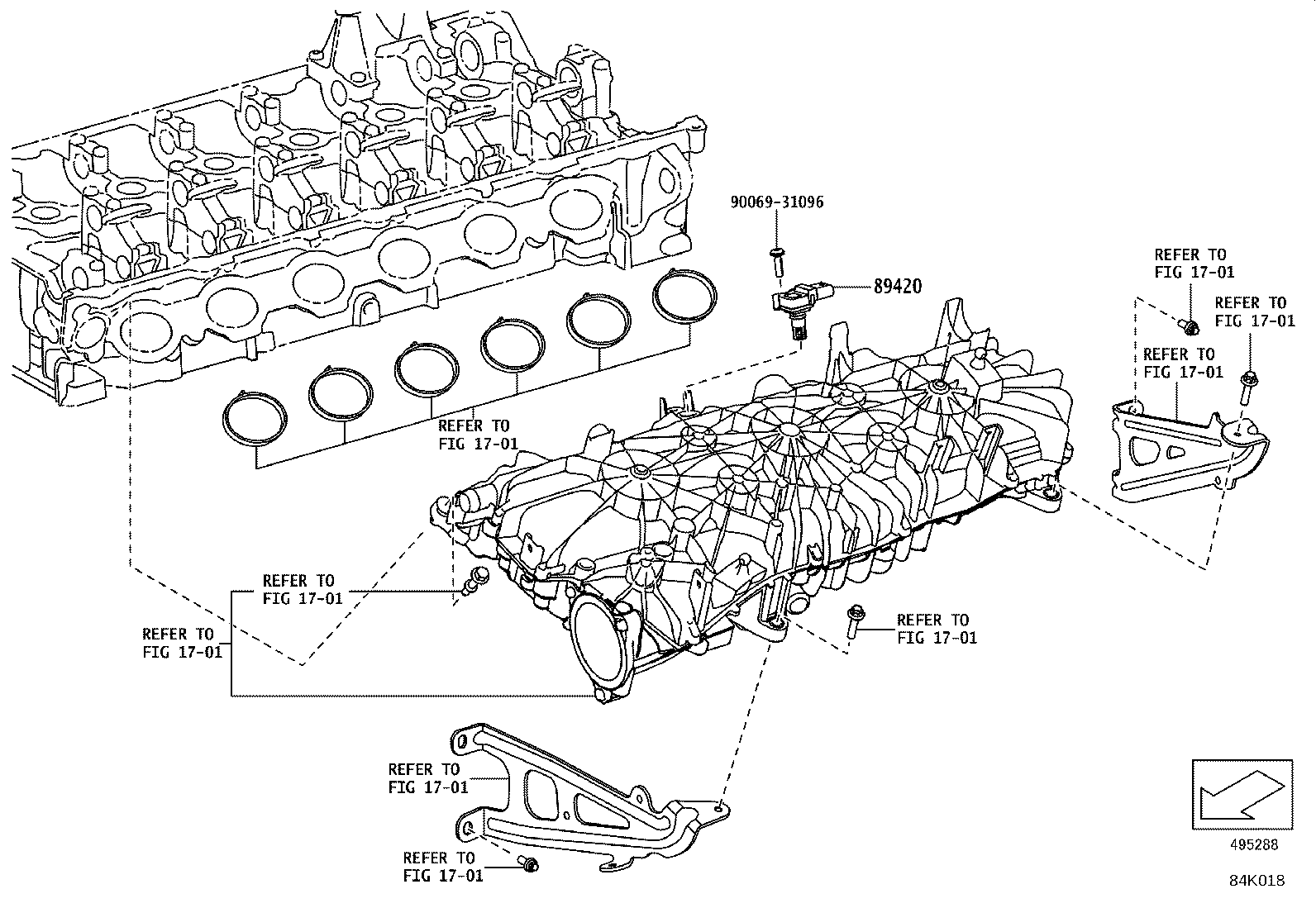

89420 Sensor Assy, Vacuum

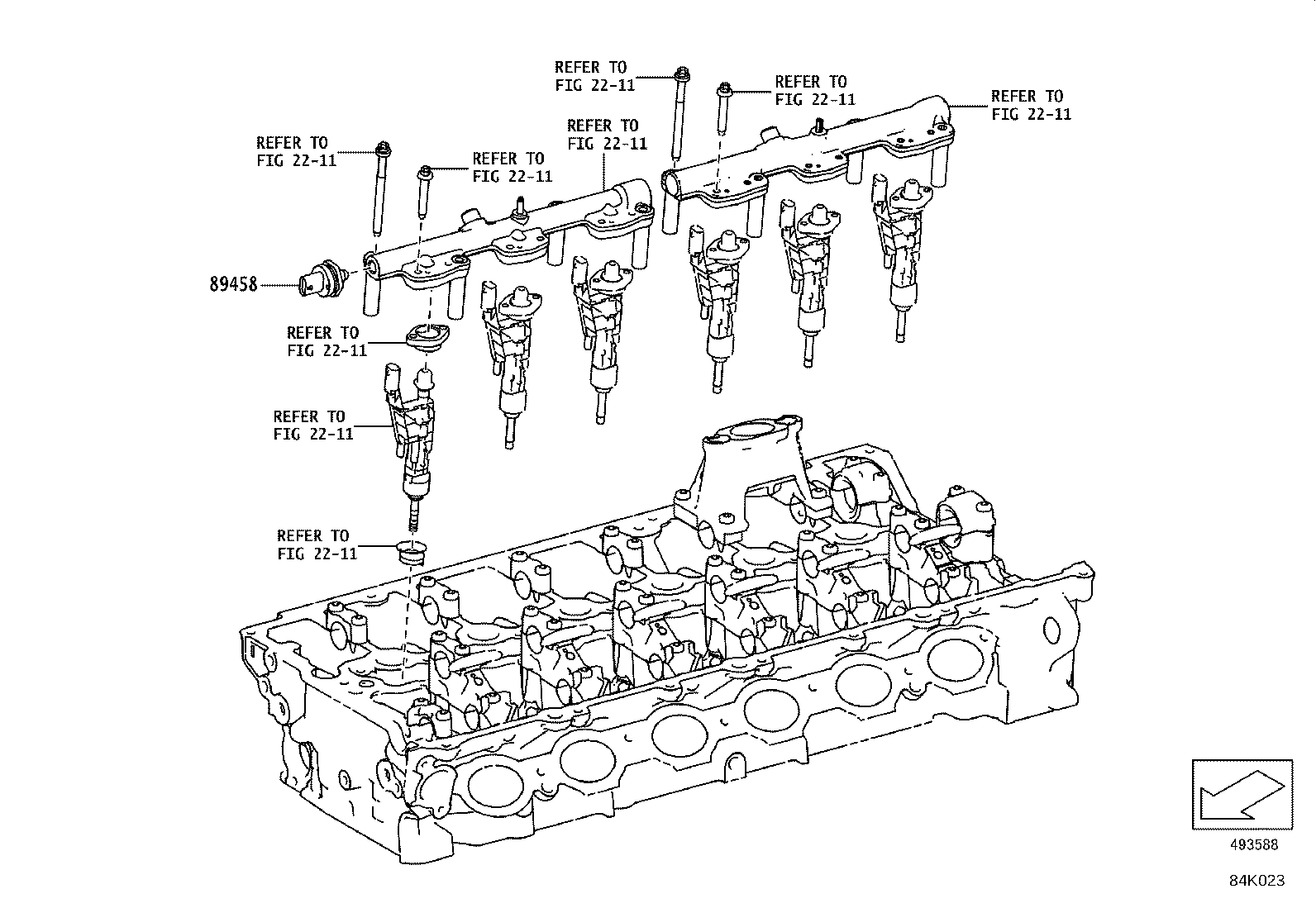

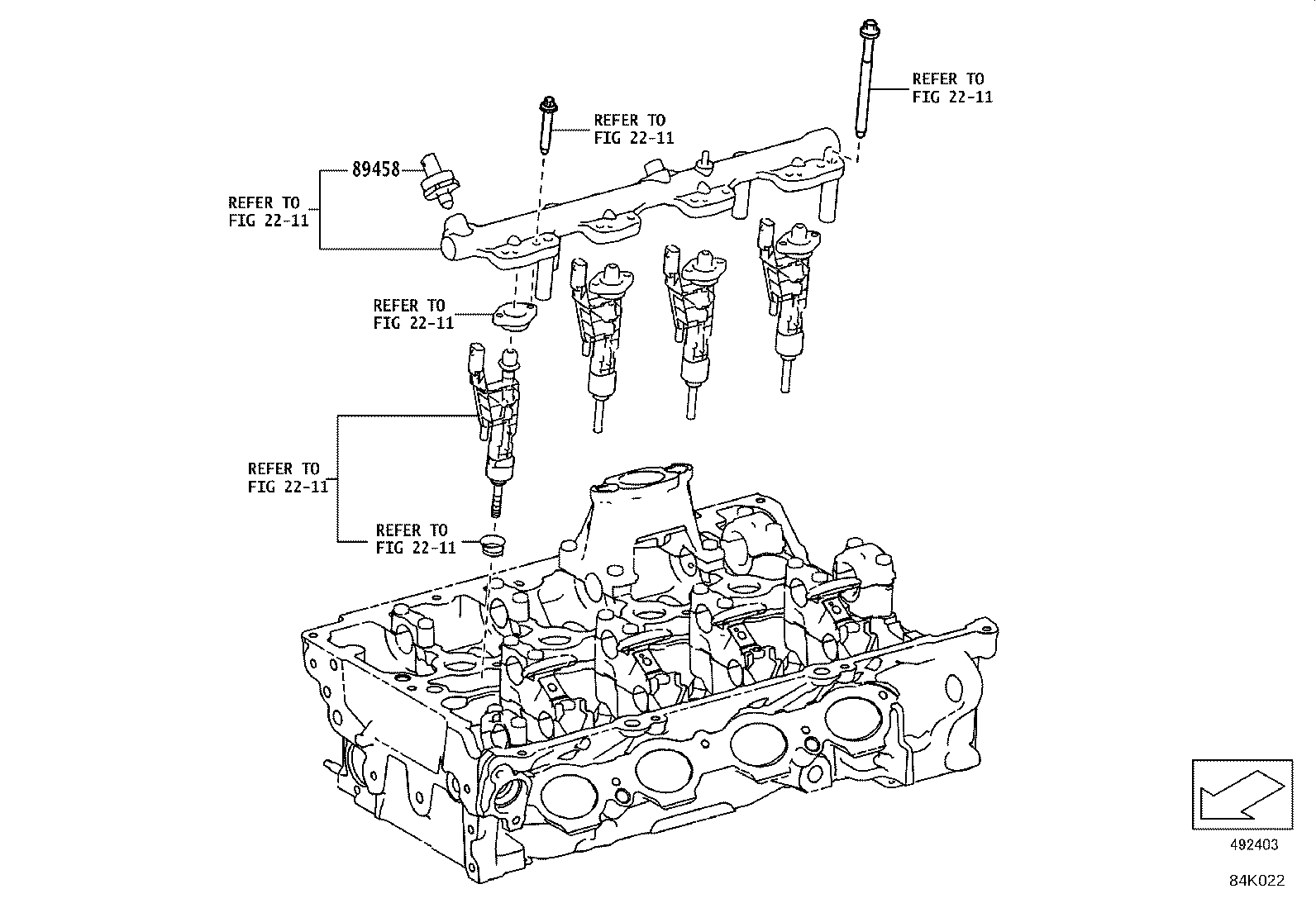

89458 Sensor, Fuel Pressure

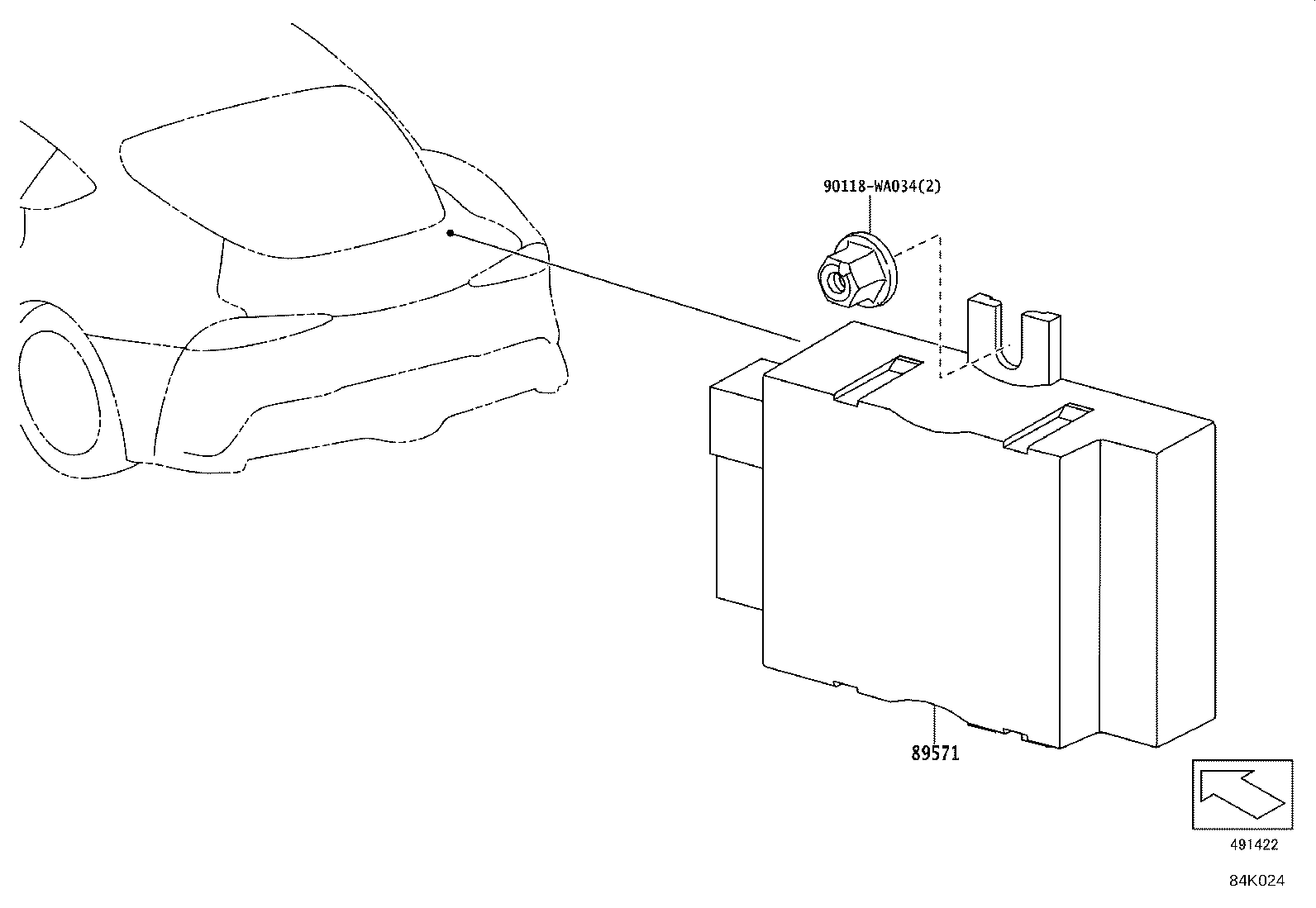

89571 Computer, Fuel Pump Control

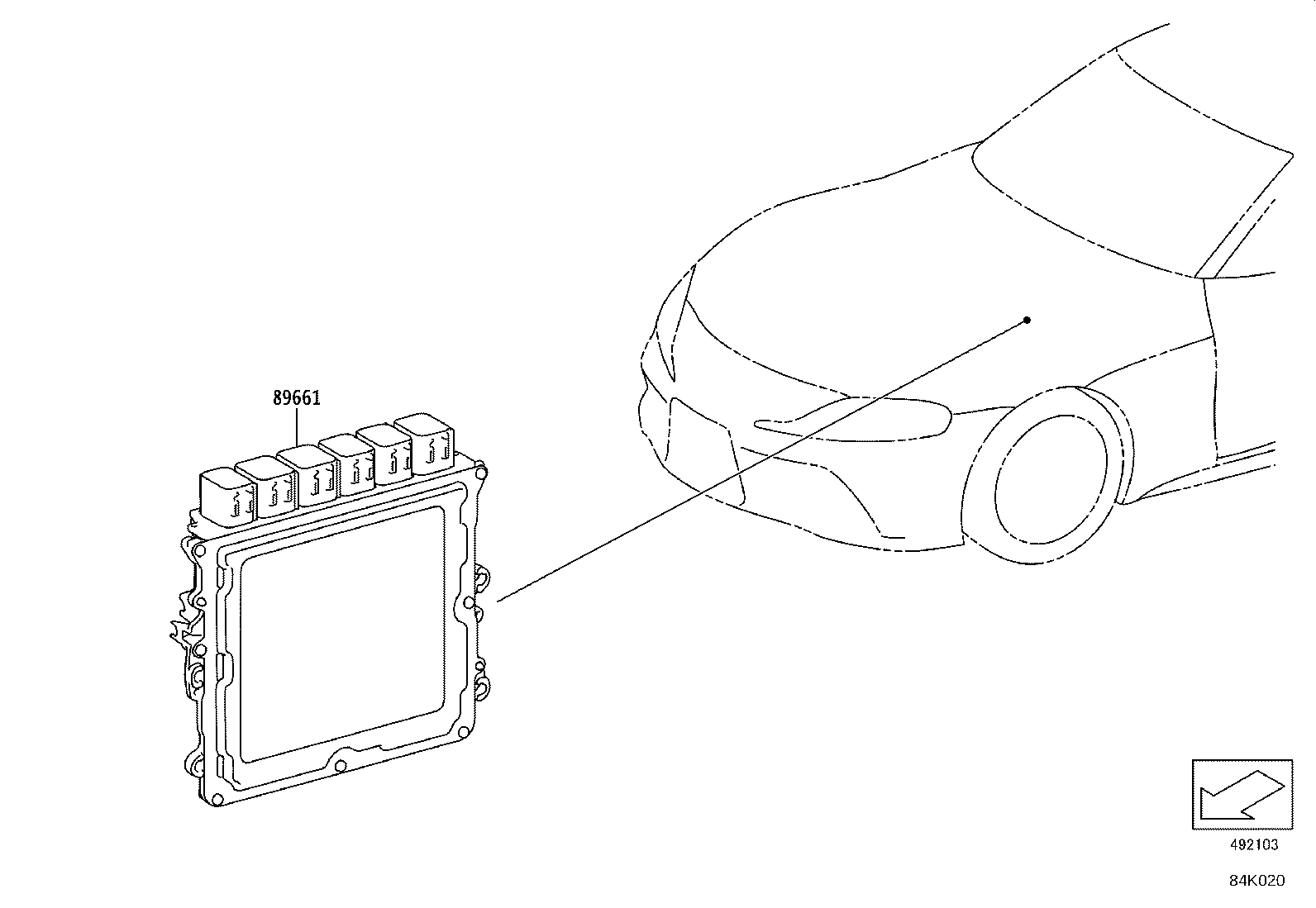

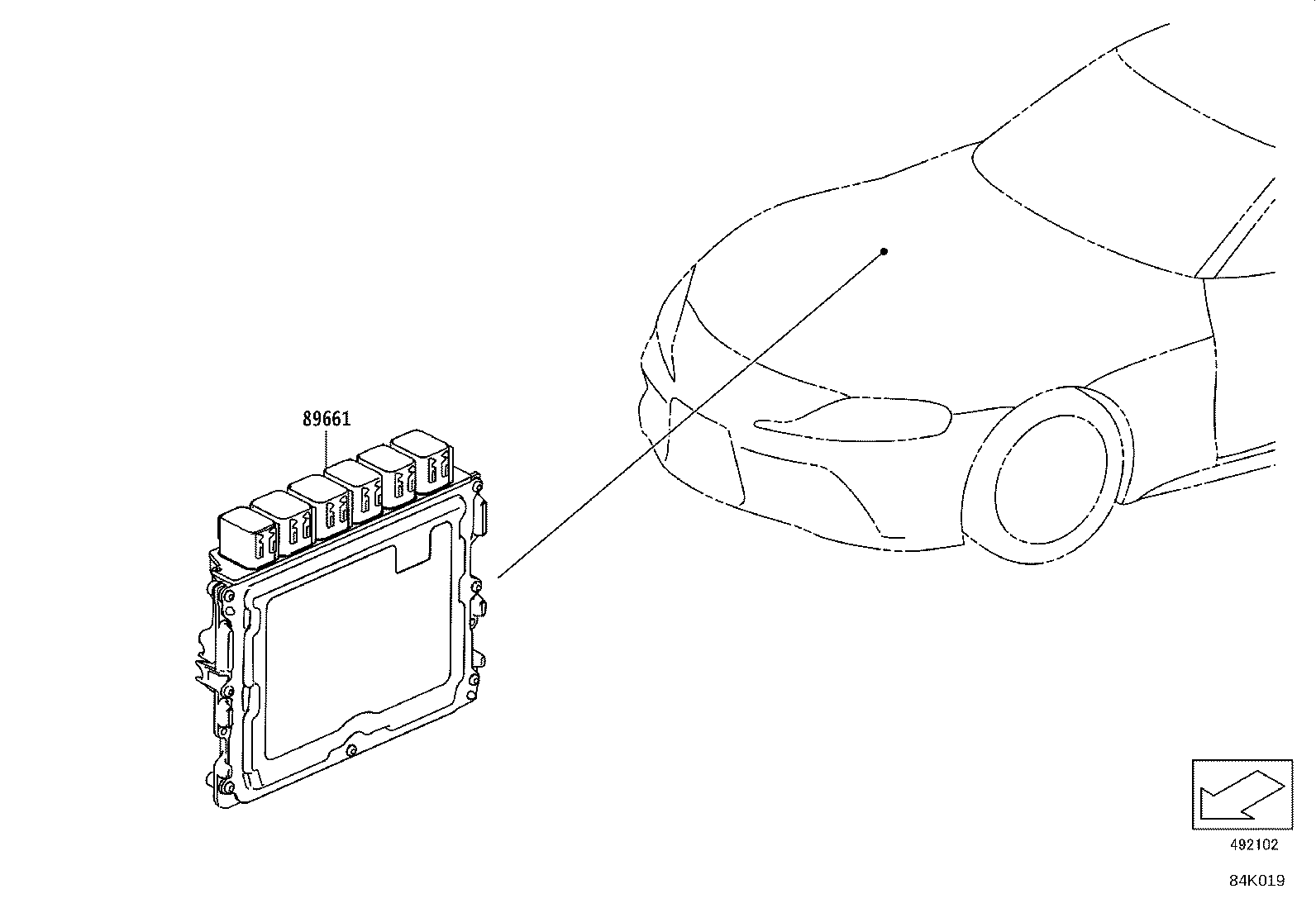

89661 Computer, Engine Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
