Toyota Supra

2019-03 → present · chassis DB03,23,43 · catalogue 291440 · United States

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 3 illustrations

Illustrations

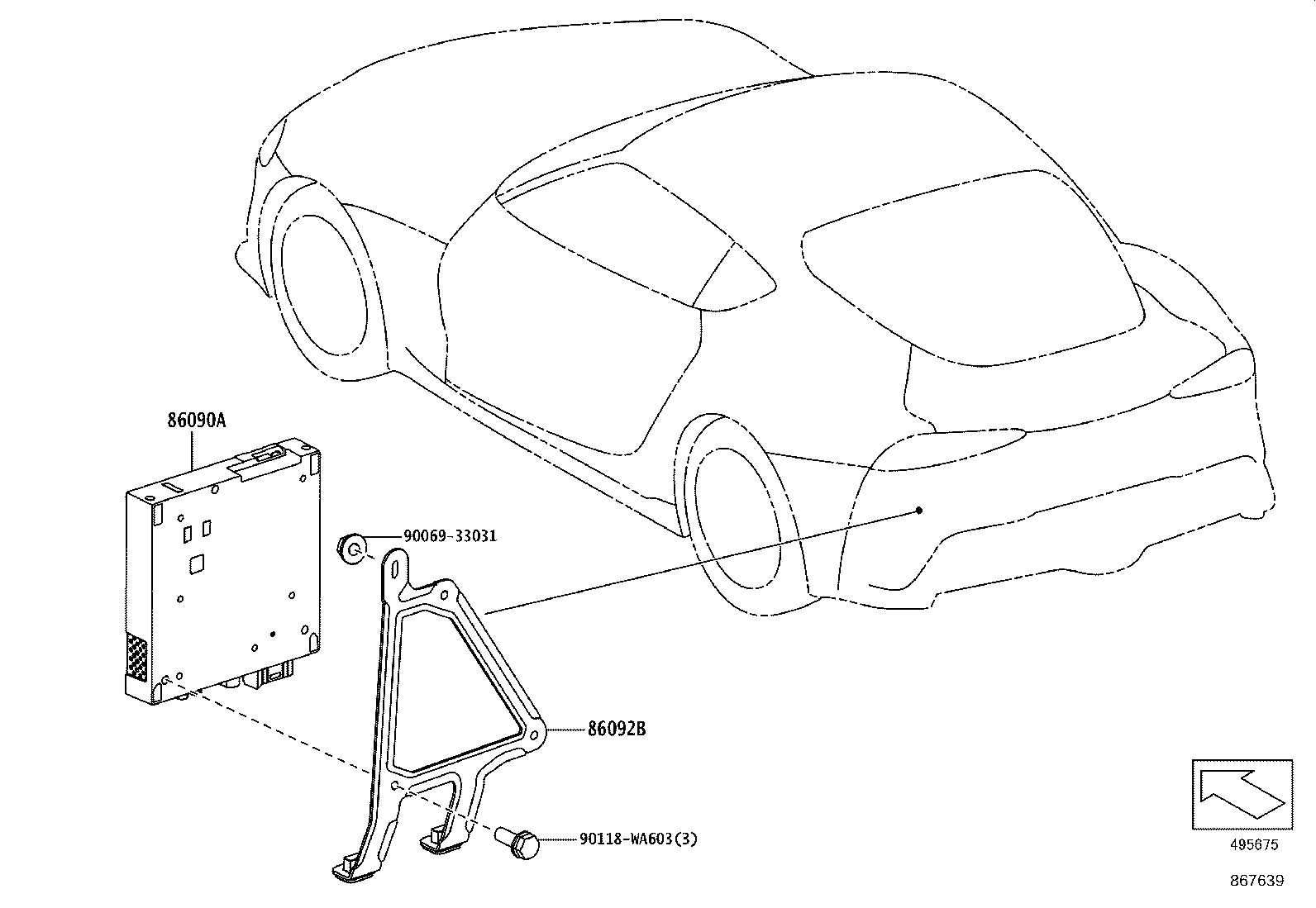

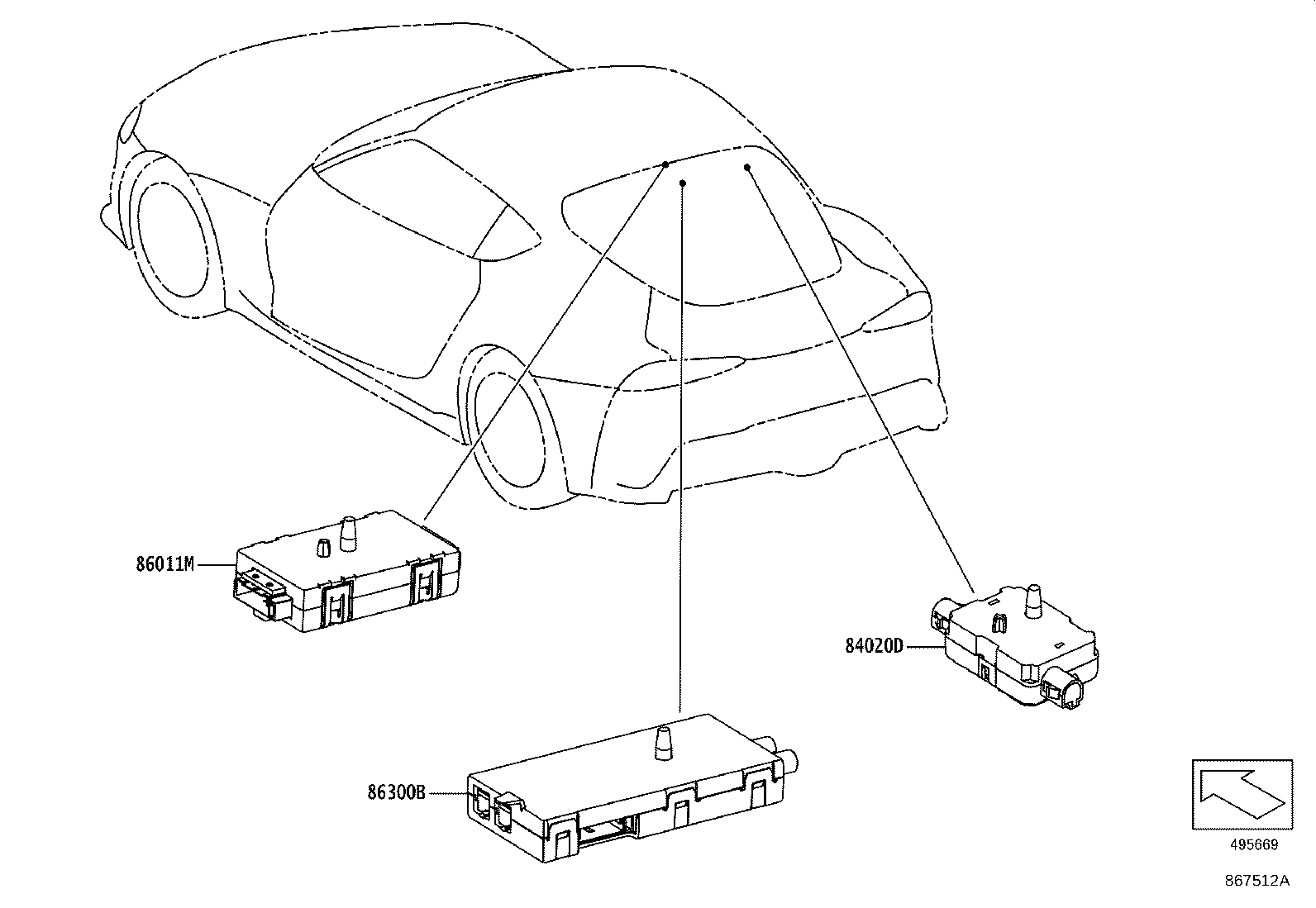

Figure 867727 867727 2019-03 → — Figure 867512A 867512A 2019-03 → — Figure 867639 867639 2019-03 → —

Part groups

PNCDescription
84020D Trap Circuit
86011M Filter, Noise
86090A Tuner Assy, Digital Television
86092B Bracket Set, Digital Television, NO.1
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
863C0B Antenna, Multiple-band
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
