Toyota Supra
2022-07 → present · chassis DB02,27 · catalogue 291450 · United States
Supported model
Data version 2022-08

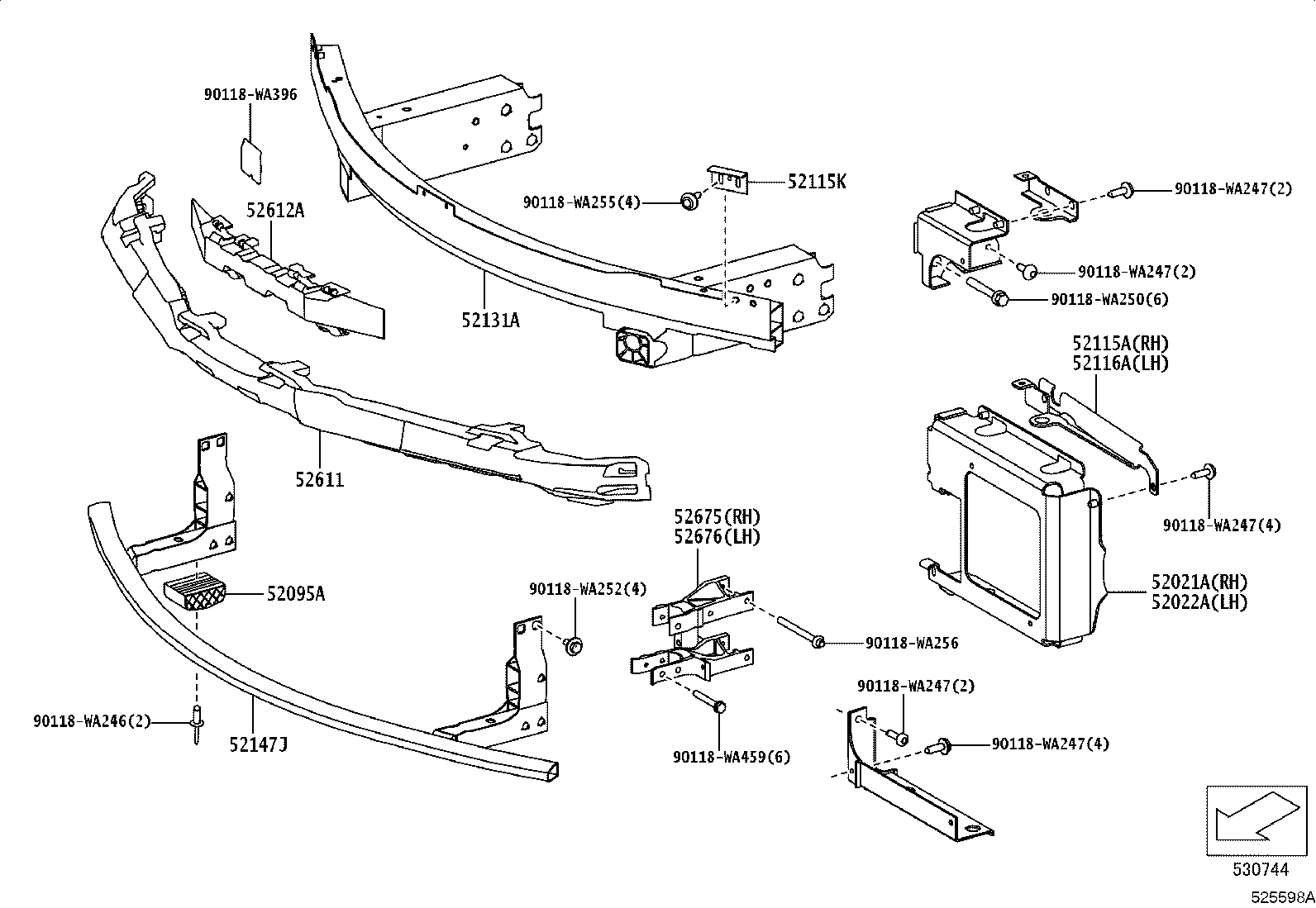

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021A — Reinforcement Sub-assy, Front Bumper, RH | ||||
| 57107-WAA01 |
Reinforcement Sub-assy, Front Bumper, RH
2022-07 → —
|
DB07,27 | — | |
| 52022A — Reinforcement Sub-assy, Front Bumper, LH | ||||
| 57108-WAA01 |
Reinforcement Sub-assy, Front Bumper, LH
2022-07 → —
|
DB07,27 | — | |
| 52095A — Absorber, Impact | ||||
| 52095-WAA01 |
Absorber, Impact
2022-07 → —
|
DB07,27 | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 57141-WAA01 |
Support, Front Bumper Side, RH
2022-07 → —
|
DB07,27 | — | |
| 52115K — Support, Front Bumper Side | ||||
| 52115-WAA01 |
Support, Front Bumper Side
2022-07 → —
|
DB07,27 | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 57142-WAA01 |
Support, Front Bumper Side, LH
2022-07 → —
|
DB07,27 | — | |
| 52131A — Reinforcement, Front Bumper | ||||
| 52021-WAA01 |
Reinforcement, Front Bumper
2022-07 → —
|
DB07,27 | — | |
| 52147J — Reinforcement, Front Bumper, Lower | ||||
| 52147-WAA01 |
Reinforcement, Front Bumper, Lower
2022-07 → —
|
DB07,27 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-WAA01 |
Absorber, Front Bumper Energy
2022-07 → —
|
DB07,27 | — | |
| 52612A — Support, Front Bumper Energy Absorber | ||||
| 52612-WAA01 |
Support, Front Bumper Energy Absorber
2022-07 → —
|
DB07,27 | — | |
| 52675 — Support, Front Bumper Lower Side, RH | ||||
| 52675-WAA01 |
Support, Front Bumper Lower Side, RH
2022-07 → —
|
DB07,27 | — | |
| 52676 — Support, Front Bumper Lower Side, LH | ||||
| 52676-WAA01 |
Support, Front Bumper Lower Side, LH
2022-07 → —
|
DB07,27 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
